Who Approves Scan-to-CAD Deliverables Before Manufacturing Release?

Approve scan-to-CAD deliverables only after the buyer controls the source, coordinate frame, assumptions, comparison method, and release authority. When a revised physical part is re-scanned, freeze the baseline and revised identities, reproduce relevant capture conditions, separate alignment and uncertainty from real change, and disposition each changed region. A color map alone cannot prove which differences were intentional.
Choose the right order path
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning, reverse-engineering, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
Separate deliverable acceptance from manufacturing release
A supplier may confirm that a mesh or CAD file was created to the agreed scope. That does not make the file an approved manufacturing definition. The buyer should assign acceptance for design intent, functional interfaces, safety and compliance boundaries, configuration, quality evidence, and intended asset use. One person may hold several roles in a small organization, but the decisions should remain explicit.
Build a role-and-gate approval matrix
| Gate | Typical decision owner | Evidence reviewed | Release question |
|---|---|---|---|
| Source acceptance | Engineering, maintenance, or product owner | Part identity, condition, wear, damage, revision history, rights, and intended use. | Is this the correct physical basis, and are its limitations understood? |
| Capture acceptance | Scanning lead with buyer technical review | Coverage, occlusions, reference frame, surface preparation, registration, excluded areas, and raw/native records. | Is the captured evidence sufficient for the downstream job? |
| CAD reconstruction | Design authority | Modeling assumptions, datum scheme, nominalization, feature interpretation, unresolved geometry, and file revision. | Does the model represent approved design intent rather than merely copying wear? |
| Verification | Quality or metrology authority | Controlled dimensions, comparison method, measurement limits, deviations, and traceable report identity. | Does the evidence address the defined acceptance criteria? |
| Functional validation | Equipment, maintenance, product, or engineering owner | Assembly, motion, interface, controlled trial, service context, exceptions, and residual risk. | Is the result acceptable for the stated use boundary? |
| Manufacturing release | Authorized engineering or configuration owner | Released CAD/drawing, material/process requirements, inspection plan, approved deviations, effectivity, and signatures. | Which revision may the supplier manufacture, and under what controls? |
Name the controlling deliverable
State whether the drawing, native CAD, neutral CAD, mesh, inspection report, or approved package controls production. Define document precedence, units, coordinate frame, revision syntax, file hash or other identity control when useful, and where approved records are stored. A polished model without a clear controlling status is still an uncontrolled file.
Control assumptions, deviations, and open questions
- List reconstructed, measured, inferred, copied, and intentionally redesigned features separately.
- Record inaccessible geometry, worn surfaces, flexible features, missing mating context, and any best-fit alignment.
- Assign each open question to an owner with a due date and stop condition.
- Require approval before filling a gap with a convenient assumption that affects fit or function.
- Keep one-time prototype deviations separate from permanent production-definition changes.
- Define when a new source part, asset, material, process, supplier, or revision requires revalidation.
Fit and non-fit cases
This approval model fits legacy replacement parts, discontinued components, service tooling, fixtures, guards, housings, brackets, adapters, and other projects where the buyer can define authority and evidence. It does not by itself approve safety-critical, pressure-containing, medical, regulated, high-load, high-temperature, electrical-protection, or other consequential uses. Those need application-specific engineering, testing, compliance, and release.
Make the approval package quote-ready
- Physical source identity, condition, custody rules, rights, confidentiality, and intended use.
- Requested capture, mesh, CAD, drawing, report, native-file, and transformation deliverables.
- Functional datums, critical interfaces, mating context, units, tolerances, and document precedence.
- Named reviewers for source, capture, CAD, verification, functional validation, and release.
- Material, process, finish, inspection, packaging, effectivity, revision, and revalidation requirements.
- Exception route, response window, approval evidence, release repository, and supplier notification method.
The 3D scanning and reverse-engineering service page is the commercial owner. Review the scan, mesh, and manufacturing-CAD guide for deliverable maturity, the functional fit-check guide for assembly evidence, and the production 3D printing page after the manufacturing definition is approved.
Frequently asked questions
Can the scanning supplier approve the reconstructed CAD for manufacturing?
A supplier can accept its own deliverable against the contracted scope, but the buyer should explicitly assign authority for design intent, intended use, functional validation, configuration, and manufacturing release.
Is a deviation color map enough to release CAD?
No. A comparison view can support geometric verification under a stated alignment, but it does not establish design intent, functional acceptance, material and process requirements, or release authority.
What should the supplier receive after approval?
Provide a clearly identified released package with controlling files, revision, units, material and process requirements, inspection scope, approved deviations, effectivity, and the buyer contact authorized to resolve exceptions.
Final decision
Do not release manufacturing until the controlling deliverable, evidence, exceptions, named approvers, revision, and use boundary are explicit. Route complex scanning, reverse-engineering, inspection-sensitive, multi-SKU, staged, or recurring work through farm intake; use instant quote for clean files and straightforward requirements.
Define surface continuity before approving reconstructed CAD
A reconstruction can look smooth in a shaded view while containing breaks that affect reflection, sealing, airflow, tooling, fit, or downstream editing. It can also be over-smoothed until real edge intent, wear, damage, or assembly boundaries disappear. Specify continuity only at named transitions and state whether the target comes from observed condition, nominal design intent, mating geometry, styling, manufacturing needs, or another approved source.
| Continuity level | What it controls | Typical buyer evidence | Approval risk |
|---|---|---|---|
| Positional continuity | Adjacent surfaces meet at the boundary | Boundary gap or overlap review, sections, and controlled edge identity | Surfaces can meet yet retain a visible or functional direction change |
| Tangent continuity | Surface directions align across the boundary | Tangent-angle method, highlight flow, sections, and transition ownership | A smooth-looking join can still change curvature abruptly |
| Curvature continuity | Curvature changes smoothly through the transition | Curvature-comb or equivalent analysis, reflection lines, sections, and defined region | Unnecessary constraints can distort surrounding geometry or obscure source evidence |
| Intentional break | A crease, parting line, shutoff, trim, seam, or functional edge remains explicit | Released edge definition, photographs, mating context, drawing, or buyer direction | Automatic surfacing may erase a feature that should control manufacturing |
Continuity is local, not a blanket quality grade
Do not request the highest continuity everywhere. A sealing land, styled exterior, aerodynamic transition, molded surface, machined interface, and hidden clearance zone can require different treatments. Define the boundary, neighboring surfaces, region of influence, evaluation method, and allowable deviation from source evidence. Where the physical sample is worn or damaged, also state whether continuity should follow the observed condition or reconstruct nominal intent.
Separate geometric smoothness from dimensional agreement
A curvature-continuous surface may deviate from the scan, and a surface that matches measured points closely may contain undesirable patch boundaries. Review both questions: how well the reconstruction represents approved evidence and whether transitions meet the required continuity. Use the same coordinate frame, units, alignment rule, section locations, and comparison settings throughout approval.
Controlled approval sequence
- Identify every transition whose continuity affects fit, function, appearance, tooling, or downstream use.
- Classify it as an intentional break, positional join, tangent join, curvature-controlled join, or unresolved region.
- Name the evidence source: scan, drawing, mating part, photographs, symmetry, design rule, or buyer-authorized reconstruction.
- Define the evaluation method and any numerical requirement without implying that a visual highlight alone proves acceptance.
- Review neighboring surface distortion, critical interfaces, patch layout, trimming, and manufacturability.
- Record exceptions and obtain approval from the buyer role that owns design intent and manufacturing release.
Fit and non-fit
This framework fits styled housings, fairings, duct transitions, covers, legacy molded parts, ergonomic shells, cosmetic panels, and other reconstructions where surface flow influences the result. It is not a substitute for engineering analysis, tooling validation, tolerance definition, regulated design controls, or buyer approval. Simple prismatic geometry, intentional creases, or noncritical hidden surfaces may not benefit from higher-order continuity.
Quote-readiness inputs
Provide the physical source or controlled scan, part condition, units, coordinate frame, mating geometry, drawings or photographs, named transition regions, desired continuity by boundary, intentional edges, styling or functional priorities, manufacturing process, critical dimensions, comparison method, deliverable format, downstream editing needs, acceptance owner, and unresolved assumptions. Use the approved alignment method and a controlled datum scheme when continuity decisions depend on assembly context.
Surface continuity FAQs
Is tangent continuity enough for every visible surface?
No. Some visible transitions need curvature control for reflection flow, while others intentionally use a crease or accept a tangent join. The requirement should follow the buyer's function and appearance decision.
Can zebra or reflection lines prove acceptance?
They are useful visual evidence but should be tied to a stated boundary, viewing setup, source comparison, and approval method. They do not independently establish dimensions, tolerances, or design intent.
Should reconstructed surfaces match every scan fluctuation?
Not automatically. Scan noise, wear, deformation, damage, texture, and measurement uncertainty may not represent nominal intent. Preserve the evidence, document what is filtered or reconstructed, and obtain buyer approval.
Final continuity decision
Release reconstructed CAD only when each controlled transition has a named continuity requirement, evidence source, evaluation method, exception record, and approval owner. If “make it smooth” is the full requirement, the release definition is incomplete.

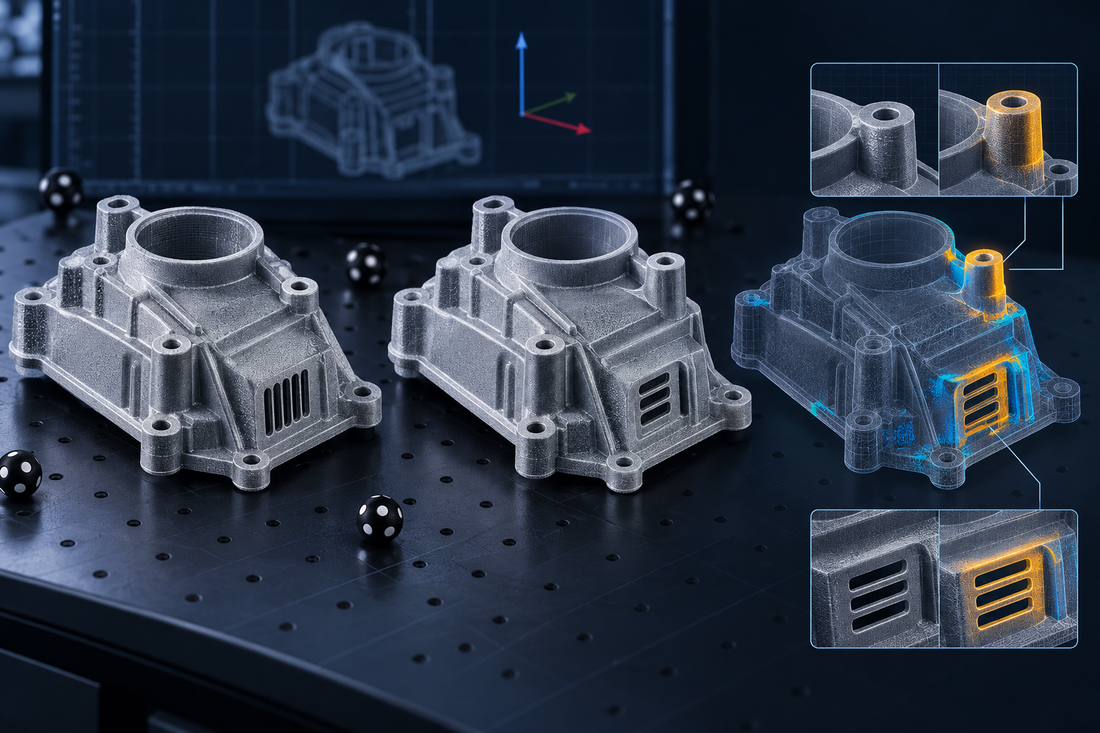

Re-scan a revised part with a controlled change-confirmation plan
A second scan does not automatically prove what a revision changed. Different setup, temperature, part condition, targets, surface preparation, coverage, registration, alignment, filtering, or comparison settings can create apparent differences. The buyer should treat baseline identity, revised identity, capture comparability, uncertainty, change classification, and engineering disposition as separate gates.
| Control | Evidence to freeze | Risk if omitted |
|---|---|---|
| Baseline identity | Part number, serial or sample ID, revision, source date, condition, repair history, reference files, and prior scan state | The project compares the wrong physical or digital authority |
| Revised identity | Change order, build state, material, process, tooling or program revision, finishing, and effectivity | An incidental process change is mistaken for the intended design revision |
| Capture comparability | Conditioning, fixturing, targets, surface treatment, access, coverage, calibration state, registration, filtering, and units | Setup differences appear as geometry changes |
| Alignment and comparison | Datum or best-fit rule, participating regions, exclusions, coordinate frame, distance method, scale, clipping, and sections | Global alignment redistributes deviation and hides or exaggerates local changes |
| Change disposition | Intentional, incidental, uncertain, wear-related, process-related, or nonconforming classification with owner and evidence | The color map becomes an undocumented revision decision |
Start with a change hypothesis, not a whole-part heat map
List the features expected to change, their reason, and the interfaces expected to remain stable. Include added or removed material, shifted bosses, hole or slot changes, wall transitions, clearance regions, datum features, tooling signatures, and cosmetic areas. Then use the whole-part comparison to look for unintended differences outside those regions rather than asking reviewers to interpret an unexplained field of colors.
Choose the alignment that preserves the decision
Use approved datum or interface alignment when the question is how a changed feature moved relative to functional references. Use a bounded best fit only when overall form is the intended comparison and document which regions participate. For some reviews, show both: a functional alignment for release and a secondary best-fit view for diagnosis. Never mix results from different alignments without labeling them.
Separate intentional change from incidental difference
For every flagged region, record whether the difference is authorized by the revision, caused by manufacturing or finishing, attributable to wear or deformation, within the expected measurement context, unresolved, or unacceptable under an approved requirement. Preserve numeric sections or feature results where they matter. A vivid local map is useful evidence, but it is not a substitute for the governing requirement or decision rule.
Controlled re-scan sequence
- Freeze the baseline part, file revision, original scan or report, coordinate frame, and known limitations.
- Freeze the revised part identity, change authorization, expected change list, and intended effectivity.
- Plan comparable conditioning, fixturing, coverage, targets, surface preparation, and supplemental measurement.
- Register each dataset independently and review capture quality before comparing one dataset with the other.
- Apply the approved alignment and fixed display controls; preserve global context plus targeted sections and feature evidence.
- Classify each difference as intentional, incidental, uncertain, or requiring corrective action, with an owner and source.
- Approve the final model or physical revision only after unchanged critical interfaces and intended change regions are both addressed.
Fit, non-fit, and production risks
This method fits engineering-change confirmation, supplier transfer, tool or process revision review, field modification documentation, legacy-part replacement, and first-article comparison when the baseline is trustworthy. It is not automatically a dimensional-inspection report, capability study, tolerance recovery method, or proof of product performance. Pause when identities are unclear, the baseline was not preserved, parts were conditioned differently, flexible or loaded geometry changed state, the comparison lacks functional references, or uncertainty is large relative to the decision.
Quote-readiness inputs
Provide both physical parts or controlled datasets, part and revision IDs, change order, expected and prohibited change regions, part condition, material and process history, datum or alignment rule, coordinate system, conditioning and fixturing needs, scan access, surface-treatment permissions, target evidence, comparison outputs, uncertainty expectations, acceptance authority, delivery formats, source-data retention, and the downstream manufacturing decision. Review registration error versus part deviation, best-fit versus datum alignment, and local versus global deviation scales.
Revision re-scan FAQs
Can two scans be subtracted to show exactly what changed?
They can support a difference comparison, but the result depends on identity, capture, registration, alignment, filtering, normals, correspondence, and display settings. Those controls must be documented before differences are interpreted.
Should unchanged areas be used for alignment?
Often they are useful, but only when they are stable, observable, functionally appropriate, and approved for that purpose. Exclude worn, flexible, repaired, or intentionally changed regions when they would bias the decision.
Does a matching change region prove the revision is approved?
No. It shows evidence of a difference under the stated comparison. The buyer still needs to confirm the requirement, inspect critical relationships, review unintended changes, and authorize release.
Final revision decision
Confirm a revised physical part only when baseline and revised identities, comparable capture conditions, registration, alignment, uncertainty, expected changes, unintended differences, and disposition authority are traceable. If the only evidence is that two color maps look different, the revision is not yet controlled.
Archive scan-to-CAD evidence so a future reorder can be released safely
Archive more than the final STEP file. A reorder-ready scan-to-CAD record connects the physical source identity and condition to raw capture, registration and alignment choices, reconstruction decisions, approved manufacturing files, validation evidence, revision status, rights, retention rules, and the buyer's release authority. Future teams should be able to tell what was observed, what was inferred, and which package may actually control production.
| Archive layer | Minimum controlled record | Future-reorder risk if missing |
|---|---|---|
| Physical source | Item ID, owner, source location, suspected revision, as-received condition, repairs, wear, preparation, custody, and photographs | A later reviewer cannot tell whether the model represents nominal intent, damage, or a different variant |
| Capture evidence | Raw/native data, date, equipment and software identity where supplied, setup, support, targets, surface treatment, coverage, occlusions, units, and file checksums or equivalent identity controls | A polished mesh cannot be traced to the evidence or reprocessed when assumptions change |
| Registration and frame | View registration, alignment method, datums, coordinate systems, transforms, exclusions, handedness, scale, and participating regions | A future comparison can move or mirror geometry while appearing plausible |
| Reconstruction decisions | Observed, idealized, restored, inferred, redesigned, retained-modification, and unresolved feature classifications with evidence and approver | Manufacturing silently treats modeling judgment as measured fact |
| Released package | Controlling CAD or drawing, neutral and native formats when authorized, revision, material and process requirements, acceptance method, approved deviations, and effectivity | The supplier selects the newest-looking file rather than the approved definition |
| Validation and use | Comparison reports, supplemental measurements, mating or functional checks, first-article evidence, limitations, decision owner, and release record | Possession of files is mistaken for approval to manufacture or use |
Separate evidence, working files, and released records
Use distinct archive states. Source evidence is retained for traceability and possible reinterpretation. Working files document cleanup, registration, sections, feature construction, and review iterations but are not production authority. Released records identify the one approved manufacturing baseline. Superseded and rejected files should remain traceable when retention requires it, but they must be visibly blocked from ordinary release.
Create one archive manifest
The manifest should list each file or physical reference by stable ID, filename, format, revision, date, owner, purpose, status, checksum or other integrity control where appropriate, storage location, access group, retention rule, confidentiality class, and relationship to the released package. Record software or version dependencies when native data may be unreadable later. Include a human-readable PDF or plain-text index so the archive can be understood without recreating the original project environment.
Preserve the decision trail without exposing confidential data
Archive who approved the source, reconstruction, validation, and manufacturing release; what exceptions remained; and which assumptions were accepted. Keep customer identity, pricing, credentials, and unrelated project data outside supplier handoff packages. Access should follow the buyer's confidentiality, intellectual-property, export, privacy, legal-hold, and contractual requirements rather than a public-content workflow.
Test retrieval before relying on the archive
- Select a representative released part and retrieve the package from the authoritative repository without using a creator's local folders.
- Confirm that the manifest resolves to readable source, working, released, and validation records.
- Verify units, coordinate frame, handedness, revision, critical interfaces, material/process scope, and document precedence.
- Confirm that obsolete files cannot be mistaken for the manufacturing baseline.
- Identify the current buyer release owner and the revalidation triggers for a new supplier, process, material, source part, or elapsed condition change.
- Record gaps and close them before the next urgent reorder.
Fit, non-fit, and production risks
This archive fits authorized legacy replacements, service parts, tooling, fixtures, and recurring products where scan-to-CAD evidence may support future orders or supplier changes. It does not establish perpetual manufacturing rights, prove original design intent, certify a material, preserve unsupported software forever, or remove the need to revalidate after material changes. Pause when rights are unclear, the controlling file cannot be identified, the physical source is an unknown revision, validation evidence is absent, or a future use exceeds the approved boundary.
Make archive and reorder requirements quote-ready
Provide source identity and custody, authorized capture and reproduction scope, expected raw/native/mesh/CAD/drawing/report deliverables, native and neutral format needs, units and coordinate requirements, reconstruction decision rules, critical interfaces, validation plan, revision syntax, file-identity method, repository and transfer constraints, confidentiality and access, retention or deletion rules, revalidation triggers, and named release authority. Use the 3D scanning and reverse-engineering service, then review coordinate-system handoff controls and physical-part chain of custody.
Scan-to-CAD archive FAQs
Is the final STEP file enough for a future reorder?
Usually not for a reverse-engineered definition. It does not show source condition, coordinate choices, reconstruction assumptions, validation, revision status, or release authority.
Must every working file be sent to every supplier?
No. Preserve records according to ownership and retention rules, but transfer only the controlled package the receiving supplier is authorized and needs to use.
Should raw scan data control manufacturing?
Not unless the buyer explicitly defines it that way. Raw evidence normally supports traceability; an approved CAD, drawing, or controlled package should identify production authority.
Final archive decision
Call the archive reorder-ready only when an authorized reviewer can retrieve the source evidence, reconstruct the decision trail, identify the controlling revision, understand limitations, and route the package through current manufacturing approval. If a folder merely contains many unlabeled files, it is storage, not a controlled production archive.
Sign off reconstructed-geometry assumptions before manufacturing
Sign off reconstructed geometry by approving each consequential assumption, not just the final CAD file. Tie inferred surfaces, symmetry, hole locations, nominalized dimensions, and missing features to source evidence; state uncertainty and functional impact; name the reviewer and decision owner; and record whether each item is accepted, revised, tested, or unresolved. Manufacturing release should remain blocked wherever an open assumption could change fit, function, inspection, or safety.
Reconstructed-geometry assumption register
| Field | What to record | Approval question |
|---|---|---|
| Feature and reason | Feature ID, region, governing interface, why direct evidence is incomplete, and the decision required | Does this assumption matter to fit, function, inspection, process, or safety? |
| Source evidence | Scans, measurements, donors, mating parts, drawings, photos, symmetry, repeated patterns, and service observations | Which facts support the reconstruction, and which are only inferred? |
| Proposed geometry | Nominal value or surface, coordinate frame, units, method, alternatives considered, and deviation from observed data | Is the proposal reproducible and visible in the released deliverable? |
| Risk and verification | Uncertainty, affected requirements, prototype or fit check, measurement plan, test, and failure consequence | What evidence will show whether the assumption is acceptable? |
| Disposition | Accept, revise, redesign, validate, hold, or reject; owner, reviewer, date, scope, revision, and downstream actions | Is authority clear enough to permit manufacturing release? |
Separate observed geometry from approved design intent
- Freeze the identity, condition, coordinate frame, and revision of every source used in reconstruction.
- Tag every filled gap, idealized plane or cylinder, symmetry operation, pattern completion, hole relocation, wall restoration, and nominalized dimension.
- Link each tag to evidence and show the difference between captured geometry and the proposed manufacturing definition.
- Assign impact: cosmetic, fit, motion, sealing, load path, inspection, assembly, tooling, or unknown. Escalate unknown consequences rather than minimizing them.
- Define validation that matches the decision, such as mating-part review, dimensional comparison, pilot fit, functional test, or a buyer-controlled engineering check.
- Close every release-critical assumption through named authority and carry the approved register, model revision, and validation evidence into the manufacturing handoff.
Fit, non-fit, risks, and quote readiness
An assumption register fits worn, broken, incomplete, flexible, repaired, or undocumented legacy parts and any scan-to-CAD project that restores nominal geometry. It does not turn a supplier into the design authority, prove hidden requirements, or substitute for buyer engineering review. Risks include silent symmetry errors, idealized holes that miss mating hardware, blended revisions, overconfident surface repair, and a manufacturing file that no one explicitly authorized.
Provide source identities, governing files, mating components, critical interfaces, prohibited changes, known requirements, proposed deliverable type, assumption categories, decision owners, validation methods, acceptance evidence, and release authority. Use the mesh hole-filling guide for missing surface data and the disassembly approval guide when more evidence requires irreversible access.
Geometry assumption signoff FAQs
Does approving a CAD file approve every assumption automatically?
Only if the approval record explicitly identifies the file revision, assumption set, scope, and authority. A generic file approval can hide unresolved decisions and should not be treated as evidence of informed signoff.
Who should approve inferred geometry?
The buyer should assign authority based on consequence. Engineering may own design intent, quality may review verification evidence, operations may confirm installation context, and procurement may confirm scope without becoming the technical approver.
What if an assumption cannot be verified before manufacturing?
Record the limitation and either hold release, approve a bounded pilot or test article, redesign the feature under authorized engineering control, or accept the documented risk through the buyer's formal process.
Final decision
Proceed only when source identity, observed evidence, uncertainty, assumptions, functional impact, validation, decision owners, and manufacturing authority form one controlled record. Review 3D scanning and reverse-engineering services for the primary commercial path. Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning or reverse-engineering, or otherwise complex work; instant quote fits clean files and straightforward requirements.
Materially updated
Manage irrecoverable features in a damaged legacy part
When a damaged legacy part no longer contains a usable feature, do not silently rebuild it from the scan. First seek better evidence through recapture, mating components, other samples, prior files, or assembly measurements. If evidence still cannot recover the feature, classify the gap, document bounded inference or authorized redesign, define validation, and keep manufacturing release blocked until the buyer's named authority accepts the decision.
Irrecoverable-feature decision record
| Path | Evidence and action | Release rule |
|---|---|---|
| Recapture | Reclean, reposition, disassemble when authorized, change capture method, or expose the feature without altering evidence | Release only after the new data is tied to the controlled source and coordinate frame |
| Assembly evidence | Measure mating parts, fasteners, stops, envelopes, clearances, motion, or installation context | Record what the assembly constrains and what remains unknown |
| Additional samples | Compare donors by revision, service condition, repair history, and feature region | Do not average incompatible or unidentified samples |
| Bounded inference | Propose geometry from symmetry, repeated patterns, adjacent surfaces, or functional constraints | Name the assumption, uncertainty, consequence, validation, approver, and scope |
| Authorized redesign | Create new geometry to meet a buyer-defined requirement rather than claiming to recover original intent | Release as a controlled design change with ownership and acceptance criteria |
| Non-release | Stop when evidence and validation cannot bound fit, function, inspection, or safety risk | No production file until authority and evidence change |
Use an evidence ladder before inference
- Identify the missing feature, affected interfaces, source condition, and why the current capture cannot support a manufacturing definition.
- Try reversible recapture and better access before altering, cutting, cleaning, or repairing the source.
- Check mating parts, assembly state, prior drawings, photos, repair records, and other physical samples.
- Separate directly observed geometry from constraint-based reconstruction, engineering inference, and deliberate redesign.
- Match validation to consequence: comparison, mating review, fit article, inspection, functional check, or a buyer-controlled engineering test.
- Record the final disposition, file revision, decision owner, evidence package, remaining limitation, and manufacturing-release authority.
Fit, non-fit, risks, and quote readiness
This workflow fits broken, worn, corroded, cut, repaired, incomplete, or distorted legacy parts when a feature is missing from the physical evidence. It does not prove original design intent, material performance, hidden geometry, or safety suitability. Major risks include copying damage, blending revisions, overconfident symmetry, treating a mating gap as a nominal dimension, and releasing a redesign as though it were reconstruction.
Provide the source-part identity and condition, known revision, missing-feature location, assembly context, mating components, additional samples, prior files, permitted handling, critical interfaces, prohibited changes, validation evidence, decision owners, and release authority. Review multiple-sample reconstruction and mesh hole-filling risks before choosing inference.
Irrecoverable-feature FAQs
Can symmetry be used to rebuild a missing feature?
It can support a bounded assumption, but symmetry is not proof. Confirm that the part is intended to be symmetric, record deviations and functional consequences, and require the appropriate buyer approval.
When does reconstruction become redesign?
When the geometry is chosen to meet a new or interpreted requirement rather than recovered from sufficient source evidence. Label that decision clearly and control it as buyer-authorized design work.
What if no validation can reduce the uncertainty?
Keep the feature unresolved and do not release the manufacturing file. Non-release is the correct outcome when uncertainty cannot be bounded for the intended use.
Final decision
Proceed only when every lost feature has a traceable evidence path, explicit disposition, suitable validation, and named release authority. Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning or reverse-engineering, or otherwise complex work; instant quote fits clean files and straightforward requirements.
Materially updated
Choose the right order path
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning, reverse-engineering, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
How to compare scan-derived CAD with the last released revision
Compare scan-derived CAD with the last released revision before deciding what changed or which geometry should move forward. Freeze both file identities, align them with a buyer-approved method, map differences by function, and classify each difference as wear, damage, manufacturing variation, undocumented change, alignment effect, or intentional redesign. Do not let the scan silently overwrite the released baseline.
Freeze both sides of the comparison
Record the last released CAD or drawing identifier, revision, units, configuration, effective date, supersession status, and source of authority. Separately identify the physical part, asset, serial or configuration context, received condition, scan dataset, preprocessing history, reconstructed CAD revision, and who created it. A file found in a shared folder is not automatically the last released definition.
| Difference class | Evidence to review | Release consequence |
|---|---|---|
| Wear or erosion | Contact zones, repeated samples, mating evidence, service history, asymmetric loss, and received-condition photographs | Do not reproduce the worn condition unless the buyer explicitly owns that decision |
| Damage or deformation | Cracks, impact marks, heat effects, bent features, broken edges, repair history, and assembly constraints | Hold the affected region for engineering disposition or bounded reconstruction |
| Manufacturing variation | Multiple samples, released requirements, process marks, lot history, and feature distribution | Choose a controlled nominal rule instead of copying one sample blindly |
| Undocumented field change | Asset configuration, installed mates, maintenance records, repeated evidence, and functional reason | Escalate for change ownership; presence on one part does not establish design authority |
| Alignment or processing effect | Datum scheme, best-fit settings, exclusions, mesh cleanup, hole fills, smoothing, and residual maps | Correct the comparison method before interpreting geometry as a real change |
| Intentional redesign | Approved problem statement, interface requirements, risk review, validation plan, and named approver | Create a new controlled revision rather than representing it as recovered legacy geometry |
Compare by functional region, not one global color map
Separate mounting, locating, mating, sealing, motion, clearance, load-transfer, human-interface, and cosmetic regions. A global best fit can distribute error until the map looks balanced while moving a critical interface. Use the approved datum or assembly reference and report the distance method, sign convention, sampling, exclusions, and regions touching inferred geometry. The best-fit versus datum-alignment guide explains the reference decision.
Preserve the difference map and its disposition
Assign every material difference a stable identifier, affected feature or region, evidence source, preliminary classification, consequence, owner, required action, and final disposition. Useful outcomes include retain released geometry, accept received condition for a bounded quantity or asset, reconstruct a nominal feature from approved evidence, redesign under a new revision, recapture data, or hold pending evidence. Preserve rejected interpretations instead of deleting them from the record.
Use additional samples without averaging away design intent
More samples can separate recurring geometry from one damaged part, but they can also mix revisions, tooling states, repairs, or configurations. Confirm identity and comparability first. When several controlled samples are available, use the multiple-sample nominal-CAD guide to define what evidence may support reconstruction.
Release through a controlled seven-step review
- Confirm the authoritative released baseline and the physical source identity.
- Freeze scan, mesh, reconstructed CAD, units, coordinate systems, and preprocessing.
- Approve the alignment and functional regions before judging deviations.
- Classify each consequential difference and identify missing evidence.
- Assign engineering, quality, maintenance, operations, and supplier responsibilities.
- Validate critical interfaces and document any bounded exceptions or new design work.
- Issue an approved revision with effective scope; do not overwrite the last released file.
Fit, non-fit, risks, and quote readiness
This workflow fits replacement parts, scan-to-CAD transfers, legacy components, field-return cores, and manufacturing-release reviews. It does not establish design rights, safety suitability, material performance, tolerances, or acceptance criteria without buyer evidence. Provide the released files and revision history, source-part identity and condition, scan data, units, coordinate system, intended use, functional interfaces, known repairs or changes, comparable samples, allowed assumptions, validation needs, and named release authority.
Released-revision comparison FAQs
Should the newest physical part automatically replace the released CAD?
No. The part may contain wear, damage, process variation, repair, or an undocumented configuration. Treat it as evidence that requires classification and approval.
What if the released file no longer matches the installed assembly?
Preserve both facts, document the assembly context, and assign change ownership. A verified field configuration may justify a controlled new revision, but it should not silently rewrite history.
Can a color map approve manufacturing release?
No. It supports review only when the file identities, alignment, processing, regions, distance method, limits, and decision authority are controlled.
For managed production, inspection-sensitive, scanning, staged, or recurring work, use production 3D printing and farm intake. For clean production-ready files with straightforward requirements, use the instant quote path.
Final decision
Release work only when the controlled identity, evidence boundary, decision owner, accepted quantity, restrictions, next review, and closure rule are explicit enough that another reviewer can reproduce the decision without guessing.
