How to Establish a Reference Frame When Scanning an Existing Assembly

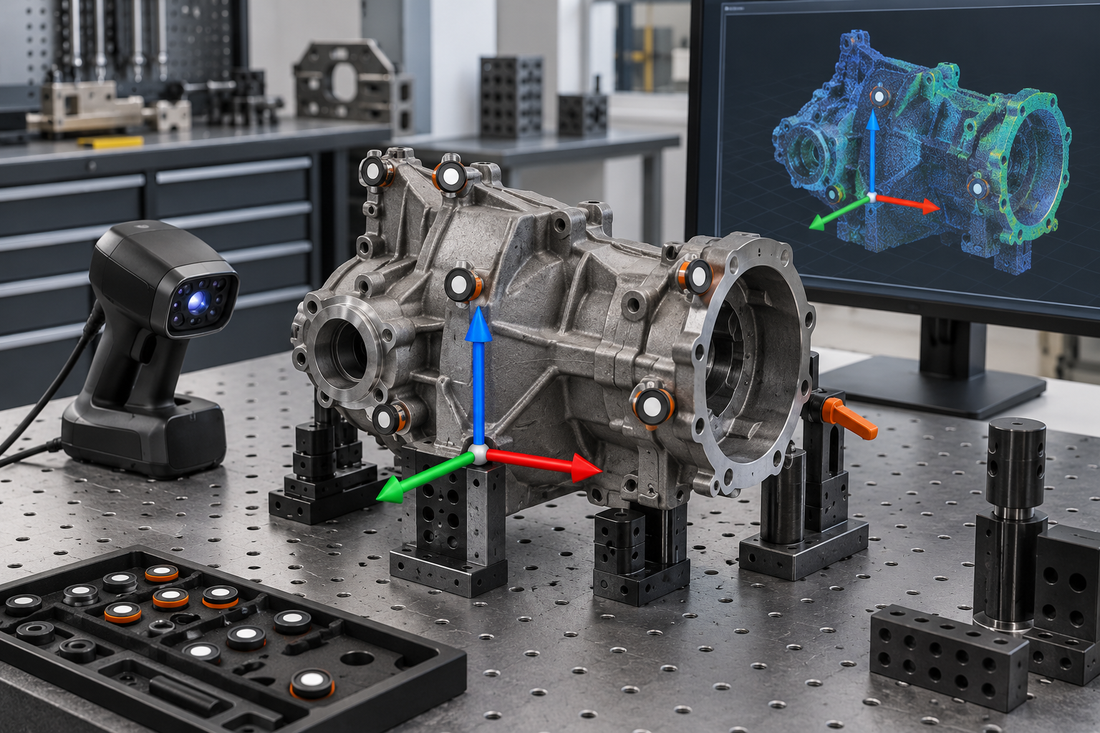

Establish the assembly reference frame before scanning by naming the origin, axis directions, datum features, installed orientation, mating context, and required output alignment. Confirm that the physical features are accessible, stable, clean enough to capture, and relevant to function. Record any temporary targets, fixtures, disassembly, best-fit operation, or coordinate transformation so downstream CAD is not aligned by guesswork.
Choose the right order path
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning, reverse-engineering, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
Start with the downstream decision, not the scanner
Ask what the scan must support: documenting the installed condition, locating a replacement interface, designing around an assembly, comparing deformation, reconstructing a component, or delivering CAD in a customer coordinate system. The purpose determines whether the reference frame should follow functional datums, the machine or building coordinate system, a fixture, an equipment centerline, or another controlled basis.
Define the frame in a reference-frame brief
| Element | Define before capture | Evidence to preserve | Common failure |
|---|---|---|---|
| Origin | Physical point, constructed intersection, feature center, or buyer coordinate. | Photos, feature IDs, drawing callout, construction rule, and units. | Origin chosen later because it looks convenient in software. |
| Primary direction | Plane, axis, centerline, gravity, travel direction, or installation basis. | Accessible reference features and sign convention. | Axis flips or follows a worn/nonfunctional surface. |
| Secondary direction | Clocking feature or plane that prevents rotation around the primary direction. | Feature relationship and construction sequence. | Ambiguous clocking creates mirrored or rotated output. |
| Assembly context | Installed orientation, mating components, articulation state, preload, and supports. | Setup photographs, fixture state, fasteners, shims, and equipment effectivity. | Part is scanned loose although the needed relationship exists only when assembled. |
| Capture references | Datum features, targets, scale artifacts, fixtures, or reference objects that may be used. | Target map, fixture identity, movement checks, and removal rules. | Temporary references move or are mistaken for product geometry. |
| Output alignment | Native scan coordinates, datum-aligned mesh, customer frame, CAD assembly frame, or multiple deliverables. | Transformation definition, file names, units, revision, and approval. | Mesh, CAD, and inspection report use different undocumented frames. |
Choose stable, functional, and observable references
A useful datum feature must be relevant to the downstream job and observable with the planned capture method. Large visible surfaces may be worn, flexible, cosmetic, or unrelated to function. Critical bores or mounting pads may be partially hidden. When the ideal reference is inaccessible, define a controlled transfer through tooling, targets, measured points, mating hardware, or another buyer-approved construction and document the uncertainty it introduces.
Control assembly state and access limits
- Asset identity, serial or effectivity, installed orientation, articulation position, and operating or maintenance state.
- Fastener condition, preload ownership, shims, seals, supports, temporary restraints, and whether mating parts remain installed.
- Line-of-sight limits, reflective or dark surfaces, contamination, occlusion, restricted areas, and features that cannot be coated or targeted.
- What may be cleaned, moved, removed, disassembled, marked, or touched and who approves each action.
- Whether the assembly may shift during capture and how movement will be detected.
- Required safe access, buyer procedures, and personnel authority at the site.
Do not confuse registration with functional alignment
Registration joins observations from multiple scanner positions. Functional alignment expresses the resulting data in the reference frame needed for design or inspection. A low registration residual does not prove that the chosen datums are correct, and a global best fit can distribute error in ways that hide a critical interface. Preserve the raw or native relationship, state each alignment method, and name which output controls the downstream decision.
Plan deliverables and transformations explicitly
Define file type, units, coordinate-frame name, origin, axis direction, handedness, scale, assembly state, included and excluded geometry, mesh treatment, CAD interpretation, and transformation matrix or equivalent record where needed. If several consumers need different frames, deliver clearly named derivatives from a controlled source rather than repeatedly realigning an unlabeled file.
Fit and non-fit cases
This workflow fits existing equipment, mating assemblies, legacy interfaces, scan-to-CAD projects, design-around tasks, fixture development, and installed-condition documentation. It does not create missing design intent, validate a worn surface as nominal, prove hidden geometry, or authorize disassembly. It also does not replace buyer-defined metrology, engineering, safety, or regulatory requirements.
Make an assembly scanning request quote-ready
- Asset and assembly identity, purpose, location, access window, confidentiality, rights, and decision owner.
- Requested origin, axes, coordinate system, units, handedness, installed orientation, and downstream CAD or inspection frame.
- Candidate datum features, functional interfaces, mating parts, drawings, existing CAD, photos, and known wear or damage.
- Assembly position, supports, preload, fasteners, shims, movement risks, and allowed cleaning or disassembly.
- Occlusions, restricted areas, surface constraints, target or fixture rules, and site access requirements.
- Raw/native, registered, datum-aligned, CAD, report, and transformation deliverables plus naming and revision rules.
- Alignment approval, exception path, re-capture trigger, and final manufacturing-release boundary.
The 3D scanning and reverse-engineering service page is the commercial owner for capture and scan-to-CAD work. Use the legacy datum-scheme guide when functional references must be reconstructed, the best-fit versus datum alignment guide when planning comparison outputs, and the production 3D printing page after a design has an approved manufacturing definition.
Frequently asked questions
Should the scanner’s native coordinate system become the CAD coordinate system?
Not automatically. Native coordinates can be preserved as evidence, but the controlled CAD or inspection output should use the buyer-defined functional or assembly frame when one exists, with the transformation documented.
Can targets define the reference frame?
Targets can help registration or transfer a frame, but their positions, stability, relationship to functional features, and removal rules must be controlled. Targets should not silently replace the intended datums.
What if the important datum features are hidden in the assembled condition?
Plan a buyer-approved transfer through accessible features, tooling, targets, measured points, mating geometry, or controlled disassembly. Record the construction and uncertainty rather than selecting unrelated visible surfaces.
Final decision
Proceed only when the controlled reference, assembly context, evidence scope, exceptions, decision owner, and manufacturing-release boundary are explicit. Route complex scanning, reverse-engineering, inspection-sensitive, multi-SKU, staged, or recurring work through farm intake; use instant quote for clean files and straightforward requirements.
