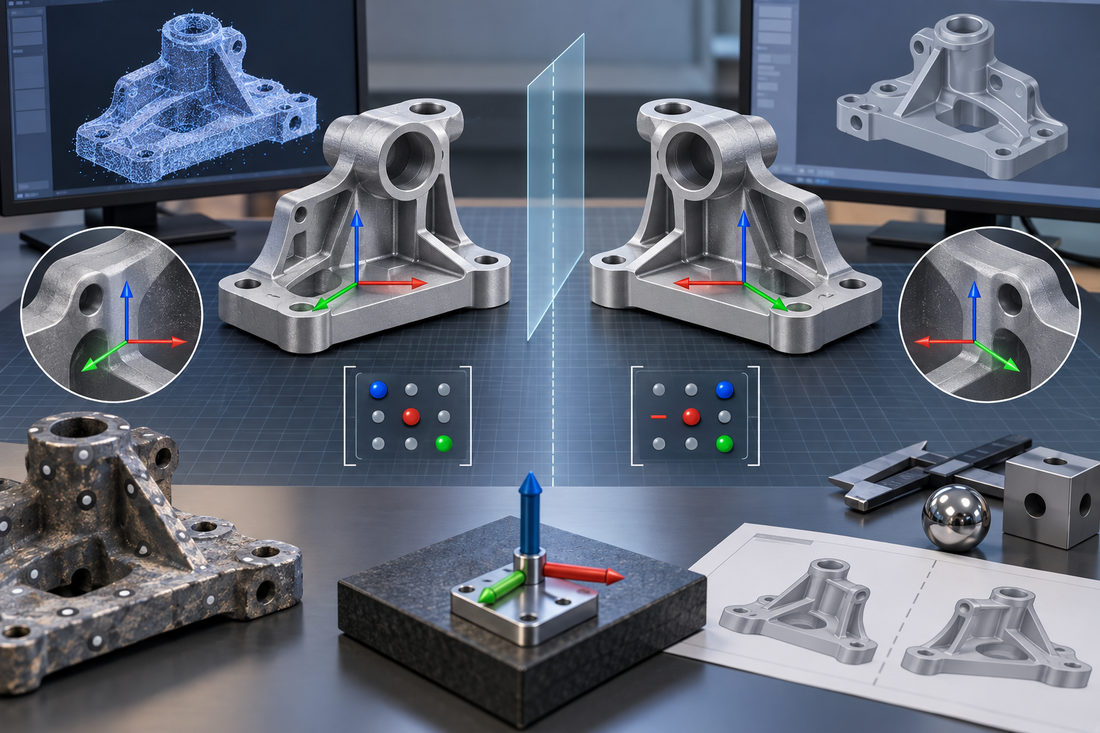

A scan-to-CAD handoff can preserve dimensions yet still deliver a mirrored part when source and destination systems interpret axis handedness or transforms differently. Control the right- or left-handed frame, axis directions, origin, units, transform order, datum mapping, and export settings; then verify one asymmetric feature independently before releasing geometry to manufacturing.
The primary commercial owner is 3D scanning and reverse-engineering services.
Why a mirrored model can pass ordinary checks
Mirroring preserves many lengths, angles, and surface relationships. A symmetric part can look completely plausible, and even an asymmetric part may escape review when the source component, scan, and CAD model are not viewed in the same physical orientation. The failure often appears later when a hole pattern, connector key, label side, assembly clearance, or mating feature is reversed.
| Control | Buyer-supplier handoff input | Verification evidence |
|---|---|---|
| Handedness | Explicit right-handed or left-handed convention for each system | Axis triad plus one known asymmetric feature |
| Axis direction | Positive X, Y, and Z definitions tied to the physical part or fixture | Annotated orientation view or datum-frame record |
| Origin | Named physical point, constructed feature, or approved datum intersection | Coordinates of a reference feature checked after import |
| Units | Declared source and destination units and scale factor | Independent known-length check |
| Transform | Matrix convention, rotation and translation order, reflection policy, and parent frame | Stored transform and determinant or reflection check where applicable |
| Datum mapping | Source scan frame, working frame, assembly frame, and released CAD frame | Named mapping between datum features |
| Export and import | File format, exporter, importer, settings, and revision | Round-trip or independent destination-system check |
Separate rotation from reflection
A rigid rotation and translation can move a part into a new frame without changing handedness. A reflection changes chirality and produces a mirror. Do not accept “we aligned the axes” as sufficient evidence. Record whether any negative scale, mirror command, axis swap, matrix convention, or coordinate conversion can introduce reflection.
Choose an asymmetric verification feature
Use a feature that cannot look correct on both mirrored versions: an offset hole, keyed connector, one-sided boss, engraved marker, chamfer on one corner, nonuniform mounting pattern, or a controlled temporary target. Verify its side and signed location relative to the approved datums. If the production part is highly symmetric, use a fixture, assembly reference, or captured orientation marker to break the ambiguity.
Control the full transform chain
- Record the scanner or capture frame and the physical setup orientation.
- Define the working frame used for cleanup, registration, and reconstruction.
- Document every transform, axis swap, unit conversion, mirror operation, and best-fit alignment.
- Map the working frame to the buyer’s part, assembly, drawing, or machine datum frame.
- Export using recorded settings, then import into the destination system that will actually consume the model.
- Verify scale, origin, axis direction, handedness, and the asymmetric feature independently.
- Release one named revision with the coordinate record and approval evidence.
Best-fit alignment is not a coordinate convention
A best-fit result can minimize geometric deviation while leaving the model in an unsuitable production frame. It can also hide an incorrect setup when symmetry provides multiple plausible alignments. Use best fit only for its approved comparison job; use controlled datums and frame definitions for manufacturing release. See best-fit versus datum-based alignment and reconstructing a datum scheme from a legacy part.
Fit, non-fit, risks, and quote readiness
This framework fits scan-to-CAD, supplier transfer, metrology exchange, reverse-engineering reconstruction, assembly references, and any workflow crossing software or equipment coordinate conventions. It does not prove dimensional accuracy, qualify a measurement system, establish tolerances, or approve a high-consequence application. The buyer remains responsible for authoritative datums, use requirements, reproduction rights, and final engineering release.
For managed intake, provide the source file and format, source and destination software, units, frame names, handedness, origin, positive axis directions, datum scheme, transform history, assembly context, asymmetric verification feature, critical interfaces, tolerance and comparison method, export settings, desired deliverables, and named approver.
Coordinate-system FAQs
Can swapping two axes mirror a model?
Depending on the convention and transform, an odd permutation or negative scale can reverse handedness. Verify the complete transform rather than relying on axis labels alone.
Will checking dimensions catch a mirror?
Not reliably. Many lengths and angles remain unchanged under reflection. Check a signed location or unmistakably asymmetric feature relative to controlled datums.
Should the released CAD keep the scanner coordinate frame?
Only if that is the approved downstream convention. Many projects need a separate part or assembly frame; preserve the mapping rather than silently overwriting the source frame.
Final handoff decision
Release only when handedness, axes, origin, units, transform chain, datum mapping, asymmetric verification, destination import, and approver all agree. If the model can still be mirrored without failing the check, the verification plan is incomplete.
