Functional Fit Checks for Reverse-Engineered Replacement Parts

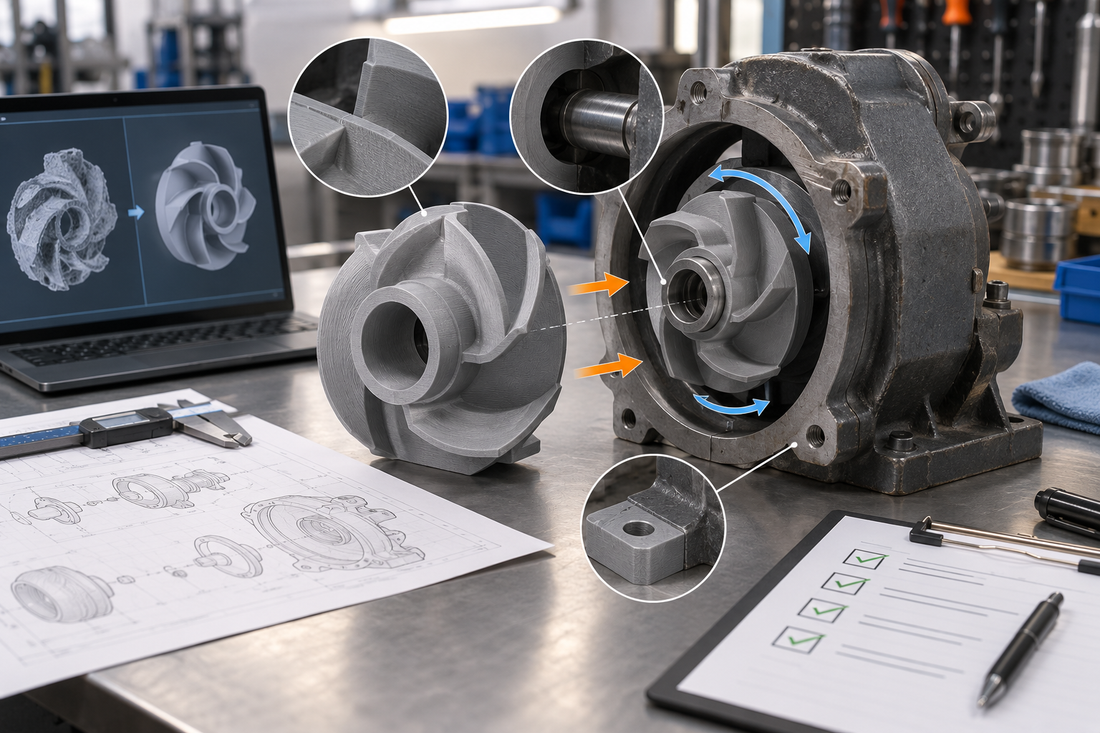

A functional fit check should prove more than whether a reverse-engineered replacement part occupies the expected space. Define the mating assembly, datums, fasteners, motion envelope, clearances, load path, service conditions, acceptance evidence, and approver before making the test part. Separate dimensional comparison from assembly, movement, controlled functional trials, and final manufacturing release.

Define what “fit” must prove before making a test part

Write a short fit-check plan that names the assembly, equipment effectivity, governing revision, source condition, intended function, prohibited uses, and decision owner. Identify which interfaces locate the part, which features fasten or seal, what must move, what may touch, and what must remain clear. A scan or CAD comparison can support this plan, but it cannot replace the buyer's functional acceptance criteria.

Use staged evidence instead of one pass-or-fail trial

Separate geometric fit from functional approval

A part may match a scan and still fail because the worn source was not nominal, the assembly constrains it differently, fastener preload changes alignment, motion creates contact, or the service environment exceeds the trial. Conversely, a visible geometric deviation may be acceptable when it does not affect a controlled interface. Record both findings; do not use a color map or successful insertion as the entire release argument.

Plan the assembly context and test boundary

• Mating components, assembly orientation, installation sequence, access tools, fasteners, inserts, seals, adhesives, and torque ownership.
• Datums, critical interfaces, clearance zones, contact surfaces, travel limits, and allowed adjustment.
• Material and process requirements, service temperature, chemicals, UV, moisture, wear, electrical, cleanliness, and prohibited exposure.
• Expected load direction and support path without inventing an unverified load rating.
• Which trials may use a prototype material and which require the intended production configuration.
• Safety controls, equipment state, operator authority, observation method, stop rules, and removed-part disposition.

Handle exceptions without turning the test part into an uncontrolled baseline

If technicians sand, drill, shim, bend, enlarge a hole, change hardware, or alter the mating assembly, record the exact change and its authority. Decide whether the altered result updates CAD, creates a deviation for one asset, or invalidates the trial. Preserve the tested article and evidence when useful. A hand-fitted sample should not silently become the master for repeat production.

Fit and non-fit cases

This workflow fits legacy replacement parts, unavailable polymer components, service tooling, guards, covers, guides, brackets, and other parts where assembly context and interfaces can be controlled. It does not by itself approve safety-critical, pressure-containing, medical, electrical-protection, regulated, high-load, high-temperature, chemically aggressive, or other consequential uses. Those require buyer-defined engineering, testing, compliance, and release appropriate to the application.

Make the fit-check project quote-ready

• Part and asset identity, revision, installed orientation, quantity, need date, rights, and confidentiality needs.
• Source part, condition, wear history, photos, mating components, assembly access, and scanning constraints.
• CAD, drawings, units, datums, critical interfaces, clearances, document precedence, and allowed assumptions.
• Material and process requirements, environment, finish, hardware, inserts, post-processing, and prohibited substitutions.
• Bench assembly, motion, functional, inspection, labeling, packaging, and approval evidence required.
• Decision owner, stop conditions, deviation route, production-release boundary, and revalidation triggers.

The 3D scanning and reverse-engineering service page is the commercial owner for capture and scan-to-CAD work. Review the legacy datum-scheme guide before defining critical interfaces, the disassembly-approval guide when access may alter the master, and the production 3D printing page when an approved design moves toward controlled manufacturing.

Frequently asked questions

Is a dimensional scan comparison the same as a functional fit check?

No. A scan comparison describes geometric relationships under a stated alignment. Functional fit also considers assembly sequence, hardware, motion, clearance, load path, service conditions, and the buyer’s acceptance authority.

Can a prototype material be used for the fit check?

Sometimes, if the plan limits the trial to questions that material choice does not invalidate. Functional, thermal, chemical, wear, electrical, or load-related conclusions may require the intended production configuration or another buyer-approved evidence path.

Who should approve the final fit decision?

The buyer should name the engineering, maintenance, quality, product, or other authority responsible for the intended use. A supplier can provide production and inspection evidence but should not be assumed to own the buyer’s equipment or safety release.

Final decision

Proceed only when the controlled reference, assembly context, evidence scope, exceptions, decision owner, and manufacturing-release boundary are explicit. Route complex scanning, reverse-engineering, inspection-sensitive, multi-SKU, staged, or recurring work through farm intake; use instant quote for clean files and straightforward requirements.
