Scan Registration Error vs Part Deviation: What a 3D Scan Report Shows

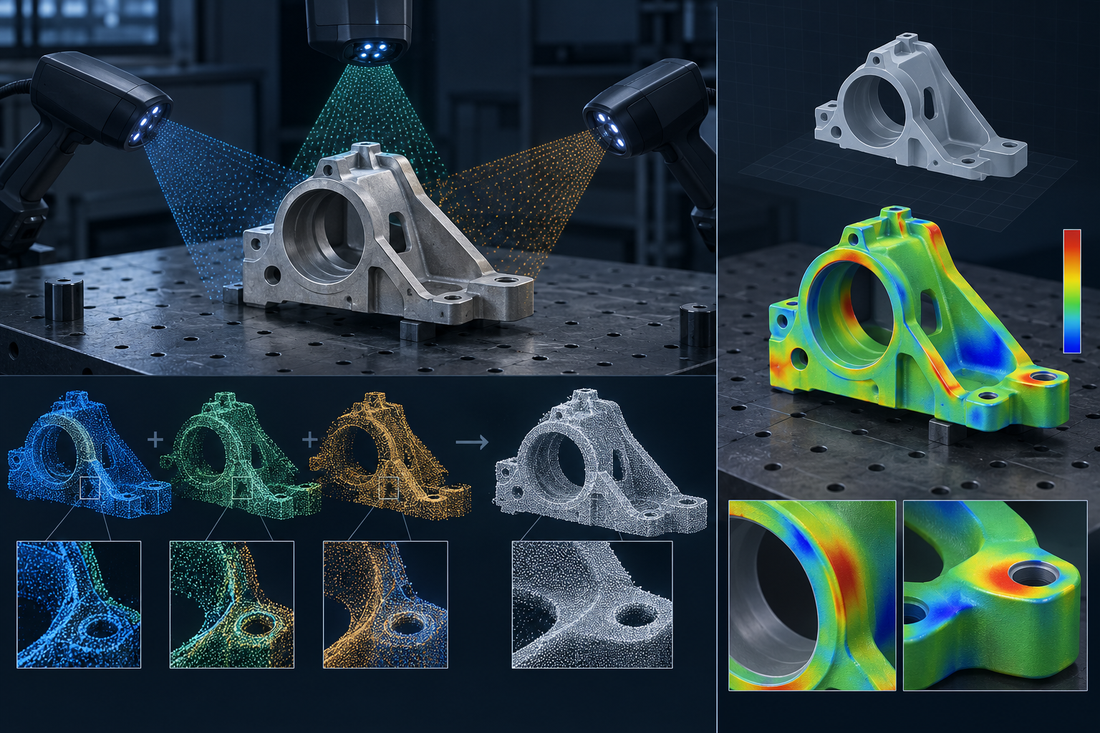

Registration error describes disagreement introduced while multiple scan positions are aligned into one dataset. Part deviation describes the distance between the resulting measured surface and the chosen nominal reference after the inspection alignment is applied. Buyers should not treat one as the other: request overlap or registration evidence, the final alignment method, excluded regions, and the deviation result as separate report elements.
Choose the right order path
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning, reverse-engineering, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
Keep the two comparisons separate
| Question | Registration evidence | Part-deviation evidence |
|---|---|---|
| What is compared? | Overlapping frames, passes, targets, features, or scan positions | Measured surface against CAD, a master scan, or another stated nominal |
| Primary purpose | Show whether captured positions combine coherently | Show how the reconstructed surface differs from the selected reference |
| Typical failure pattern | Ghosted edges, doubled features, seams, local step changes, or inconsistent overlap | Spatial positive or negative deviation after the stated inspection alignment |
| Buyer control | Require the registration method, overlap evidence, exclusions, and any residual summary | Require the reference revision, datum or best-fit method, scale, tolerance basis, and reported regions |
| What it cannot prove alone | That the physical part conforms to nominal CAD | That every scan position was registered without meaningful error |
Read the data path in order
- Identify the physical source. Record the part identity, condition, orientation, preparation, and any movement during capture.
- Review capture coverage. Confirm that critical surfaces and overlap regions were visible enough for the planned reconstruction.
- Review registration. State whether targets, features, geometry, tracking, or another method joined the scan positions and what evidence supports that join.
- Review mesh processing. Record fusion, hole filling, smoothing, decimation, clipping, and excluded regions that could change visible evidence.
- Apply the inspection alignment. Name the nominal reference and whether datums, features, constrained alignment, or best fit controls the comparison.
- Interpret deviation. Read the color map, sections, callouts, and statistics only within that documented chain.
Use diagnostic tests when the map looks suspicious
A sharp seam that follows the boundary between two scan positions may indicate a registration or fusion problem. A broad repeatable pattern tied to the part's functional datums may be more consistent with actual geometry, but neither conclusion should come from color alone. Ask whether the pattern changes when an overlap is re-registered, a suspect pass is removed, the inspection alignment is constrained differently, or the same region is captured from another direction.
Fit, non-fit, and production risks
This framework fits reverse-engineering intake, supplier handoff, multi-position scans, scan-to-CAD comparisons, legacy-part reconstruction, and inspection reports used to make manufacturing decisions. It is not a substitute for a project-specific measurement plan, calibration evidence, uncertainty statement, or acceptance method. JC Print Farm capabilities for scanning, inspection, file reconstruction, and reporting require written confirmation for the project.
- One favorable global residual hides a poor local overlap near a critical feature.
- Best-fit alignment redistributes visible deviation and is mistaken for registration quality.
- Smoothing removes a seam without proving the underlying scan positions agree.
- A deviation map lacks the nominal revision, coordinate system, exclusions, or color scale.
- A report uses scan-to-scan agreement as if it were part acceptance against CAD.
- The buyer receives only a final mesh and cannot audit capture, registration, or processing decisions.
Use the alignment comparison guide to choose the inspection coordinate strategy. Review the mesh-processing evidence guide before accepting simplified data, and use the surface-preparation checklist before capture.
Make the scan package quote-ready
- Part identity, source condition, quantity of physical samples, confidentiality, ownership, and return requirements.
- Buyer job: visualization, reproduction, fit reference, reverse engineering, dimensional comparison, or another stated use.
- Critical features, datum intent, inaccessible areas, required coverage, and acceptable exclusions.
- Nominal CAD or master reference, revision, units, coordinate system, and document precedence.
- Requested raw or processed deliverables, registration evidence, mesh-processing record, alignment method, color scale, sections, and report format.
- Who reviews the evidence, what decision it supports, and what triggers recapture, re-registration, rework, or approval.
Frequently asked questions
Can a low registration residual prove the part matches CAD?
No. It can support confidence that overlapping scan data agrees under the stated method, but part-to-CAD deviation requires a separate nominal reference and inspection alignment.
Can actual part geometry make registration look worse?
Yes. Repeated or low-feature geometry, deformation, surface condition, motion, occlusion, and weak overlap can complicate registration. The report should state the method and the evidence used to distinguish capture or alignment problems from the part itself.
Should registration error be subtracted from part deviation?
Not as a simple universal correction. The two values come from different comparisons and may interact spatially. Ask for the workflow, uncertainty treatment, local evidence, and decision rule rather than subtracting one headline number from another.
What should a buyer request before accepting the mesh?
Request part and reference identity, capture and overlap plan, registration method, exclusions, mesh-processing steps, inspection alignment, scale, critical-region views, and the raw or intermediate evidence needed for the intended decision.
