Best-Fit Alignment vs Datum-Based Alignment in 3D Scan Comparisons

Use best-fit alignment when the buyer needs an overall surface comparison; use datum-based alignment when the comparison must preserve approved mounting, locating, or mating relationships. Because alignment redistributes visible deviation, define the decision, nominal model, participating features, exclusions, constraints, units, color scale, and acceptance authority before treating a scan comparison as engineering evidence.

Alignment changes the question the comparison answers

A 3D scan has its own coordinate position. The nominal CAD model or reference dataset has another. Alignment defines how one is transformed onto the other before deviations are calculated. Change that transformation and the apparent deviation pattern can change even though neither dataset changed.

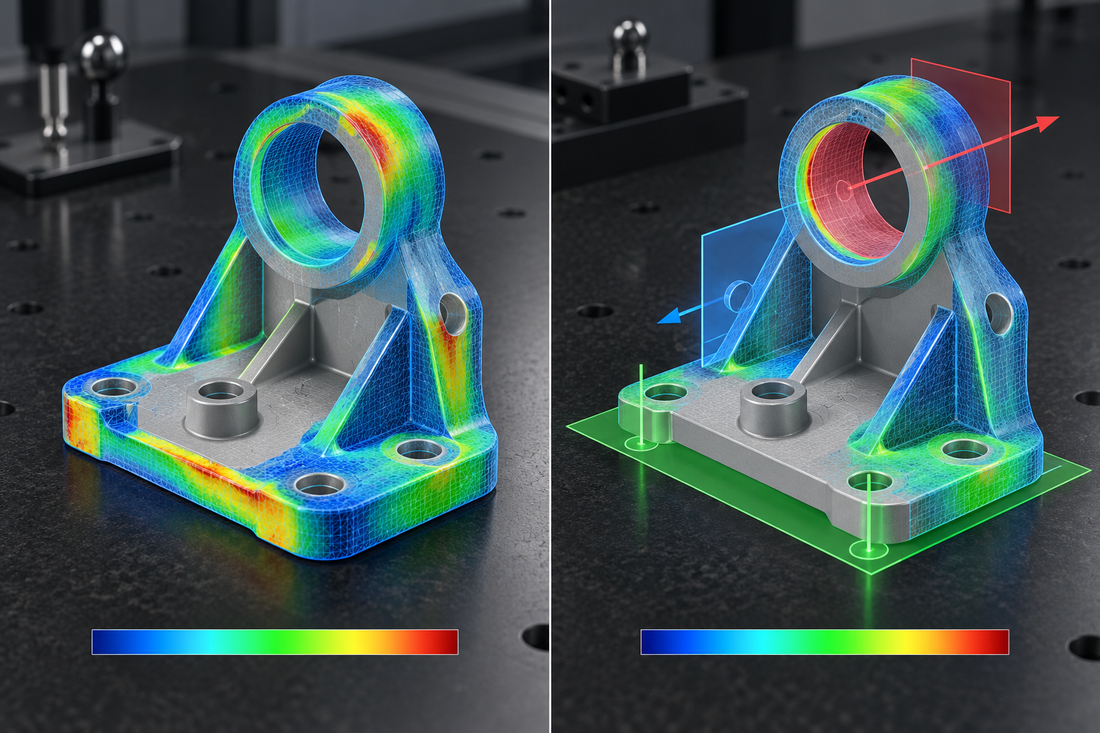

Best fit asks which permitted translation and rotation produce the lowest selected global mismatch under the chosen algorithm and evaluation region. Datum-based alignment asks where the scanned part sits when the approved primary, secondary, and tertiary references constrain it in the intended order. One is not automatically more accurate; each answers a different buyer question.

Start with the downstream decision

Choose best fit for an overall-surface question

Best fit can help compare a worn source part to a reconstructed surface, show broad deformation, or explore where captured geometry differs from a nominal model. Define which regions participate. Exclude unsupported or irrelevant geometry only with a recorded reason. Note whether all points are weighted equally, whether features are constrained, and whether the result is exploratory or tied to a controlled requirement.

Choose datum alignment for a functional-location question

If the part mounts on a base, locates from a bore, and clocks against a side feature, an approved datum sequence can represent that functional setup more directly. The datum names alone are insufficient: state how each feature is established from imperfect scan data, which degrees of freedom it constrains, and what happens if a datum surface is worn, damaged, incomplete, or inaccessible.

Use both views when they answer complementary questions

A datum-based view may protect interface interpretation while a best-fit or localized view reveals overall form, wear, or deformation. Do not average them into one unexplained result. Label each report by decision purpose and keep acceptance authority tied to the approved requirement.

Control the comparison inputs before reading the colors

1. Identify the physical source, condition, scan dataset, processing version, units, and coordinate assumptions.
2. Identify the nominal CAD, drawing, reference scan, or reconstructed model and its revision and approval state.
3. Define the decision: exploratory reconstruction, source-condition documentation, interface review, first article, process investigation, or acceptance.
4. Choose the alignment method and record participating features, order, masks, exclusions, constraints, and settings.
5. Freeze the color scale, comparison range, filtering, smoothing, clipping, and evaluation region before comparing reports.
6. Separate observed geometry from reconstructed design intent and document every engineering assumption.
7. Review critical interfaces with the drawing, assembly, gauge, fixture, or other approved evidence appropriate to the project.
8. Retain the dataset, model, report version, approver, and disposition used for the release decision.

The 3D scanning and reverse-engineering page is the commercial owner for scan-to-CAD and production handoff. The datum-scheme reconstruction guide explains how legacy-part reference features can be reasoned from assembly evidence, while the quality-control and inspection guide covers requirement, method, uncertainty, and acceptance planning.

Fit, non-fit, and production risks

Good fit for managed farm intake

• Scanning or reverse-engineering work with a physical reference, known rights, defined downstream deliverable, critical interfaces, and an owner for design and acceptance decisions.
• Replacement-part or production-transfer programs that need the scan, CAD, drawing, first article, and repeat release connected.
• Complex work where the buyer can identify functional datums, mating components, fixtures, or assembly evidence for review.

Not automatically a fit

• No authority to reproduce the part, no usable reference, no controlled nominal, or no owner for reconstructed design intent.
• A request to treat a visually smooth color map as a certified inspection or guaranteed fit result.
• Safety-critical, regulated, or certification-dependent decisions without project-specific capability, evidence, and approval review.

Common risks

• Using global best fit to minimize a mounting-face or locating-feature error that matters in assembly.
• Calling a feature a datum without an approved order, fitting rule, or constraint model.
• Comparing two reports with different meshes, filters, masks, color scales, or nominal revisions.
• Using a worn source surface to establish the coordinate system without recording the decision.
• Converting exploratory deviation evidence into a pass/fail claim without controlled requirements and authority.

Prepare a quote-ready scan comparison

• Rights, source-part identity and condition, photos, size, access limits, shipping or on-site constraints, and representative samples.
• Raw or processed scan inputs, units, nominal CAD or reference revision, drawing, datum scheme, mating components, gauges, fixtures, and known modifications.
• Downstream job, deliverable type, alignment purpose, comparison regions, required report content, critical interfaces, and unresolved assumptions.
• Prototype or first-article plan, production file and revision owner, material and use conditions, quantity and repeat pattern, packaging, acceptance authority, and release date need.

Frequently asked questions

Is best-fit alignment wrong for 3D scan comparison?

No. Best fit is useful when the buyer wants an overall surface comparison and there is no approved functional datum scheme. It becomes misleading when a low global deviation is treated as proof that mounting, locating, or mating features satisfy their functional relationships.

When should datum-based alignment be used?

Use datum-based alignment when an approved drawing, assembly condition, fixture, or engineering decision identifies the features that establish the part coordinate system. Confirm feature condition, order of precedence, constraints, and the actual evaluation rule before interpreting results.

Can best-fit and datum-based reports be compared directly?

Only with care. They use different coordinate constraints and can distribute visible deviation differently. Keep the same dataset, nominal model, units, filtering, color scale, evaluation region, and reporting settings, then label the alignment method and purpose explicitly.

Does a color map prove a part passes inspection?

Not by itself. A pass decision requires approved requirements, units, alignment, evaluation method, uncertainty considerations, exclusions, and acceptance authority. A color map can support interpretation but does not replace the controlled acceptance plan.

Which order path fits scanning or reverse-engineering work?

Use farm intake for multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning, reverse-engineering, or otherwise complex work. Use instant quote for clean files and straightforward requirements.

Make the alignment decision explicit
