Chain of Custody for Parts Sent for 3D Scanning
Before shipping a customer-owned part for 3D scanning, agree on a unique item identity, pre-shipment condition record, packaging, declared restrictions, receipt confirmation, authorized handling and preparation, location changes, work performed, incident escalation, return condition, and final handoff. A custody record protects the physical source part while keeping scanning authorization separate from repair, cleaning, coating, disassembly, or manufacturing approval.
Choose the right order path
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning, reverse-engineering, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
Separate custody from technical approval
Possessing a part does not authorize every action on it. The work order should separately approve receipt, unpacking, photography, cleaning, markers or temporary coating, fixturing, measurement, scanning, disassembly, destructive work, repair, reproduction, data creation, manufacturing, return shipping, and disposal. It should also confirm that the buyer is authorized to request the work. If one permission is absent, stop at the last authorized state.
Define the custody record before the box leaves
| Stage | Minimum record | Decision |
|---|---|---|
| Release by owner | Unique item ID, owner, sender, declared value or handling class where applicable, purpose, restrictions, photos, known damage, included loose pieces | Is this the correct physical item and is shipment authorized? |
| Packaging and transit | Container identity, protection method, carrier or handoff reference, seal or closure status when used | Can receipt condition be compared with release condition? |
| Supplier receipt | Date, recipient, package condition, contents reconciliation, photographs, discrepancy or damage hold | Accept custody, accept with exception, or quarantine pending direction |
| Work movement | Location, custodian, timestamp, authorized operation, condition change, temporary pieces or applied materials | Is the next action inside written scope? |
| Return handoff | Final condition, removed or remaining preparation materials, included pieces, packaging, tracking or recipient confirmation | Has the agreed return state and custody transfer been completed? |
Use a unique physical identifier
Customer part numbers may be missing, duplicated, obsolete, or shared across variants. Assign a project custody ID to the exact physical item and connect it to buyer identity, source location, part number if known, photographs, distinguishing features, wear, repairs, modifications, loose pieces, and packaging. Put the identifier on a non-damaging tag or container rather than marking the part unless the owner authorizes marking.
Capture condition without turning inspection into a promise
Receipt photographs and notes should be sufficient to reconcile visible condition and included pieces, but they are not automatically a formal damage assessment, dimensional inspection, material identification, or fitness determination. Record cracks, chips, contamination, corrosion, wear, deformation, prior repairs, missing hardware, moving features, residue, and fragile zones that affect handling. If transit damage is suspected, hold the item and notify the named contact before cleaning or setup erases evidence.
Control preparation, disassembly, and irreversible work
- Classify each action. Non-contact observation, ordinary handling, temporary markers, removable coating, cleaning, fixturing, disassembly, cutting, and repair have different consequence levels.
- Name the approval authority. The shipper may not be the person who can approve an irreversible action.
- Define acceptable residue or change. A removable scanning aid may still affect a delicate surface or later use.
- Inventory separated pieces. Record fasteners, seals, inserts, fragments, and orientation as they leave the parent item.
- Stop on surprises. Undeclared fluid, stored energy, hazardous residue, hidden damage, unexpected fragility, or evidence of restricted information requires escalation.
- Preserve an audit trail. Link work events and captured data to the custody ID without exposing confidential customer information in public or uncontrolled records.
Fit, non-fit, and common risks
Formal custody is most useful for one-of-a-kind legacy parts, critical field-return cores, customer property, fragile or high-consequence items, multiple similar samples, controlled disassembly, outsourced scan-to-CAD work, and projects moving through more than one facility. A lightweight receipt record may be enough for ordinary replaceable items. On-site scanning can be safer when the part cannot ship, cannot leave service, or has handling restrictions. Farm intake is appropriate for scanning, reverse engineering, inspection-sensitive, recurring, packaged, or otherwise complex work; instant quote fits clean files and straightforward requirements.
- The supplier receives the right part number but the wrong physical variant.
- Loose inserts or fragments are not counted at shipment and cannot be reconciled.
- Cleaning or coating begins before receipt condition is documented.
- Scanning authorization is mistaken for destructive disassembly or manufacturing authorization.
- The item moves to another room, subcontractor, or return carrier without a custody event.
- A generic tracking number is treated as proof of item identity and condition.
- Confidential geometry, photographs, or scan data are shared beyond the approved project team.
The 3D scanning and reverse-engineering service page owns the commercial buyer job. Use the on-site versus shipped scanning guide to choose the location path and the surface-preparation approval checklist before allowing coatings, markers, or cleaning.
Make the request quote-ready
- Owner, authorized requester, project contact, and proof that the requested work is authorized.
- Unique physical item count, part identity, variants, loose pieces, photographs, and known condition.
- Scan purpose, required output, interfaces or evidence to capture, and buyer review gate.
- Shipping restrictions, packaging, declared fragility, hazardous condition, stored energy, contamination, or special handling.
- Permitted photography, cleaning, coating, marking, fixturing, operation, disassembly, and irreversible actions.
- Custody event depth, allowed locations or outside parties, confidentiality, access, and data-transfer requirements.
- Damage or discrepancy escalation, stop-work authority, return condition, return packaging, carrier, recipient, and acceptance handoff.
Frequently asked questions
Does a shipping tracking number provide chain of custody?
It documents a carrier movement, not the complete identity, condition, authorization, handling, and work history of the physical item. Use it as one custody event inside a broader record.
Should the supplier clean a part before scanning?
Only within written authorization. Cleaning can remove evidence, alter fragile surfaces, move loose pieces, or create a condition change. Record receipt condition first and define the approved method and acceptable result.
When is on-site scanning safer than shipping?
Consider on-site work when the item cannot leave service, is too large or fragile, has location or confidentiality restrictions, contains stored hazards, or when transit and return risk outweigh a controlled on-site setup.

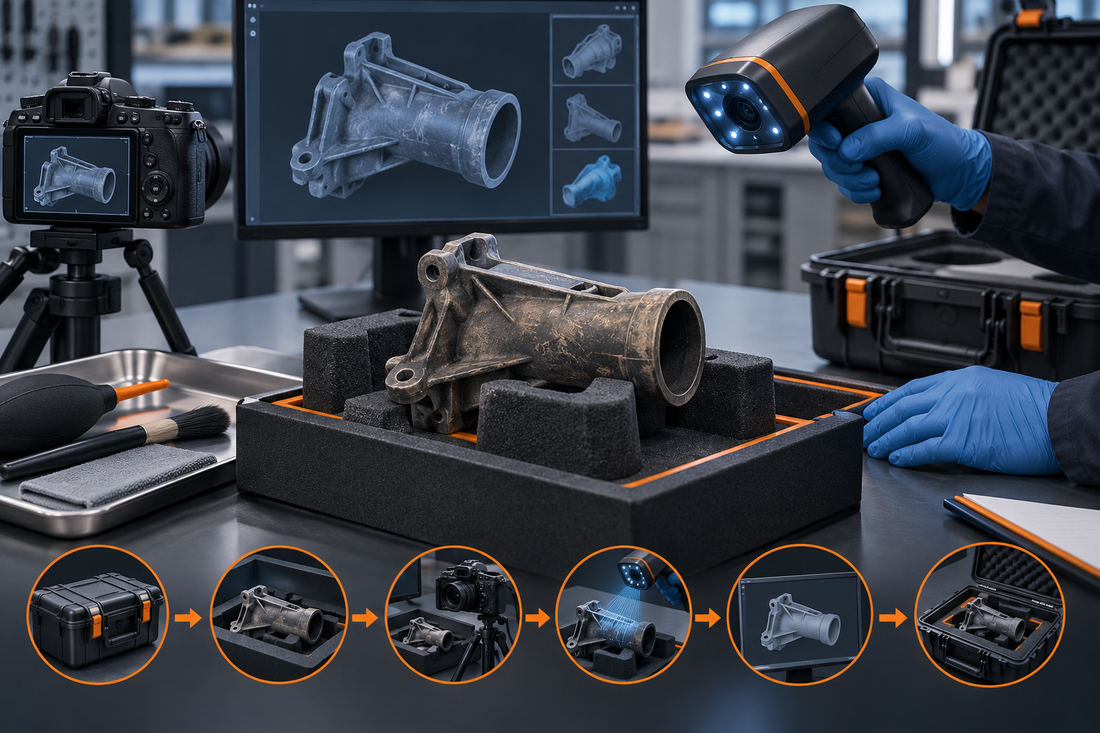

Preserve the physical master as a controlled project asset
An irreplaceable physical master should remain usable after the reverse-engineering project. Before work begins, record its identity and condition, define permitted contact, cleaning, marking, fixturing, coating, disassembly, and transport, and name who can authorize an exception. Prefer noncontact capture and reversible supports when they can answer the technical question. Stop when damage risk exceeds the approved plan.
Create a preservation plan before receipt
| Control | Define | Evidence | Stop trigger |
|---|---|---|---|
| Baseline condition | Identity, orientation, wear, cracks, repairs, residue, flexible or loose features, and missing areas. | Timestamped photographs, video where motion matters, dimensions only where authorized, and sender acknowledgement. | Identity or received condition conflicts with the handoff record. |
| Handling | Approved contact points, gloves, lifting method, support orientation, and handling frequency. | Work instruction, trained custodian, checkout record, and setup photos. | Unknown material sensitivity, instability, or damage during setup. |
| Preparation | Cleaning, temporary targets, removable coating, marking, and residue-removal method. | Buyer authorization, product/process identity, test spot when appropriate, and before/after record. | Preparation may alter color, texture, dimensions, residue, evidence, or future use. |
| Fixturing | Support surfaces, allowable clamp force, articulation state, and movement detection. | Fixture photos, contact map, assembly state, and observed movement. | Deflection, abrasion, stress whitening, cracking, or uncontrolled shift. |
| Disassembly | Allowed fasteners, sequence, witness marks, removed-item control, and reassembly evidence. | Authorization, hardware map, tool limits, torque ownership, and as-returned record. | Seized hardware, destructive access, hidden preload, or unapproved adhesive/seal disturbance. |
| Storage and return | Environmental limits, fitted support, packaging, custody, carrier, declared handling, and recipient. | Location log, packed-condition photos, seal identity, tracking, and receipt confirmation. | Packaging damage, environmental excursion, custody gap, or recipient mismatch. |
Use a least-change capture sequence
- Review existing drawings, photographs, CAD, measurements, and prior scans before touching the master.
- Document the received condition and identify fragile or functionally important regions.
- Capture accessible geometry without preparation when sufficient.
- Add only buyer-approved reversible supports, targets, or surface treatment needed for the unresolved requirement.
- Escalate occlusions or inaccessible features before moving, disassembling, or altering the item.
- Inspect, photograph, pack, and return the master against the original condition record.
Separate preservation from dimensional acceptance
Protecting the master does not prove that it represents nominal design intent. Wear, repair, deformation, contamination, and field modification can remain present in a carefully preserved part. Keep condition findings, capture evidence, CAD interpretation, functional validation, and manufacturing release as separate approvals.
Fit and non-fit boundaries
This workflow fits unique legacy parts, field-return cores, unavailable components, fragile samples, tooling masters, and product references whose continued availability matters. JC Print Farm should not be assumed to provide museum conservation, hazardous-material handling, forensic evidence services, regulated chain of custody, or restoration. Buyers should define application-specific controls and qualified specialists when those needs apply.
Physical-master preservation inputs for a quote
- Item identity, ownership, rights, confidentiality, replacement availability, declared value, and return deadline.
- Known material, age, repairs, contamination, hazards, fragility, loose features, and storage limits.
- Allowed contact, gloves, cleaning, coating, targets, marking, fixturing, disassembly, and sampling.
- Capture purpose, critical features, inaccessible regions, mating context, and required deliverables.
- Custody contacts, packaging, carrier, insurance ownership, receiving hours, and damage-escalation authority.
- Return-condition evidence, removed-material disposition, data retention, and final acceptance owner.
Use the 3D scanning and reverse-engineering service page for the commercial workflow, the destructive-disassembly approval guide when access could alter the source, the mesh-to-manufacturing-CAD guide for deliverable maturity, and the production 3D printing page only after an approved definition is ready.
Final decision
Proceed only when the physical item or retained sample has a clear identity, purpose, allowed actions, accountable owner, current status, and an agreed closeout path. Put those controls in the quote package before work begins.
