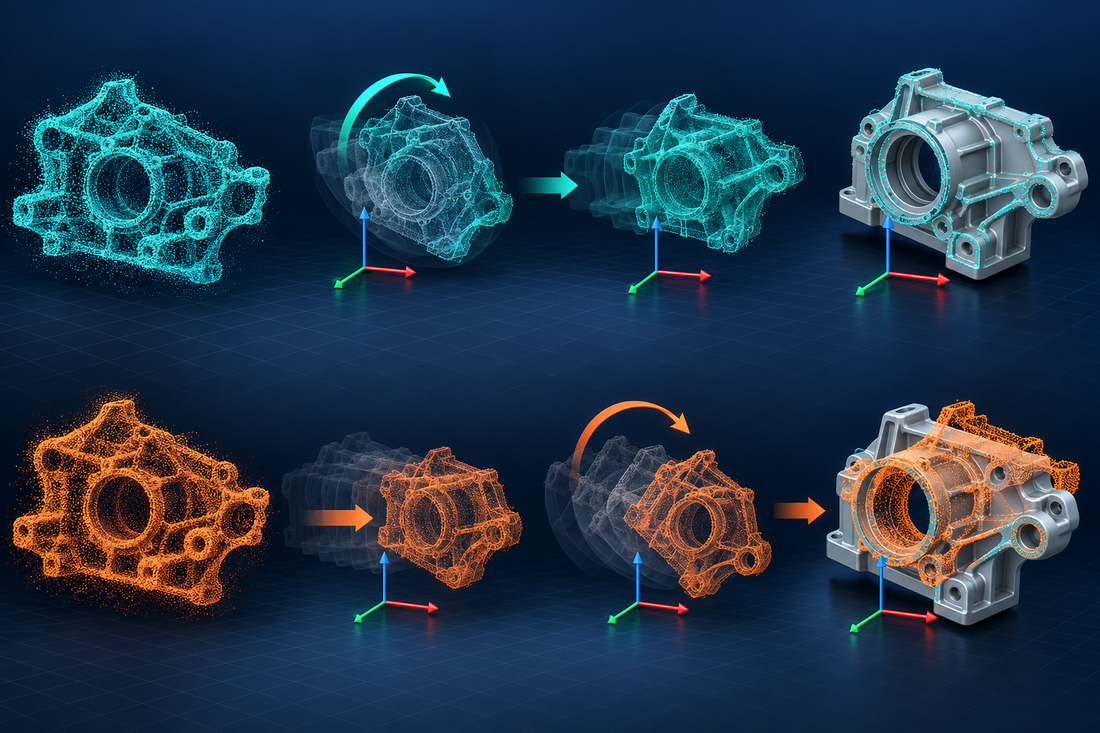

3D transform order matters because rotation, translation, and scale are usually not interchangeable operations. Rotating a scan and then moving it can place geometry differently from moving it and then rotating it, especially when the rotation occurs about a global origin rather than the part datum. A manufacturing handoff should preserve the complete ordered transform, source and target frames, units, and independent verification.
For controlled end-use and repeat parts, start with production 3D printing services. For scan-derived geometry and reverse-engineering work, review 3D scanning services.
Think in frames, not isolated numbers
A transform is meaningful only relative to a source frame, a target frame, an origin or pivot, axis definitions, units, and a convention for applying operations. The same values can yield different poses when they are applied in local versus global coordinates or composed in a different order.
Before alignment, use the reference-frame guide for scanned assemblies to define which functional datums and assembly relationships should control the result.
| Control | Question to answer | Failure if omitted |
|---|---|---|
| Source frame | Where are the incoming scan axes and origin? | The same transform is applied from the wrong starting pose |
| Target frame | Which CAD, assembly, machine, or inspection frame receives the geometry? | A visually aligned part is unusable in the downstream system |
| Pivot | About which point or datum does rotation occur? | The part orbits around a distant origin instead of rotating in place |
| Order | Are scale, rotation, and translation applied in a named sequence? | Recomputing the same values yields a different final pose |
| Convention | How are matrices, axis order, angles, and local versus global operations interpreted? | Software packages transpose or reverse the intended composition |
| Units and handedness | Are length, angle, axis direction, and handedness explicit? | Scale, mirror, or directional errors survive visual review |
| Verification | Which independent features prove the final result? | An alignment passes because the same assumptions are used twice |
A practical example without assuming software syntax
Imagine a scan whose functional hole should sit on the assembly origin. If the workflow first rotates the scan about its own approved datum and then translates that datum to the assembly origin, the result may be correct. If it first translates the raw scan near the global origin and then rotates around that global origin, the hole can move along an arc and finish elsewhere. The numeric rotation and translation may be identical; their composition is not.
Software packages may describe or store the same composition differently. Do not rely on a verbal instruction such as “rotate 90 degrees, then move it.” Preserve the actual ordered matrix or transform stack, the convention used to interpret it, and a final coordinate check.
Keep scale outside the alignment shortcut
Scale should not be used casually to make scan data appear to fit CAD. A scale mismatch may come from units, export settings, calibration, source-part deformation, scan processing, or a genuinely different part revision. Identify the cause before approving a scale transform.
When scale is authorized, record whether it is uniform or axis-specific, the pivot, the reason, the affected revision, and which dimensions or interfaces verify the result. Scaling before translation or about a distant origin can also change the final position, so it belongs in the ordered record.
Control handedness and axis conventions separately
A correct transform sequence can still produce a mirrored or axis-swapped handoff if source and target coordinate systems use different conventions. The coordinate-system handedness guide explains that risk. Record axis directions, up direction, angle units, rotation convention, matrix layout when relevant, and whether operations act on points, frames, rows, or columns in the receiving system.
Verify with evidence that did not create the fit
Use independent checkpoints: a mating-hole center, known datum plane, clocking feature, asymmetrical landmark, assembly interface, or controlled coordinate. Avoid verifying only against the same surfaces used for best-fit registration, because the method can confirm its own assumptions while hiding local misalignment.
Compare the aligned output using the intended manufacturing decision. Overall shape comparison, functional datum alignment, assembly placement, and inspection reporting are different jobs. Review best-fit versus datum-based alignment before choosing the evidence.
Transform handoff checklist
- Source file, revision, units, frame name, axes, origin, and handedness
- Target CAD or assembly file, revision, units, frame, and intended downstream use
- Registration inputs, excluded regions, initial alignment, and final alignment method
- Rotation representation, axis order, angle units, pivot, and local or global interpretation
- Translation units and the frame in which each vector is expressed
- Any scale operation, its justification, factor, pivot, and approval owner
- Ordered transform stack or complete matrix plus software convention
- Independent check features, residuals or deviations appropriate to the decision, and approval status
- Final exported file plus an immutable source-to-output audit trail
Fit, non-fit, and production risks
This framework fits scan-to-CAD handoffs, reverse-engineered parts, assembly alignment, imported supplier geometry, inspection setups, and coordinate transfers where a reproducible pose matters. It does not claim that a visually close alignment proves dimensional accuracy, part conformity, design ownership, or manufacturing approval.
Common risks include hidden unit conversion, rotation about the wrong pivot, applying a matrix in reverse, mixing local and global axes, row-versus-column convention mismatch, mirrored handedness, unapproved scaling, exporting only the final mesh, and verifying against the same geometry used to calculate the fit.
Transform-order FAQs
Why do rotation and translation give different results in a different order?
A rotation acts around a defined origin or pivot. If translation changes the geometry position before rotation, the same rotation can sweep the part through a different path and produce a different final pose.
Is a final aligned file enough for a supplier handoff?
Not always. Repeatability and investigation often require the source and target frames, units, pivot, ordered transforms, software convention, and verification evidence.
Should scaling be part of scan alignment?
Only when the workflow explicitly requires it and the responsible owner approves it. Unexplained scale correction can hide unit errors, calibration problems, source deformation, or a wrong reference assumption.
Final alignment decision
Release aligned geometry only when the source and target frames, units, handedness, pivot, transform sequence, software convention, and independent checks are recorded and repeatable. If another qualified reviewer cannot reproduce the final pose from the controlled inputs, the handoff is not yet decision-ready.
Control nested assembly transforms in a CAD supplier handoff
Preserve nested assembly transforms as a controlled hierarchy, not as disconnected component coordinates. Record the assembly revision, parent-child tree, local transform for every instance, root-frame definition, units, handedness, suppression state, and final global pose. Before production release, rebuild the hierarchy in the receiving system and compare independent interface features—not only the visual assembly.
Why nested transforms fail during supplier transfer
A component in a CAD assembly can inherit position and orientation from several levels: part to subassembly, subassembly to top-level assembly, and top-level assembly to a plant, scanner, or customer frame. A child may have a simple local transform while its final global pose depends on every ancestor. Export, file translation, suppression, flexible-subassembly settings, mirrored instances, or a supplier import can flatten, reorder, or discard part of that chain.
| Control | Buyer records | Supplier verifies | Release blocker |
|---|---|---|---|
| Hierarchy identity | Assembly, subassembly, component, instance, revision, and parent ID | Received tree and instance count reconcile to the manifest | Unmapped, duplicated, renamed, or orphaned instances |
| Local transform | Child-to-parent translation, rotation representation, scale, units, and convention | Values are interpreted in the named parent frame | Local values treated as global coordinates |
| Global pose | Expected root-frame position for approved checkpoints | Composed result matches independent assembly evidence | Tree looks plausible but interfaces land incorrectly |
| Suppression and configuration | Active configuration, included bodies, suppressed items, alternates, and reference-only geometry | Only the released configuration enters quote and production scope | A hidden, envelope, or alternate component is manufactured |
| Flattening rule | Whether hierarchy must remain editable or may be baked into geometry | Flattened output is traceable to the source tree and approved revision | Transforms are baked without lineage or approval |
Build a reproducible hierarchy manifest
- Freeze the released assembly revision, configuration, units, root frame, axis directions, and handedness.
- Give every component instance a stable ID; do not rely only on display names that may change during translation.
- Record each instance's immediate parent and local transform using an explicit matrix, ordered stack, or receiving-system convention.
- Record suppressed, lightweight, flexible, mirrored, patterned, envelope, and reference-only states separately from production quantity.
- Calculate several expected global checkpoints at critical mounts, holes, connectors, clearances, or clocking features.
- Import the package into the actual receiving workflow, rebuild or inspect the hierarchy, and compare the checkpoints.
- Keep the original hierarchy package, any flattened derivative, checksums, conversion notes, and approval together.
Fit, non-fit, and production risks
This control fits multi-level product assemblies, fixtures, scanned equipment, replacement-part programs, variants, kits, and supplier transfers where component position affects fit or downstream manufacturing. It does not make an assembly pose authoritative when the source configuration, mating state, or design owner is unknown.
Common risks include double-applying a parent transform, losing an ancestor transform, evaluating a child in the wrong frame, exporting a flexible subassembly in an unintended state, confusing pattern instances with quantity, manufacturing reference geometry, or approving a flattened file without a source-to-derivative record. The assembly reference-frame guide helps define the root frame, while the model-based-definition package guide controls file identity and precedence. Route scan-derived or complex hierarchy work through 3D scanning and reverse-engineering services.
Quote-readiness inputs
- Top-level assembly, released configuration, revision, units, and root-frame definition
- Parent-child manifest with stable component and instance IDs
- Local transforms, convention, handedness, scale rules, and expected global checkpoints
- Suppressed, alternate, reference-only, mirrored, patterned, and flexible-component states
- Flattening permission, derivative naming, checksums, and approval owner
- Quantity by released instance, material, critical interfaces, inspection, packaging, and delivery groups
Final nested-transform decision
Release the assembly only when the receiving system reproduces the approved hierarchy or an authorized flattened derivative, every production instance maps to a controlled identity, and independent interface checkpoints confirm the final global poses. A correct-looking viewport is not enough.
Materially updated
Control the pivot point and rotation center in scan-to-CAD alignment
A correct rotation angle about the wrong pivot produces the wrong final pose. Define the pivot as a controlled point, axis, or constructed datum in a named coordinate frame; state whether rotation is local or global; preserve the operation order; and verify the result with independent features away from the pivot. Do not accept a visually close overlay as proof.
Choose the pivot from the buyer decision
The useful rotation center depends on the job. A hinge axis may control an articulated assembly, a shaft centerline may control clocking, a mounting-hole pattern may establish a functional center, and a temporary scan origin may be only a processing convenience. The nearest centroid, bounding-box center, manipulator handle, or software default should not silently become the manufacturing pivot.
| Buyer job | Candidate pivot | Evidence to preserve | Risk if wrong |
|---|---|---|---|
| Locate a component in an assembly | Approved assembly datum point and clocking axis | CAD frame, mating features, configuration, and expected checkpoints | Part orbits around the assembly instead of rotating in place |
| Represent articulation | Physical hinge, pin, bearing, or constructed motion axis | Axis endpoints, direction, mechanism state, and travel convention | Clearance and motion-envelope conclusions are invalid |
| Align scan data to CAD | Buyer-approved datum construction or registration result | Source and target frames, method, exclusions, pivot coordinates, and transform | Overall fit improves while a functional interface shifts |
| Reorient an exported derivative | Named part or build-coordinate origin | Source revision, units, local/global rule, and derivative lineage | Receiving software applies the same angle around another origin |
Verify both the center and the axis
- Name the source frame and target frame, including units, handedness, and axis directions.
- Define the pivot coordinates and the rotation axis in one named frame; do not mix a local point with a global vector.
- State how the pivot was created—from a feature center, datum intersection, best fit, mechanism geometry, or buyer construction.
- Record the rotation representation, angle units, direction convention, and position in the ordered transform stack.
- Calculate expected positions for at least two asymmetric checkpoints away from the pivot and one feature near the pivot.
- Apply the transform in the actual receiving application and compare the checkpoints and critical interfaces.
- Save the source, transform record, result, discrepancy notes, and approval without overwriting the native data.
Separate intended motion from alignment optimization
A best-fit algorithm may find a rotation center that minimizes selected surface deviation, but that center is not automatically the physical joint, functional datum, or design-intent pivot. Likewise, a CAD manipulator origin may support editing without representing a manufacturing reference. Use the best-fit versus datum-based alignment guide to choose the comparison method and the assembly reference-frame guide to define functional coordinates. The 3D scanning and reverse-engineering service is the commercial owner for managed scan-to-CAD work.
Fit, non-fit, and production risks
This workflow fits scan alignment, imported CAD, articulated mechanisms, fixture setup, replacement-part reconstruction, and supplier coordinate transfers. It does not prove the chosen pivot represents design intent when the physical feature is worn, incomplete, inaccessible, flexible, or reconstructed from assumptions.
Risks include using an arbitrary global origin, swapping axis direction, entering degrees as radians, rotating a point about itself in one system and about the world origin in another, applying translation before instead of after rotation, reusing a pivot from a different revision, or checking only the surfaces that created the fit.
Quote-readiness inputs
- Source scan or CAD identity, revision, units, native frame, and target frame
- Pivot point, rotation axis, construction method, local/global interpretation, and approval owner
- Rotation representation, angle units, direction convention, transform order, and software convention
- Critical mating features, asymmetric checkpoints, expected positions, and acceptance evidence
- Mechanism or assembly state, worn or excluded geometry, and unresolved assumptions
- Required deliverables, quantity, inspection sensitivity, production use, and release timing
Final pivot-control decision
Release the aligned derivative only when the pivot and axis are defined in the correct frame, the ordered transform is reproducible, and independent checkpoints confirm the intended functional pose. If the same angle produces a different result in the supplier's system, stop and reconcile the frame, pivot, and convention.
Materially updated
Euler angles, quaternions, and matrices in a supplier transform handoff
Do not hand a supplier three rotation numbers without the convention that makes them meaningful. State the source and target frames, Euler axis sequence and intrinsic/extrinsic rule, angle units and direction, or the quaternion component order and normalization rule, or the matrix layout and multiplication convention. Then provide one expected pose and independent feature checkpoints so the receiving system can prove the conversion.
Choose a representation for the handoff job
| Representation | Useful when | Fields that must travel with it | Common transfer failure |
|---|---|---|---|
| Euler angles | People need readable rotations around named axes | Axis sequence, intrinsic or extrinsic interpretation, degrees or radians, positive direction, and source/target frames | The same three values create a different pose because order or frame interpretation changed |
| Quaternion | A workflow needs compact orientation, composition, or interpolation without an Euler singularity | Component order, handedness, normalization, sign convention, and frame mapping | WXYZ is read as XYZW, a non-unit value is accepted, or interpolation takes an unintended path |
| Rotation matrix | A receiving system needs an explicit linear rotation or a larger transform record | Row/column layout, vector convention, multiplication side, active/passive meaning, units for any translation, and frame labels | Transpose or inverse is applied, axes become rows instead of columns, or reflection/scale enters the matrix |
Do not compare raw numbers across representations
Several Euler triples can describe the same orientation, and a unit quaternion and its negation can represent the same rotation. A matrix may be stored row-major or column-major without changing its mathematical intent. Compare the resulting physical pose in a named frame, not whether the exported numbers look identical.
Build a supplier-ready transform record
- Name the source frame, target frame, units, handedness, axis directions, and model revision.
- Identify the authoritative representation and every convention needed to interpret it.
- Include a full homogeneous transform or separate rotation and translation records when position also matters.
- Provide an asymmetric test body or at least three non-collinear feature checkpoints with expected signed coordinates.
- Convert the transform in the actual receiving software and compare the resulting pose, determinant or orthogonality where relevant, and feature locations.
- Record rounding, normalization, repair, inversion, or re-expression performed during import.
- Approve the destination result and retain the source record, converted record, software/version, and reviewer.
Fit, non-fit, risks, and quote readiness
This control fits CAD exchange, scan registration, metrology exports, fixture coordinates, robotics-adjacent geometry handoffs, and reverse-engineering supplier transfers. It does not establish that the source pose is correct, define functional datums, qualify software, or approve safety-critical motion.
Provide the released file and revision, frame definitions, units, handedness, representation, convention fields, translation, expected pose, asymmetric checkpoints, tolerance or acceptance method, destination software, conversion authority, and approval owner. Use the coordinate-system handedness guide to prevent mirrored geometry and the reference-frame guide to tie the transform to physical assembly evidence. Complex scan-to-CAD work belongs in managed scanning and reverse-engineering intake.
Rotation-representation FAQs
Are quaternions always safer than Euler angles?
No. They avoid the same Euler-coordinate singularity, but component order, normalization, frame, interpolation, and conversion mistakes can still deliver the wrong pose.
Can a supplier infer the Euler order from the numbers?
No. Multiple conventions can produce plausible results. The axis sequence and intrinsic/extrinsic interpretation must be explicit.
What is the best neutral exchange record?
An explicit source-to-target transform plus frame definitions and physical checkpoints is usually more verifiable than unlabeled angles alone, but the receiving system's matrix convention must still be recorded.
Final representation decision
Release the handoff only when a second system reconstructs the intended physical pose from the documented convention and independent checkpoints agree. If a supplier must guess an axis sequence, component order, transpose, or frame, the handoff is incomplete.
Materially updated
Control gimbal-lock risk in multi-axis CAD and scan rotations
Gimbal lock is a representation risk: in certain Euler-angle orientations, two rotation axes align and one independent rotational degree of freedom is lost. The model may still have a valid pose, but angle editing, interpolation, optimization, or supplier conversion can become ambiguous or unstable. Screen the full orientation range, preserve the declared Euler convention, and verify critical poses with a matrix or normalized quaternion plus physical checkpoints.
Where gimbal lock becomes a production handoff problem
A single static orientation can import correctly even near an Euler singularity. Risk rises when a supplier must adjust the pose, interpolate between poses, optimize scan alignment, reproduce a motion envelope, or convert between systems that choose different Euler branches. Small changes in physical orientation may create large jumps in reported angles, while two angle channels can begin describing the same effective rotation.
| Buyer job | Risk signal | Required control | Release evidence |
|---|---|---|---|
| Static CAD reorientation | Pose approaches the singular middle-axis orientation for the declared sequence | Store the final matrix or normalized quaternion with the Euler record | Destination-system feature checkpoints match |
| Scan alignment refinement | Solver angles jump while visual or residual change is small | Review the actual pose change, parameterization, frame, and constraints | Independent datum/interface checks remain stable |
| Motion or articulation study | Orientation path crosses or passes near a singular configuration | Use a suitable continuous representation and define interpolation behavior | Sampled poses and critical clearances are checked across the path |
| Supplier format conversion | Receiving tool rewrites Euler angles or changes rotation order | Compare endpoint and intermediate physical poses, not angle equality | Controlled round-trip record with no unexplained pose drift |
Run a singular-orientation screening test
- Document the Euler sequence, intrinsic/extrinsic rule, units, frame, and positive directions used by the source system.
- Identify the middle rotation for that sequence and the orientations where the first and third effective axes align.
- Evaluate the full expected pose or motion range, not only the nominal screenshot.
- Export the same orientations as matrices or normalized quaternions with explicit conventions.
- Import them into the supplier's actual application and compare asymmetric feature checkpoints at nominal, near-risk, and boundary poses.
- For interpolation, inspect intermediate physical orientation, direction, continuity, and clearance rather than trusting smooth-looking angle curves.
- Record any Euler branch change, angle wrapping, normalization, conversion, or software correction before approval.
Do not call every rotation error gimbal lock
Wrong axis order, degrees-versus-radians mistakes, local-versus-global confusion, an incorrect pivot, handedness reversal, and matrix transposition can all produce bad rotations without gimbal lock. Diagnose the convention first. The handedness guide covers reflection risk, while the datum-versus-best-fit guide separates coordinate control from alignment optimization.
Fit, non-fit, risks, and quote readiness
This framework fits multi-axis CAD orientation, scan-to-CAD registration, articulated assemblies, metrology exchange, and supplier workflows that edit or interpolate Euler rotations. It does not qualify robot motion, machine kinematics, collision safety, or a high-consequence control system.
Provide the model and revision, source and target frames, Euler convention, expected orientation range, matrices or quaternions with declared conventions, pivot and transform order, asymmetric checkpoints, critical clearances, destination software, acceptance evidence, and approval owner. Route complex scan alignment through 3D scanning and reverse-engineering services.
Gimbal-lock FAQs
Does gimbal lock mean the CAD model cannot rotate?
No. It means that a particular Euler-angle parameterization loses independent control at a singular orientation. The physical orientation still exists.
Will converting to a quaternion fix a wrong source convention?
No. Conversion preserves whatever orientation was interpreted. Resolve frame, sequence, units, and direction before conversion.
Should a static supplier handoff avoid Euler angles entirely?
Not necessarily. Properly labeled Euler angles can be useful, but include an independently verifiable pose record and checkpoints when ambiguity would affect production.
Final gimbal-lock decision
Release only when the expected orientation range has been screened, near-singular poses remain reproducible in the receiving system, and independent feature or clearance checks confirm the physical result. If angle channels jump or collapse without an explained representation change, hold the handoff.
Materially updated
Should CAD transforms be baked into geometry before supplier export?
Bake a CAD transform into exported geometry only when the supplier needs the final positioned shape and the original assembly placement is not required for later editing or audit. Keep native placement when assembly relationships, instances, mates, or revision history must remain editable. For consequential handoffs, send a controlled native-context record plus a neutral positioned export, then verify both in the receiving system.
Choose the deliverable by downstream buyer job
| Handoff need | Preferred record | What it preserves | What must be checked |
|---|---|---|---|
| Supplier needs one final manufacturing orientation | Positioned neutral export with transform applied | Final vertex or solid coordinates in the declared target frame | Units, handedness, origin, orientation, scale, topology, and checkpoints after import |
| Supplier must edit an assembly or reuse instances | Native assembly or structure-preserving exchange plus transform record | Component hierarchy, instance relationships, names, and editable placement | Nested transforms, suppressed parts, flexible subassemblies, and receiving-software support |
| Buyer needs an auditable scan-to-CAD alignment | Source geometry, ordered transform, target-frame export, and verification evidence | How the destination geometry was derived | Matrix direction, pivot, conventions, landmarks, revision, and approval |
| Receiving path is uncertain | Paired native-context and baked neutral files | Editable intent plus a reference final pose | That both imports produce the same approved physical result |
What baking a transform can solve—and hide
Applying the final world transform can remove dependence on a receiving application's assembly tree or local placement interpretation. It can also hide the original local frame, parent-child chain, pivot, and ordered operations. If the transform is baked without retaining the source record, a later supplier may be unable to explain how the geometry reached its current coordinates or safely move it back.
Use a controlled paired-export test
- Freeze the source file, revision, component identity, units, and authoritative assembly state.
- Name the source and target frames and record the complete ordered transform, including pivot and matrix direction.
- Export the native or structure-preserving record before altering geometry.
- Create a separate neutral file with the approved final transform applied; do not overwrite the source.
- Import both into the supplier's actual destination software with automatic healing or repositioning documented.
- Compare an asymmetric feature, origin, axis directions, bounding dimensions, centroid where useful, and at least three non-collinear checkpoints.
- Record whether geometry, assembly structure, names, colors, annotations, or metadata changed.
- Release one governing manufacturing file and label the other as reference or audit evidence so two files cannot become competing revisions.
Fit, non-fit, risks, and quote readiness
This decision fits supplier CAD exchange, scan-to-CAD alignment, fixture coordinates, assembly-derived parts, and neutral-format manufacturing exports. It does not prove design intent, repair bad geometry, define tolerances, or make an unsupported destination format equivalent to the native model.
Provide the released revision, authoritative assembly state, required deliverable type, source and target frames, units, handedness, pivot, ordered transform, destination software, expected assembly structure, reference checkpoints, import-repair authority, and approval owner. Use the coordinate-system handedness guide for mirror risk and the reference-frame guide for physical datum context. Route complex reverse-engineering transfers through 3D scanning and reverse-engineering services.
Baked-transform FAQs
Does a baked transform always change the part's shape?
A rigid rotation and translation preserve shape, but scale, reflection, non-rigid operations, tessellation, conversion, or repair settings can change the delivered geometry. Verify the actual imported result.
Should the supplier receive both native and neutral files?
Often, but only one should be identified as the governing manufacturing deliverable. The other needs a clear reference or audit role and the files must agree at controlled checkpoints.
Can an STL preserve assembly placement history?
No. A mesh can carry final coordinates, but it does not retain a native CAD feature tree, mates, instance relationships, or a reconstructable transform chain by itself.
Final export decision
Bake the transform when final target-frame geometry is the required product and loss of editable placement context is acceptable. Preserve native placement when assembly intent or auditability matters. Hold the handoff if the two representations disagree or nobody can name which file governs production.
Materially updated
Build a reproducible transform audit trail for scan alignment
A reproducible transform audit trail must let a second person rebuild the approved alignment without relying on screenshots or memory. Retain the source and target frames, exact input revisions, ordered operations, representation conventions, landmarks or datums, software and settings, intermediate checkpoints, final transform, residual or acceptance evidence, exceptions, and named approval. Then run a clean replay in the receiving environment.
Minimum controlled transform record
| Record field | What to capture | Why it matters |
|---|---|---|
| Inputs | Scan or point-cloud identity, CAD identity, revision, units, file hash or controlled ID, and date | Prevents a valid transform from being applied to the wrong geometry |
| Frames | Source and target names, origin, axis directions, handedness, and physical datum meaning | Defines what the numbers map from and to |
| Operations | Ordered translation, rotation, scale if allowed, pivot, pre/post multiplication, and active/passive meaning | Makes the result reconstructable instead of visually approximate |
| Alignment evidence | Datums, landmarks, excluded regions, constraints, initialization, fit method, and residual summary | Shows which evidence controlled the alignment and what did not |
| Checkpoints | Expected coordinates or signed distances for asymmetric and critical features before and after transformation | Detects inversion, transpose, axis, unit, or convention errors |
| Governance | Software/version, operator, changes, exceptions, reviewer, approval time, and released output | Connects the mathematical transform to the approved supplier deliverable |
Build the trail as a replayable sequence
- Archive immutable input copies or controlled references before alignment begins.
- Define the physical datum scheme and assign explicit source and target frame labels.
- Record the initial transform separately from every refinement step; never replace the history with only a final screenshot.
- For each step, store the transform direction, representation, convention, pivot, settings, included evidence, excluded evidence, and reason.
- Capture intermediate checkpoints after coarse alignment, datum alignment, constrained fit, and final export as applicable.
- Record final matrices at sufficient precision plus any alternate Euler or quaternion view with its full convention.
- Save acceptance evidence, unresolved deviations, bounded exceptions, and the named release decision.
- Replay the sequence from clean inputs in the supplier or receiving environment and compare independent physical checkpoints.
Separate mathematical reproducibility from manufacturing approval
A transform can be replayed exactly and still be wrong for the part. Reproducibility proves that the same inputs and rules produce the same alignment; manufacturing approval also requires the correct nominal intent, datums, critical interfaces, acceptance criteria, and release authority. Keep residual metrics and visual overlays as evidence, not as substitutes for fit and function decisions.
Control revisions and exceptions
Any change to source geometry, target CAD, datum scheme, included scan regions, units, solver settings, transform direction, or manual adjustment should create a new audit-trail revision. Link the superseded record, state what changed, rerun affected checkpoints, and prevent the old matrix from silently remaining in a downstream supplier file.
Fit, non-fit, risks, and quote readiness
This framework fits scan registration, reverse engineering, inspection overlays, supplier transfers, assembly alignment, and repeat orders based on derived geometry. It does not certify metrology software, establish measurement uncertainty, or authorize safety-critical engineering.
Provide the source and target files, revisions, frame and datum definitions, units, transform chain, alignment method, landmarks or included surfaces, exclusions, checkpoints, acceptance limits, destination software, required retained evidence, exception authority, and approval owner. The reference-frame guide helps connect coordinates to physical evidence, while the scan-to-CAD deliverable approval guide defines release ownership. Complex projects can begin through managed scanning and reverse-engineering intake.
Transform-audit FAQs
Is the final 4×4 matrix enough for an audit trail?
No. It can reproduce a pose only when direction, layout, vector convention, units, frames, and input revisions are known. It also does not explain the evidence or approval behind the alignment.
Should every manual adjustment be recorded?
Yes when it affects the released pose. Record the value, frame, pivot, reason, operator, and checkpoint impact so the result can be reviewed and replayed.
What is the strongest reproducibility check?
A clean second-person replay from controlled inputs in the actual receiving workflow, followed by independent feature or datum checkpoint comparison.
Final audit-trail decision
Release the alignment only when another qualified person can reconstruct it, the replay reaches the same approved physical result, and revisions, exceptions, and ownership are explicit. If the result depends on an undocumented click, hidden software state, or unknown input revision, the audit trail is incomplete.
Materially updated
What happens when the approved datum scheme changes after scan alignment?
If the approved datum scheme changes after scan alignment, treat the existing transform and every derived deliverable as potentially invalid until impact review proves otherwise. A changed primary, secondary, or tertiary datum can alter how all six degrees of freedom are constrained. Freeze release, preserve the old record, realign to the new scheme, compare checkpoints, and obtain fresh approval before production use.
Why a datum change is more than a label edit
The datum scheme gives a coordinate frame physical meaning. Changing datum order, feature selection, simulated contact, constraint method, or modifier can move or rotate the aligned scan even when the source points and nominal CAD are unchanged. A documentation revision can therefore change derived surfaces, inspection results, mating interfaces, trimming boundaries, hole locations, or the manufacturing file sent to a supplier.
| Changed element | Likely impact | Required evidence |
|---|---|---|
| Primary datum | May change orientation and how form error is distributed across the alignment | New frame definition, realignment, before-and-after checkpoints, and functional review |
| Secondary or tertiary datum | May change the remaining rotation or translation constraints | Constraint map, feature extraction record, transformed coordinates, and interface checks |
| Datum feature or extraction rule | May shift the realized plane, axis, center, or point used by the software | Feature-selection settings, excluded data, fitting method, and repeated extraction result |
| Datum order only | Can produce a different coordinate frame because precedence changes | Old and new ordered schemes plus independent asymmetric checkpoints |
| Drawing or CAD revision | May invalidate the nominal model, transform record, inspection plan, and released output | Revision impact matrix covering every derivative and open order |
Run a controlled requalification
- Place the aligned model, scan-derived CAD, inspection report, and supplier release on hold; identify any WIP or open orders using them.
- Archive the former datum scheme, input revisions, transform, checkpoints, approvals, and released outputs without overwriting them.
- Define the new datum scheme in engineering-controlled language, including feature identity, order, modifiers, extraction rules, and physical function.
- Rebuild the alignment from controlled source inputs. Do not merely nudge the old result until it looks close.
- Compare old and new frames, transforms, critical interfaces, asymmetric checkpoints, inspection results, and derived geometry.
- Classify each downstream record as unchanged and verified, revised, superseded, or blocked.
- Approve a new governing revision and communicate the cut-in point to the supplier before work resumes.
Fit, non-fit, risks, and quote readiness
This workflow fits reverse-engineering alignments, scan-to-CAD reconstruction, inspection overlays, assembly reference frames, and repeat parts derived from controlled scans. It does not define the correct datum scheme for the buyer, certify inspection results, or replace qualified engineering and metrology review.
Provide the old and proposed datum schemes, drawing and CAD revisions, physical function of each datum, source scan identity, extraction rules, alignment method, transform records, critical interfaces, checkpoints, affected deliverables, open-order state, acceptance criteria, and approval owner. Use the reference-frame guide to establish physical meaning and the scan-to-CAD approval guide to control release. Complex scanning or reverse-engineering work belongs in managed project intake.
Datum-change FAQs
Can the old matrix simply be renamed for the new datum scheme?
No. A matrix is meaningful only for its declared source and target frames. If the target frame definition changes, the old numbers need explicit re-expression or a new alignment and independent verification.
Must every derived CAD feature be rebuilt?
Not automatically, but every derivative needs an impact decision. Geometry may remain usable only after the new alignment and critical interfaces are compared against controlled acceptance criteria.
What should happen to supplier work already in progress?
Identify it, hold or bound it under buyer authority, and decide whether the datum change affects fit, inspection, or released geometry before resuming or accepting the work.
Final datum-change decision
Release the revised alignment only when the new scheme is unambiguous, all affected derivatives are reconciled, critical physical checkpoints pass, and the supplier has one governing revision. If the change cannot be traced through open work and downstream files, keep the release on hold.
Materially updated
Comparing transform matrices across CAD and metrology systems
Do not compare two CAD or metrology transform matrices cell by cell until both are normalized to the same source frame, target frame, units, handedness, vector convention, storage layout, multiplication order, and active or passive meaning. Convert each to one declared convention, transform independent asymmetric checkpoints, compare the physical results, and test the inverse. Equivalent transforms can contain different-looking numbers.
Normalize before deciding whether matrices disagree
| Convention question | What to document | Failure if omitted |
|---|---|---|
| Direction | Does the matrix map source to target or target to source? | An inverse can look plausible while moving geometry the wrong way |
| Vector convention | Are points column vectors or row vectors? | The same transform may be represented by a transpose or differently ordered multiplication |
| Storage layout | Is serialized data row-major or column-major, and how does the API interpret it? | Memory order can be mistaken for mathematical layout |
| Frame and handedness | Name both frames, axis directions, origin, and right- or left-handed basis | Axis swaps or reflections can survive a superficial numeric review |
| Units and scale | Declare translation units and whether scale is allowed | Rotation may agree while translation or geometry scale does not |
| Composition order | Record whether operations pre-multiply or post-multiply and their applied sequence | Individually correct transforms produce a different final pose |
| Pivot or center | Record the point about which rotation or scale occurs | Equivalent angles produce different translations and final positions |
Use a physical equivalence test
- Freeze the exact source geometry, target geometry, software versions, exports, and matrix records.
- Write a plain-language mapping statement for each system: source frame to target frame, units, handedness, and active or passive interpretation.
- Convert both records into one chosen homogeneous-matrix convention without rounding away useful precision.
- Check the homogeneous row or column, rotation-basis behavior, determinant where applicable, translation units, and expected inverse relationship.
- Transform the origin, three axis-offset points, and at least three non-collinear asymmetric physical checkpoints.
- Compare the resulting physical coordinates and critical signed distances under project-defined acceptance criteria.
- Round-trip each checkpoint through the transform and its inverse; investigate any residual rather than assuming display precision is harmless.
- Import the released result into the actual supplier workflow and verify orientation, scale, location, and critical interfaces independently.
Why equal-looking matrices can still be wrong
Two systems can display the same sixteen values while interpreting them under different vector, layout, unit, frame, or direction rules. Conversely, a transpose, inverse, basis conversion, or pivot-expanded matrix can look different yet produce the same approved physical mapping. Numeric similarity is supporting evidence; checkpoint equivalence in the declared frames is the manufacturing decision.
Fit, non-fit, risks, and quote readiness
This method fits CAD exchange, metrology alignment, robotics or fixture coordinates, scan registration, inspection overlays, and supplier software transitions. It does not prove that the selected datum scheme is correct, establish measurement uncertainty, validate a proprietary translator, or approve safety-critical geometry.
Provide both raw matrices, API or export documentation, source and target frame definitions, vector and storage conventions, units, handedness, transform direction, operation order, pivot, input revisions, asymmetric checkpoints, acceptance limits, destination software, and approval owner. Review coordinate-system handedness, the physical reference-frame guide, and the scan-to-CAD release checklist before supplier release.
Matrix-comparison FAQs
Does transposing one matrix prove the systems are equivalent?
No. A transpose may convert row-vector and column-vector representations, but direction, frame basis, units, handedness, pivot, and composition order still need proof.
Should matrices be rounded before comparison?
Retain the supplied precision and compare physical checkpoint effects under defined criteria. Early rounding can hide or create differences, especially across chained transforms.
Is a small element-by-element difference acceptable?
Not by itself. Acceptance should be tied to the resulting physical coordinates and critical interfaces, with measurement and numerical context appropriate to the project.
Final matrix-validation decision
Approve the transfer only when both records are normalized, the physical checkpoints agree within buyer-defined criteria, inverse and round-trip tests behave as expected, and the destination workflow reproduces the approved pose. Hold release when any convention remains implicit.
Materially updated
Verifying an imported coordinate system after a supplier file transfer
After a supplier file transfer, verify the imported coordinate system with a controlled acceptance check: identify the source and destination frames, confirm units, handedness, origin, axis directions, transform direction, and file revision, then test asymmetric physical checkpoints in the receiving CAD system. A model that opens without an error can still be mirrored, rotated, scaled, offset, or expressed in the wrong local frame.
Verify meaning before appearance
| Check | Evidence to retain | Common hidden failure |
|---|---|---|
| File identity | Filename, checksum or controlled ID, revision, export time, and intended configuration | The right coordinate frame is checked on the wrong model revision |
| Units and scale | Declared source units, destination units, and one known physical distance | Translation or geometry is scaled even when orientation looks correct |
| Origin and axes | Named origin plus positive X, Y, and Z directions tied to physical features | A visually plausible local frame is mistaken for the released assembly frame |
| Handedness and transform direction | Right- or left-handed basis and source-to-target mapping statement | Reflection or inverse mapping survives a screen review |
| Entity status | Body count, assembly hierarchy, suppressed items, surfaces or solids, and reference geometry | The import drops context or converts the expected solid into incomplete surfaces |
| Physical checkpoints | Three or more non-collinear asymmetric points plus a known interface | Axis swaps and 180-degree rotations pass an origin-only test |
Receiving-system acceptance workflow
- Quarantine the imported file until identity, revision, export intent, and transfer completeness are confirmed.
- Record the supplier's source application, coordinate-frame name, units, handedness, origin, axes, and export settings.
- Open the file in the actual destination workflow and record import options rather than accepting silent defaults.
- Check body and component counts, hierarchy, visibility, reference geometry, and solid or surface status.
- Measure a known distance; locate the origin; identify positive axes; and test asymmetric points, normals, and a functional mating interface.
- Compare source and destination checkpoint coordinates under buyer-defined acceptance criteria.
- Export or save the accepted destination form, reopen it independently, and repeat the critical checks.
- Release only the accepted derivative with its import record, exceptions, approvals, and relationship to the supplier source.
Fit, non-fit, risks, and quote readiness
This process fits CAD translation, scan-to-CAD handoffs, fixture coordinates, assembly exports, supplier changes, and metrology-to-manufacturing transfers. It does not validate proprietary translation software, certify geometric accuracy, or resolve an undefined source frame. If the supplier cannot state the source frame and units, keep the file on hold.
Provide the source and destination formats, controlled revision, source and target frame definitions, units, handedness, export and import settings, body hierarchy, known distance, asymmetric checkpoints, critical interfaces, acceptance limits, destination software, and approval owner. Review coordinate-system handedness, the reference-frame guide, and the scan-to-CAD release checklist.
Imported-coordinate FAQs
If the model appears in the right place, is it verified?
No. Screen appearance can hide unit, reflection, axis, hierarchy, or local-frame errors. Verify measured checkpoints and a functional interface.
Can the receiving team simply redefine the coordinate system?
Only under controlled authority. Defining a frame label is different from transforming geometry, and either action must preserve traceability to the supplier source.
What if source and destination matrices look different?
Normalize their conventions and compare the physical effect on approved checkpoints; different representations can express the same mapping.
Final decision
Approve only when the declared frame, transfer record, independent physical checkpoints, critical interfaces, and receiving workflow all agree. Hold release when any convention, revision, transform, or acceptance result remains implicit.
Materially updated
Choose rigid, affine, or non-rigid transforms by the evidence they are allowed to change
A rigid transform changes position and orientation without changing shape. An affine transform can also change scale and shear while keeping straight lines straight. A non-rigid transform allows local deformation. The broader the transform, the more easily it can improve visual fit while hiding real part variation, scan distortion, wear, or an incorrect revision. Choose the least-flexible model that matches the approved manufacturing question.
| Transform class | What it can change | Useful when | Primary manufacturing risk |
|---|---|---|---|
| Rigid | Translation and rotation; shape and size remain unchanged | Placing scan data into a controlled coordinate frame or aligning the same rigid part | A best fit can still average error away from functional datums |
| Similarity | Rigid motion plus one uniform scale | A documented unit or uniform-scale correction is independently justified | Scale can conceal calibration, export, material, or revision problems |
| Affine | Rigid motion plus axis-specific scale and shear | A controlled imaging or coordinate correction requires it and the transformed evidence is clearly labeled | Angles, proportions, and dimensional evidence can change |
| Non-rigid | Local deformation through a field, cage, spline, or other model | Comparing deformable objects or building a visualization under an approved method | The method can force unlike geometry to match and erase manufacturing evidence |
Start with the buyer's question, not the software option
If the question is where a rigid part sits relative to functional datums, use a rigid or datum-controlled alignment. If the issue is a known units mistake, correct the source units when possible; do not casually scale until the cause is understood. Affine correction needs explicit authority because anisotropic scale or shear changes shape. Non-rigid registration is usually unsuitable as silent preprocessing for dimensional inspection or nominal CAD release because it can redistribute error locally.
- Define the source and target frames, units, handedness, axes, origin, and rotation pivot.
- Name the permitted transform class and every constrained or free degree of freedom.
- Separate coarse registration, final alignment, and any deformation step in the saved record.
- Preserve the raw scan and the complete ordered transform or deformation model.
- Verify independent features that were not used to optimize the alignment.
- Report residuals and exclusions without presenting transformed fit as proof of part conformity.
- Require engineering approval before affine or non-rigid output becomes manufacturing geometry.
Know what each model may hide
Rigid best fit can rotate or translate error away from the region the buyer cares about. Uniform scale can make a wrong-unit or shrunken model look plausible. Axis-specific scale can compensate for systematic distortion while changing aspect ratios. Shear can improve overlap while changing angles. Non-rigid warping can pull holes, walls, edges, and worn surfaces toward the reference until the color map looks better even though the original evidence did not match.
Use control points and regions that represent the manufacturing intent, then inspect withheld features. A transform should not be accepted only because the same features used to compute it also show low residual error.
Fit, non-fit, and release boundaries
Rigid transforms fit assembly-frame placement, datum alignment, repeat scans of a stable part, and preservation of measured shape. Affine transforms can support documented coordinate or imaging corrections but require clear disclosure. Non-rigid transforms fit deformable-subject comparison, visualization, or approved shape correspondence; they are not a default route to nominal manufacturing CAD.
For quote readiness, provide the raw scans, nominal or mating references, source and target frames, units, allowed transform class, controlled datums, fixed and free degrees of freedom, correspondence method, excluded regions, deformation limits, independent verification features, required deliverables, and approval owner. Use 3D scanning and reverse engineering for a managed evidence plan; review best-fit versus datum alignment, coordinate-system handedness, and registration error versus part deviation.
