How Mesh Smoothing and Decimation Can Remove Manufacturing Evidence
Mesh smoothing and decimation are useful only when their purpose, settings, protected regions, and downstream decision are controlled. Excessive processing can erase edge breaks, hole condition, wear, parting lines, local damage, texture, or other evidence needed to reconstruct design intent. Preserve an immutable source dataset, create traceable derivatives, and approve manufacturing geometry from multiple evidence types—not from the cleanest-looking mesh.
Choose the right order path
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning, reverse-engineering, or otherwise complex work. Instant quote fits clean files and straightforward requirements.

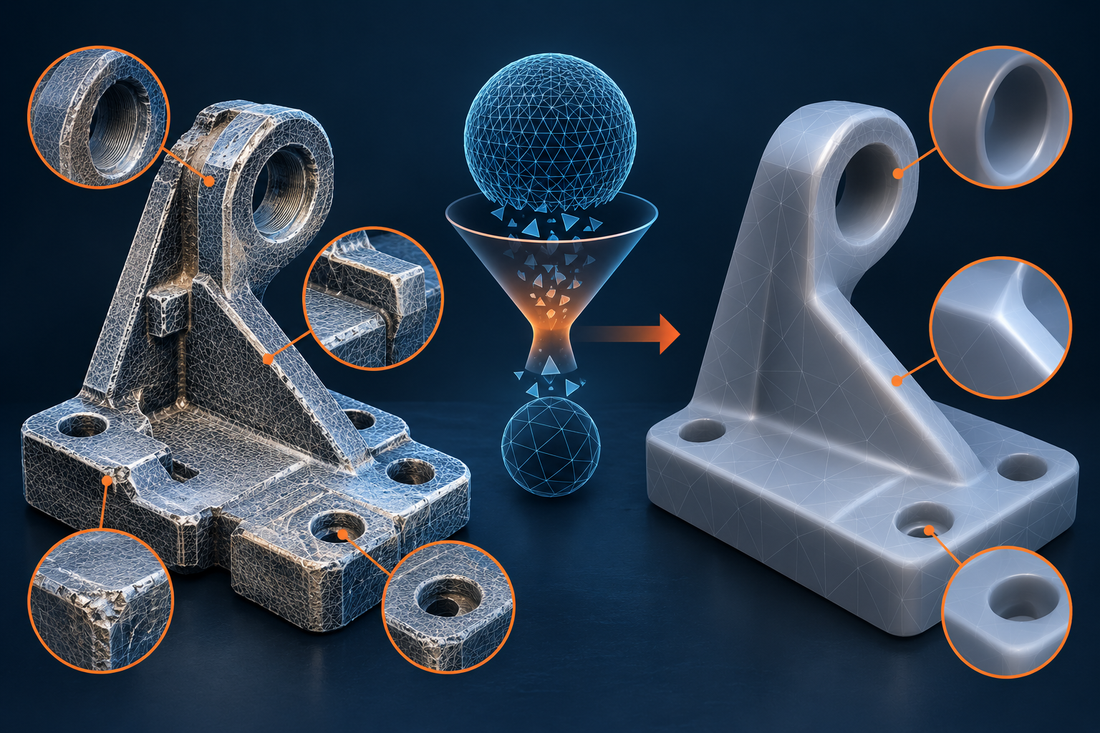

A cleaner mesh is not necessarily better manufacturing evidence
Scan processing serves several different jobs: making a dataset easier to view, reducing file size, removing obvious capture noise, supporting surface reconstruction, or preparing a reference for inspection. Trouble starts when one processed mesh is expected to perform all of those jobs without a record of what changed.
Smoothing adjusts vertices or a fitted surface to reduce local variation. It can suppress capture noise, but it can also soften an intentional edge, blend a wear step into the surrounding surface, reduce a small boss, or change the apparent boundary of a hole. Decimation reduces polygon count. It improves handling and visualization, but an aggressive target or poorly protected region can discard the triangles that describe a narrow groove, sharp transition, chipped corner, draft break, or local deformation.
Classify evidence before processing it
| Observed feature | What it might represent | Processing risk | Buyer control |
|---|---|---|---|
| Sharp edge or edge break | Machined boundary, split line, wear step, damage, or reconstruction artifact | Smoothing rounds it; decimation moves or removes supporting vertices | Protect the region and compare against photographs, mating parts, drawings, or known process intent |
| Hole, slot, boss, or rib | Functional interface, fastener feature, locator, reinforcement, or later modification | Low polygon density changes shape or closes a narrow feature | Retain local density and capture the feature with a suitable independent measurement when needed |
| Texture or waviness | Cast texture, printed layer evidence, corrosion, wear, deformation, or scan noise | Global filtering treats distinct causes as one unwanted signal | State which scale of variation matters and keep the unfiltered source available |
| Gap or incomplete region | Occlusion, inaccessible surface, reflective behavior, damaged source, or missing material | Automatic filling invents geometry that appears observed | Label observed, inferred, and reconstructed regions separately |
| Repeated local marks | Manufacturing pattern, tool path, contact witness, or data artifact | Smoothing removes the pattern before its cause is reviewed | Review raw points, capture conditions, adjacent regions, and process evidence |
Use a controlled derivative workflow
- Freeze the source. Retain the original point cloud or capture output, units, coordinate assumptions, scan positions, registration state, source-part identity, and condition.
- Create a purpose-specific derivative. Name whether it is for visualization, CAD reconstruction, comparison, first-article evidence, or another defined job.
- Record each operation. Capture cropping, outlier removal, hole filling, smoothing method, iterations, decimation target, protected boundaries, and software or workflow version.
- Protect critical regions. Identify mounting faces, locating features, mating surfaces, holes, threads, sealing boundaries, edge breaks, and wear evidence before global processing.
- Compare before and after. Use the same coordinate basis and controlled views. A visually smoother result is not acceptance evidence.
- Separate observation from reconstruction. Make clear which geometry was captured, cleaned, inferred, or intentionally redesigned.
- Approve the downstream model. Connect the resulting CAD, drawing, prototype, fit check, first article, and repeat-production release to named decision owners.
When smoothing or decimation is a reasonable fit
- A visualization copy needs a smaller file while the source and engineering derivative remain controlled.
- High-frequency capture noise is distinguishable from the feature scale relevant to the buyer decision.
- The team has identified protected interfaces and can compare the processed derivative to independent evidence.
- The processing step is reversible in practice because the immutable source remains available.
When it is not enough
- The only surviving artifact is an already processed mesh with unknown history.
- The buyer needs to recover nominal design intent from a worn, damaged, flexible, corroded, or modified part without other evidence.
- A screenshot or color map is being used as a substitute for controlled requirements, alignment, measurement planning, or acceptance authority.
- The project depends on certification, regulated evidence, or safety-critical conclusions that have not been reviewed for project-specific capability and documentation.
Production risks buyers should surface early
- Unlabeled hole filling or patching turns absent observations into apparently real surfaces.
- Global smoothing changes a functional interface to improve the appearance of unrelated areas.
- A decimated visualization file quietly becomes the source for CAD reconstruction.
- Different teams compare meshes processed with different masks, filters, scales, or alignment rules.
- The clean derivative overwrites the only traceable source dataset.
- A prototype fits one worn reference but the released model does not represent the intended part family.
The 3D scanning and reverse-engineering page owns the commercial scan-to-production handoff. Use the best-fit versus datum alignment guide when coordinate setup affects the interpretation, and the surface-preparation checklist when capture condition may create or hide evidence.
Prepare a quote-ready evidence package
- Part identity, ownership or reproduction rights, physical condition, photos, size, access limits, and any shipping or on-site constraints.
- Original scan data, processed derivatives, units, registration information, known processing history, and the specific file proposed for downstream work.
- Nominal CAD, drawings, mating parts, gauges, fixtures, assembly photos, legacy samples, and known modifications.
- Critical interfaces, features that must not be smoothed or simplified, intended deliverables, and the owner of design-intent and acceptance decisions.
- Prototype, fit-check, first-article, material, use-condition, quantity, repeat-order, packaging, and release requirements.
Frequently asked questions
Is all mesh smoothing harmful?
No. Smoothing can be useful when its purpose and scale are defined, critical regions are protected, the source remains available, and the result is validated against the downstream decision. The risk is uncontrolled smoothing presented as neutral cleanup.
Can a decimated mesh be used for CAD reconstruction?
Sometimes, but only when its remaining resolution supports the required feature decisions and the original evidence is retained. A lightweight visualization mesh should not silently become the authoritative reconstruction source.
Should holes and gaps be filled automatically?
Only with explicit rules. A filled region is reconstructed geometry, not directly observed evidence, and should be labeled and reviewed against photographs, mating parts, drawings, symmetry, or other justified inputs.
What should a buyer request from a scanning supplier?
Ask for source-data retention, derivative naming, processing history, protected regions, assumptions, deliverable definitions, and a clear separation between observed geometry and reconstructed design intent.
