Surface Preparation for 3D Scanning: A Buyer Approval Checklist

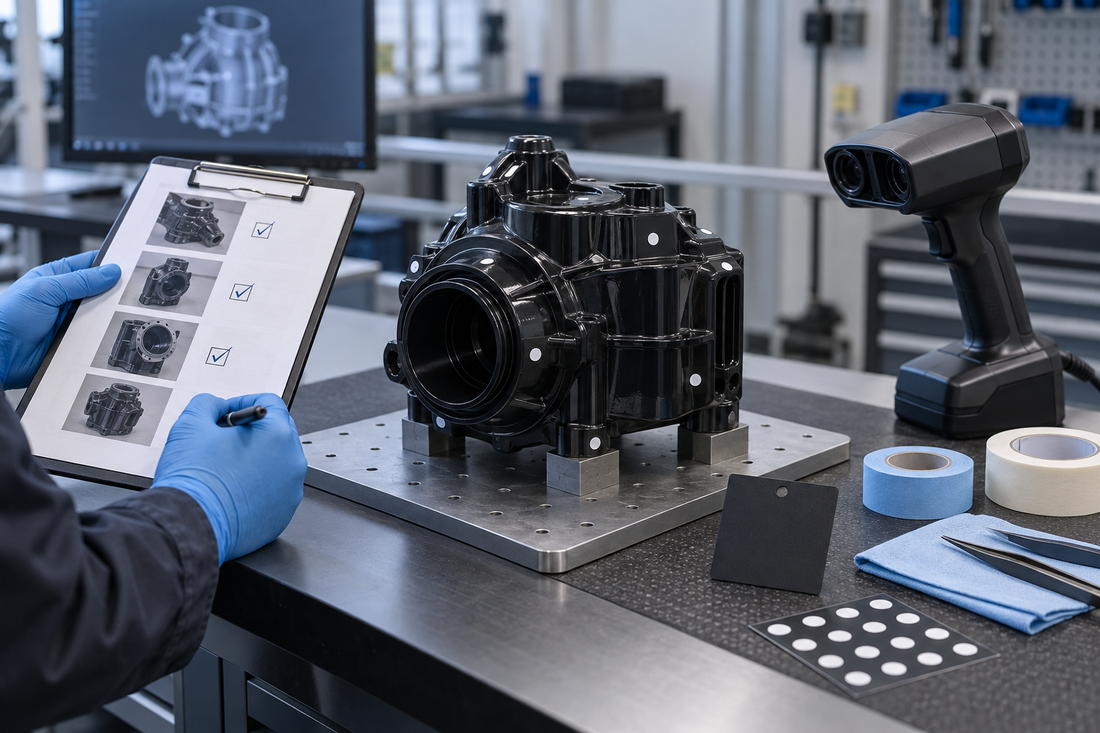

Approve surface preparation before anyone cleans, coats, masks, marks, or attaches targets to the source part. The approval should define the capture objective, current condition record, permitted cleaning, protected features, temporary matte treatment, target placement, custody, removal, and post-scan condition check. Preparation improves capture only when it preserves the evidence and the customer-owned part.

Surface preparation is part of the measurement plan

A scanner does not see every finish equally. Glossy, dark, transparent, translucent, featureless, wet, oily, or highly textured surfaces can change how optical data is captured and aligned. That does not justify an automatic coating or cleaning step. It means the buyer and supplier need a controlled decision about what may touch the part, which surfaces matter, and which evidence must exist before and after preparation.

Preserve condition before improving visibility. Photograph the received state, record loose fragments, dirt, wear, repairs, paint, labels, corrosion, residue, and field modifications. If those conditions help explain nominal geometry or failure, cleaning them away can destroy useful evidence.

Approve seven controls before capture

Separate capture aids from source geometry

Temporary targets, coating texture, fixture contacts, tape edges, and dust are not part of the nominal component. The project record should distinguish source geometry from capture aids and identify any regions where preparation may influence the mesh. For reverse engineering, this matters because the mesh is evidence, not automatically the manufacturing definition.

When a matte coating may be considered

• The optical method has difficulty with a reflective, transparent, translucent, very dark, or low-texture surface.
• The coating is compatible with the customer-property and cleanliness constraints established for the project.
• Fine features, edges, engraving, sealing surfaces, cosmetic zones, and residue-sensitive areas are evaluated before application.
• The buyer understands whether coating thickness or removal uncertainty matters to the intended deliverable.

When to pause

• The part is irreplaceable, fragile, porous, coated, culturally or historically significant, contamination-controlled, electrically sensitive, chemically unknown, or subject to evidence-preservation rules.
• The proposed preparation could move, swell, abrade, dissolve, stain, corrode, magnetize, heat, deform, or leave residue on the part.
• No authorized person can approve contact methods, and the project depends on assumptions about material or finish.

Plan targets, scale, and datum evidence deliberately

Reference targets can help align views or provide tracking on simple geometry, but placement should follow the scan strategy. Keep them off critical edges and interfaces unless the method specifically requires otherwise and the buyer approves the consequence. Record any scale artifacts, reference objects, fixture coordinates, mating parts, and coordinate-system decisions separately from the temporary target pattern.

If the project must infer functional coordinates, review how to reconstruct a datum scheme from a legacy part and its assembly. Surface visibility alone cannot decide which worn or imperfect feature should govern the manufacturing coordinate system.

Use a pre-capture release sequence

1. Identify: confirm part number, revision or configuration, owner, custody, rights, source history, and intended downstream use.
2. Document: capture the received condition before cleaning or disassembly. Include scale, orientation, labels, fragments, and mating context.
3. Classify surfaces: mark critical interfaces, fine features, cosmetic zones, damage evidence, transparent or reflective regions, no-touch zones, and excluded areas.
4. Propose preparation: state cleaning, coating, targets, masking, fixturing, lighting, orientation, and restoration methods without presenting them as guaranteed results.
5. Approve exceptions: resolve conflicts between capture visibility and preservation, measurement, cleanliness, or legal requirements.
6. Trial safely: when appropriate, evaluate a limited, noncritical area or representative sample before full treatment.
7. Capture and reconcile: record preparation state, target map, missing regions, rescans, and deviations.
8. Restore and release: remove approved aids, inspect condition, photograph the returned state, package appropriately, and transfer custody.

Fit, non-fit, and production risks

Good fit for managed intake

• Legacy or replacement-part projects where the source condition, scanning, CAD reconstruction, mating context, first article, inspection, and repeat supply must remain connected.
• Multi-part or multi-SKU programs that need consistent identity, preparation records, coordinate decisions, and deliverable naming.
• Projects where the buyer can provide approval authority, source history, use conditions, critical features, and acceptance evidence.

Not automatically a fit

• Projects that require unverified scanning accuracy, coating compatibility, nondestructive handling, certification, legal conclusions, regulated validation, or other capabilities not confirmed in writing.
• Parts that cannot be touched, moved, coated, cleaned, shipped, or safely accessed under an approved plan.
• Requests to copy a protected design without authorization or to treat one worn sample as a complete nominal definition.

Common production risks

• Coating or targets obscure small features; cleaning removes evidence; fixturing deforms a flexible wall; a loose assembly shifts during capture.
• The mesh contains holes, alignment artifacts, or preparation texture that are later mistaken for design intent.
• The source part belongs to one undocumented revision or worn configuration, but the result is released across a broader installed base.
• A cosmetically convincing CAD model reaches production without controlled interfaces, tolerances, material requirements, first-article acceptance, or revision authority.

Prepare a quote-ready scanning package

• Part identity, quantity, ownership, revision/configuration, dimensions, material if known, finish, fragility, value/custody concerns, photographs, and shipping constraints
• Buyer job: archival mesh, inspection comparison, editable CAD, replacement design, mating-context study, damage documentation, or another defined deliverable
• Critical surfaces, interfaces, datums, fine features, hidden areas, cosmetic zones, markings, damage evidence, and excluded geometry
• Permitted cleaning, coatings, targets, masking, disassembly, fixturing, handling, and restoration; name the approval authority
• Required file formats, coordinate system, units, mesh state, CAD intent, inspection or validation plan, and document precedence
• Downstream production scenario, first-article plan, accepted-unit criteria, packaging, labeling, revision control, and expected repeat demand

The primary commercial owner is the 3D scanning and reverse-engineering service. Related decision support includes repair versus reproduction versus redesign and the production RFQ checklist.

3D scanning surface-preparation FAQs

Why can a shiny or transparent surface need preparation before 3D scanning?

Optical capture can be disrupted when a surface reflects, transmits, or absorbs the scanner pattern unpredictably. A project may use a temporary matte coating, controlled lighting, targets, or another method, but the exact approach and its effect on the part must be approved before use.

Should a buyer allow scan targets directly on the part?

Only after agreeing on target type, adhesive, placement restrictions, removal method, and condition evidence. Targets should not cover critical features or damage sensitive finishes.

Does cleaning automatically improve scan quality?

Not always. Cleaning may remove contamination, but it can also remove evidence, alter a finish, move loose fragments, swell materials, or damage labels. Define what may be cleaned, by whom, with what method, and at which point in the evidence record.

Who approves a temporary matte coating?

The buyer or authorized owner should approve it when the coating touches customer property or could affect finish, markings, contamination status, or later analysis. Record the product or method, protected zones, removal plan, and acceptance check.

Which order path fits a scanning project?

Use farm intake for scanning, reverse engineering, multi-SKU, recurring, inspection-sensitive, staged, packaged, or otherwise complex work. Use instant quote when clean files and straightforward requirements already exist.

Approve what touches the part before capture begins

A good surface-preparation plan is reversible where required, visible in the record, and matched to the actual buyer job. Preserve received condition, identify critical and no-touch zones, approve every contact method, separate capture aids from nominal geometry, and define how the part and data will be released. Use managed farm intake when scanning and downstream production must be coordinated; use instant quote when controlled files and straightforward requirements already exist.
