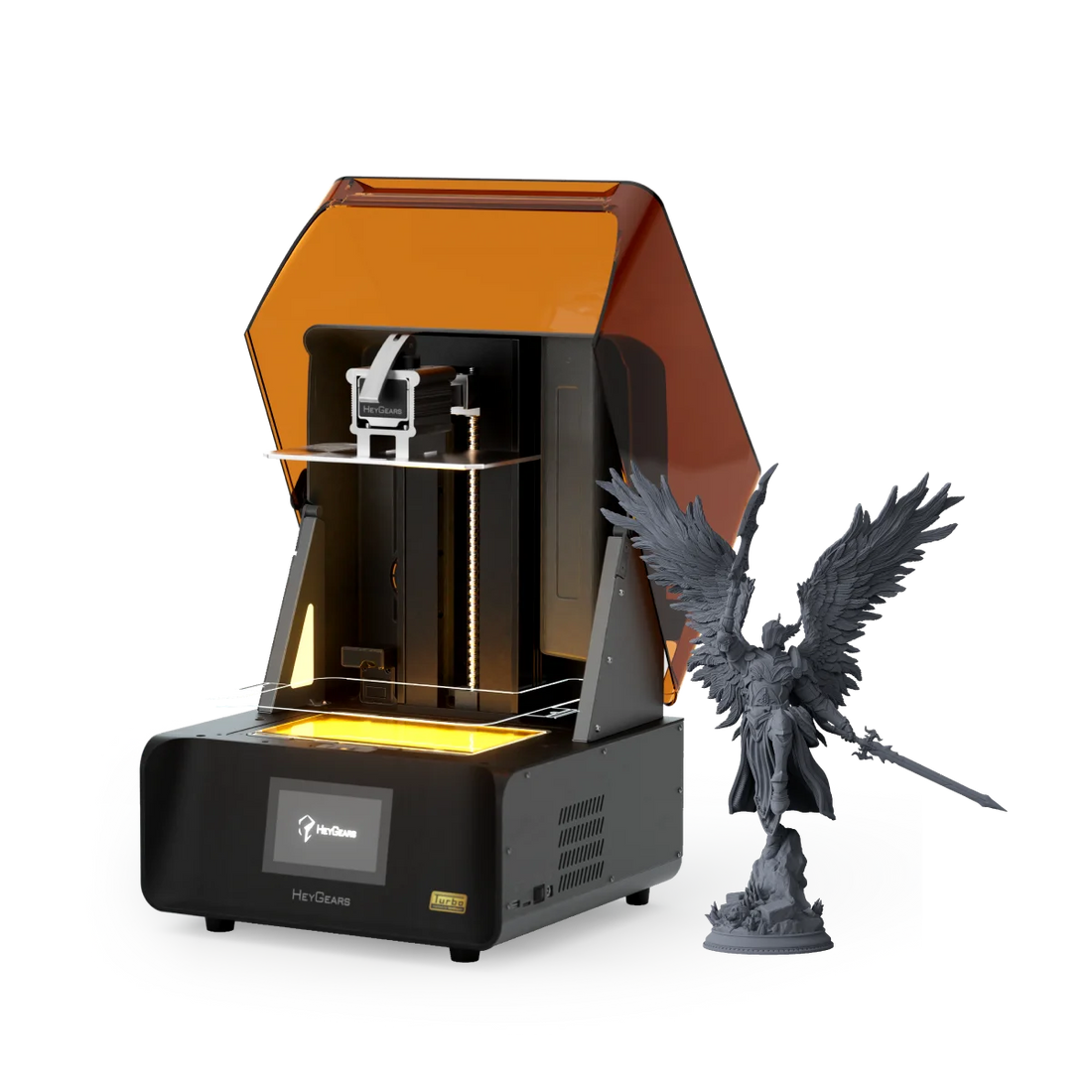

HeyGears Reflex RS Turbo resin 3D printer with a detailed miniature in official product media

HeyGears Reflex RS Turbo Review (2026): Who Should Buy It?

Verdict: The HeyGears Reflex RS Turbo is a polished 10.3-inch MSLA printer for buyers who value guided setup, repeatable miniature detail, and a coordinated resin workflow more than bargain hardware or slicer freedom. Its 222 × 122 × 228 mm volume is useful, but the premium makes sense only if Blueprint, validated profiles, and optional automation save you real labor.

Research disclosure: JCPRINTFARM has not hands-on tested this exact printer. This review is based on HeyGears' current product page and technical documentation, plus published hands-on evidence from 3D Print Beginner, PCMag, and an independent long-form video review. Vendor speed, accuracy, screen-life, and reliability claims are identified as claims rather than our measurements.

The Reflex RS Turbo sits in a less crowded part of desktop resin printing. It is not the cheapest path to an 8K screen, and it is not a fully open platform aimed at experimenters. Instead, HeyGears sells a coordinated system: printer, Blueprint preparation software, tuned resin profiles, optional resin refill and heating hardware, and matching wash and cure equipment. That approach can reduce decision fatigue and repetitive setup, but it also shifts the buying question from raw specifications to workflow fit.

This is also a model where names matter. The Reflex RS Turbo is distinct from the Reflex RS, Reflex 2, and Reflex 2 Pro. Its defining upgrades include the amber 10.3-inch 8K LCD, C5-grade Z-axis module, and Dynamic Motion Algorithm 3.0. Buyers should verify the exact product name on quotations, tanks, release modules, and consumables rather than assuming every Reflex accessory crosses between generations.

Who should buy the Reflex RS Turbo?

The strongest fit is a miniature studio, collectible maker, prototype team, or small resin-production operation that prints similar part families repeatedly and values a guided process. The machine is especially compelling when the cost of a failed plate, inconsistent support strategy, or operator training exceeds the savings from a cheaper printer.

  • Good fit: miniature and figure makers who want sharp small features across a medium-size plate.
  • Good fit: small studios that want repeatable resin presets, assisted preparation, monitoring, and documented post-processing.
  • Good fit: operators who prefer a coordinated printer, material, wash, and cure ecosystem.
  • Conditional fit: experienced users who want to use third-party resin through Open Material Mode and accept the qualification work.

Who should skip it?

Skip the RS Turbo if your first priority is the lowest acquisition cost per cubic millimeter, unrestricted slicer choice, or a broad community profile library. Budget MSLA printers can provide high nominal pixel counts for far less money. They demand more owner judgment, but that may be a welcome trade if you enjoy tuning exposure, lift behavior, and supports yourself.

It is also the wrong tool if your parts regularly exceed 222 × 122 × 228 mm, if you need flexible filament-like parts without resin handling, or if you cannot provide ventilation, PPE, spill control, washing, curing, and hazardous-waste procedures. An enclosed resin printer does not make liquid photopolymer benign.

HeyGears Reflex RS Turbo specifications in context

Specification Published value What it means
Process 405 nm LCD/MSLA Layers are exposed at once; job height usually affects print time more than the number of parts on a layer.
Build volume 222 × 122 × 228 mm A useful medium-format plate for miniature batches, busts, collectibles, and compact prototypes.
Display 10.3-inch 8K amber LCD HeyGears lists 29.7-micron native XY pixels and a 566:1 contrast ratio. Pixel size is not a complete measure of dimensional accuracy.
Layer range 30-100 microns Fine layers improve vertical stepping at the cost of more layers and longer jobs.
Published accuracy ±15 microns A manufacturer specification, not a guarantee for every geometry, resin, support strategy, or post-cure condition.
Z system C5-grade module; claimed ±2-micron repeat positioning This refers to motion-system behavior under HeyGears' test conditions, not total finished-part tolerance.
Machine size / weight 380 × 360 × 584 mm / 20 kg Substantial for a desktop resin printer; allow overhead clearance for the cover and room for resin handling.
Connectivity USB and Wi-Fi; independent coverage also documents microSD Network transfer fits the managed workflow, while local transfer provides an offline path.
Rated power 180 W Only one part of operating cost; resin, film, IPA, filters, PPE, screens, and labor matter more.

One source lists the Y dimension as 128 mm while the current HeyGears store specification lists 122 mm. For purchase and fixture planning, use the current official 222 × 122 × 228 mm value and confirm any critical usable-area requirement with HeyGears. This discrepancy is a reminder not to plan production from reseller summaries alone.

What the amber screen and motion system really change

HeyGears emphasizes the amber LCD's 566:1 contrast ratio and control of stray light. In practical terms, better optical separation can help preserve edges and reduce unwanted cure around small features. It does not eliminate the influence of resin chemistry, exposure settings, model orientation, support contact size, release behavior, or post-cure.

The company also claims more than one million printable layers for the screen. Treat that as a controlled-test durability claim, not a replacement interval. Screen life depends on temperature, exposure, mechanical damage, resin leaks, maintenance, and duty cycle. A shop should price the screen as a consumable even if the expected service interval is long.

The C5-grade Z-axis and rigid 20 kg chassis are meant to keep layer motion stable. HeyGears says repeat positioning error is no more than 2 microns under its test method. Independent hands-on coverage praised the rigid platform and reported crisp, well-defined figures, but finished-part accuracy still includes shrinkage, support distortion, cure effects, and measurement technique.

Speed: useful, but read the footnotes

HeyGears advertises an average 4.5 seconds per layer in a named water-washable resin scenario and up to a 33% increase from Dynamic Motion Algorithm 3.0. The algorithm evaluates the cross-section, part spacing, quantity, and force data, then selects among motion parameters. This is more meaningful than a single peak millimeters-per-hour claim because release conditions change from layer to layer.

Still, neither number predicts every job. Total time includes base layers, exposure, lift and settle behavior, resin temperature, geometry, support density, file preparation, washing, drying, and curing. A hollow bust, a plate of miniatures, and a dense engineering block impose different release forces. Plan capacity from representative sliced files and completed workflow trials, not a headline percentage.

Blueprint software and the ecosystem tradeoff

Blueprint is central to the intended experience. It provides repair, support generation, slicing, and tuned process packages for HeyGears materials. Blueprint GO connects and monitors compatible equipment. This can be a genuine advantage for a small team: standardized profiles reduce the number of operator choices, and a documented recipe is easier to train than an improvised stack of community settings.

3D Print Beginner found the workflow easy to follow and its one-click slicing better than expected, while still recommending that users inspect the result and adjust models when needed. That is the right expectation. Automatic supports are an assistant, not a substitute for understanding suction cups, trapped resin, peel forces, cosmetic surfaces, drainage, and support access.

The tradeoff is dependence. Software features, account behavior, validated profiles, and accessory integration are part of the value you are buying. If you strongly prefer Lychee, Chitubox, or a vendor-neutral fleet workflow, confirm the current export and control boundaries before ordering. Open Material Mode expands resin choice, but it does not make third-party resin qualification free.

Materials: validated convenience versus open-mode work

The current store page lists multiple compatible HeyGears resin families, including PAS10, PAF10, PAP10, PARP10, PAWR10, PAU11, PAWW10, and PAWW20. These cover modeling, detail, flexible, wear-resistant, and water-washable use cases. Availability and exact naming can vary, so match the printer, resin, software package, and post-cure recipe at ordering time.

Open Material Mode is important because it allows adjustable settings for broader resin options. For an experienced operator, that reduces the lock-in objection. It also transfers responsibility. A third-party resin needs exposure validation, support testing, temperature control, dimensional coupons, wash compatibility, cure validation, aging checks, and documented acceptance criteria.

For production, do not qualify a resin with one attractive figurine. Run thin walls, holes, bosses, flatness samples, supported surfaces, and the real post-cure process. Record resin lot, ambient temperature, vat film age, exposure, orientation, wash time, dry time, cure cycle, and measured results. That evidence matters more than the brand label on the bottle.

Automation and optional hardware

The base platform supports floating-screen auto leveling, force monitoring, residue detection, and automatic resin refill. Automatic heating requires the appropriate heated and pulsing-release resin tank, and the pulsing function requires its related module. Do not assume the base $799 promotional configuration includes every capability shown in marketing imagery.

Automatic refill is valuable for tall or densely packed jobs because it reduces the chance of simply running the vat short. Independent hands-on coverage noted that the initial bottle-fed fill can be slow and described pre-filling the vat before attaching the bottle as a practical workaround. This is a small detail, but it illustrates why workflow observations matter alongside specifications.

Heating can improve consistency when the room or resin is cold, because viscosity and cure behavior change with temperature. It does not eliminate the need to document starting temperature and warm-up time. The optional pulsing-release path may improve release behavior for demanding layers, but the benefit should be proven with your geometry before it is included in an ROI estimate.

Print quality and independent evidence

Independent evidence is favorable. 3D Print Beginner printed detailed character models and described the results as crisp, well defined, and close to paint-ready apart from support marks and a preparation-related defect. The author also liked the on-screen setup guidance, hardware detection, extensive documentation, and rigid build platform.

PCMag's published hands-on review likewise reports strong finished-print quality and a low-friction integrated workflow with the optional wash and cure stations. A separate long-form video review by ItsAGundam documents the exact RS Turbo platform in use. These sources are useful corroboration, but they do not establish long-term fleet reliability, every resin's behavior, or a universal dimensional capability.

Our conclusion is therefore narrower: the RS Turbo has a credible hardware-and-software basis for detailed, repeatable resin work, and multiple independent users have produced good results. A buyer should still request sample parts in the intended resin or run an acceptance test before committing production.

The real workflow costs

The printer is only the exposure step. Every useful budget needs to include:

  • resin, failed parts, supports, drain loss, and resin trapped in hollow geometry;
  • release film, screens, vats, build-platform wear, filters, funnels, wipes, and tools;
  • IPA or another approved wash fluid, two-stage wash management, and solvent replacement;
  • gloves, eye protection, ventilation, spill trays, absorbent material, and labeled waste storage;
  • labor to remove parts, drain, wash, dry, remove supports, cure, inspect, and pack;
  • software/account administration, profile control, maintenance, and operator training;
  • optional heated vat, pulsing module, UltraCraft Wash, and UltraCraft Cure equipment.

HeyGears' matching wash and cure stations can carry resin-specific process information through the workflow. That coordination may be valuable where different operators need the same result. It can also increase the total system price. Compare the complete cell, not the printer alone.

Resin safety: Uncured photopolymer and contaminated wash fluid require controlled handling. Use the resin manufacturer's safety data sheet, suitable gloves and eye protection, ventilation appropriate to the material and process, and local rules for waste. Never pour uncured resin or contaminated solvent down a drain. Cure and dispose of waste only through an approved procedure.

Availability and lifecycle in October 2026

The Reflex RS Turbo is current and orderable from the HeyGears US store at the time of this review. The store displayed a promotional base-printer price of $799 against a higher reference price when checked on October 17, 2026. Prices, bundles, shipping, resin promotions, and accessory inclusion can change quickly, so this review does not treat that price as permanent.

The current listing also offers configurations involving the pulsing release module, resin, or curing hardware. Read the package list line by line. A low advertised entry price is not the same as the configured cost of a temperature-controlled, washed, cured, and safely ventilated production cell.

Alternatives to consider

HeyGears Reflex 2

The HeyGears Reflex 2 review covers the newer general-purpose platform with a similar guided ecosystem. Compare usable volume, current bundles, material list, and accessory compatibility. Do not assume the RS Turbo's amber-screen positioning automatically makes it the better purchase for every workflow.

HeyGears Reflex 2 Pro

The Reflex 2 Pro is the step-up option when the 350 mm Z height and more production-oriented capacity justify the much higher system cost. It is a poor value if your parts fit comfortably inside the RS Turbo and do not need its scale.

Anycubic Photon Mono M7 Max

The Photon Mono M7 Max review is relevant for buyers prioritizing larger-format capacity and a more conventional consumer-resin ecosystem. Compare whole-workflow reliability and usable detail, not resolution labels alone.

Formlabs Form 4

The Formlabs Form 4 review covers a more established professional workflow with a broad validated-material and service story. Its total cost is higher, but procurement, documentation, and support structure may matter more than printer price in regulated or client-facing environments.

How to evaluate it before buying

  1. Measure the actual parts. Include supports, drainage angle, and platform clearance, not only the finished bounding box.
  2. Choose the real resin. Verify it appears in the current validated list or budget time for Open Material Mode qualification.
  3. Slice representative jobs. Record resin volume, support volume, estimated time, and parts per plate.
  4. Price the complete cell. Include heat/release hardware, wash, cure, ventilation, PPE, solvent, and spares.
  5. Request or print acceptance coupons. Measure the features that determine whether your product passes.
  6. Confirm replacement supply. Ask about screens, vats, films, shipping lead time, warranty, and support response.
  7. Run a software fit check. Confirm Blueprint works with your computers, file controls, network policy, and operator roles.

Can it work for a small production shop?

Yes, within a clearly bounded part family. The RS Turbo's best production argument is not enormous build volume; it is reduced workflow variability. Tuned resin packages, automated checks, force monitoring, refill support, and coordinated post-processing can help a small team repeat a known recipe.

It should not be presented as unattended manufacturing. Plates still need preparation and inspection. Resin and solvent need controlled handling. Supports and cosmetic surfaces need judgment. Consumables fail, network services change, and operators make mistakes. A resilient shop keeps local work instructions, spare consumables, lot records, acceptance samples, and a recovery path when automation stops.

Buy the printer or outsource the parts?

If you need frequent same-material output, can control the resin workspace, and have someone responsible for process qualification, owning may make sense. If demand is intermittent, materials change often, or you only need a few validation parts, outsourcing avoids buying an entire wet-processing cell.

JCPRINTFARM's production 3D printing service is a practical route when you need parts rather than another machine to maintain. For a quote based on geometry, quantity, material, deadline, and finish, use the project intake form. You can also browse the 3D printer review hub for other researched options.

Final verdict

The HeyGears Reflex RS Turbo earns consideration because its parts work together: rigid motion, high-contrast exposure, guided preparation, sensors, refill support, validated resins, and coordinated post-processing. Independent users have shown detailed, clean models, and the platform appears easier to standardize than many low-cost MSLA printers.

Buy it when that consistency and reduced operator friction justify the premium. Skip it when you want maximum slicer freedom, the cheapest pixels, or a machine without ecosystem dependence. For production, validate the exact resin, geometry, dimensional requirement, accessory bundle, and full wet-workflow cost before calling it profitable.
