Anycubic Photon Mono M7 Max Review: When 14.7 Liters Makes Sense

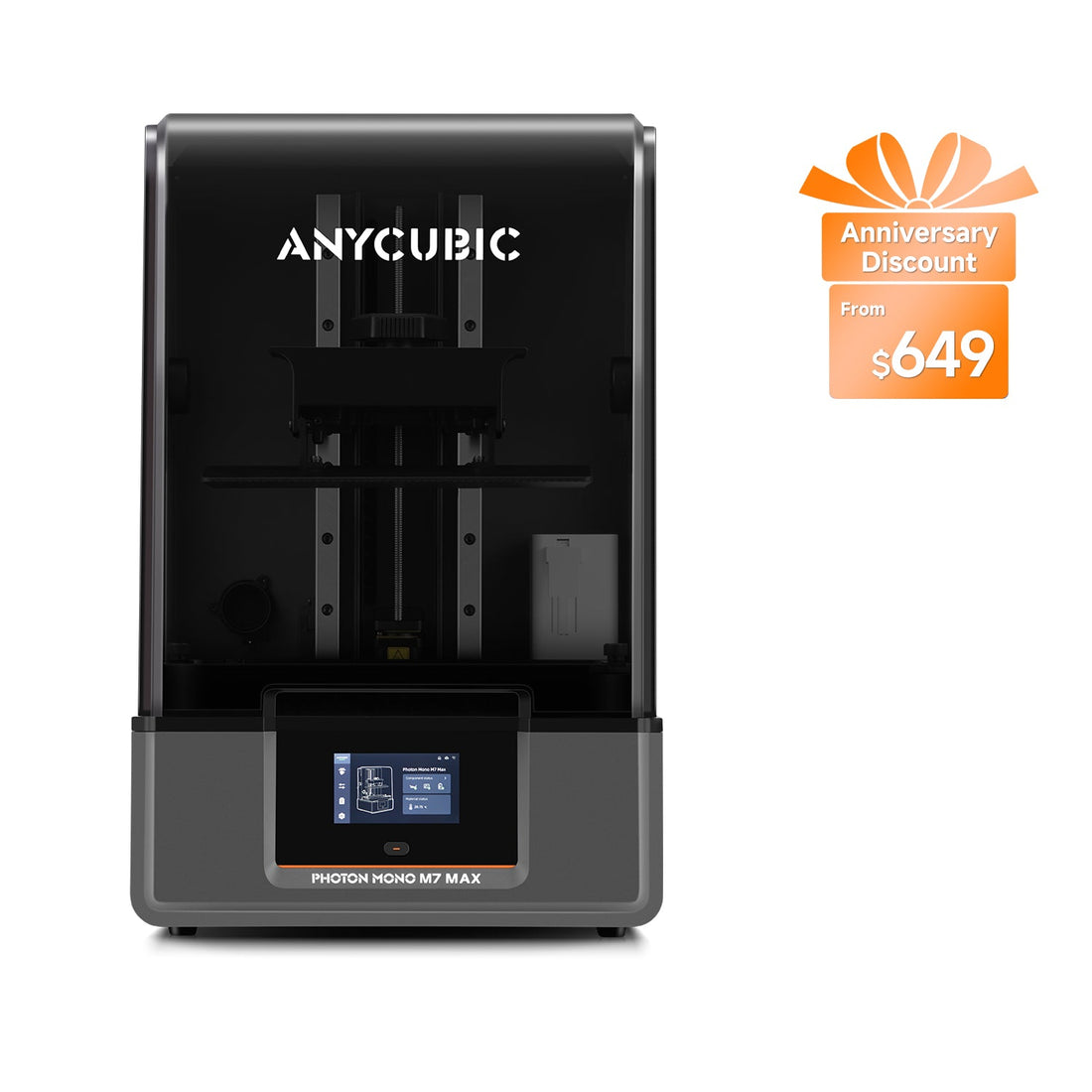

Anycubic Photon Mono M7 Max large-format resin 3D printer in official product media
Anycubic Photon Mono M7 Max in official product media. Image source: Anycubic.

Quick verdict

The Anycubic Photon Mono M7 Max is compelling when a 298 x 164 x 300 mm resin volume prevents model splitting or enables genuinely useful batches. Its heater, resin-management system, large hinged cover, and sensing features make the scale more manageable. Skip it for ordinary miniatures, casual first-time resin use, or any workspace that cannot safely accommodate a large vat, washing, curing, ventilation, and hazardous-liquid handling.

Research disclosure: This is a research-based buyer analysis, not a claimed JCPRINTFARM hands-on test. We checked Anycubic's current US product listing and exact-model firmware support, then compared detailed independent testing from Tom's Hardware, 3DWork, and PCMag. Their results inform context, but their test prints are not ours.

What the Photon Mono M7 Max is

The Photon Mono M7 Max is a large-format masked stereolithography printer built around a 13.6-inch monochrome LCD. Its 298 x 164 x 300 mm build volume holds about 14.7 liters, enough for large figures, masks, display pieces, prototypes, and substantial batches that would be awkward on a normal mid-size resin machine. It uses a 6,480 x 3,600-pixel panel, yielding approximately 46-micron square XY pixels.

The model sits above the standard Photon Mono M7 and M7 Pro in physical capacity. It is closer in size to the older Photon M3 Max, but adds the M7 generation's optical system, sensing, network workflow, resin heating, automatic feed-and-recovery hardware, and hinged cover. That makes it a workflow upgrade as much as a volume upgrade.

Who it fits and who should skip it

Best fit: experienced resin users who can name recurring models that exceed smaller plates; studios batching large miniatures or product masters; prop and collectible makers who want fewer seams; and qualified shops willing to document resin, temperature, support, washing, curing, and failure costs.

Skip it: buyers choosing by “largest possible” without representative files; beginners without a controlled resin station; anyone who mostly prints small miniatures; users who expect 7K marketing to guarantee accuracy; and businesses that need validated uptime but cannot pilot the workflow. Large resin prints magnify every error, from hollowing and drainage to support loads and post-cure distortion.

Key specifications in useful context

Specification Practical meaning
298 x 164 x 300 mm build volume (about 14.7 L) Large one-piece models and big batches, with correspondingly large resin inventory, lift forces, wash volume, and failure exposure.
13.6-inch monochrome LCD, 6,480 x 3,600 About 46 x 46 microns per XY pixel. Suitable detail for large models; not as pixel-dense as smaller 14K M7 machines.
COB LighTurbo 3.0 optical system Anycubic claims at least 90% uniformity. Real dimensional results still depend on exposure, resin, film, orientation, supports, and cure.
31–63 mm/h listed print speed Layer-height, exposure, release motion, cross-section, temperature, and resin determine actual job time; large jobs may still run for days.
120 W resin heater, adjustable 20–40 C Useful for viscosity and consistency in cool rooms. Independent testing indicates behavior should be checked during the complete job, not assumed from preheat.
Automatic resin feed and recovery Reduces manual filling and can protect long jobs from a low vat, but adds tubing, bottle compatibility, cleaning, and maintenance.
ACF release film Supports lower-force, faster release on the large plate; replacement cost and possible surface-texture tradeoffs belong in the operating budget.
Wi-Fi, LAN, USB and app workflow Convenient when it works, but a shop should verify firmware, network policy, local recovery, and file-transfer behavior before standardizing.

Where the M7 Max is strongest

Its volume can eliminate expensive assembly

The best argument for this printer is not “more capacity.” It is fewer cuts, alignment pins, glue joints, filled seams, and post-processing hours on models that genuinely fit the 298 x 164 x 300 mm envelope. For a statue, prop component, presentation model, or master pattern, avoiding one difficult seam may matter more than raw printer speed.

The plate can also batch many smaller parts. That is useful only when the parts, support strategy, and cleaning process are repeatable. A densely packed plate concentrates risk: a detached part can interfere with neighbors, while a failed full vat consumes more resin and labor than several smaller jobs.

The heater and resin system address large-vat problems

Large vats expose more resin to room-temperature variation and require more attention during long jobs. The included heater and automatic feed system are therefore meaningful features, not decoration. 3DWork reported that the heating system was a major improvement, but observed it operating as preheat on its test unit. Treat that as a reason to verify current firmware and log vat temperature during representative jobs.

The feed-and-recovery hardware can reduce repeated pouring and helps maintain resin level. It does not create a closed chemical process. Tubes, bottle adapters, drips, incompatible high-viscosity resin, and cross-contamination still require procedures. Keep secondary containment under the bottle and printer, and label every wetted component.

Independent reviewers found credible large-format results

Tom's Hardware characterized the machine as large, fast, and detailed enough for its intended work. PCMag likewise praised its ability to span small miniatures through unusually large models. 3DWork measured good UV power and homogeneity on its sample and produced large projects after calibration. Together, that is stronger evidence than specifications alone.

The evidence should not be overgeneralized. Different resin, firmware, film tension, room temperature, support strategy, or geometry can change the outcome. JCPRINTFARM has not reproduced those prints, so this article does not convert third-party success into a first-hand reliability claim.

Limitations and workflow costs

46-micron pixels are a scale tradeoff

The 7K panel spreads 6,480 x 3,600 pixels across a very large area. Its roughly 46-micron XY pitch can produce attractive detail, but it is materially coarser than the approximately 17 to 25-micron pitches marketed on smaller high-resolution machines. For large painted objects this may be irrelevant. For tiny jewelry text or the finest miniature surfaces, a smaller, denser screen can be the better tool.

Do not compare “7K” with “14K” without screen dimensions. Pixel pitch, optical uniformity, resin behavior, exposure, anti-aliasing, Z layer height, orientation, and post-cure all matter. Print a representative fine-feature coupon before approving critical work.

Manual four-point leveling remains consequential

The M7 Max includes a leveling assistant, but the platform still uses a four-point manual process. On a plate this large, even pressure and correct screw sequence matter. 3DWork reported first-layer adhesion cases that required adjustments to leveling, bottom exposure, film tension, and job-specific settings. That is normal process evidence, not a reason to assume the printer is broken or automatic.

Big jobs multiply hollowing and drainage risk

Large hollow models need adequate drain and vent holes, sensible wall thickness, internal support strategy, and inspection for trapped liquid resin. Sealed cavities can leak, crack, or build pressure later. A large successful-looking shell is not finished until it has been fully drained, washed, dried, inspected, and post-cured according to a documented process.

Full-plate failures are expensive. Qualify a new resin on small exposure and support tests, then a representative section, before committing a multi-day model. Record bottom exposure, normal exposure, lift parameters, rest time, temperature, support contact, hollowing, film age, and post-cure.

The workstation is much larger than the printer

Plan space for the raised hinged cover, bottle and tubing, resin storage, tools, absorbent material, contaminated waste, and service access. Large parts also require large wash and cure capacity. A part that fits the build volume may not fit a normal wash bucket or cure station, so measure the entire process before buying.

Resin safety is part of the buying decision

Uncured photopolymer resin can irritate or sensitize skin. Follow the current safety data sheet for the exact resin and provide appropriate chemical-resistant gloves, eye protection, spill control, restricted access, and effective ventilation. The amber cover and a carbon filter are not substitutes for source control, and odor is not a reliable exposure measurement.

Never pour uncured resin, contaminated solvent, or wash water down a drain. Follow local disposal rules. Cure contaminated disposables only where the resin maker and local rules permit it, and never treat “sun cured” as automatic proof that a waste stream is safe.

Material and process fit

Display and miniature resin: a strong fit for large statues, terrain, busts, and batches. Smaller machines may be more economical for only a few miniatures.

Tough or ABS-like resin: useful where improved impact resistance is needed, but those labels do not make cured resin equivalent to molded ABS. Validate impact, heat, creep, moisture, and chemical exposure.

Castable resin: the large volume can produce substantial patterns, but burnout, ash, investment, cure, ventilation, dimensional compensation, and foundry limits control success.

Dental or biocompatible use: screen resolution does not establish medical suitability. Regulated output requires an approved end-to-end workflow, traceable material, validated wash and cure, documentation, and compliance for the intended jurisdiction.

Software and qualification workflow

Confirm an exact M7 Max profile in the slicer version you plan to use. Anycubic Photon Workshop is the official route; independent users also report support in established third-party slicers. Similar model names are not interchangeable because build dimensions, file formats, motion, and exposure behavior differ.

  1. Update only with exact-model firmware from Anycubic's support route and record the installed version.
  2. Level the printer on a rigid surface, then complete the four-point platform procedure.
  3. Run a small exposure matrix at the actual room and resin temperature.
  4. Verify the heater, resin level, residue detection, feed, recovery, and network functions with a low-risk job.
  5. Print a representative section before committing a full-volume model.
  6. Track resin used, hands-on minutes, failed volume, film cycles, wash solvent, cure time, and dimensional results.

Alternatives worth comparing

Anycubic Photon Mono M7: choose the smaller base M7 when 223 x 126 x 230 mm is enough and pixel density matters more than enormous capacity. Read our Photon Mono M7 review.

Anycubic Photon Mono M7 Pro: a mid-size alternative when temperature control and the higher-density 14K screen matter, but the Max plate does not.

Anycubic Photon Mono 4 Ultra: better aligned with compact miniature detail and a smaller workstation. See our Photon Mono 4 Ultra review.

Elegoo Jupiter- or Saturn-class systems: compare usable dimensions, pixel pitch, heater implementation, release system, replacement film and screen cost, slicer support, cover clearance, and regional warranty.

Splitting or outsourcing: a smaller printer plus good alignment design may cost less when giant work is rare. For occasional large parts, compare the complete chemical station and labor with JCPRINTFARM's production 3D printing service or project intake.

Buying checklist

  • Slice real projects and confirm they benefit from 298 x 164 x 300 mm rather than merely fitting it.
  • Measure printer, open-cover, bottle, wash, cure, ventilation, storage, and service clearances.
  • Verify the exact voltage, SKU, seller, return window, warranty route, and current bundle contents.
  • Price replacement ACF film, screen protection, resin, wash solvent, PPE, containers, ventilation, and disposal.
  • Confirm exact-model slicer and firmware support plus a local recovery method if cloud features fail.
  • Plan safe lifting, draining, washing, drying, and curing for the largest intended part.
  • Pilot the complete workflow before promising production delivery.

Lifecycle and availability in September 2026

The exact M7 Max product remains listed in Anycubic's US store, with purchasable variants when checked on September 8, 2026. An exact-model firmware page is also live. That supports treating it as a current product rather than an announcement or unsupported legacy machine. Price, bundles, inventory, and delivery terms can change, so verify them at checkout rather than relying on a number preserved in a review.

Final verdict

The Anycubic Photon Mono M7 Max earns consideration when its 14.7-liter build volume removes real seams or enables profitable batches. The heater, resin-management hardware, optical system, sensing, and hinged cover make a large vat more practical, while independent reviews provide credible evidence that it can deliver strong large-format results.

Its scale is also the warning label. The 46-micron screen is not the sharpest option for tiny work, leveling and calibration still matter, and a failed large plate can waste substantial resin and time. Buy it for measured large-format demand and a prepared chemical workflow—not because maximum volume looks future-proof. If the need is occasional, send the project to JCPRINTFARM. Browse more exact-model coverage on the 3D printer reviews hub.

Sources checked
