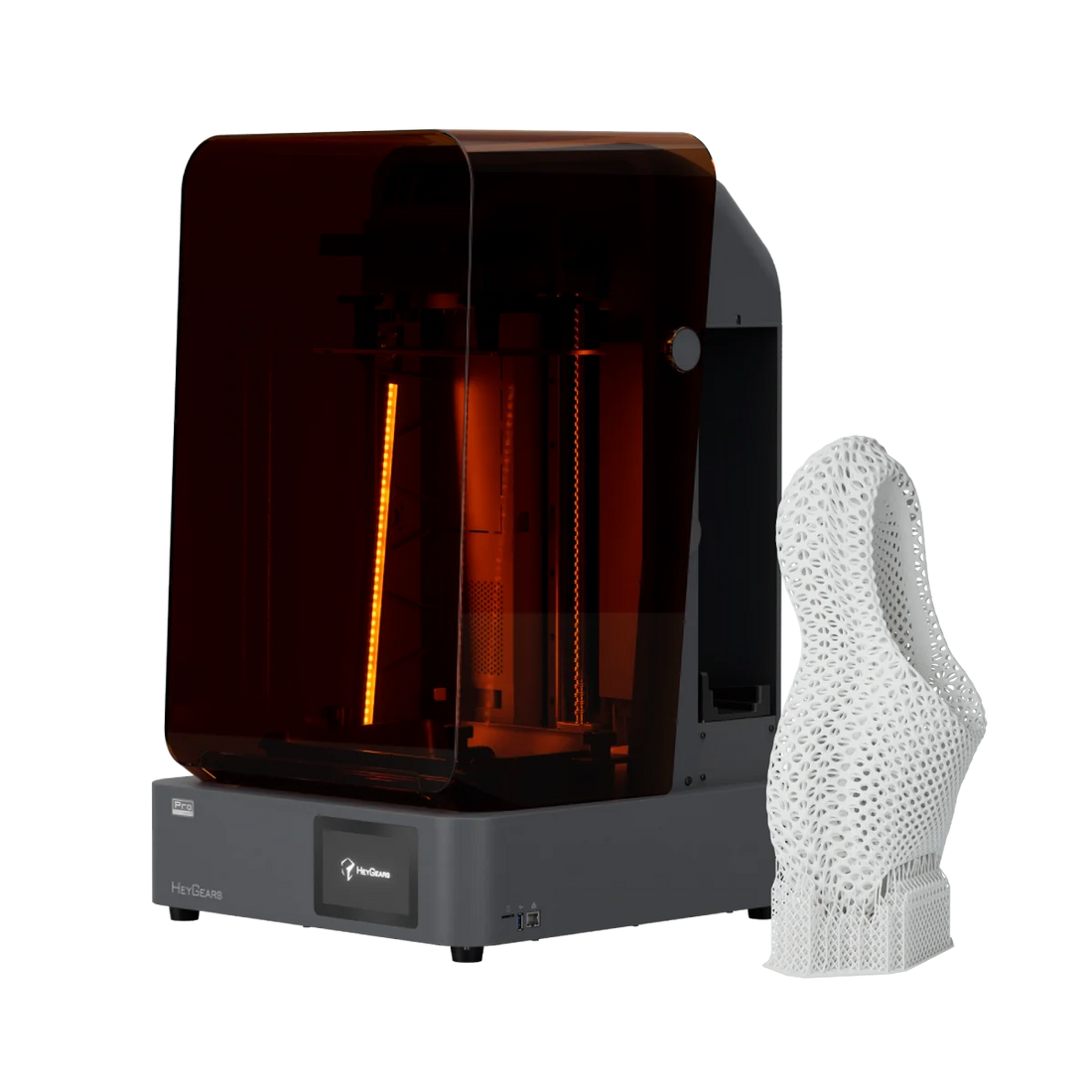

HeyGears Reflex 2 Pro large-format resin 3D printer in official product media

HeyGears Reflex 2 Pro Review (2026): Is It Worth $2,999?

Verdict: The HeyGears Reflex 2 Pro is a serious large-format resin system for teams that value a guided, repeatable workflow more than open-ended tinkering. Its 350 mm Z height, heated resin management and production-focused motion system are compelling, but the $2,999 printer is only the start: proprietary workflow choices, washing, curing, ventilation, consumables and resin handling determine its real value.

Research disclosure: JCPRINTFARM has not hands-on tested this exact printer. This review is based on HeyGears product, store, support and launch documentation checked October 17, 2026; independent hands-on coverage from I Built a Thing; and industry reporting from VoxelMatters and Engineering.com. Manufacturer performance figures are identified as claims, not presented as our own benchmarks.

What the HeyGears Reflex 2 Pro is

The UltraCraft Reflex 2 Pro is a 385+ nm LCD/MSLA resin printer aimed above the usual hobby class. Its defining specification is a 230 × 144 × 350 mm build volume. The X and Y footprint matches the smaller Reflex 2, but the Pro adds 120 mm of Z height and is positioned for tall parts, dense batches and production materials.

This is not simply a large screen in a tall cabinet. HeyGears pairs a 10.7-inch Amber Screen Pro with a 1,032-zone OptiZone light engine, a C5-grade Z-axis module, a die-cast base, scraper-assisted resin heating and automatic refill support. Blueprint Studio supplies the preparation workflow. The product is best understood as a controlled process: printer, validated material profiles, software and post-processing equipment are designed to work together.

Who it fits, and who should skip it

Best fit: design studios, service bureaus, engineering teams and small manufacturers that repeatedly need tall resin parts or full-platform batches, can validate HeyGears materials for their application, and will pay for a more managed workflow. Orthotics, footwear concepts, housings, jigs, molds and repeatable functional prototypes make more sense than occasional decorative prints.

Skip it if: most parts fit a conventional desktop resin printer, you want unrestricted third-party resin tuning, or you do not have a complete plan for ventilation, washing, curing, waste and personal protective equipment. Buyers making regulated dental, medical or protective products also need their own material, process and regulatory validation; the printer's marketing does not establish a finished part's safety or compliance.

Key specifications in context

Specification Reflex 2 Pro Why it matters
Process LCD/MSLA resin printing, 385+ nm Material compatibility must be checked against HeyGears profiles and the required cure process.
Build volume 230 × 144 × 350 mm The tall Z axis is the main reason to choose it over the Reflex 2.
Native XY pixel 40 microns A useful sampling figure, but not a complete measure of dimensional accuracy or surface quality.
Layer range 20–250 microns Layer selection depends on material, geometry and the validated profile.
Light engine 1,032 OptiZone zones HeyGears says the zones selectively manage illumination across the large area; independent benchmarking remains limited.
Resin management Scraper-assisted heating, automatic refill support, 0.15 mm residue detection These features target stable viscosity and fewer preventable vat failures, but they add parts to maintain and clean.
Connectivity USB, Wi-Fi and LAN; RJ-45 port listed LAN is useful in managed workspaces, though software and update policies still need an IT review.
Printer size and weight 430 × 445 × 715 mm; 29.7 kg The machine needs a strong bench plus overhead and front access. Wash and cure equipment require more space.
Rated power 750 W Electrical capacity is only one facility cost; extraction and post-processing can matter more.

HeyGears lists ±20 micron accuracy, ±1°C resin temperature control and more than 6,000 hours of screen life. Those are manufacturer figures under its stated conditions. They should inform a validation plan, not replace one. Pixel pitch, layer height and marketing accuracy are different measurements, and none predicts whether a specific tall part will meet tolerance after support removal and curing.

Where the Reflex 2 Pro is strongest

A genuinely useful tall build envelope

At 350 mm tall, the build volume can reduce splitting and joining for orthotic forms, footwear components, tall housings and long prototypes. It can also stack or array smaller work when the geometry and supports cooperate. The practical gain is not merely maximum part height: it is the option to keep an assembly as one print or pack more output into a scheduled run.

That advantage needs disciplined file preparation. Tall resin parts increase peel, support and drainage challenges, and a full platform makes a failed job expensive. Production users should qualify representative worst-case geometry before assuming every cubic millimeter is usable capacity.

Temperature and resin handling are treated as process variables

The heating scraper is a meaningful feature for viscous engineering resins and cool rooms. HeyGears says it can bring resin from 10°C to 22°C in six minutes and maintain temperature within ±1°C. We have not reproduced those results. The broader design idea is sound: consistent resin temperature and mixing can be more valuable to repeatability than another headline resolution number.

Automatic refill and residue detection also target routine failure modes. They do not eliminate operator checks. A team still needs controlled material storage, lot tracking, vat inspection, safe cleanup and documented changeover procedures.

A production-oriented motion and light system

HeyGears uses a C5-grade Z-axis module and a field-oriented-control motor rather than presenting the machine as a basic stepper-driven desktop printer. The 1,032-zone light engine is meant to modulate illumination across a large screen. The company publishes impressive movement and layer-error claims, but those results come from HeyGears laboratory data. Buyers should request application samples and run acceptance parts with their actual resin, orientation and cure recipe.

The ecosystem reduces setup decisions

Blueprint Studio, automatic functions and tuned material profiles can shorten the path from model to print. This is attractive for teams that want an operator to follow a repeatable procedure rather than rebuild exposure settings for every resin. Independent Reflex coverage consistently frames that control as both the platform's strength and its tradeoff.

Limitations and workflow costs

The $2,999 printer price is not the system price

The HeyGears US store showed the Reflex 2 Pro at $2,999 when checked on October 17, 2026. Price and stock can change. A usable production cell may also require the UltraCraft Wash and Cure units, additional tanks and platforms, compatible resin, solvent or approved wash chemistry, extraction, PPE, spill supplies, waste containers and replacement consumables.

Before purchasing, model cost per accepted part rather than cost per liter or the printer's sticker price. Include support material, failed builds, wash fluid replacement, cure time, operator labor, vat and screen wear, maintenance downtime and hazardous-waste handling. Large resin parts can be excellent, but they are rarely cheap by accident.

A controlled ecosystem narrows flexibility

The Reflex family is optimized around HeyGears materials and profiles. The store describes compatibility with Reflex-series materials, not universal open-resin operation. That can improve predictability, but it also ties purchasing and application development to a smaller catalog. Confirm that a named resin meets the mechanical, temperature, color, aging and certification needs of your part before treating the printer as a general-purpose solution.

Blueprint Studio also becomes part of the operational dependency. Evaluate file support, support editing, job transfer, user permissions, offline behavior, update policy and data handling with the same care as the hardware. The independent I Built a Thing review is useful because it examines the machine as a full workflow rather than treating the specification sheet as a performance test.

Post-processing remains substantial

Automation inside the printer does not remove wet-resin work. Printed parts must drain, be removed, washed, dried and cured to the applicable process. Supports must be removed without damaging surfaces. Tall parts may need special fixtures or multiple wash cycles, and internal cavities demand deliberate drainage and cleaning.

Uncured resin and contaminated solvent require careful handling. Use the material safety data sheet, suitable gloves and eye protection, local ventilation and applicable waste rules. Do not pour resin or contaminated wash liquid down a drain. If your operation cannot support that process, outsource resin production through a qualified service rather than forcing it into an unsuitable space.

Independent exact-model evidence is still thin

The Reflex 2 Pro is a real, shipping product with an active store listing, documentation and exact-model third-party coverage. However, long-duration public evidence remains limited compared with mature platforms. There is not yet a broad pool of independent data covering screen life, field service, parts availability, dimensional drift and multi-year production uptime.

That does not make the system a bad purchase. It means serious buyers should ask for written warranty terms, local service arrangements, spare-part lead times and a sample-build or return path. For production, support quality can matter more than a marginal speed advantage.

What independent coverage adds

I Built a Thing published an exact-model hands-on review in August 2026 and compared the workflow with higher-priced industrial stereolithography systems. That is valuable evidence that the machine exists beyond launch material, but one review cannot establish fleet reliability. Treat its prints and observations as one test configuration.

VoxelMatters and Engineering.com separately reported the Reflex 2 series launch and confirmed the Pro's 230 × 144 × 350 mm build volume, 1,032-zone light engine and production positioning. These reports help corroborate model identity and market context; they are not independent benchmarks of HeyGears' accuracy, speed or screen-life claims.

Reflex 2 Pro versus realistic alternatives

HeyGears Reflex 2

Choose the smaller Reflex 2 when 230 mm of Z height covers the work. It keeps the same 230 × 144 mm footprint while lowering acquisition cost and physical height. The Pro earns its premium when tall one-piece parts, large vertical nests or its more production-oriented hardware are recurring requirements, not hypothetical possibilities.

Formlabs Form 4

The Formlabs Form 4 has a smaller 200 × 125 × 210 mm build volume but a mature professional ecosystem, broad documentation and a well-established service story. Compare the exact material, post-cure requirements, software workflow and support package. The Reflex 2 Pro wins decisively on Z height; Form 4 may be the lower-risk organizational choice for teams already standardized on Formlabs.

Large consumer MSLA printers

Printers such as the Anycubic Photon Mono M7 Max provide large build volumes at a much lower entry price. They make sense when an experienced operator is comfortable tuning profiles and managing more of the process. The Reflex 2 Pro is not justified by volume alone; its case rests on the integrated process, material system and repeatability.

Outsourced production

If tall resin work is intermittent, a machine can sit idle while its consumables and process knowledge age. Use a service for demand validation, unusual materials or overflow before buying. JCPRINTFARM's project intake can help route production work, and the production 3D printing overview explains the broader planning questions.

Lifecycle and availability in October 2026

The Reflex 2 Pro launched in October 2025. At this review, HeyGears maintained an exact-model hardware page, an active US store listing, a dedicated wiki section and current support material. The store displayed $2,999 and an add-to-cart path. Regional price, stock, warranty and bundled equipment can differ, so confirm the complete quote and service terms immediately before purchase.

HeyGears advertises more than 6,000 hours for the Amber Screen Pro and references a one-year screen warranty in its product material. Read the current warranty itself for exclusions and regional coverage. A component-life claim is not a whole-machine uptime warranty.

Buying checklist

  • Print an acceptance part using the exact resin, orientation, support style and cure process planned for production.
  • Confirm that the 350 mm Z height is required by actual jobs, not merely attractive on a specification sheet.
  • Get written pricing for printer, wash, cure, extra tanks, platforms, resin and first-year consumables.
  • Verify warranty scope, response time, local repair path and critical spare availability.
  • Review Blueprint Studio, network behavior and update policies with the people who manage production data.
  • Document ventilation, PPE, spill response, wash-fluid handling and waste disposal before delivery.
  • Track accepted-part cost and operator time during the return window.

Final verdict

The HeyGears Reflex 2 Pro is most convincing as a controlled production tool, not as a giant hobby printer. Its unusually tall build volume, active resin management and integrated material workflow address real repeatability problems. The trade is dependence on HeyGears' software, profiles and supply chain, plus the unchanged realities of resin safety and post-processing.

Buy it when tall or densely batched resin work is already proven, the approved materials fit the application and local support checks out. Choose the Reflex 2 or Form 4 for smaller work, a large consumer MSLA machine for operator-driven flexibility, or outsourced production when utilization will be sporadic. See the 3D printer review hub for more researched comparisons.
