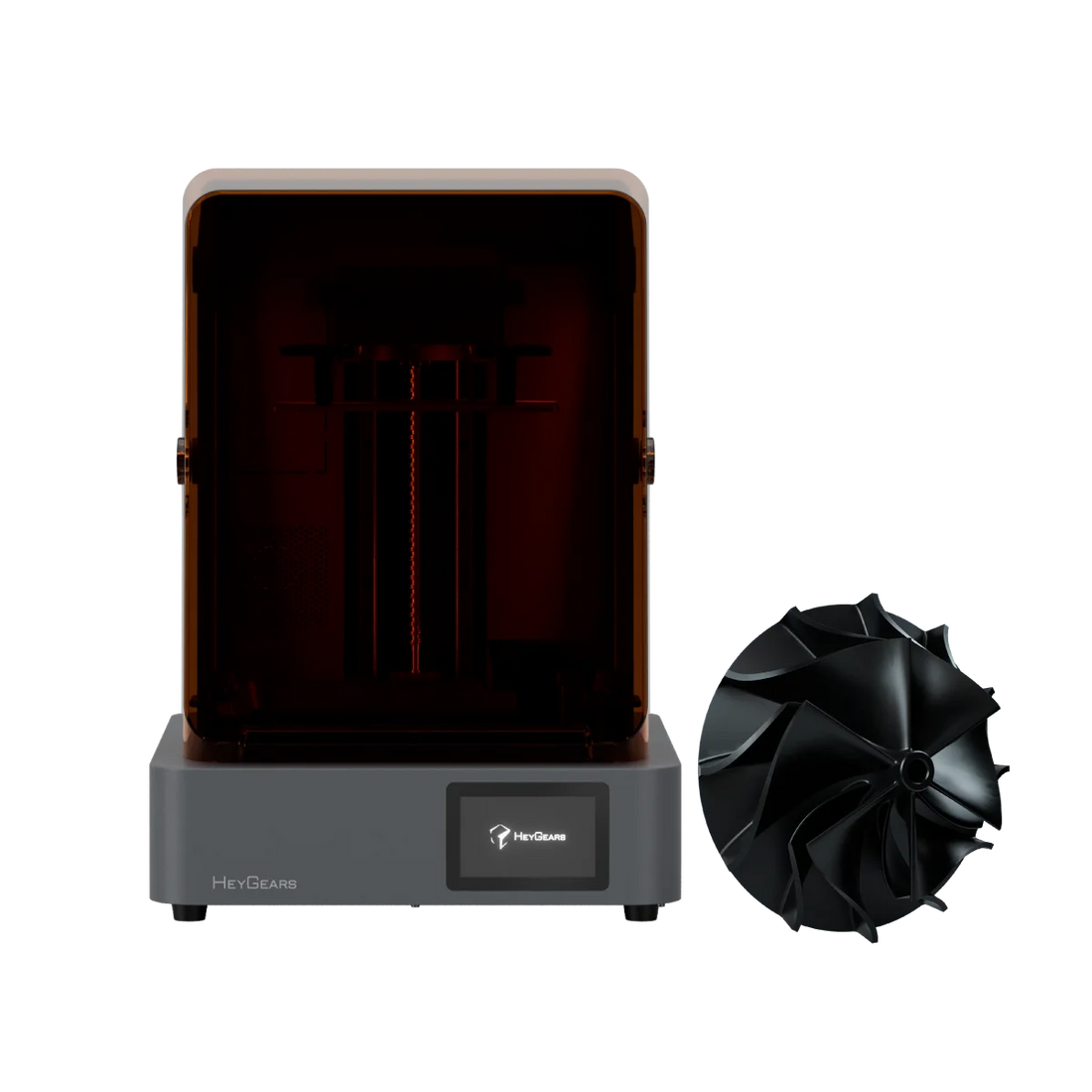

HeyGears Reflex 2 resin 3D printer shown in official product media

HeyGears Reflex 2 Review (2026): Production Resin, Examined

Verdict: The HeyGears Reflex 2 is a strong fit for studios and small production teams that value controlled resin workflow, a genuinely useful 230 × 144 × 230 mm build volume, and process safeguards more than bargain hardware. Its premium price, curated material ecosystem, optional workflow modules, and resin-handling overhead make it harder to justify for casual miniatures or occasional prototypes.

Research disclosure: JCPRINTFARM has not hands-on tested this exact printer. This review is based on HeyGears product and support documentation, the company’s October 2025 launch material, current September 2026 store information, and independent hands-on video coverage from VogMan, RisingApe, and FauxHammer. Manufacturer performance figures below are labeled as claims, not reproduced as our own benchmarks.

What the HeyGears Reflex 2 is

The Reflex 2 is a professional-leaning masked-resin printer positioned between inexpensive hobby MSLA machines and substantially more expensive managed resin systems. Its 230 × 144 × 230 mm build envelope is large enough for meaningful batches, fixtures, housings, casting patterns, and taller engineering prototypes, but it is not the extended-height Reflex 2 Pro. That distinction matters: the Pro reaches 350 mm on Z and uses a different 1,032-zone light engine, while the standard machine reviewed here uses a 161-zone OptiZone engine.

HeyGears emphasizes repeatability and intervention reduction rather than a headline “K” screen number. The system combines a 10.7-inch Amber Screen Pro, 40-micron XY pixels, a C5-grade Z-axis, force feedback, floating-platform leveling, residue detection, automatic resin refill, and software-defined material profiles. The result is a printer designed around a controlled process, not a bare machine that expects the operator to tune every exposure variable.

Who should buy it—and who should skip it

Best fit: product-development studios, prop and model shops, jewelry or casting workflows, and small production teams that print resin often enough for fewer setup decisions and failed batches to have real value. It is most persuasive when its larger platform will be filled regularly and when a supported engineering-resin library is part of the buying decision.

Skip it: if you print a few miniatures per month, want the lowest consumable cost, need unrestricted exposure control for experimental third-party resins, or do not have a safe wash, cure, ventilation, spill-control, and waste-disposal setup. A cheaper open-system resin printer can deliver excellent detail, while occasional large resin work may be more economical through a professional 3D printing service.

Key specifications in useful context

Specification HeyGears Reflex 2 Why it matters
Process Masked resin printing with 161-zone OptiZone light engine Separately controlled light zones are intended to improve uniformity across a large screen; this is not the same as 161 pixels.
Build volume 230 × 144 × 230 mm A practical batch and medium-large-part envelope, but 120 mm less Z height than the Reflex 2 Pro.
XY pixel size 40 µm Fine enough for detailed professional parts; geometry, optics, resin, supports, and calibration matter as much as the pixel number.
Layer range 20–250 µm Allows a trade between finish and throughput within supported profiles.
Screen 10.7-inch Amber Screen Pro HeyGears claims more than 6,000 hours of effective life under its test assumptions; treat that as a vendor claim, not a warranty of identical field life.
Repeat positioning ±2 µm claimed for the C5 Z-axis module A motion-system specification, not a promise that every finished dimension will be within 2 µm.
Printer size / weight 430 × 445 × 605 mm; 25.5 kg It needs a rigid bench and additional working space for resin, draining, washing, curing, and maintenance.
Resin temperature Optional scraper-assisted heating The heating scraper is an added purchase, not a standard feature in every configuration.
Current base listing $1,799 at the US HeyGears store when checked September 23, 2026 Bundles, modules, wash/cure equipment, resin, shipping, and future pricing can materially change total cost.

Where the Reflex 2 is strongest

A large, production-useful platform

The 230 × 144 mm footprint is the most immediately useful feature. It provides more batching room than typical 10-inch hobby printers and enough Z height for many housings, jigs, props, and product-development parts. Resin layers expose together, so filling the XY area can improve per-part economics when the parts share compatible orientation and layer requirements. The caveat is equally important: a crowded plate raises the resin value and operator time tied to one job.

Process monitoring rather than specification theater

HeyGears says the force sensors sample feedback at 80 Hz and dynamically adjust motion to reduce layer shifts and detachment. The company also specifies 0.01 N sensor sensitivity and detection of residue as small as 0.15 mm. These are manufacturer figures, but the underlying design direction is sensible: stop a compromised job before the next layer presses into debris, and adapt release motion rather than applying one aggressive profile to every cross-section.

The floating build platform is specified to accommodate 0.15° of deviation and gaps up to 240 µm. That can remove a recurring setup task, but “auto leveling” should not be read as immunity from damaged film, contamination, poor orientation, or an incorrectly seated platform.

Light and thermal management aimed at consistency

The 161 mini-LED zones are individually controllable for activation and brightness. HeyGears reports 86,020 calibration zones, at least 94% light uniformity, and print accuracy at or below 0.05 mm under its lab conditions. Those claims need application-specific validation, especially for fits, dental or medical-adjacent models, molds, and temperature-loaded parts. Still, zone calibration is more meaningful than treating raw screen resolution as a complete accuracy metric.

The thermal design holds the light-source and screen area in a manufacturer-stated 31.2–35 °C range. The optional heating scraper addresses the resin itself while also agitating sediment. Buyers working with filled or temperature-sensitive materials should price that option at the beginning rather than assuming it is included.

A broad documented material list

The September 2026 product page lists PAC10, PAU11, PAH10 Black, PAT10, PARP10 Orange Clay, PAP10 Ash Grey, PAWR10, PAS10 variants, PAF10, PAH270, PAE10, and PAU20 among supported materials. That spans casting, tough, flexible, water-rinsable, prototyping, and higher-temperature applications. Compatibility is not the same as universal suitability: verify current profiles, required accessories, cure schedules, chemical resistance, dimensional targets, and safety data for the exact resin.

Limitations and hidden workflow costs

The printer is only one part of the resin cell

A realistic budget includes wash and cure hardware, solvent or the material-specific cleaning process, PPE, ventilation appropriate to the resin safety data, spare release film or tanks, build platforms, filters, absorbent supplies, storage, and hazardous-waste handling. The official Reflex 2 Combo adds HeyGears Wash and Cure units, while the Pulsing Release Module 2 and heated scraper appear in separate configurations. Compare complete cells, not base-printer prices.

A managed ecosystem trades freedom for predictability

Blueprint Studio and supported resin profiles reduce tuning work, which is a feature for production users. The tradeoff is greater dependence on the vendor’s software, profiles, accessories, and ongoing support. Third-party resin options do exist—Siraya Tech, for example, has published Reflex 2 compatibility guidance—but buyers should verify the exact software version, available controls, warranty implications, and material profile before standardizing a workflow.

Manufacturer accuracy claims need qualification

The ±2 µm figure refers to Z-axis repeat positioning, not complete-part dimensional accuracy. The ≤0.05 mm figure is also a lab claim with stated calibration context. Finished accuracy depends on resin shrinkage, orientation, support strategy, exposure, temperature, wash time, cure, and geometry. For production, run a representative qualification coupon and a real part, then measure after the full post-cure cycle.

It is not automatically the best miniature printer

The Reflex 2 can resolve fine detail, but its value proposition is stable professional output and batch capacity. Buyers focused mainly on small gaming miniatures may prefer a less expensive machine, smaller vats, cheaper resin experimentation, or a model explicitly tuned for that market. Paying for a large platform and engineering-material workflow only makes sense if those capabilities will be used.

What independent coverage adds

Independent exact-model coverage was still thinner than for mass-market Elegoo and Anycubic machines when this review was updated. VogMan’s hands-on review frames the Reflex 2 around reliability and precision rather than resolution-number marketing. RisingApe and FauxHammer also published launch-period hands-on reviews of the exact machine. Their existence is useful corroboration that production units reached reviewers, but sponsorship, affiliate links, limited review windows, and preselected materials can all narrow what launch coverage proves.

That is why this verdict does not repeat unverified success-rate, lifetime, or speed claims. A business purchase should include a sample-part evaluation, a written accessory and consumable quote, confirmation of local service arrangements, and a check that the current software supports the intended material.

Reflex 2 versus realistic alternatives

HeyGears Reflex 2 Pro

Choose the Pro when the 350 mm Z height or its larger-zone light engine is operationally necessary. The footprint is not wider, so the upgrade is mainly about tall parts and the Pro’s production hardware—not more parts across the plate. If most work stays below 230 mm, the standard Reflex 2 avoids paying for unused vertical capacity.

Formlabs Form 4

The Formlabs Form 4 review covers a more mature managed ecosystem with extensive documentation, service options, and a highly integrated PreForm workflow. Its build volume is smaller, while total system pricing and consumables can be higher. Compare the exact materials, service plan, wash/cure cell, and part envelope rather than the printer alone.

Anycubic Photon Mono M7 Max

The Photon Mono M7 Max offers a larger hobby/prosumer resin envelope at a lower hardware tier. It is attractive when size per dollar matters most. The Reflex 2 makes its case through motion feedback, controlled profiles, engineering materials, and workflow integration rather than maximum volume.

Elegoo Saturn-class printers

Saturn models remain compelling for detailed models and cost-sensitive resin work. They generally expose the operator to more parameter choice and experimentation. The Reflex 2 is the stronger proposition when repeatable supported profiles and monitoring justify a premium; the Saturn route is stronger when openness, consumable cost, and multiple inexpensive machines matter more.

Lifecycle and availability in September 2026

The Reflex 2 is a current, distinct printer—not a bundle name or accessory. HeyGears launched the Reflex 2 Series in October 2025, maintains an exact-model product page and wiki section, and listed the standard model from $1,799 when checked September 23, 2026. The product page offers the printer alone, a combo, a heating scraper, and a Pulsing Release Module 2 kit, so buyers should verify which configuration a quoted price covers.

HeyGears claims more than 6,000 hours for the Amber Screen Pro under its test assumptions. Screen longevity, service turnaround, spare-part availability, and software support matter more to a production buyer than the headline alone. Ask for current replacement-screen, tank, film, and service lead times before purchase.

Final verdict

The HeyGears Reflex 2 is a credible professional step above bargain resin printers when a team will use its 230 × 144 × 230 mm volume, supported engineering materials, automatic refill, residue detection, force-aware motion, and controlled software workflow. It is not an automatic value winner. The base price is only the beginning, the best temperature and release features require options, and a resin production cell brings meaningful safety and post-processing costs.

Buy it for recurring, qualified resin work where operator time and batch consistency carry real value. Skip it for occasional minis, speculative material experiments, or a workflow that cannot support disciplined resin handling. If you need parts without owning that process, compare the complete ownership cost with JCPRINTFARM’s production 3D printing options.
