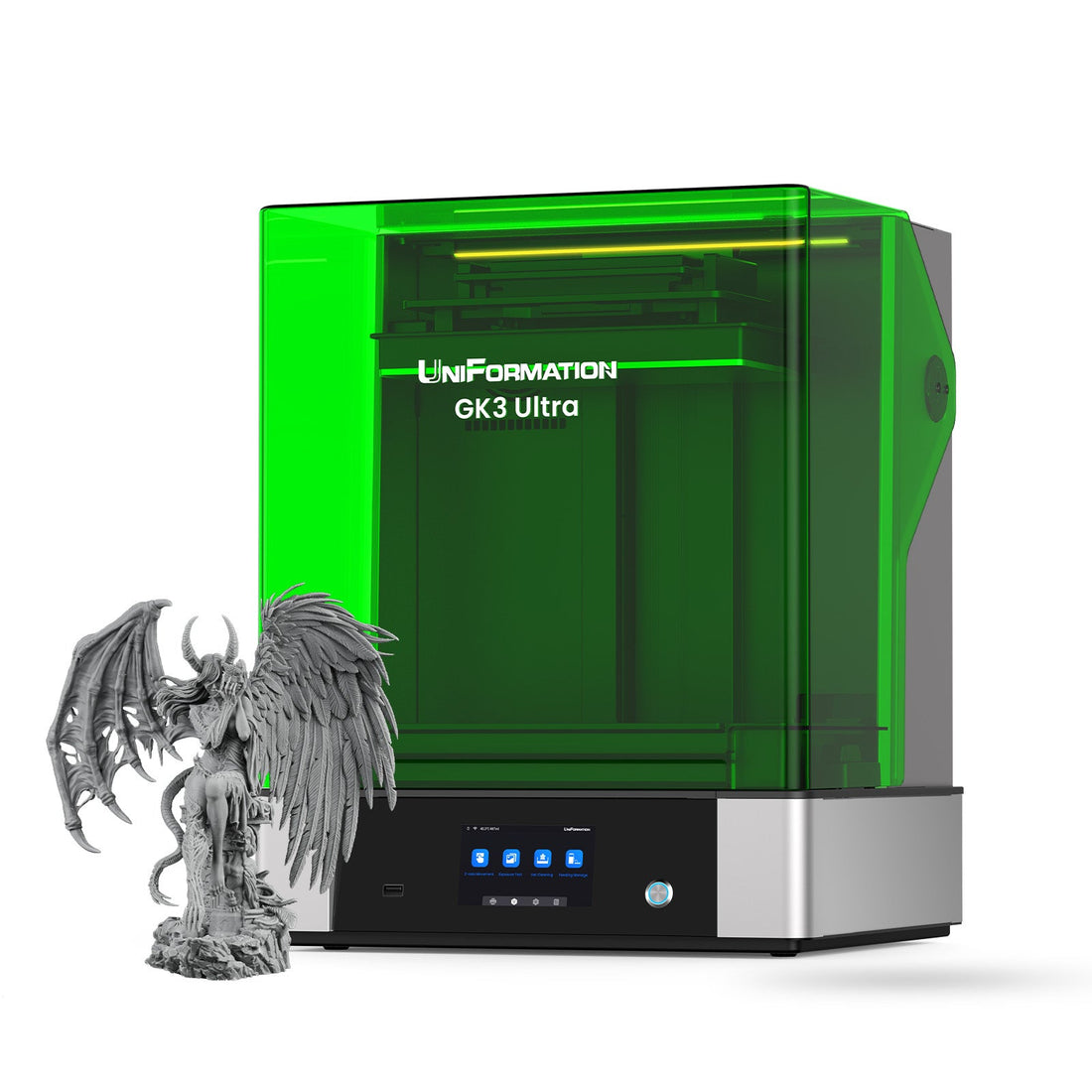

UniFormation GK3 Ultra large-format resin 3D printer in official product image

UniFormation GK3 Ultra Review (2026): Big, Sharp, and Specialized

Verdict: The UniFormation GK3 Ultra is a compelling large-format MSLA printer for studios that genuinely need a 300 × 160 × 300 mm build area without dropping to coarse pixel pitch. Its heated resin workflow, automatic feed system, rigid motion hardware, and service-friendly design are meaningful advantages. Most hobbyists should still buy a smaller, cheaper machine; the Ultra’s size, resin volume, post-processing burden, and 35 kg footprint only pay off when you regularly fill its plate.

Research disclosure: This is a research-based buyer analysis, not a hands-on JCPRINTFARM test. We compared UniFormation’s current product page and support guide with published independent testing and retail documentation. Any measured observations are attributed to their original reviewers; we do not claim that we printed with this machine.

What the GK3 Ultra is

The UniFormation GK3 Ultra is a large-format, enclosed MSLA resin printer built around a 13.5-inch-class 16K monochrome LCD. Its usable build volume is 300 × 160 × 300 mm, while the screen resolution is 15,120 × 6,230 pixels. That works out to a rectangular pixel pitch of roughly 20 × 26 microns. The useful story is not the “16K” badge by itself; it is that the printer combines a genuinely large plate with pixel dimensions close to those of many smaller current-generation resin machines.

UniFormation positions the machine for figure makers, prototyping studios, education, and batch production. It adds a resin heater with selectable 25°C and 30°C targets, an automatic resin-feeding system, a quick-release vat and build plate, a drip hanger, and USB, Wi-Fi, and Ethernet transfer. The current official page lists compatibility with UniFormation Slicer, CHITUBOX, and Lychee Slicer.

Who should buy it—and who should skip it

Best fit: a studio printing large statues, props, terrain, prototypes, or dense batches that would otherwise require several smaller plates. The GK3 Ultra also makes sense when a stable heated workflow matters because the workspace is cool or because a qualified resin performs best within a narrow temperature range.

Skip it: if most jobs are miniatures, jewelry masters, dental parts, or occasional models that comfortably fit a 10-inch printer. A smaller machine reduces resin tied up in the vat, film and screen replacement cost, wash volume, cure-space requirements, and the consequences of a failed full plate. Also skip it if you cannot provide controlled ventilation, chemical-safe handling space, and appropriately sized washing and curing equipment.

Key specifications in practical context

Specification GK3 Ultra Why it matters
Process 405 nm MSLA resin Works with compatible 405 nm photopolymer resins, but every resin and layer height still needs a validated exposure profile.
Usable build volume 300 × 160 × 300 mm About 14.4 liters of geometric capacity; orientation, supports, drainage, and clearance reduce usable job space.
LCD 15,120 × 6,230 pixels, 16K label Produces a stated 20 × 26 μm XY pixel pitch. Pixel count alone does not guarantee dimensional accuracy or surface quality.
Layer settings 0.03, 0.05, and 0.1 mm listed Thinner layers increase job time; geometry, resin, exposure, and anti-aliasing matter as much as nominal layer height.
Official exposure guidance 2–4 seconds at 0.05 mm A starting range, not a universal profile. Calibrate the exact resin, temperature, and release conditions.
Heating 25°C or 30°C target Can improve consistency in a cool room, but it is not a substitute for resin-specific validation.
Resin handling Automatic level detection and feed; 1.2 kg listed capacity Useful for long jobs, but the feed path, sensor, bottle, vat maximum, and overflow protection must be checked before an unattended run.
Motion Industrial-grade KK60 Z module A stiff Z system is important when lifting a large, resin-loaded plate.
Connectivity USB, Wi-Fi, Ethernet Ethernet is welcome in a studio; keep USB as a recovery path if network workflow or firmware changes.
Machine size 455 × 400 × 575 mm The closed footprint is only part of the requirement. Independent inspection puts lid-open height near 770 mm.
Weight About 35 kg in the current manual-based reporting This is a two-person placement decision, not a printer to move casually after filling.

What stands out

Large format without an obviously coarse XY grid

Many big resin printers trade detail for area. The GK3 Ultra’s 20 × 26 μm pixel dimensions make that compromise much smaller. FauxHammer’s detailed prototype assessment used a 26 μm average voxel characteristic as the more honest comparison metric and found the format unusually competitive with modern smaller machines. The qualification matters: optical uniformity, exposure, anti-aliasing, resin behavior, supports, and post-cure shrinkage still determine the finished part.

A workflow designed around heavy, messy parts

The quick-release build plate, lever-secured vat, horizontal drip arrangement, resin feed, and hinged cover address chores that become more important as a resin printer grows. A large plate dripping resin over the LCD is not a minor inconvenience. Neither is topping up a long job by eye. These features do not automate cleaning or make resin benign, but they reduce several avoidable handling steps.

Integrated temperature control

Resin viscosity and exposure behavior change with temperature. A built-in heater that targets 25°C or 30°C is more repeatable than warming a bottle and hoping a long print stays stable. UniFormation also documents a heater-related service procedure for layer patterns on certain earlier units. Buyers should check the production label, install current firmware, and follow the exact official procedure for their serial range rather than applying a community modification indiscriminately.

Useful network options without removing USB

Wi-Fi and Ethernet can simplify file movement in a studio, while USB provides a direct fallback. That combination is better than a network-only workflow. It is still prudent to qualify firmware and slicer updates on a small test before changing a production baseline.

The limitations that matter

Large resin printing multiplies downstream work

A 300 mm-tall print may fit the machine but not your existing wash station, cure chamber, drain tray, or solvent container. Large hollow parts also require deliberate drain-hole placement and internal cleaning. More plate area means more supports to remove, more contaminated consumables, and more material at risk when exposure or support strategy is wrong. The printer’s capacity is only valuable when the rest of the process can absorb it.

Manual validation has not disappeared

The build plate is factory calibrated, but UniFormation still tells users to check it after shipping, relocation, maintenance, or uneven adhesion. Automatic resin feeding does not eliminate the need to inspect the vat, release film, sensor reading, bottle connection, and maximum fill line. There is no magic profile for every 405 nm resin. Plan an exposure test, dimensional coupon, and representative supported geometry before committing a full plate.

No camera on the Ultra

UniFormation’s current comparison table shows a camera on the smaller GK3 and GK3 Pro, but not on the GK3 Ultra. Network transfer therefore should not be confused with comprehensive remote supervision. Even with a camera, resin printing is a chemical and mechanical process that deserves local checks before a long run.

Price is only the opening cost

The official US page showed a current promotional price of $1,199.99 when checked on September 30, 2026, down from a displayed $1,399.99. Treat that as a timestamp, not a permanent price. Budget for resin inventory, replacement film, screen protection, solvent or other approved wash media, filters, gloves, eye protection, spill supplies, ventilation, waste handling, and large-format wash/cure equipment. Availability and regional shipping terms can also change.

Print quality and speed: realistic expectations

The official 2–4 second normal exposure range at 0.05 mm describes exposure, not total layer cycle time. Lift, settle, resin flow, and any heating behavior add time. A large cross-section can create higher release forces than a small part, so orientation and support design often matter more than chasing the shortest exposure. Taller Z capacity also means that an ambitious job can run for many hours even when each layer is quick.

TechRadar’s hands-on review praised the machine’s print quality and professional-oriented feature set. FauxHammer’s later detailed assessment was positive about the physical design and effective resolution but explicitly separated prototype observations from retail specifications and flagged a 16K anti-aliasing issue in its tested workflow. That is a good reason to test current firmware and slicer output rather than assuming a marketing-resolution setting automatically improves the surface.

Safety and workspace planning

Uncured photopolymer resin and contaminated wash fluid require careful handling. Use the resin manufacturer’s safety data sheet, chemical-resistant gloves appropriate to the product, eye protection, ventilation suitable for the actual workspace, and a spill plan. Keep uncured resin and contaminated consumables away from skin, food areas, children, and pets. Do not pour resin, solvent, or contaminated wash water down a drain. Cure or dispose of waste according to the resin supplier’s instructions and local rules.

The green enclosure and any recirculating filter are not a substitute for appropriate room ventilation. Measure the full workflow: lid-open clearance, plate transfer path, wash and cure stations, clean and dirty tool zones, resin storage, waste storage, and enough bench strength for the printer plus liquid and accessories.

Best uses

  • Large display figures, monsters, terrain, and prop sections with fewer seams.
  • Dense batches of smaller parts when the same validated resin and settings apply to the entire plate.
  • Large visual prototypes where fine surface texture matters more than engineering-material durability.
  • Studios with established resin handling, ventilation, washing, curing, and quality-control procedures.

It is a weaker choice for end-use parts that need high heat resistance, impact strength, long outdoor life, or certified biocompatibility unless a specific resin, process, post-cure, and validation plan supports those requirements. “Resin” is not one material class with one set of properties.

Alternatives worth comparing

  • Anycubic Photon Mono M7 Max: another large-format resin option, worth comparing on usable volume, release system, heating, post-processing fit, and current support.
  • Elegoo Saturn 4 Ultra: much smaller and typically less expensive; a better value when most parts fit its plate.
  • Phrozen Sonic Mighty Revo: a smaller prosumer platform with monitoring and workflow features that may matter more than maximum volume.
  • Formlabs Form 4L: a substantially more expensive professional ecosystem, but one aimed at validated materials, integrated workflow, and organizational support rather than only hardware value.

Buying checklist

  1. Confirm that recurring parts actually need the 300 × 160 × 300 mm volume.
  2. Check the exact regional stock, warranty, return cost, and consumable availability.
  3. Measure closed and open-lid space and verify bench load capacity.
  4. Confirm that the largest intended part fits the wash and cure equipment.
  5. Choose a resin, obtain its safety data sheet, and plan ventilation and waste handling.
  6. Verify current firmware, slicer support, and the official heater guidance for the unit’s production label.
  7. Run exposure, dimensional, and full-workflow qualification before filling the build plate.

Final verdict

The GK3 Ultra is not simply a large LCD with a “16K” sticker. Its fine pixel pitch, rigid Z system, controlled resin temperature, feed system, quick-release hardware, and thoughtful drainage workflow form a credible large-format package. The strongest case is a studio that repeatedly prints large pieces or production batches and already understands resin process control.

For occasional hobby printing, the economics run the other way. A smaller machine is easier to clean, cheaper to feed, and less punishing when a job fails. Buy the GK3 Ultra for repeatable utilization of its area—not for a resolution label or the possibility that one day you might print something enormous.

If you need production parts but do not want to own the resin workflow, send JCPRINTFARM the part requirements. For more machine research, browse the 3D printer review hub.
