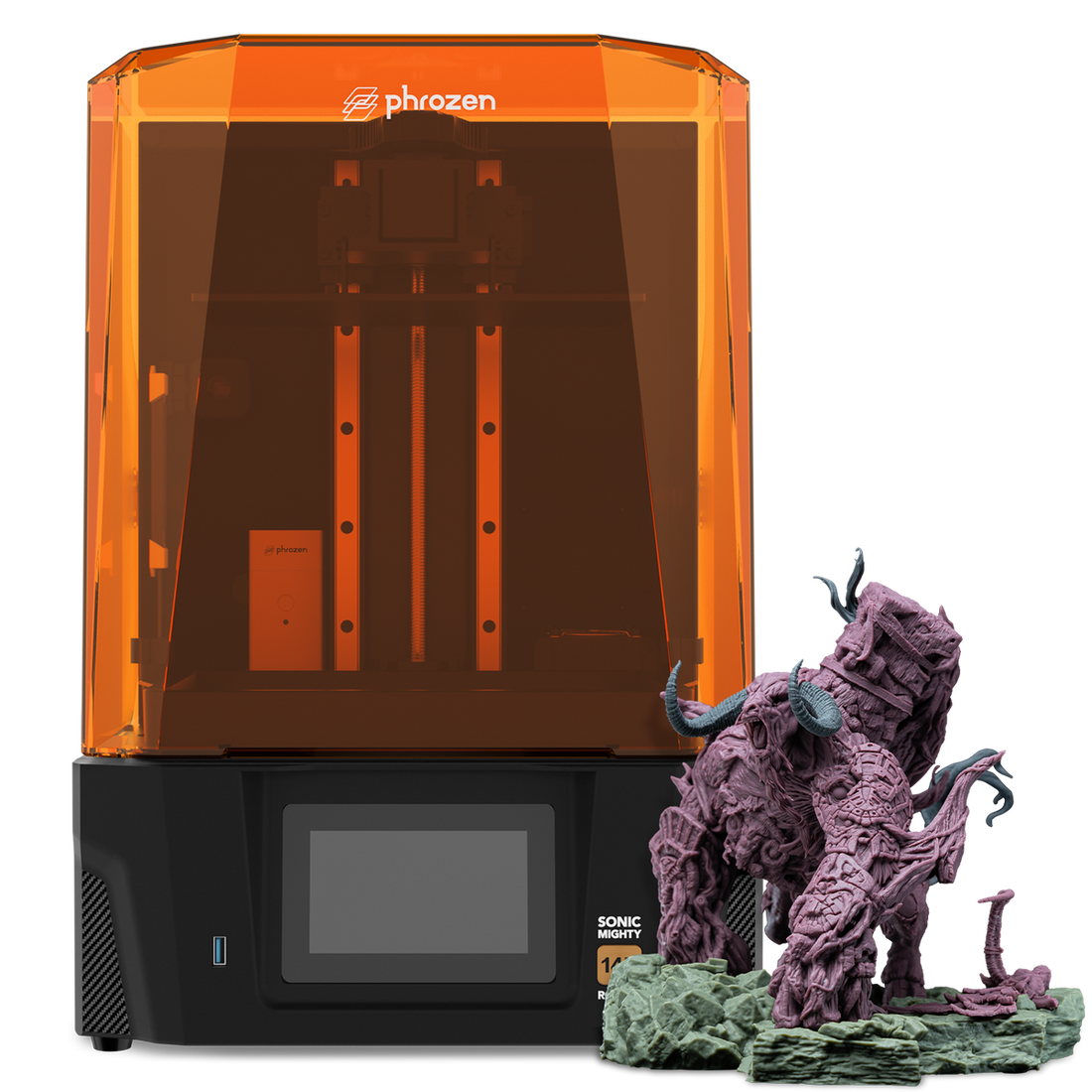

Phrozen Sonic Mighty Revo 14K resin 3D printer shown in official product media

Phrozen Sonic Mighty Revo 14K Review (2026): Worth It Used?

Verdict: The original Phrozen Sonic Mighty Revo 14K remains a capable mid-size resin printer for detail-heavy batches, especially when its heater, camera, residue sensing, and 223 × 126 × 235 mm volume solve real workflow problems. In 2026, however, it makes the most sense as discounted or already-owned equipment: US stock is sold out, a 16K successor exists, and its automation does not remove resin handling or process validation.

Research disclosure: JCPRINTFARM has not performed a hands-on test of this printer. This review is based on Phrozen's product and support documentation, current US availability checked September 23, 2026, independent hands-on reviews from VogMan and FauxHammer, and third-party technical and resin-profile sources. Manufacturer speed, sensing, and resolution claims are identified as claims rather than our measurements.

The name needs clarification at the outset. This article covers the original Sonic Mighty Revo 14K, introduced in 2024 and commonly sold simply as “Sonic Mighty Revo.” It is not the newer Sonic Mighty Revo 16K or the much larger Revo 16K Max. That distinction matters when comparing prices, pixels, replacement screens, resin profiles, and support parts.

Who should buy the Sonic Mighty Revo 14K?

The best fit is an experienced resin-printing studio that finds a sound used, clearance, or old-stock unit at a meaningful discount and needs more batch area than a compact miniatures printer. Its 10.1-inch screen, tall 235 mm Z travel, built-in heat, camera, and fold-up cover are useful for miniature batches, character models, props, casting masters, and detailed prototypes. Existing owners still have an unusually complete feature set and an active exact-model support library.

Skip it at near-new pricing. Phrozen now markets newer Revo models, while current competitors offer different combinations of tilt-release mechanisms, cameras, heaters, and automation. Also skip it if you cannot provide ventilation, PPE, wash-and-cure capacity, spill control, and compliant resin waste handling. An air purifier and exhaust port can help a system design; neither makes uncured photopolymer resin benign.

Key specifications in practical context

Specification Phrozen Sonic Mighty Revo 14K Why it matters
Process Masked LCD resin printing An entire layer is exposed at once, so adding more parts to the same layer usually affects material and handling more than exposure time.
Build volume 223 × 126 × 235 mm A useful mid-size plate for batching miniatures or producing one taller model; it is not a large-format resin machine.
LCD 10.1-inch monochrome, 14K The headline panel count should not be compared without the physical screen dimensions and pixel pitch.
XY pixel pitch 16.8 × 24.8 µm Rectangular pixels provide very fine sampling, but supports, exposure, resin behavior, orientation, and anti-aliasing still influence visible results.
Claimed peak speed Up to 450 layers/hour This is a manufacturer ceiling, not a promise for every resin or geometry. A complete job also includes preparation, drainage, washing, drying, curing, support removal, and inspection.
Motion Dual linear rails with ball screw A rigid Z system is welcome on a tall resin envelope, although it does not eliminate peel forces or support-design errors.
Temperature control Built-in heater, marketed around 30°C operation Consistent resin temperature can improve repeatability in a cool shop; every resin still needs a validated temperature and exposure window.
Monitoring Built-in camera and Phrozen GO app Useful for progress checks and stopping a suspect job, but remote visibility is not automatic defect prevention.
Files and storage .ctb and .prz; 8 GB listed storage Confirm slicer, firmware, network, and file-format compatibility before standardizing a production workflow.
Machine size 353 × 345 × 517 mm Plan additional clearance for the folding cover, resin bottles, tools, drip time, part removal, and post-processing.

“14K” is useful as a panel description, not a standalone quality score. The 16.8 × 24.8 µm pixel pitch is more informative. Even then, the smallest pixel dimension is not the same as guaranteed dimensional accuracy. Resin shrinkage, light bleed, exposure, support loads, part orientation, temperature, washing, and curing can all dominate a tolerance stack.

What the Revo does well

A productive mid-size envelope

The 223 × 126 mm plate is large enough to batch many gaming pieces or arrange several small commercial parts, while 235 mm of Z travel accommodates taller sculpts and prototypes. That combination is more broadly useful than chasing resolution alone. Since masked-LCD exposure works by layer, a well-packed plate can be economical when the parts share a validated resin and process.

Heat and monitoring address real resin problems

Viscosity and cure behavior change with temperature. The integrated heater can reduce the seasonal variability that appears when a resin printer lives in a cool workshop. The camera and mobile connection are also practical for long jobs. They do not replace an operator, but they can shorten the time between spotting a problem and stopping the machine.

The mechanical and service design is thoughtful

Phrozen uses dual linear guides and a ball screw, a combination intended to keep the build platform stable through a relatively tall stroke. The product documentation also highlights a sealed motor structure, a screen-replacement route that avoids removing the entire front shell, a folding cover, interior lighting, and a connection for the optional Pump & Fill accessory. Those details matter more over years of maintenance than a resolution badge does on day one.

Independent reviewers confirm the appeal—but not unanimously

VogMan's hands-on review was strongly favorable, highlighting build quality, quiet operation, detailed output, and the way Phrozen integrated heating and detection features into one package. FauxHammer's hands-on review reached a much more critical overall verdict. That disagreement is useful: it argues against treating the Revo as an automatic best buy and reinforces the need to evaluate price, firmware maturity, the exact workflow features you will use, and the alternatives available today.

Where the Sonic Mighty Revo falls short

Its lifecycle position changed

On September 23, 2026, Phrozen's US listing showed the original Revo 14K at $680 but unavailable, while Phrozen also offered a newer Revo 16K family. The global product and exact-model help pages remain online, so the machine is supported rather than undocumented. Still, buyers should treat it as late-lifecycle equipment: confirm the seller's warranty region, replacement LCD and release-film availability, and whether the price leaves room for consumables and post-processing.

Smart detection is assistance, not a guarantee

The three-point piezoelectric sensing system supports residue detection, failure detection, and automatic zero-point detection. These are worthwhile safeguards, particularly when a cured fragment could damage the film or screen. They cannot detect every support separation, subtle deformation, exposure error, hollow-part suction problem, or dimensional miss. Production users still need inspection criteria and a traceable process.

The speed headline needs boundaries

Phrozen advertised as much as 450 layers per hour, while launch coverage also referenced a more typical 70-layer-per-hour figure. Layer height, resin, lift settings, model cross-section, and quality goals change the result. More importantly, machine exposure is only part of elapsed production time. A packed plate must drain, be removed safely, washed, dried, post-cured, separated from supports, finished, and inspected. For quoting work, measure that complete cycle instead of multiplying a peak layers-per-hour number.

The resin workflow remains labor- and facility-intensive

Expect nitrile gloves, eye protection, protected work surfaces, dedicated tools, controlled ventilation, wash solvent or an approved cleaning workflow, curing equipment, and hazardous-waste decisions appropriate to your locality. A batch failure on this plate can consume substantial resin and staff time. The optional Pump & Fill connector may reduce bottle handling, but it also adds equipment that must be cleaned, verified, and maintained.

Resolution can distract from fit

Many customers will not see a commercial benefit from moving from already-fine 8K or 12K output to 14K. Surface finish is constrained by the whole process and by viewing distance. If a less expensive printer already resolves the sellable details, money may be better spent on a second machine, better washing and curing, ventilation, metrology, spare vats, or validated resin inventory.

Materials and workflow costs

Phrozen provides exact-model resin profiles, and Liqcreate publishes third-party compatibility and settings for the Revo. Treat all downloaded profiles as starting points. Validate exposure with the actual resin lot, temperature, layer height, release film, model orientation, and acceptance criteria. Engineering claims belong to the complete cured material process—not merely the resin name on a bottle.

A realistic ownership budget includes resin, release films, vats or vat maintenance, screen protection, replacement LCD planning, cleaning fluid, filters, disposable PPE, wipes, curing energy, failed parts, and operator time. For a small business, the wash-and-cure area may require as much planning as the printer itself. Inventory also ties up cash: multiple resin types are useful only when each has a documented process and enough recurring demand.

The built-in purifier may reduce some odor, but odor is not a safety instrument. Use the resin supplier's safety data sheet and design ventilation around the material and room. Keep uncured resin away from skin and drains, cure contaminated disposables when appropriate, and follow local disposal rules.

Alternatives worth comparing

  • Phrozen Sonic Mighty Revo 16K: The direct newer-family comparison. Check whether its finer panel, current warranty, replacement parts, and software support justify the price over a discounted 14K unit.
  • Elegoo Saturn 4 Ultra: A value-oriented mid-size alternative with a different release and automation approach. Read our Elegoo Saturn 4 Ultra review and compare full workflow cost, not just screen resolution.
  • Anycubic Photon Mono M7 Pro: Another feature-rich consumer/prosumer resin option. Our Photon Mono M7 Pro review covers its workflow and tradeoffs.
  • Formlabs Form 4: Consider it when validated materials, controlled software, documented service, and repeatability matter more than the lowest hardware price. See the Formlabs Form 4 review.

For intermittent demand, outsourcing can be the more rational alternative. It converts printer, wash, cure, ventilation, maintenance, and training into a quoted job. JCPRINTFARM's project intake and production 3D printing pages provide a path for parts that do not justify an in-house resin cell. You can also browse the 3D printer review hub for other machines.

Buying a used or old-stock Revo 14K

Ask for the exact model label and a powered-on screen test; “Mighty Revo” now refers to more than one generation. Confirm the build plate, vat, power supply, purifier module, camera, tools, and optional accessories included in the sale. Inspect the LCD for exposure damage, the vat and film for leaks or clouding, the Z mechanism for contamination, and the interior for cured resin. Verify that the printer can accept current firmware and that the app and slicer functions you need still work in your region.

Then price the first maintenance cycle before making an offer: a release film, screen protector, spare vat, known-compatible resin, washing supplies, and PPE may erase an apparently large discount. A clean machine with documented light use can be attractive. A resin-contaminated machine with an uncertain screen is a project, not a bargain.

Final verdict

The Phrozen Sonic Mighty Revo 14K combined a genuinely useful set of features: a productive mid-size plate, fine rectangular pixels, heat, monitoring, residue sensing, a stable Z system, and maintainable packaging. Those qualities still make it useful in 2026. But its original US listing is sold out, newer Revo hardware exists, and independent reviewers did not agree on its overall value.

Buy it only when the exact unit, warranty, parts path, and discount make sense against current machines. Existing owners should keep using it if their validated process is stable; there is little reason to chase a newer resolution label without a demonstrated business or quality benefit. For everyone else, compare the complete safe workflow and service situation before choosing the printer.
