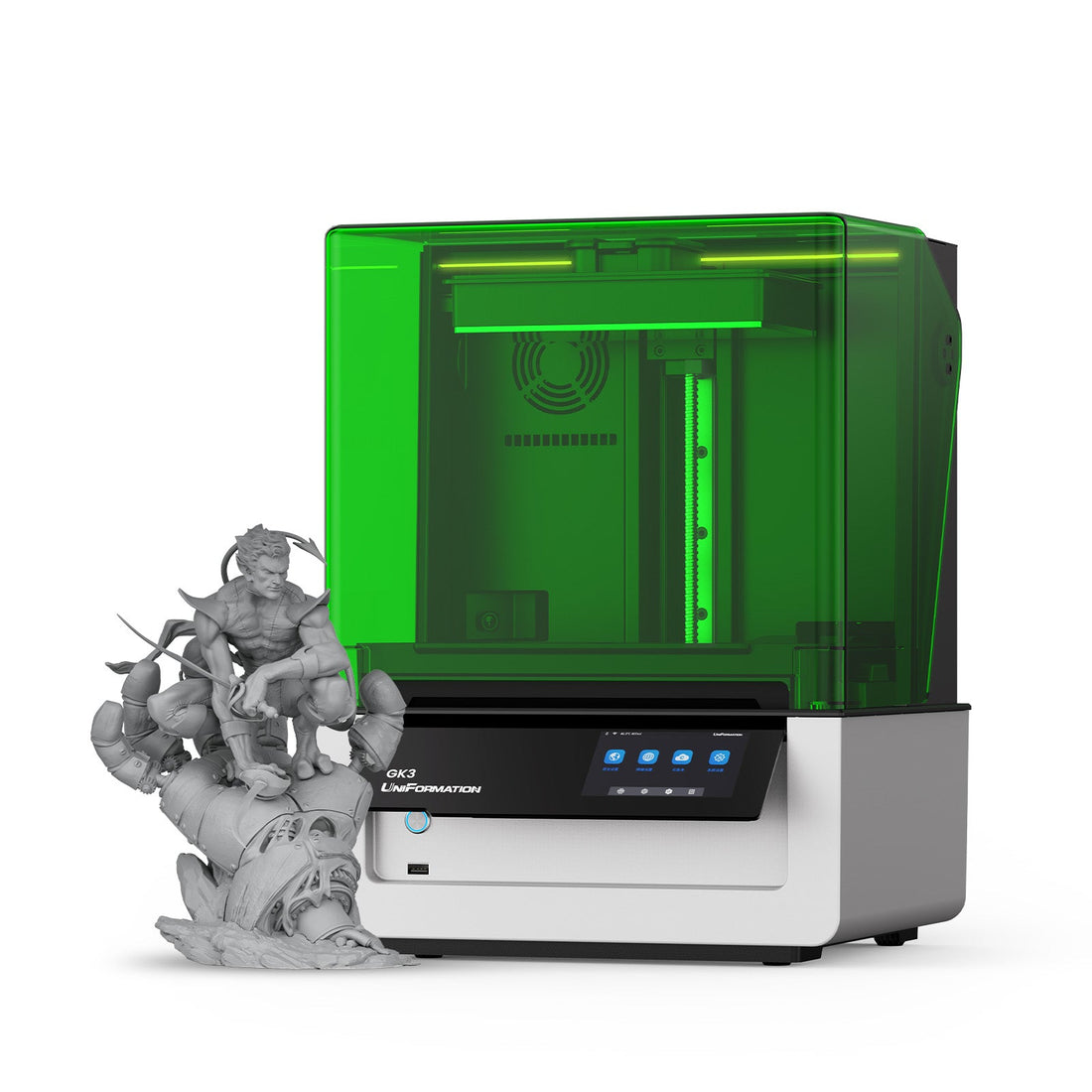

UniFormation GK3 resin 3D printer with hinged green cover in official product image

UniFormation GK3 Review (2026): Practical 16K Resin Workflow

Verdict: The UniFormation GK3 is a well-equipped mid-size resin printer for serious miniature, model, and studio work. Its heated chamber, excellent removable plate, hinged lid, camera, network options, and unusually serviceable LCD make daily ownership easier. Buy the GK3T for normal use; consider the GK3B only for sustained duty. Skip it if low cost, sealed odor control, or mature mobile software matters most.

Research disclosure: JCPRINTFARM has not hands-on tested this printer. This review is based on UniFormation’s current product page and support documentation, plus independent hands-on reporting from FauxHammer and Technapa. Specifications and availability were rechecked on October 1, 2026. We distinguish published specifications from reviewer observations and do not present third-party results as our own.

What the UniFormation GK3 is

The UniFormation GK3 is a 405 nm masked-SLA resin printer built around a 211 × 118 × 240 mm usable print volume and a 15,120 × 6,230-pixel monochrome LCD. UniFormation markets that panel as “16K”; the more useful figure is its approximately 14 × 19 micron rectangular pixel pitch. Resolution alone does not guarantee a good part, but the combination gives the GK3 ample sampling density for miniatures, display models, dental-style visual prototypes, and small production batches.

The name needs unpacking. The standard GK3 currently comes in two motion variants: the GK3T uses a T-type lead screw, while the GK3B uses a ball screw. They share the same build volume, 405 nm optical platform, heater, camera, connectivity, and core workflow. This article covers those standard GK3 variants. It does not cover the 385 nm GK3 Pro or the much larger GK3 Ultra.

Who should buy it—and who should skip it

Best fit: experienced resin users, miniature painters, character and prop studios, and small shops that value workflow details as much as headline resolution. The hinged lid, plate drip mount, chamber heating, removable vat, camera, and network transfer are practical conveniences when the machine is used repeatedly.

Also a reasonable first resin printer: a careful beginner who has already budgeted for ventilation, nitrile gloves, eye protection, wash and cure equipment, spill control, and local hazardous-waste handling. “Easy to use” never makes uncured photopolymer resin a casual desktop material.

Skip it if: you need the cheapest way to print small figures, expect a carbon filter to replace source ventilation, want a fully polished phone-app workflow, or mostly print objects that demand a larger plate. Buyers who need 300 mm-class resin capacity should read our UniFormation GK3 Ultra review. Anyone who only needs occasional resin parts may save equipment, cleanup, and compliance overhead by using the JCPRINTFARM print-service intake.

Key specifications in context

Specification UniFormation GK3 Why it matters
Process 405 nm masked SLA / MSLA Works with compatible 405 nm resins; each resin still needs a qualified exposure profile.
Build volume 211 × 118 × 240 mm Mid-size capacity suited to figures, busts, terrain, and batches—not the large-format class.
LCD 15,120 × 6,230 pixels, marketed as 16K High addressable resolution; support, exposure, resin, optics, and post-curing still govern real detail.
XY pixel pitch About 14 × 19 microns Rectangular pixels are more informative than the “16K” label.
Heating 25°C or 30°C settings Useful for controlling resin viscosity in cool rooms, but not a substitute for calibration.
Vat capacity 800 ml A refill system helps on long jobs, although the vat itself is not especially large.
Z motion GK3T: T-type lead screw; GK3B: ball screw The principal difference between the standard variants.
Connectivity USB, Wi-Fi, Ethernet Ethernet is especially useful in a fixed studio or multi-machine environment.
Monitoring Built-in camera and supported app workflows Helpful for status checks; compatibility depends on current firmware, slicer, and app release.
Slicer support UniFormation Slicer, CHITUBOX, Lychee Check direct-transfer support separately from basic file compatibility.
Machine size Approximately 392 × 332 × 520 mm closed The hinged lid and refill hardware require much more working height; an independent test recommends about 850 mm.

What stands out

A practical plate and drip workflow

The build plate uses a quick-release arrangement and can hang at an angle after printing so excess resin drains toward the vat. That sounds minor until a printer is used several times per week. Less awkward plate handling means fewer opportunities to drip resin across the touchscreen, bench, or floor. Both independent reviews praised the plate system and general physical workflow.

The benefit is operational, not magical: parts still need to be removed safely, washed, dried, support-processed, and fully cured. Large or dense batches also need an appropriately sized wash container and cure station. The printer purchase is only one part of the resin system.

Controlled heat for more repeatable resin behavior

The GK3 offers 25°C and 30°C heating settings. Temperature matters because cold resin becomes more viscous and can behave differently during lift and refill. Bringing the chamber and resin into a controlled range can make exposure testing more repeatable, particularly in a basement or seasonally cool shop.

Heating cannot repair a poor exposure setting, inadequate supports, damaged PFA film, contamination, or a badly oriented model. Treat it as a process-control tool. Record resin, temperature, layer height, exposure, lift settings, and result together instead of assuming one universal profile.

Maintenance-friendly LCD access

FauxHammer’s most distinctive positive finding was serviceability: the GK3’s LCD can be replaced from above without the deep disassembly common on some competitors. Monochrome screens are consumable components, even if their life is measured in many printing hours. A straightforward replacement path can matter more over years of ownership than another automatic-check marketing feature.

This does not eliminate replacement cost or the need to follow the service procedure. It does reduce one predictable ownership burden and is a credible reason to choose the GK3 for a long-lived studio machine.

Useful wired networking

Wi-Fi is expected; Ethernet is the quieter advantage. A wired connection can be easier to standardize in a shop, especially where printers sit near other equipment or access-point coverage is inconsistent. UniFormation also provides USB transfer. Direct sending and remote functions vary by slicer and firmware, so confirm the exact path you intend to use rather than treating every listed connection as interchangeable.

Limitations and ownership costs

The product naming is unnecessarily confusing

GK3T, GK3B, GK3 Pro, and GK3 Ultra are distinct configurations, but listings and casual discussion often shorten all of them to “GK3.” For the standard model, check the selected variant and SKU before buying. The GK3T is the value choice for routine hobby and studio work. The GK3B’s ball screw is positioned for higher-frequency use, but it does not change the screen, wavelength, or build envelope.

Do not assume the higher-priced variant produces visibly better results in every model. For most buyers, resin calibration, support quality, release-film condition, and washing and curing discipline will dominate.

Software is not the strongest part of the package

Technapa’s hands-on test liked setup and print results but reported that the mobile app did not detect the printer. FauxHammer also described firmware and software ideas as unfinished. Those observations do not mean every current installation will fail—the platform has received firmware updates—but they are enough to reject a purchase based solely on remote-control promises.

Before committing, review the current GK3 support and firmware page, identify your chosen slicer, and confirm whether you need only file compatibility or true network transfer and monitoring. Keep USB as a fallback.

Filtration is not ventilation

The hinged cover includes carbon filtration, and UniFormation provides an exhaust-adapter path. A filter can reduce some odor and some volatile compounds, but it does not prove that a room is safe. The lid also has openings and is not a certified containment enclosure. Use source extraction appropriate to the resin’s safety data sheet and your local requirements, keep the machine away from living areas, and prevent unprotected access by children or pets.

Uncured resin, contaminated gloves, paper towels, supports, solvent, and wash liquid all require controlled handling. Do not pour resin-contaminated liquid into a drain. Review the resin manufacturer’s SDS and local disposal rules.

Consumables and cleanup remain substantial

Budget for release film, screen protectors, an eventual LCD, resin, gloves, filters, cleaning supplies, wash fluid, cure equipment, containers, and ventilation. Automatic resin feeding can reduce interruptions but adds another system to clean and verify. The 800 ml vat also means a large or dense plate can still demand attention to resin quantity.

Every failed full plate consumes material, machine time, wash capacity, and cleanup labor. Start with a small calibration model, inspect the shipped machine, verify leveling and exposure, then scale up. A high-resolution display does not make a poorly validated process economical.

GK3T versus GK3B

Choose the GK3T if you print intermittently or several times per week, want the core GK3 workflow, and prefer to spend the difference on ventilation, wash/cure capacity, resin, and spare consumables. Technapa’s reviewer concluded that the T version was sufficient for regular but non-intensive work.

Consider the GK3B if the printer will run frequently in a studio or small farm and you specifically value the ball-screw Z mechanism for long-term mechanical duty. Treat that as a durability and motion-hardware choice, not a guarantee of better surface quality.

Because variant availability and bundles change, compare the exact cart configuration on the official page. A discounted printer bundle is not a bargain if the included wash or cure equipment is too small for your parts, or if shipping and service terms do not cover your region.

How the evidence lines up

UniFormation’s published specifications establish the platform: 211 × 118 × 240 mm volume, 15,120 × 6,230 LCD, approximately 14 × 19 micron pixels, controlled heating, 405 nm exposure, camera, auto feed, and three transfer options. Its support center confirms active GK3/GK3 Pro firmware and documentation.

FauxHammer’s detailed review supports the strong plate, heater, Ethernet, print-quality, and accessible-screen-replacement story, while criticizing the confusing lineup, imperfect enclosure sealing, refill value, and software execution. Technapa’s GK3T test independently found simple setup, precise output, effective feeding, and good construction, but called out the unstable app, 800 ml vat, and limited integration with some slicers. The overlap is useful: this is competent hardware with thoughtful physical workflow, while software polish and variant clarity lag behind.

Realistic alternatives

  • Elegoo Saturn 4 Ultra: a mainstream mid-size alternative with a different automation and release strategy. Compare serviceability, heater implementation, ecosystem, and local support rather than only resolution labels. See our Saturn 4 Ultra review.
  • Anycubic Photon Mono M7 Pro: another feature-rich mid-size choice with heating and assisted resin workflow. It is a better comparison than a small entry-level resin printer. Read our Photon Mono M7 Pro review.
  • Phrozen Sonic Mighty Revo: worth considering when monitoring and failure-detection features matter, while still checking the actual maturity of those systems. See our Sonic Mighty Revo review.
  • UniFormation GK3 Ultra: the step up when the standard GK3’s 211 × 118 mm plate is genuinely too small. It adds far more resin, space, and post-processing burden, so size alone is not an upgrade.

Availability and lifecycle in October 2026

The standard GK3 remained listed for sale on UniFormation’s US-facing product page when checked on October 1, 2026, with GK3T and GK3B variants shown. The dedicated support page also listed current firmware and guides. That is stronger lifecycle evidence than an old retailer listing, but stock, bundles, price, and regional delivery can change. Verify the selected variant, voltage, ship-from region, return terms, warranty exclusions, replacement-screen availability, and consumable stock immediately before ordering.

Final verdict

The UniFormation GK3 earns consideration through the parts of resin printing that specifications often ignore: a good plate, controlled heat, a useful drip position, a hinged lid, Ethernet, and unusually straightforward LCD service. Its 16K-class panel is capable, but the ownership case is really about workflow and maintainability.

The GK3T is the sensible default. The GK3B is a targeted choice for heavier duty, not an automatic quality upgrade. Software and app expectations should stay modest, and the filter must not be mistaken for ventilation. If those boundaries fit your shop, the GK3 is a strong mid-size resin platform; if they do not, a cheaper mainstream printer or outsourced resin production may be the better system-level decision.
