Status Tags for Temporary 3D Printed Production Tooling

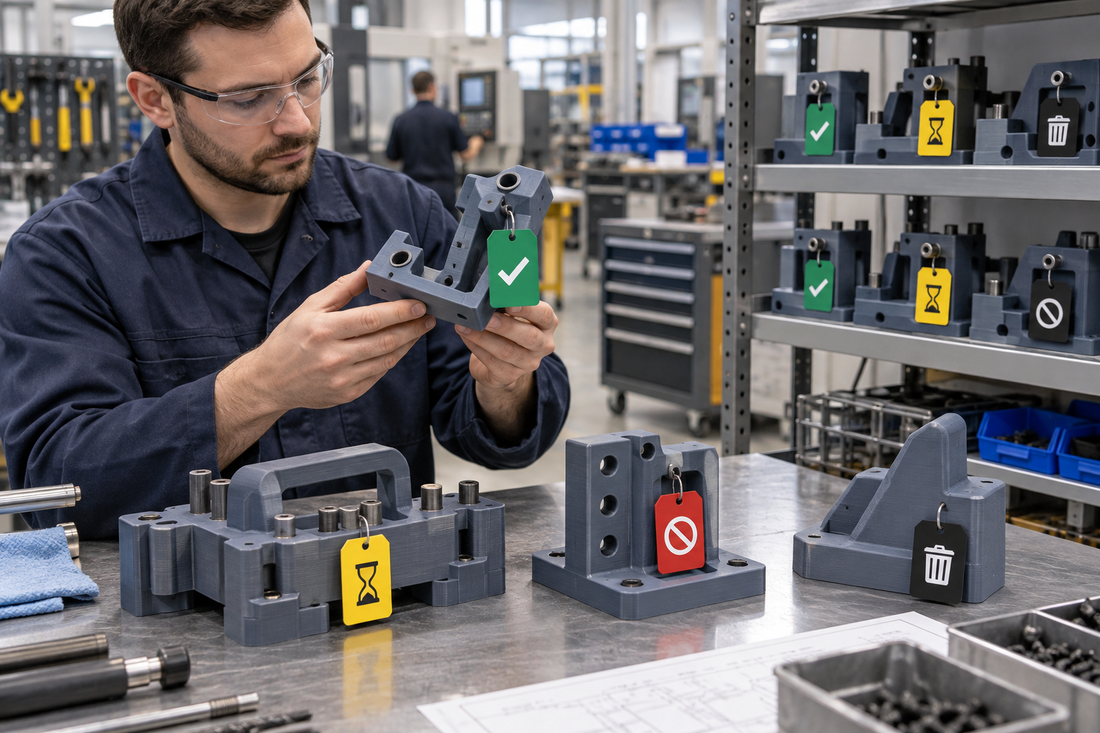

Use a visible status tag on temporary 3D printed production tooling only as the point-of-use signal for a controlled record. The tag should identify the tool, current state, approved job or station, responsible owner, and review or expiration trigger. Separate trial, released-temporary, hold, expired, superseded, and retire states so operators never have to infer whether a fixture may be used.
Choose the right order path
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning, reverse-engineering, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
Make the status answer one operational question
An operator should be able to tell whether the tool may be used now, for which job, and under whose authority. The tag is not the approval itself. It points to the released record containing the tool identity, revision, supported product, station, permitted use, evidence, restrictions, and next review event.
| Status | Point-of-use meaning | Required next action |
|---|---|---|
| Trial | Use is limited to an authorized evaluation and defined output boundary. | Keep trial output identified and obtain disposition. |
| Released temporary | The tool is approved for the named job, station, revision, and restrictions. | Use only within the recorded boundary and review trigger. |
| Hold | Use is prohibited while a condition, evidence gap, or change is reviewed. | Segregate the tool and protect affected output. |
| Expired | A time, quantity, event, or condition limit has been reached. | Reauthorize, replace, or retire before further use. |
| Superseded | A newer tool or revision controls the job. | Remove from point of use and prevent accidental return. |
| Retire | The tool is no longer eligible for production. | Complete disposal, archive, or physical destruction under the local rule. |
Separate visible identification from the governing record
Put only durable, readable fields at point of use: asset or family ID, revision, current state, supported job or station, owner, and an expiration or review reference. Link to the full record through the local document system when appropriate, but do not make a QR code or app the only way to see whether use is allowed.
Choose a state model that cannot contradict itself
Each tool should have one current operational state. Avoid combining “approved,” “trial,” and “hold” on the same tag. Define who may change state, how old tags are removed, how the digital record is updated, and how the tool is physically segregated when use is prohibited. The temporary-versus-permanent production-aid guide covers the broader approval path.
Control expiration by event, not a decorative date
Temporary release may end at a date, production quantity, maintenance event, engineering change, damage finding, station move, product revision, or permanent-tool cutover. Record the trigger and the owner who evaluates continued use. If the tool remains necessary, reauthorization should review its condition and the controlled requirements rather than simply replacing the date label.
Build status checks into changeover and line clearance
At issue, setup, shift handoff, and changeover, confirm the tool identity, revision, status, restrictions, and supported product. Remove expired or superseded tooling before the next variant arrives. The line-clearance guide shows how to keep outgoing and incoming tooling states separate.
Fit, non-fit, risks, and quote readiness
This system fits temporary fixtures, drill guides, nests, alignment aids, templates, and protective tooling used across trials, bridge periods, repairs, or constrained releases. It is not a substitute for engineering approval, process validation, safety review, calibration, machine guarding, or product acceptance. A disposable aid used once within a fully supervised task may need a simpler controlled identifier.
- A green tag remains after the approval expires.
- A held tool stays physically available at the workstation.
- The tag revision and printed body revision disagree.
- A label falls off, becomes unreadable, or migrates to another tool.
- Digital and physical states diverge after a change.
- Operators recognize colors differently because the words and symbols are not standardized.
For quote readiness, provide the controlled tool files, tool family and asset identities, supported products and stations, approval state model, tag fields, durability and attachment requirements, review or expiration triggers, responsible roles, required hardware, quantities, packaging, destinations, and replacement or retirement rules. The production tooling guide covers broader design and supplier inputs.
Use the production 3D printing service as the primary commercial owner for production parts and factory tooling.
Frequently asked questions
Is a color tag enough to release temporary tooling?
No. Use color as one visible cue, supported by words or symbols and a controlled record that defines the approved job, revision, restrictions, evidence, owner, and expiration trigger.
What should happen when a temporary tool expires?
Stop use at the defined boundary and route the tool to reauthorization, replacement, permanent-tool cutover, or retirement. Do not extend it by changing only the date.
Should held tooling stay at the workstation?
Usually it should be segregated or otherwise made impossible to use under the site control. The physical location and system status should agree.
Final decision
Release the workflow only when controlled identity, physical state, responsible owner, evidence, exception path, and next authorized action are explicit.
