Line-Clearance Checks Between 3D Printed Tooling Variants
A print-farm cell is not cleared when the last part leaves the bed. It is cleared when the outgoing job's parts, labels, file, material, loose hardware, samples, and quantity states are reconciled, the shared area reaches a verified neutral state, and the incoming job is positively matched before release. This extends tooling line clearance to the printer, staging cart, inspection handoff, and pack-out path where mixed identity can otherwise survive.
Extend line clearance from the fixture to the whole print-farm cell
| Cell boundary | Outgoing proof | Incoming release proof |
|---|---|---|
| Printer and build surface | Part, purge, support, plate identifier, and local job artifacts removed | Machine, plate, file revision, orientation, and process settings match the released job |
| Material path | Outgoing spool, dry box, feeder assignment, and remnants identified or removed | Approved material, color, condition, lot rule, and usable quantity confirmed |
| WIP and quantities | Accepted, held, rejected, replacement-open, packed, shipped, and remaining counts reconcile | Incoming quantity starts at a clean boundary without inheriting loose parts |
| Inspection and reference | Old masters, limit samples, gauges, images, and travelers withdrawn | Correct acceptance evidence is at point of use before output accumulates |
| Packaging and identity | Old labels, bags, inserts, cartons, and destination records removed | Incoming SKU, revision, lot, labels, packaging, and destination agree |
Use a hold-and-release branch when the neutral state cannot be proved
If an unexplained part, spool, label, file, insert, or tray remains in the boundary, do not guess which job owns it. Stop the incoming release, identify the last-known-good boundary, place uncertain output on hold, reconcile records and physical WIP, and name the person authorized to resume. A clean dashboard is not a substitute for a clean cell.
Release one representative plate before multiplying the changeover
For a multi-printer branch, verify one representative plate against file identity, material, first-piece evidence, quantity recording, and downstream labels before releasing the remaining machines. This bounds a shared setup error instead of copying it across the fleet.
What production buyers should include
Similar SKUs, multiple revisions, controlled colors, customer-supplied material, embedded hardware, serialized labels, kits, or destination-specific packaging deserve explicit changeover rules. Send those requirements through the managed production intake. Use the instant quote for a straightforward released part.
Define the identity boundary before production starts
JC Print Farm can review revision identity, material, first-piece evidence, mutually exclusive quantity states, packaging, and branch release rules before a repeat run.
Print-farm cell clearance FAQs
Why reconcile quantities during clearance?
Loose accepted, held, rejected, or replacement parts can otherwise be counted twice, assigned to the incoming lot, or disappear from the delivery promise.
Does a new file name prove the correct job is loaded?
No. Release should compare controlled revision, orientation, settings, material, quantity, inspection, and downstream identity—not a filename alone.
When can the rest of a printer branch start?
After the representative release produces the defined evidence and the shared file, material, setup, inspection, and labeling conditions are confirmed for that branch.
Published
Line-Clearance Checks Between 3D Printed Tooling Variants

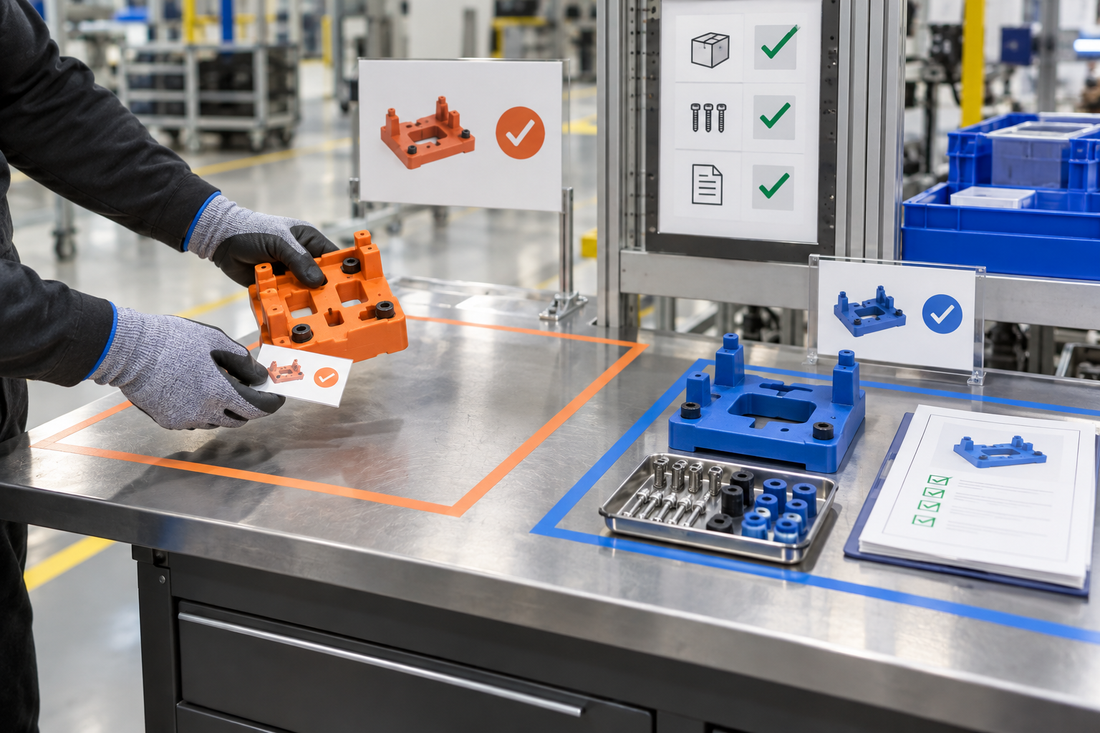

Line clearance between 3D printed tooling variants should prove that the previous setup has left the station before the next one becomes active. Remove and account for outgoing fixtures, loose inserts, hardware, labels, samples, work instructions, files, and held material; inspect the cleared zone; then admit the incoming revision as one matched setup and record who released the changeover.
Choose the right order path
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning, reverse-engineering, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
Define the clearance boundary before the changeover
State what is inside the line-clearance check: work surface, fixture mounts, drawers, racks, bins, carts, label printers, digital terminals, inspection aids, sample holders, rework areas, and nearby WIP. A checklist that covers only the main fixture can miss the small item that creates the next error.
| Clearance element | Outgoing evidence | Incoming release |
|---|---|---|
| Primary tooling | Fixture, nest, guide, soft jaw, locator, and adapter removed and identified | Correct family, revision, condition, and asset identity installed. |
| Loose components | Inserts, bushings, pins, fasteners, shims, and consumables reconciled | Only the approved incoming hardware set is present. |
| Documents and files | Old work instruction, drawing, setup image, program, and local copy withdrawn | Released incoming versions are available at point of use. |
| Labels and samples | Old labels, travelers, masters, limit samples, and example parts removed | Incoming identifiers and samples match the released setup. |
| Material and WIP | Outgoing good, held, rework, scrap, and unidentified pieces segregated | Incoming material and parts enter only after clearance release. |
| Station state | Mounts, sensors, guards, offsets, and surrounding zone checked as required | Setup verification begins from a known cleared state. |
Use an outgoing, neutral, and incoming state
First close and remove the outgoing setup. Next verify a neutral cleared station with no unexplained tooling, documents, labels, or parts. Only then admit the incoming kit. This three-state model makes mixed setups easier to detect than changing items one at a time while both variants occupy the workstation.
Account for similar-looking tooling
Color can help recognition but cannot be the only control. Use asset or family identity, revision, supported part, controlled image or geometry, hardware list, and location. Keep outgoing and incoming items physically separated until clearance is accepted. The jigs and fixtures guide covers the broader tooling program.
Connect clearance to setup verification
Line clearance proves the old setup is gone; it does not prove the new setup works. After clearance, perform the released fixture setup verification and any required first-use, sample, or product checks. The change-point verification guide helps bound output around the transition.
Control exceptions and interruptions
If a missing tool, unexplained part, wrong revision, damaged fixture, obsolete instruction, or mixed label is found, stop the changeover at a defined boundary. Identify and segregate the item, assess affected WIP and prior output when necessary, correct the record, and require authorized release. After an interruption or shift handoff, repeat the steps whose completion cannot be proven.
Fit, non-fit, risks, and quote readiness
This workflow fits stations that alternate similar fixture variants, revisions, products, labels, or hardware. A dedicated single-product station may use a simpler release check. Line clearance does not replace lockout/tagout, machine guarding, process validation, calibration, product inspection, or safety review.
- Outgoing loose hardware remaining under or behind the station.
- An obsolete local file or printed instruction surviving the changeover.
- A correct fixture paired with the wrong insert, label, or sample.
- Starting incoming WIP before the neutral state is verified.
- Assuming color proves identity or revision.
- Restarting after interruption without knowing which steps were complete.
For quote readiness, provide each tooling variant and revision, supported product, asset marking, complete setup kit, mounting and hardware, controlled instructions, samples, clearance boundary, hold points, incoming verification, changeover frequency, storage and return path, packaging, and release authority.
Use the production 3D printing service as the primary commercial owner for production parts and factory tooling.
Frequently asked questions
Is line clearance the same as setup verification?
No. Line clearance proves the outgoing setup and associated material are removed. Setup verification proves the incoming configuration is installed and ready under its released method.
Can color coding prevent tooling mix-ups?
Color is a useful visual aid, but identity should also use controlled asset, family, revision, supported-part, and setup records.
Who should sign the clearance?
Assign the operator, setup owner, independent checker, or supervisor according to the process risk. The role and escalation path should be explicit.
Final decision
Release the workflow only when the controlled identity, physical state, responsible owner, required evidence, exception path, and next authorized action are explicit.
