3D Printing Service for Production Jigs and Fixtures
A 3D printing service for production jigs and fixtures should be evaluated on interface control, load direction, use environment, acceptance, revision handling, hardware, labeling, and replacement planning. For a useful quote, send the governing file and revision, the task the tool performs, mating references, critical checks, quantity, material or performance needs, hardware, pack-out, destination, and timing.
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, or complex work, while instant quote fits clean files and straightforward requirements.
Jig and fixture supplier decision: key facts
Assembly aids, drill or placement guides, nests, locators, alignment tools, protective handling aids, and inspection supports whose requirements suit FDM after review.
A fixture can look correct while locating from the wrong datum, loading across a weak direction, interfering with the work, or preserving an obsolete product revision.
Define the mating references, critical interfaces, check method, approved sample or drawing, and who releases the tool for production use.
Identify tool ID, revision, compatible product revision, hardware, material assumption, label, storage, replacement trigger, and disposition of superseded tools.

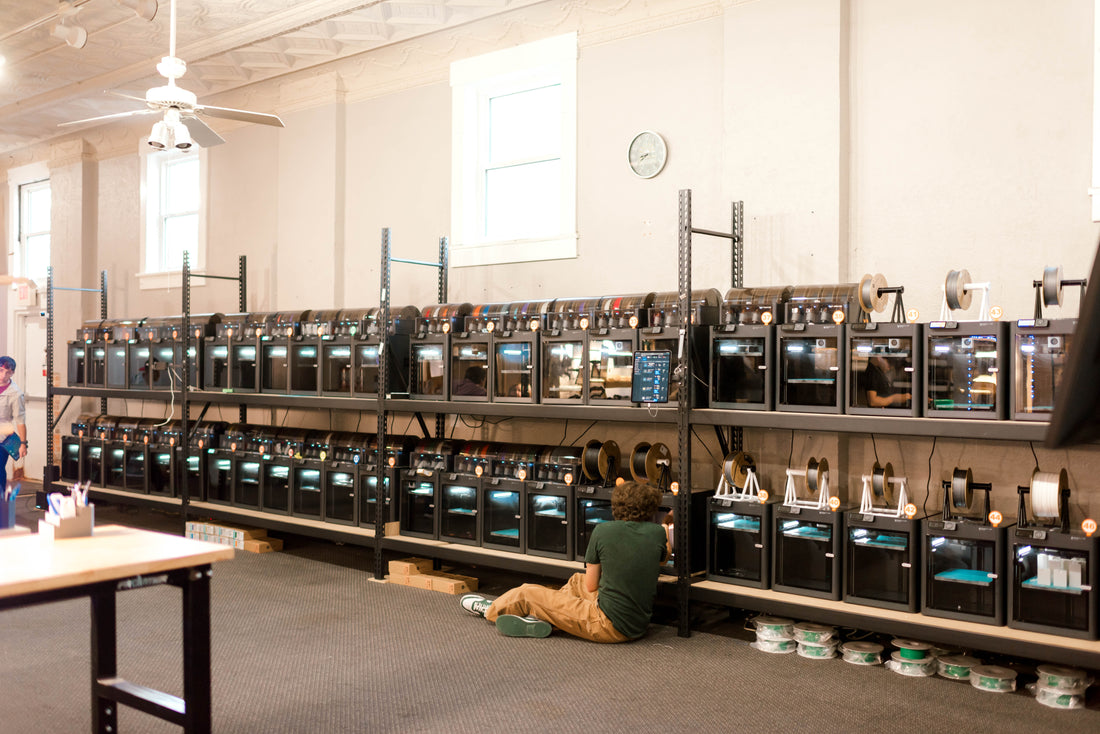

JC Print Farm / JCSFY is a US production 3D printing business based in Central Ohio. This page explains how buyers can scope a jig or fixture for supplier review; it does not claim that every material, load, tolerance, test, certification, inspection method, quantity, or deadline is supported.
What kind of production aids may be a fit?
Printed tooling can be useful when geometry changes, demand is below traditional-tooling economics, weight matters, or a team needs a controlled replacement path. The production job—not the label “jig” or “fixture”—determines fit.
| Buyer need | Details to define | Supplier-selection implication |
|---|---|---|
| Locate or hold a part | Datums, contact points, clamping force, allowable marking, loading direction, and clearance | The supplier must understand the interface, not only the outside shape. |
| Guide an operation | Tool path, wear surface, hardware, operator access, chip or debris path, and replacement rule | Printed material may need inserts or another protected interface; confirm scope before assuming. |
| Support assembly | Sequence, handedness, mistake-proofing features, fasteners, ergonomics, and cycle context | Fit and usability may need a representative first article with the real components. |
| Support inspection | Whether the tool locates, presents, or actually measures; calibration and gauge ownership | Do not treat a printed holder as a calibrated gauge unless requirements and responsibility explicitly establish that role. |
| Replace worn or lost tooling | Governing revision, approved baseline, tool ID, expected wear signs, and disposition of old tools | Digital availability helps only if the approved record and compatible product revision are controlled. |
Fit and non-fit cases
Good candidates to review
- A lightweight nest or locator for repeat assembly, packaging, handling, or inspection presentation.
- A bridge fixture needed while a machined or molded tool is being designed, repaired, or justified.
- Low-quantity tooling variants for several SKUs, work cells, orientations, or product revisions.
- A controlled replacement tool whose approved file, material, hardware, label, and acceptance method are documented.
- A tool that benefits from integrated labels, ergonomic geometry, protective surfaces, or complex shapes compatible with the selected process.
Cases needing another decision first
- The tool is safety-critical, load-bearing, heat-exposed, chemical-exposed, electrically sensitive, or regulated and the governing requirements are not defined.
- The request assumes a material certification, tolerance, calibration, inspection record, or test that has not been verified with the supplier.
- The tool must resist wear at a guide or contact surface but no insert, replaceable feature, or wear acceptance rule is defined.
- The model captures shape but not datums, clamping, load paths, allowable deflection, or the product revision it supports.
- Machining, molding, sheet fabrication, or another process is a better fit for the required precision, environment, durability, or economics.
Design and material implications that change supplier choice
A material name is not a finished-tool specification. Share the environment, loads, contact surfaces, failure consequence, expected handling, and replacement logic. The supplier can then review geometry, orientation, layer direction, walls, ribs, radii, supports, clearances, inserts, fasteners, and finish together.
- Datums and interfaces: identify which faces locate the work and which features merely provide clearance or handling.
- Directionality: state load, clamping, impact, and removal directions; FDM behavior is not automatically identical in every direction.
- Wear: name sliding, drilling, fastening, abrasive, or repeated contact zones and how wear will be detected.
- Temperature and chemicals: disclose cleaners, coolants, sunlight, heat sources, moisture, or other exposures without assuming a generic polymer is adequate.
- Hardware: specify inserts, bushings, magnets, fasteners, pins, pads, or customer-supplied components and who installs or supplies them.
- Ergonomics and mistakes: define grips, pinch hazards, handedness, wrong-part prevention, label location, and the operator sequence that matters.
Use the production material guide to prepare the discussion, then confirm current material and process support during quoting.
Production risks to resolve before release
- Wrong datum: a visually plausible tool can consistently position every part from the wrong reference.
- Revision mismatch: a tool approved for one product revision may remain in a work cell after the part changes.
- Hidden load: clamps, operators, presses, drills, fasteners, or removal forces can load the tool differently from the static model.
- Wear without a limit: a contact feature can drift gradually when no visual, dimensional, or functional replacement trigger exists.
- Gauge confusion: a holding or presentation fixture may be mistaken for measurement equipment without calibration and responsibility.
- Uncontrolled hardware: a substituted insert, pin, magnet, or fastener can change fit, force, durability, or identification.
- Batch repetition: one unresolved interface or label error can be duplicated across every workstation or facility.
Practical release rule: approve a representative tool against the actual workpiece, hardware, task, and acceptance method before duplicating it when the consequence of a repeated error is meaningful.
Quote-readiness checklist for jigs and fixtures
- Governing 3D file, units, tool ID, and revision.
- Compatible product or assembly revision and mating reference files.
- Plain-language task, operator sequence, and use environment.
- Datums, location points, clamp points, load directions, and critical clearances.
- Critical dimensions, fit or functional checks, and acceptance authority.
- Material or performance requirement, color, labels, and allowed substitutions.
- Inserts, bushings, pins, magnets, fasteners, pads, or supplied hardware.
- Quantity by tool ID, workstation, facility, or release wave.
- Expected wear zones, inspection cadence, replacement trigger, and storage plan.
- Packaging, segregation, destination, target date, and partial-shipment value.
How to compare jig and fixture quotes
Normalize the same file revision, quantity, material assumption, build strategy, hardware, assembly, first-article work, interface checks, labeling, packaging, freight, and exclusions. Ask who owns application validation and what change triggers a new approval. A lower unit price is not comparable if it excludes the bushings, inserts, fit check, label, or pack-out that makes the tool usable.
For connected decisions, review the production 3D printing workflow, bulk and batch service, production-run planning, managed print-on-demand intake, and the production quote checklist.
Production jig and fixture FAQs
What should a buyer send for a jig or fixture quote?
Send the governing 3D file and revision, intended task, mating parts or interface references, load direction, use environment, critical dimensions, acceptance method, quantity, labels, hardware, packaging, destination, and requested timing.
Should the first fixture be approved before a batch is released?
Usually, when fit, ergonomics, clamping, location, gauge interaction, or downstream risk has not been proven. Define who approves the representative first article and what evidence carries into repeat releases.
Can a material name guarantee that a fixture is safe or suitable?
No. Finished performance depends on the specific material, geometry, build direction, environment, loading, hardware, wear, and acceptance method. Safety-critical or regulated use requires requirements and validation outside a generic material label.
When should farm intake be used instead of instant quote?
Use farm intake for multi-SKU, recurring, inspection-sensitive, staged, packaged, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
Choose the quote path that matches the tooling job
Send the complete tool context when the supplier needs to review interfaces, revisions, loads, hardware, acceptance, multiple tool IDs, staged releases, labels, or replacement controls. Use instant quote when the file and requirements are clean and straightforward.
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, or complex work, while instant quote fits clean files and straightforward requirements.
