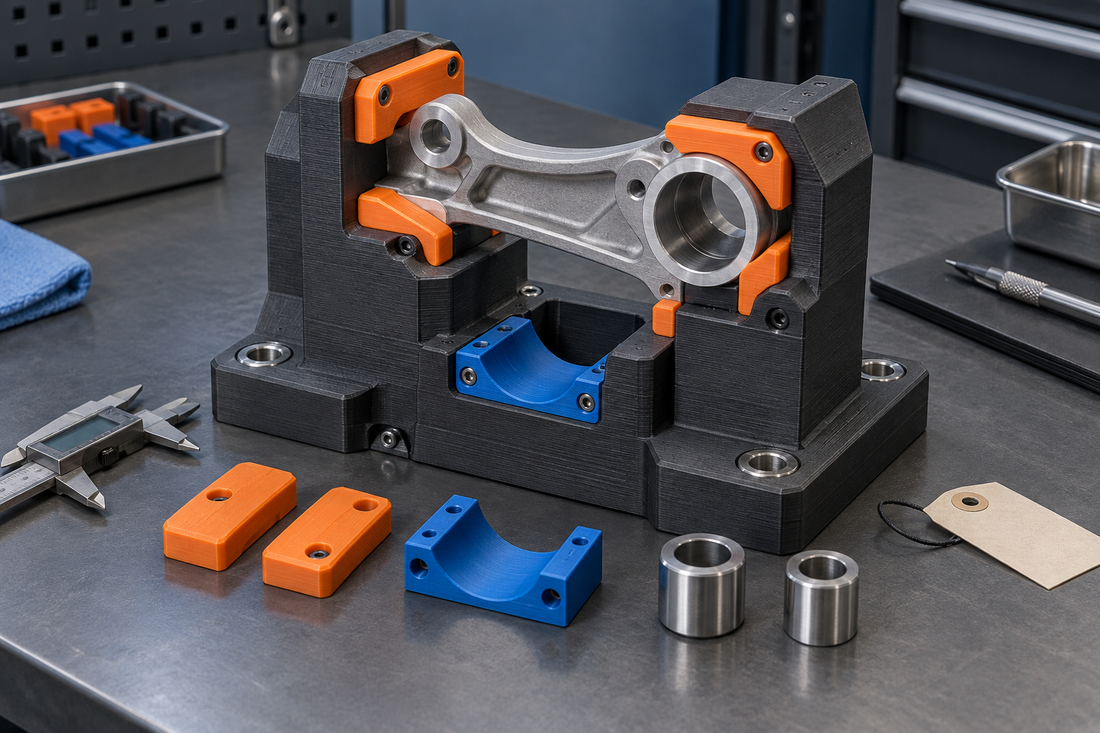

Design the fixture body and wear system as separate controlled parts

A replaceable contact is useful only when its interface, retention, material, orientation, identity, installation, inspection, and change limit are controlled. Decide what the pad or insert protects, what it touches, how load moves through it, and which datum remains stable after replacement.

Choose modularity for the right reason

Replaceable contacts can fit concentrated wear, product-facing surfaces, several variants on one base, expensive fixture bodies, frequent contact changes, or parts that need a softer interface. A one-piece fixture may be better when the insert adds looseness, stack-up, difficult cleaning, inaccessible fasteners, confusing variants, or more inspection work than it saves.

Control the interface, not just the removable part

• Locate the insert with geometry that resists the actual load direction instead of asking fasteners or adhesive alone to carry every load.
• Define seating faces, clearances, anti-rotation, insertion direction, fastener or retention method, and how complete seating is confirmed.
• Keep critical datums on the durable base when feasible, or require a master or mating-part check after the insert changes.
• Prevent the wrong pad, liner, bushing, or revision from fitting or appearing acceptable when variants can be confused.
• Define whether hardware is captive, reusable, single-use, torque-controlled, customer-supplied, or installed by the production partner.

Build a controlled replacement workflow

1. Identify the fixture, base revision, insert ID, insert revision, approved material, orientation, and compatibility.
2. Inspect the base interface for cracks, distortion, debris, pulled threads, enlarged holes, or damaged seating faces.
3. Remove the worn component using the buyer-approved method without silently reworking the base.
4. Clean and inspect the interface; disposition the base when damage exceeds its rule.
5. Install the correct replacement with controlled hardware, retention, and seating verification.
6. Perform the defined fit, master, mating-part, attribute, or first-piece check before release.
7. Record the change, reason, component lot or traceability required by the buyer, result, owner, and next inspection.

Define inspection and replacement evidence

Useful evidence can include a visual reference, flushness or protrusion check, movement or rotation check, hardware presence, seating witness, master-part fit, contact pattern, attribute check, or buyer-qualified measurement. Do not present a printed inspection aid as a calibrated gauge unless the buyer's measurement system supports that claim.

Fit, non-fit, and production risks

This design approach can fit assembly nests, locators, guides, soft jaws, product-contact pads, line-side holders, change parts, and non-calibrated inspection aids. It needs additional qualified review for safety-critical tooling, high heat, aggressive chemicals, food or medical contact, lifting, guarding, high-energy motion, pressure, or applications where loosening could harm people, equipment, or product.

Risks include an insert that rocks after replacement, accumulated tolerance stack, uncontrolled adhesive, fasteners that damage the printed base, hidden debris under a liner, mismatched materials, variant mix-ups, a worn base being mistaken for a worn insert, and accepting a new contact without checking its effect on the fixture function.

Make a modular fixture quote-ready

• Controlled base and insert files, revisions, assembly relationship, mating parts, datums, loads, motion, use environment, and contact surfaces.
• Material requirements, surface constraints, fasteners, bushings, purchased parts, retention method, installation owner, and prohibited substitutions.
• Acceptance, seating, fit, first-article, wear-limit, replacement, repair, quarantine, and reapproval rules.
• Base quantity, installed insert quantity, spare insert quantity, packaging, labels, kits, destinations, and replenishment cadence.

Use production 3D printing as the commercial owner. Review the production jigs and fixtures guide, tooling replacement triggers, and point-of-use fixture validation for connected sourcing and lifecycle decisions.

Replaceable wear pad and insert FAQs

Should the wear component be printed or purchased?

Choose from function and evidence, not convenience. Compare contact, load, motion, environment, required geometry, replacement method, supply continuity, inspection, and buyer approval. A printed component, purchased bushing, or hybrid assembly may each fit different interfaces.

Does replacing a pad require full fixture reapproval?

The buyer should define the required check from risk. A controlled like-for-like change may need identity, seating, and a reference check; a changed material, geometry, interface, base condition, or datum relationship can require broader validation.

When should the entire fixture be replaced?

Replace or hold the base when its interface, datums, structure, retention features, identification, or approved condition cannot support a controlled insert change. A new pad cannot correct a damaged base.
