How to Validate a 3D Printed Fixture at Its Point of Use

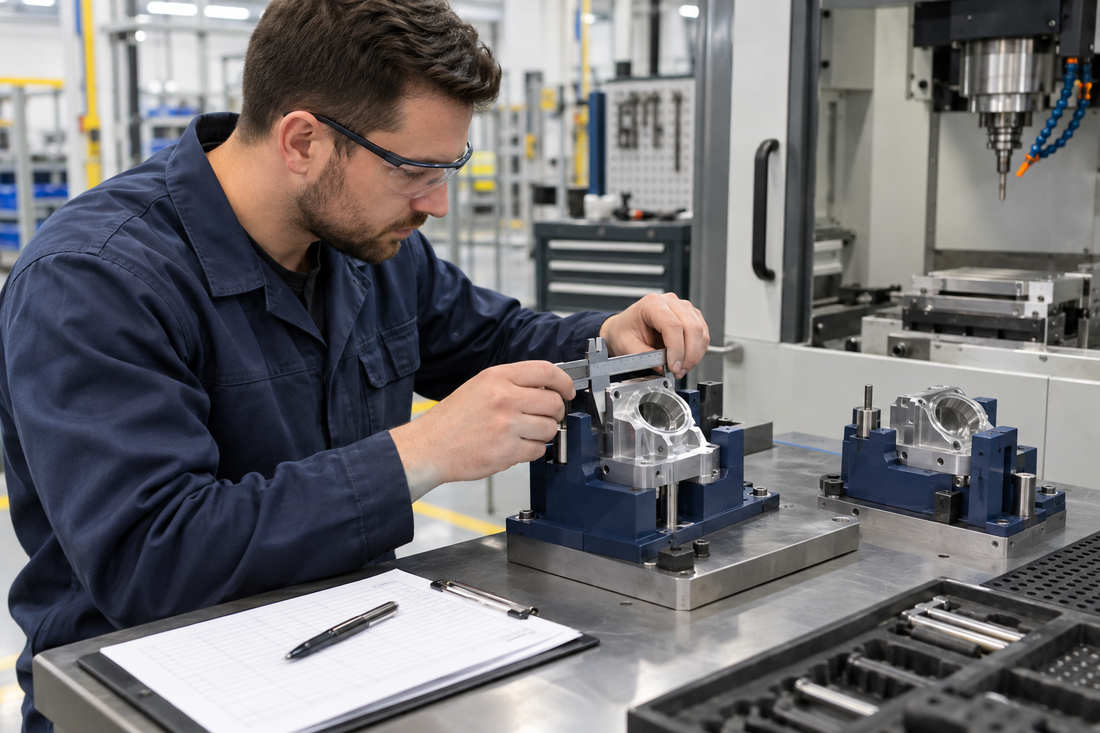

Validate a 3D printed fixture where it will actually be used, with the real interfaces, representative workpieces, intended operators, and normal work sequence. Approve it only after the team defines measurable acceptance criteria, challenges foreseeable misuse and variation, records trial evidence, resolves exceptions, and assigns revision ownership. A bench fit check is useful, but it is not a production release.
Choose the right order path
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning, reverse-engineering, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
A fixture is ready only when the production system is ready to accept it
A dimensional match to CAD does not prove that a fixture will locate the right revision, clear the machine envelope, survive the task, release the part cleanly, support the operator, or prevent a wrong orientation. Point-of-use validation connects the tool to its actual machine, station, workpiece family, work instruction, inspection method, maintenance plan, and downstream decision.
The broad production jigs and fixtures guide helps teams scope a tooling project. This guide begins at the later release gate: proving that a specific tool is suitable for a defined use.
Write the intended use before planning the trial
Define the operation, part numbers and revisions, station, machine or bench interfaces, operator population, expected orientation, sequence, loads supplied by the buyer, contact surfaces, cleaning exposure, environmental conditions, and the decision the fixture controls. Mark assumptions that still need evidence. If one tool serves several SKUs, define which features are common and which change.
Also write the non-use boundary. A locating nest is not automatically a clamp, inspection gauge, lifting device, protective guard, electrical fixture, hot-work tool, or safety control. Do not expand the application merely because the printed part appears rigid.
Use a point-of-use validation matrix
| Trial | What to challenge | Evidence to retain | Release question |
|---|---|---|---|
| Identity and interface | Correct station, mounting pattern, clearances, utilities, neighboring equipment, and revision. | Tool ID, photos, interface checklist, and controlled drawing or model reference. | Can the tool be installed in only the approved context? |
| Representative workpieces | Normal variation, multiple lots or revisions where relevant, cosmetic surfaces, and known edge cases. | Sample identity, fit observations, interference points, and disposition. | Does the tool support the approved part family without forcing fit? |
| Operator sequence | Loading, locating, clamping, operation, inspection, release, and reset using the current work instruction. | Observed sequence, deviations, user feedback, and updated instruction needs. | Can the task be performed repeatably without hidden workarounds? |
| Error challenge | Wrong orientation, missing component, mixed SKU, incomplete seating, debris, worn contact, and partial engagement. | Challenge result and whether the error is prevented, detected, or merely possible. | Are foreseeable errors controlled at the right step? |
| Output verification | Part condition, assembly result, inspection decision, downstream fit, or other defined output. | Accepted method, results, exceptions, and reviewer. | Does the fixture help produce or verify the intended outcome? |
| Removal and recovery | Stuck parts, broken consumables, interrupted cycles, cleaning, and tool removal. | Recovery steps, access limits, replacement criteria, and escalation owner. | Can foreseeable interruptions be handled without improvisation? |
Run the trial in four controlled passes
1. Installation and empty-cycle review
Confirm identity, mounting, access, clearance, visibility, tool reach, cable or hose routing where applicable, and safe interaction with the surrounding equipment. An empty-cycle review can reveal collisions and access problems before a representative part is introduced. It does not replace the buyer's machine-safety process.
2. Representative-part trials
Use parts that represent the approved family and known sources of variation. Record sample identity instead of calling a single easy fit representative. Check seating, orientation, contact marks, release, part damage, contamination traps, and whether operators compensate by pushing, twisting, shimming, or skipping steps.
3. Challenge trials
Test only authorized, safe, foreseeable error states. Examples include reversed orientation, a nearby SKU, partial seating, missing insert, normal debris, or a worn replaceable contact. State whether the fixture prevents the error, makes it visible, or cannot control it. Never imply mistake-proofing without evidence.
4. Repeat and handoff
Repeat the approved sequence across the relevant operators, samples, shifts, or release conditions chosen by the buyer. Then freeze the tool revision, installation method, work instruction, inspection points, maintenance checks, and revalidation triggers.
Do not turn cycle time into the only acceptance test
A faster trial can still hide forced loading, ambiguous orientation, difficult release, cosmetic damage, inspection bias, or a workaround that will not scale. Record elapsed time only if the buyer has a defined method and representative conditions. Pair it with output quality, error handling, operator interaction, and downstream acceptance.
Use the site’s inspection planning guide to separate measurable product requirements from general workmanship expectations. The fixture itself should not silently become the only evidence that its output is acceptable.
Define acceptance, conditional release, and rejection
- Accept: every required interface, representative trial, output check, and record meets the approved criteria.
- Conditionally release: limited use is allowed with named restrictions, temporary controls, an owner, and a closure date.
- Reject and revise: the tool creates ambiguity, damage, interference, uncontrolled force, unreliable output, or an unapproved use.
- Stop: the trial exposes a safety, legal, equipment, material, or process question outside the confirmed scope.
A release record should name the approved revision and context. “Looks good” is not a durable production decision.
Set revalidation triggers before the first production release
- Workpiece, CAD, material, supplier, or tolerance revision changes
- Machine, station, mounting, sequence, inspection method, or work instruction changes
- Repair, refurbishment, reproduced tooling, or replacement contact features
- Unexpected wear, breakage, contamination, distortion, part damage, or operator workaround
- New SKU, shift, site, environment, cleaning method, load case, or packaging handoff
For repeat programs, connect the approved fixture revision to the applicable part and order release. The production-runs page explains how recurring releases can carry controlled files, SKU identity, inspection, and replenishment requirements.
Fit, non-fit, and production risks
Good fit for managed farm intake
- Custom nests, guides, holders, masks, templates, assembly aids, or inspection aids with controlled interfaces and revisions
- Multi-SKU or recurring programs that need first-article learning, documented changes, inspection, packaging, or staged releases
- Projects where engineering and operations can provide the real use context, representative parts, acceptance owner, and trial plan
Not automatically a fit
- Safety controls, lifting devices, regulated tooling, high-load fixtures, energized equipment, pressure applications, or hazardous environments without written capability review
- Applications that require unverified material properties, calibration, certification, accuracy, life, load, or environmental performance
- Requests that ask a supplier to approve a process without access to the machine, workpieces, operators, acceptance method, or customer authority
Common release risks
- A tool is validated against one ideal sample rather than the approved production range.
- A printed revision changes while the station label or work instruction remains stale.
- Wear surfaces and debris change seating but there is no inspection or replacement trigger.
- Operators develop workarounds that invalidate the original sequence or acceptance evidence.
Prepare a quote-ready fixture package
- Buyer job, station and machine context, part/SKU and revision list, CAD, drawings, photos, and interface dimensions
- Representative sample plan, critical contacts, protected surfaces, expected orientation, sequence, and supplied load information
- Material and environment requirements, cleaning exposure, inserts or purchased hardware, marking, color, and packaging
- Acceptance criteria, output verification, challenge cases, first-article quantity, reviewer, release authority, and revalidation triggers
For a broader production scope, review production 3D printing for custom tooling and parts.
Frequently asked questions
Is a CAD inspection enough to validate a 3D printed fixture?
No. CAD and dimensional inspection can verify defined features, but point-of-use validation also checks the actual interfaces, workpieces, operator sequence, error states, output, and release controls.
How many parts should be used in a fixture trial?
There is no universal number. Choose samples that represent the approved part family, revisions, normal variation, and known edge cases, then document why the sample plan is sufficient for the buyer decision.
Who should approve a fixture for production use?
The customer should name an authority who understands the operation, output requirements, risks, and change-control system. Supplier delivery alone is not production approval.
When should a fixture be revalidated?
Revalidate when changes or evidence could affect fit, sequence, output, safety boundaries, or traceability—for example a part revision, station move, repair, new SKU, wear condition, or changed work instruction.
Which order path fits a fixture validation project?
Use farm intake for multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning, reverse-engineering, or otherwise complex work. Use instant quote for clean files and straightforward requirements.
