Recording Tooling Damage at the Point of Use
When 3D printed tooling is damaged at point of use, stop at a defined boundary, identify the fixture, prevent further use, photograph the condition in context, and record the last known acceptable output. The damage report should connect the physical tool to affected product, replacement priority, and an authorized repair, reprint, use-as-is, or retirement decision without assuming the cause.
Choose the right order path
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning, reverse-engineering, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
Contain first, diagnose second
Do not keep using a damaged fixture while someone decides whether the mark looks important. Place the tool in the local hold state, stop or bound affected work, identify WIP and completed output since the last known acceptable check, and notify the responsible production or engineering owner. Preserve the physical condition until useful evidence is captured.
| Record field | Useful evidence | Why it matters |
|---|---|---|
| Tool identity | Family, asset ID, printed revision, installed hardware, station, supported part | Prevents the report from attaching to the wrong fixture. |
| Observed condition | Location, type, extent, loose pieces, deformation, contamination, fastener or insert condition | Describes what was observed without inventing a cause. |
| Context | Tool installed or removed, mating part, orientation, recent event, operator observation | Preserves the point-of-use relationship. |
| Output boundary | Last known acceptable check, affected WIP, completed quantity, held quantity | Supports containment and product disposition. |
| Evidence | Overview and close-up photos with a stable reference, plus relevant instruction or setup record | Allows later review without losing the original condition. |
| Priority and disposition | Need event, available spare, repair or reprint path, owner, release evidence | Connects the finding to an authorized next action. |

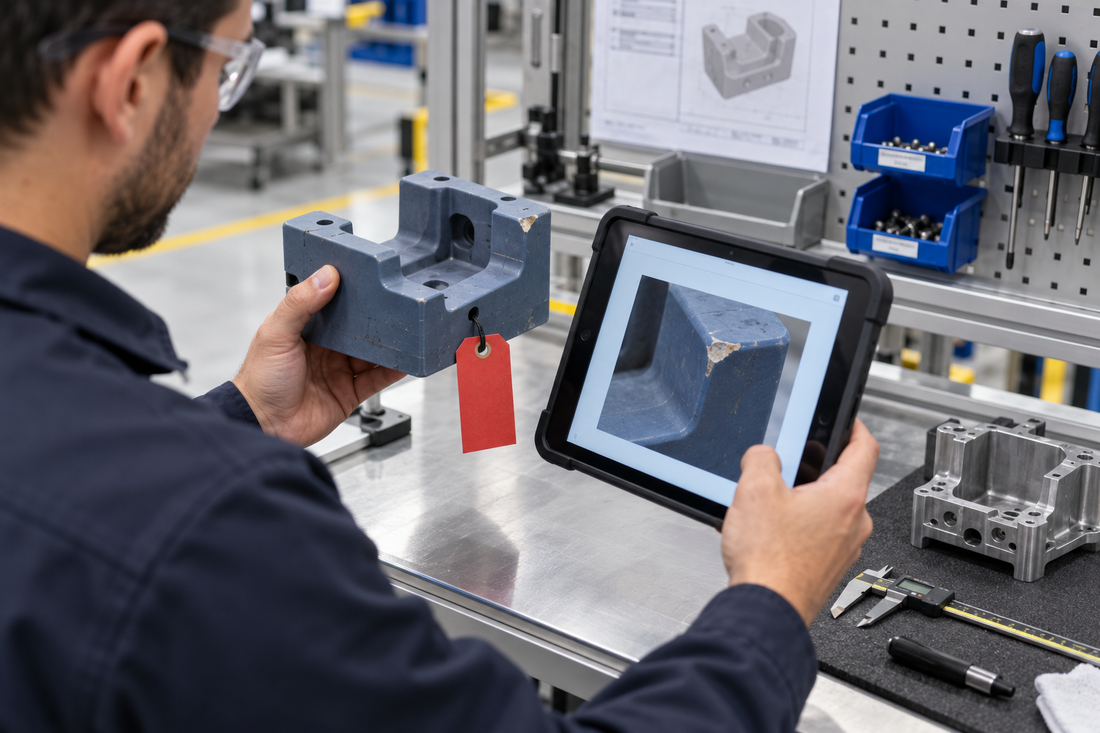

Photograph the tool as found
Capture an overview showing the tool and station, then close-ups that show the damaged feature, adjacent interfaces, scale reference when useful, and any loose hardware or fragments. Avoid cleaning, sanding, gluing, or reassembling before the initial record unless safety requires immediate action. Record any intervention.
Describe observations without declaring an unsupported cause
Use concrete language such as chipped locator edge, cracked wall near insert, displaced bushing, worn contact surface, loose fastener, heat deformation, or unknown contamination. Separate what was seen from hypotheses about impact, overload, installation, material, print quality, storage, or normal wear. Root-cause work can follow after containment.
Define the affected-output boundary
Record the last known acceptable setup or product check, when the damage was first observed, what output has been made since that point, and which quantities are accepted, held, rejected, or pending review. When the boundary is unknown, say so and let the authorized quality or process owner define the review. A tooling report should not silently disposition product.
Connect urgency to the next real need event
Priority should reflect production demand, available spares, inspection requirements, and the consequence of delay rather than a generic emergency flag. State the next required use, quantity or job dependency, whether a controlled spare exists, and whether interim work is authorized. The damaged-tooling replacement guide covers the downstream replace-or-repair decision.
Release only through a recorded disposition
Possible dispositions include use as-is under authorized evidence, repair and revalidation, replace a component, reprint the tool, activate a qualified spare, supersede the design, or retire the asset. Record the owner, controlled files and revision, work performed, required setup or first-use checks, and affected product decision. The point-of-use validation guide helps define return-to-service evidence.
Fit, non-fit, risks, and quote readiness
This workflow fits production fixtures, guides, nests, templates, gauges, holders, protective aids, and other printed tooling whose condition could affect work. It is not a substitute for safety response, incident reporting, engineering approval, calibration, product inspection, or root-cause analysis. Cosmetic marks outside the functional boundary may follow a simpler local rule, but should not be dismissed without that rule.
- The tool is repaired before the as-found condition is captured.
- Photos omit the asset identity or station context.
- A replacement is ordered without controlling the correct revision.
- Product made since the last acceptable check is not identified.
- A spare enters service without confirming its own condition and status.
- The report closes when the tool returns, while affected output remains unresolved.
For quote readiness, provide controlled files and revision, tool function, asset identity, damage photographs, affected features and hardware, operating environment, observed event, replacement priority and need event, spare availability, repair or reprint boundary, required inspection or first-use checks, quantity, marking, packaging, and destination. The production tooling guide covers broader design inputs.
Use the production 3D printing service as the primary commercial owner for production parts and factory tooling.
Frequently asked questions
Should a damaged fixture be used until a replacement arrives?
Only under an authorized disposition supported by the required evidence. The default damage report should place the tool and affected output into the local hold process, not assume continued use is acceptable.
What photographs belong in a tooling damage report?
Capture the whole tool and workstation context, close-ups of the affected feature and adjacent interfaces, a stable scale reference when useful, and any loose hardware or fragments.
Does a reprinted fixture automatically close the damage report?
No. Confirm the correct controlled revision, complete required inspection and point-of-use checks, disposition the damaged asset, and resolve any affected product or WIP.
Final decision
Release the workflow only when controlled identity, physical state, responsible owner, evidence, exception path, and next authorized action are explicit.
