Raise3D Pro3 HS Review (2026): Is It Worth the Premium?

Verdict: The Raise3D Pro3 HS is a serious enclosed dual-extrusion printer for teams that need a managed 300 mm professional workflow, soluble supports, engineering materials, and faster repeat production. Its value depends on using those capabilities regularly. Buyers focused on ordinary PLA, automatic multicolor, or a heated chamber can get a better fit for much less.

Research disclosure: This is a research-based review, not a hands-on test by JCPRINTFARM. It draws on Raise3D's current product page, technical specification, and user manual; current reseller information; independent hands-on testing of the closely related Pro3 platform; and independent testing of Raise3D's Hyper FFF upgrade. Exact-model independent Pro3 HS coverage remains limited, so manufacturer speed, noise, durability, and production claims are identified as claims rather than presented as our measurements.

What the Raise3D Pro3 HS is

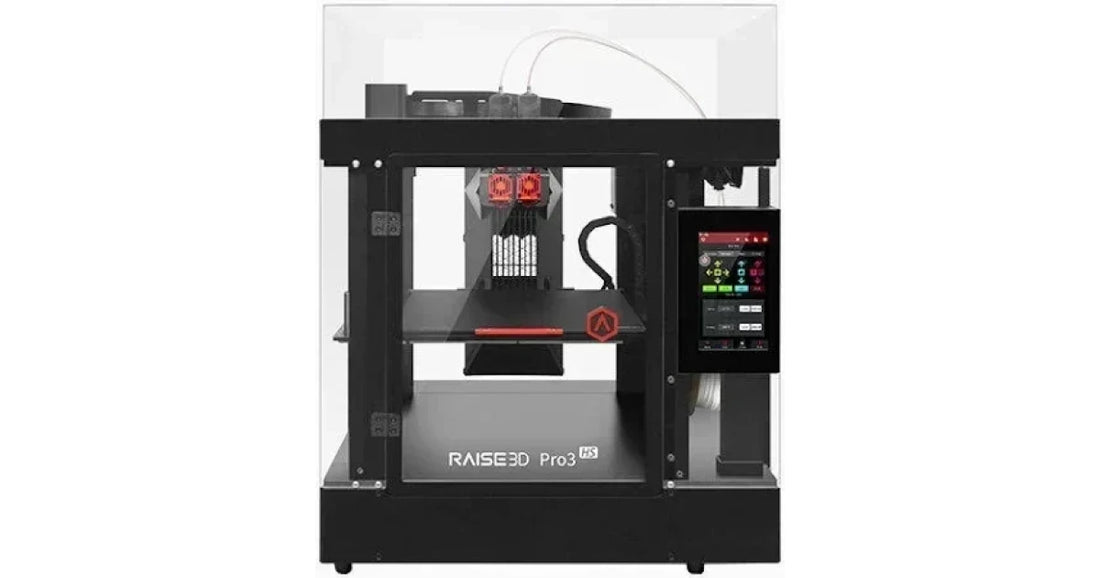

The Pro3 HS is the standard-height member of Raise3D's Pro3 HS Series. It is an enclosed professional FFF printer with a 300 × 300 × 300 mm single-extruder build volume, a dual-head electronic lifting system, a 320°C maximum nozzle temperature, and a 120°C maximum bed temperature. The taller Pro3 Plus HS keeps the same 300 mm width and depth but extends the Z axis to 605 mm. That distinction matters: this article covers the regular Pro3 HS, not the Plus.

Raise3D positions the HS generation as more than a renamed Pro3. Hyper FFF is integrated, the motion system adds a closed-loop stepper motor, the hot ends and nozzle system are strengthened, the build plate is revised, and the machine supports automatic filament switching. Raise3D lists a 500 mm/s maximum and 300 mm/s standard speed, while its material-specific statements are more restrained: 200–300 mm/s for Hyper Core composites and 100–150 mm/s for Industrial composites. Those are manufacturer figures, not universal speeds for every geometry, material, and quality target.

Who should buy it—and who should skip it

Best fit: engineering, product-development, education, and small production teams that need repeatable enclosed printing, dual-material support strategies, network management, validated profiles, or carbon- and glass-fiber-filled material workflows. It makes the strongest business case when saved labor, shorter queues, and reduced operator intervention are worth more than the machine's large upfront cost.

Skip it if: most jobs are single-material PLA or PETG; you want automatic four-color or sixteen-color decorative printing; you need independent dual carriages for mirror or duplication mode; or your process requires a specified actively heated chamber. Raise3D lists an enclosure but does not publish active chamber heating in the Pro3 HS technical specification. The dual-head electronic lifting system is also not IDEX: both nozzles share the same carriage.

Key specifications in context

Where the Pro3 HS is strongest

A professional dual-extrusion workflow

The clearest reason to choose this machine over a cheaper enclosed single-nozzle printer is its lifting dual-head system. A second material can be used for soluble or breakaway supports, or for a functional second material or color. The inactive nozzle lifts to reduce the chance that it drags through the part. Dual extrusion still adds purge, prime-tower, calibration, and maintenance work, but it can solve geometries that are unpleasant or impossible to finish with same-material supports.

Remember the constraint hidden in the specification table: dual-head work reduces X capacity from 300 to 255 mm. A buyer with a 280 mm-wide soluble-support part does not actually have a 300 mm dual-material machine. This is exactly the kind of workflow detail worth checking against real CAD files before purchase.

Throughput improvements built around a system

Hyper FFF combines motion compensation, higher-flow hot ends, slicer profiles, firmware, and material behavior. Independent Aniwaa testing of the earlier Pro3 Hyper Speed upgrade found that gains depended heavily on geometry: long uninterrupted paths benefited more than intricate parts, while tested jobs still ran at least roughly twice as fast in that review. That evidence supports the basic platform concept, but it is not an exact-model benchmark for every Pro3 HS configuration.

The practical lesson is to evaluate throughput with your own parts. A 500 mm/s travel or peak-speed number says little about total cycle time if the part is acceleration-limited, support-heavy, cooling-limited, or constrained by volumetric flow. Raise3D's more specific composite-material ranges are more useful for planning, and even those should be treated as starting points for qualification.

Engineering-material range

Raise3D lists Hyper Core PPA CF, PPA GF, and ABS CF; Hyper Speed PLA and ABS; Industrial PPA CF, PPA GF, PET CF, PET GF, PETG ESD, PET Support, and PPA Support; plus Premium PLA, ABS, ASA, PETG, PC, TPU-95A, and PVA+. Third-party materials are supported through the Open Filament Program. This is a credible breadth of published profiles, but compatibility does not make every spool plug-and-play.

Filled polymers require the correct wear-resistant nozzle path. Hygroscopic nylons and support materials require disciplined drying and storage. ABS, ASA, and other emitting materials require an appropriate workspace and exposure-control plan. For end-use parts, the operator still needs to qualify orientation, layer bonding, moisture condition, dimensional compensation, and any safety or regulatory requirements.

Long-job continuity and fleet features

When one spool runs out, the Pro3 HS can continue from the second spool, provided the job and material setup are compatible. Raise3D also advertises optional 2.5 kg spool boxes for up to 5 kg of material across two spools. Filament sensing, power-loss recovery, a camera, Ethernet, Wi-Fi, RaiseCloud compatibility, and a 7-inch touchscreen all target lower-touch professional operation.

These features reduce avoidable interruptions; they do not eliminate process risk. Automatic switching depends on compatible material and profiles, a camera does not correct a failing part, and recovery cannot guarantee that a long engineering print retains dimensional or mechanical integrity after an interruption. Production users should define when a resumed part is acceptable and when it must be scrapped.

Limitations and hidden workflow costs

It is expensive because it sells a managed workflow

The Pro3 HS sits in a professional price class, and current reseller prices can vary with region, freight, service, and bundles. A fair comparison must include hot ends and nozzles, material drying, spare build surfaces, support filament, large-spool boxes, service coverage, and operator qualification—not just the printer invoice. If a cheaper machine can produce the same approved parts with acceptable labor, the Raise3D premium is difficult to recover.

Conversely, comparing it only with hobby printers can miss the point. Ethernet, documented support, dual-material profiles, fleet software, a familiar interface, and repeatable procurement may matter more to a school or engineering department than the lowest dollars per cubic millimeter. The value case should be written around labor and approved output, not an abstract feature count.

No published actively heated chamber

The enclosure helps control drafts and temperature swings, but Raise3D's current technical sheet does not specify an actively heated chamber. That is an important distinction for large, warp-prone engineering parts. A 320°C nozzle and 120°C bed expand material options, yet they do not reproduce the process conditions of a printer with a controlled heated chamber.

Dual extrusion needs calibration and maintenance

Two hot ends add offsets, two filament paths, more consumables, and more opportunities for contamination or ooze. Soluble supports add their own storage, purge, and removal steps. The lifting mechanism is useful, but no dual-nozzle system makes process planning disappear. Teams should budget time for nozzle-offset checks, profile control, material conditioning, and test coupons.

HS evidence is not as deep as the specification sheet

Independent testing of the original Pro3 and the Hyper FFF upgrade is informative because the HS model builds on that platform. 3D Printing Industry reported strong results across dimensional, repeatability, dual-material, and engineering-material tests on the Pro3, while also reporting a failed long PLA run caused by a motor-driver voltage issue before a successful reprint. Aniwaa found meaningful Hyper FFF speed gains but also documented an update-and-calibration workflow and geometry-dependent benefits.

Neither source is a substitute for a long-term exact-model Pro3 HS fleet study. Raise3D's claims of enhanced reliability, lower noise, and 30%–70% time reduction should therefore remain claims until a buyer validates them with representative jobs.

Software and day-to-day workflow

The machine uses ideaMaker on Windows, macOS, and Linux and accepts STL, OBJ, 3MF, OLTP, STEP/STP, and IGES/IGS according to the technical specification. Native CAD-format support can simplify some handoffs, but production teams should still control tessellation, units, revisions, orientation, and approved slicer profiles. The printer outputs standard G-code within Raise3D's managed ecosystem.

RaiseCloud and the live camera are useful for queue visibility and monitoring, especially across a lab. Organizations with restricted networks should decide in advance whether cloud connectivity is allowed and verify which functions remain available through LAN or USB. The presence of Wi-Fi does not override a company's data, cybersecurity, or export-control policy.

Realistic alternatives

• Raise3D E3: choose it when IDEX duplication, mirror printing, or independent-carriage flexibility matters more than the Pro3 HS's 300 mm cube and high-speed Pro3 platform.
• Original Prusa XL: a toolchanger can reduce cross-contamination and support more tools with less purge, but the original XL has a different, more open workflow and is now a superseded model.
• QIDI X-Plus 3: a lower-cost used or legacy option with active chamber heat and a roomy single-nozzle envelope, but without the Raise3D dual-head and managed professional ecosystem.
• Several smaller enclosed printers: often deliver more aggregate throughput and fault isolation for single-material farms. They also multiply maintenance, slicing, networking, and part-distribution work.

What to verify before ordering

1. Export a sample of real parts and confirm they fit the 255 mm dual-extrusion width when two materials are required.
2. Ask the seller for the exact included hot ends, nozzles, warranty, commissioning, training, freight, and service response.
3. Confirm current profiles for every required polymer, support material, and nozzle—not merely a generic compatibility list.
4. Plan drying, storage, ventilation, electrical service, network access, and a bench rated for a 54 kg machine.
5. Run a paid application sample or acceptance test using representative geometry, tolerance, surface, and mechanical requirements.
6. Calculate throughput from completed acceptable parts per week, including setup, failures, support removal, and inspection.

Is buying a printer the right first step?

A professional machine makes sense when the work is recurring, confidential, time-sensitive, and supported by staff who can own process qualification. For irregular demand, uncertain geometry, or a project still choosing materials, outsourcing a pilot can reveal the real process before capital is locked in. JCPRINTFARM's project intake and production 3D printing pages provide a path for evaluating parts and volume first.

Final verdict

The Raise3D Pro3 HS is most defensible as a professional process tool, not as a luxury desktop printer. Its combination of a 300 mm enclosed workspace, lifting dual hot ends, engineering-material profiles, Hyper FFF, automatic spool switching, filtration, and network management can reduce friction for a qualified team. Its drawbacks are equally concrete: professional-system cost, a narrower dual-material envelope, no published active chamber heating, dual-nozzle maintenance, and limited independent exact-HS evidence.

Buy it when representative jobs prove that dual extrusion, material support, and reduced operator time pay for the system. Skip it when most output is straightforward single-material work or when a heated chamber, IDEX duplication, toolchanging, or low-cost distributed capacity is the actual requirement. See the 3D printer review hub for more research-based comparisons.

Sources

• Raise3D Pro3 HS Series product page, accessed October 25, 2026.
• Raise3D Pro3 HS Series Technical Specifications V1.5.
• Raise3D Pro3 HS Series user manual.
• 3D Printing Industry hands-on Raise3D Pro3 review, April 15, 2024.
• Aniwaa hands-on Hyper FFF upgrade review, updated March 12, 2024.
• MatterHackers Raise3D Pro3 HS listing, checked for current market context October 25, 2026.
