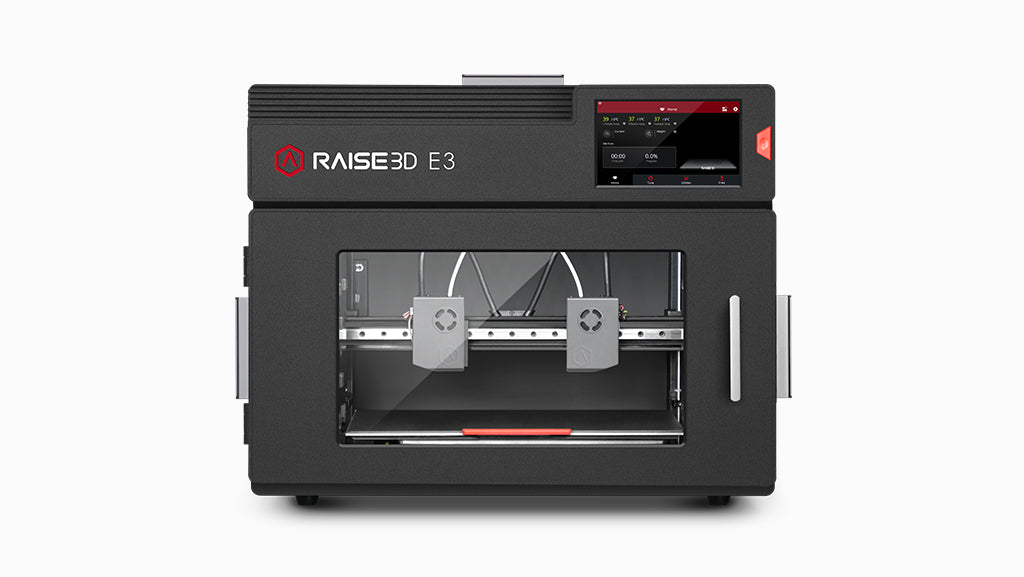

Raise3D E3 enclosed IDEX 3D printer shown in official product media

Raise3D E3 Review (2026): Is This IDEX Worth $2,499?

Verdict: The Raise3D E3 is a serious enclosed IDEX printer for teams that repeatedly need duplicate parts, soluble or breakaway supports, flexible materials, or engineering composites. Its 330 × 240 × 240 mm single-tool capacity and 330°C hot ends are useful, but the $2,499 base machine only makes sense when its dual-tool workflow and supported ecosystem earn their keep.

Research disclosure: JCPRINTFARM has not hands-on tested this exact printer. This review is based on Raise3D’s current product page, December 2025 technical specification, store and support documentation, an independent exact-model video, and current reseller listings checked October 24, 2026. Manufacturer speed, noise, surface-finish, and material claims are treated as claims—not our benchmark results.

The E3 replaces the old idea that a professional desktop IDEX printer must be slow and narrowly focused. Raise3D gives it two independent toolheads, an enclosed chassis, a 330°C nozzle ceiling, a 110°C bed, dry material bays, camera monitoring, and ideaMaker/RaiseCloud workflow integration. It also makes the most interesting capabilities modular: the flexible-filament feeder and silicon-carbide composite print heads are package-dependent extras.

Who should buy the Raise3D E3?

  • Prototype and manufacturing teams that need dual-material parts or support material often enough to justify IDEX calibration and upkeep.
  • Small production cells that can use duplication mode to make two small parts in one cycle.
  • Labs and design departments that value an enclosed, networked appliance with vendor documentation over a cheaper hobby platform.
  • TPU or composite users who are willing to buy the appropriate feeder or print-head package and qualify the complete process.

Who should skip it?

  • Buyers who mostly print PLA or PETG with one nozzle. A simpler enclosed CoreXY machine can cost much less and run faster on ordinary single-material work.
  • Anyone expecting automatic multi-color spool switching. IDEX gives two independent tools, not a four- or sixteen-color material changer.
  • Operators who need a genuinely heated build chamber. Raise3D describes an enclosed chamber and filtration, but the published specification does not list active chamber heating.
  • Teams choosing purely from maximum-speed marketing. The official 200 mm/s ceiling and 16 mm³/s maximum volumetric rate are workflow limits, not proof that every material or geometry will run at that rate.

Raise3D E3 specifications in context

Specification Published value Why it matters
Process and tool system FFF with two independent extruders (IDEX) Enables duplicate, mirror, dual-color, and dual-material work while parking the inactive nozzle away from the part.
Single-extruder build volume 330 × 240 × 240 mm Wide enough for fixtures, housings, and batches that exceed common 250–300 mm beds.
Dual-extruder build volume 295 × 240 × 240 mm IDEX costs 35 mm of X capacity. Plan from the dual-tool envelope when supports or a second material are required.
Maximum nozzle / bed temperature 330°C / 110°C Useful thermal range for many engineering filaments, but successful printing still depends on the correct head, profile, dry material, adhesion, and chamber conditions.
Published maximum speed 200 mm/s; 16 mm³/s maximum volumetric rate The volumetric limit is the more useful planning number. Large nozzles and wide lines can reach it well below 200 mm/s.
Nozzles 0.4 mm standard; 0.2, 0.6, 0.8, and 1.0 mm available Supports detail, standard production, and higher-throughput strategies. Abrasive composites require the suitable optional print head.
Build surface Double-sided flexible PEI plate; BuildTak plate available A practical removable surface, although each material still needs a validated release and adhesion procedure.
Material handling Two storage bays with desiccant; run-out detection Helps protect staged filament, but passive desiccant storage is not the same as actively drying a wet spool.
Connectivity Wi-Fi, Ethernet, USB, and live camera Better suited to a managed shop than an SD-card-only desktop printer.
Size and weight 614 × 597 × 487 mm; 33.3 kg This is a substantial benchtop machine. Leave space for doors, material access, ventilation, and service.
Software ideaMaker; Windows, macOS, Linux The integrated profiles and IDEX controls are part of the value, but they also create an ecosystem decision.

Values above come from Raise3D’s current E3 specification. MatterHackers published some older dimensions and screen details that differ, so this review gives precedence to Raise3D’s December 2025 V1.3 specification.

What is good about the E3?

IDEX solves real production problems

The second tool is not merely a color feature. It can carry a support material, a different durometer, or another color without forcing both filaments through one shared melt path. Duplication mode can produce two identical parts at once when each fits within the reduced working area. Mirror mode can create left- and right-hand variants together. Those capabilities are meaningful for fixtures, paired components, prototypes with soluble interfaces, and short repeatable batches.

IDEX also reduces the idle-nozzle problem found on shared-carriage dual-extrusion systems because the unused tool can park outside the active print. It does not eliminate tuning: nozzle offsets, purge behavior, ooze control, and material compatibility remain part of process qualification.

The useful build area is unusually wide

A 330 mm X dimension is valuable for long brackets, panels, tool trays, and rows of smaller parts. The key caveat is that dual-tool jobs shrink to 295 mm on X. That distinction belongs in quoting and fixture design from day one; a part that barely fits in single-tool mode may not fit once support material is added.

The platform is built around material workflows

The standard E3 covers familiar PLA, ABS, ASA, PETG, PC, TPU-95A, and support-material workflows according to Raise3D. The Flex package adds the auxiliary feeder intended to reduce resistance when feeding softer materials. The CF package adds silicon-carbide composite heads. The Full package combines both. This modularity is sensible because a general prototype shop need not pay for every specialty path.

It also means the base-printer specification can be misleading if read in isolation. Being listed as compatible with PPS CF, PPA CF, or very soft TPU does not mean every base E3 ships ready for that material. Buyers should confirm the head, nozzle, feeder, surface, profile, ventilation, and drying requirements for each intended filament before ordering.

Shop-friendly recovery and monitoring features

Ethernet, Wi-Fi, an onboard camera, run-out sensors, power-loss recovery, and RaiseCloud support fit a shared equipment environment. None guarantees a saved production job, but they reduce avoidable interruptions and make remote status checks practical. The HEPA plus activated-carbon filter is a useful enclosure feature, though it should not be treated as a substitute for a site-specific exposure and ventilation assessment.

Where the Raise3D E3 costs more than the sticker price

The compelling configurations cost more than $2,499

At verification, Raise3D’s U.S. store listed the standard machine at $2,499, the Flex package at $2,769, the CF package at $3,129, and the Full package at $3,399 before tax and possible freight-related charges. Prices change, so treat those as a dated reference rather than a standing quote. The correct comparison is not base E3 versus a fully equipped rival; it is the E3 package required by your qualified materials versus the rival configured for the same work.

Two tools create two-tool maintenance

IDEX provides flexibility by adding hardware and calibration states. A production owner needs spare nozzles or complete hot ends as appropriate, offset checks, material-specific profiles, purge and wipe strategy, plate care, and a plan for keeping both filament paths dry. A second extruder that is rarely used can become cost and complexity without producing meaningful throughput.

Passive storage does not replace a dryer

The dual storage bays use desiccant. That is useful for keeping dry material dry, but engineering composites, nylons, soluble supports, and many TPUs can arrive wet or absorb enough moisture to need active drying. Budget for drying, sealed storage, and material traceability if dimensional consistency or surface quality matters.

Published claims still require qualification

Raise3D advertises TPU printing up to 200 mm/s with the auxiliary feeder and surface roughness below 2 μm in a specific Hyper Speed PLA Pro and Pro Ironing condition. Those are bounded manufacturer claims, not universal results. Geometry, layer height, line width, acceleration, material lot, environment, and acceptance criteria all affect actual throughput and finish. The independent exact-model evidence base remains small, so buyers should request sample parts or run an acceptance test using their own files and materials.

Software and day-to-day workflow

The E3 uses ideaMaker, with STL, OBJ, 3MF, STEP/STP, IGES/IGS, and other listed inputs. Direct CAD-format support is convenient, but production teams should still control tessellation, units, body assignments, and revisions before slicing. A slicer accepting STEP does not remove the need for a controlled manufacturing file handoff.

Raise3D’s ecosystem is more managed than many consumer printers. That can be a strength for standardized profiles, user access, monitoring, and repeat jobs. It can also be a constraint if your shop is standardized on another slicer or local-only workflow. Validate how jobs are stored, who can change profiles, how firmware updates are governed, and whether cloud features can be disabled or segmented under your IT policy.

Material fit: what the E3 is actually for

  • PLA and PETG: easy baseline materials, but not enough by themselves to justify this printer’s cost.
  • ABS and ASA: the enclosure and 110°C bed are useful. Confirm ambient conditions and part geometry because an enclosed chamber is not an actively heated chamber.
  • TPU and TPE: a central E3 use case, especially with the optional auxiliary feeder. Softer grades still need process validation.
  • Carbon- or glass-filled materials: a reason to choose the CF or Full package. Abrasion-resistant heads, correct drying, filtration, and safe handling are part of the workflow.
  • Support material: one of the best reasons to pay for IDEX, particularly when clean interfaces or internal geometry matter.
  • Two-color work: viable, but a two-tool machine is not the best economic answer for decorative prints needing many colors.

Alternatives to consider

FlashForge Creator 5 Pro

The FlashForge Creator 5 Pro review covers another professional IDEX option. Compare actual material profiles, service channels, build envelope, and the workflow your operators will use rather than reducing the decision to claimed speed.

Prusa XL

The Prusa XL review is relevant when independent tool changing and more than two materials matter. The XL offers a different open-frame architecture and tool-changing approach; the E3 is the more compact enclosed appliance.

QIDI Plus4

The QIDI Plus4 review makes sense for buyers whose real need is enclosed single-nozzle engineering-material printing at a lower acquisition cost. It does not replace IDEX duplication or dual-material capability.

Outsource before buying

If demand is irregular, the better comparison may be purchase cost plus qualification labor versus a qualified supplier. JCPRINTFARM’s production 3D printing service and project intake provide a path for proving geometry, material, demand, and acceptance criteria before committing to equipment.

Availability and support in 2026

The E3 is a current model, not a legacy listing. On October 24, 2026, Raise3D’s U.S. store showed the base printer and four configurations for sale, the current global product page hosted the V1.3 specification, and the E3 support section included a quick-start guide. MatterHackers and Multistation also maintained exact-model listings. That is a credible commercial and documentation trail, though local inventory, lead time, freight, tax, warranty handling, and regional support should be confirmed in writing.

The U.S. store states a one-year limited warranty and describes freight conditions for printer deliveries. For a professional purchase, ask who provides first-line support, what parts are stocked locally, whether an advance-replacement program exists, and what response time is contractual rather than promotional.

Final verdict

Buy the Raise3D E3 for its workflow, not its headline speed. It is strongest when two independent tools, a wide enclosed build area, professional networking, and qualified TPU/composite options solve recurring paid work. For ordinary single-material printing it is expensive and complex. Before purchase, price the required package, dryer and spares, then run representative acceptance parts in every critical material.
