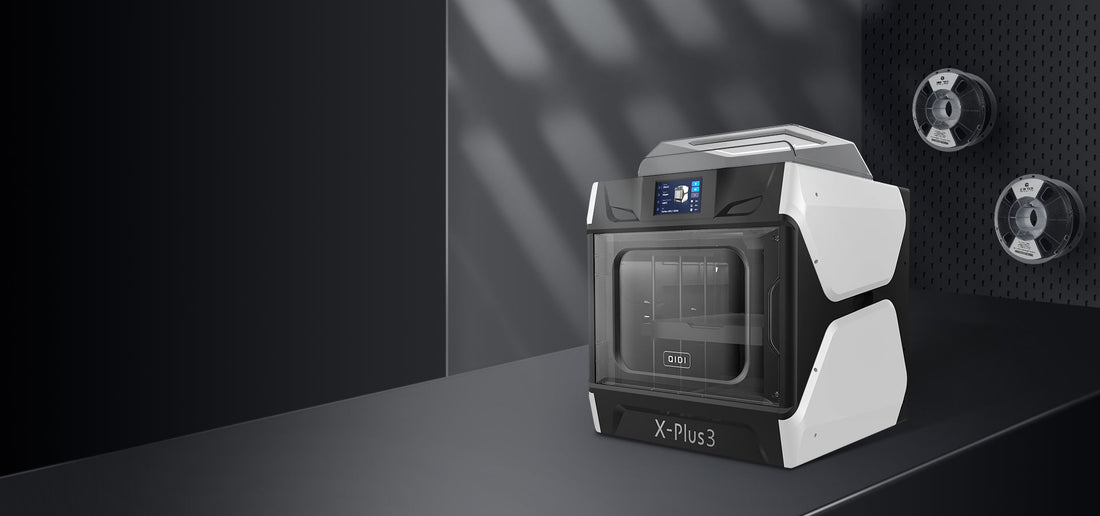

QIDI Tech X-Plus 3 enclosed roomy 3D printer in official product media

QIDI Tech X-Plus 3 Review (2026): Still Worth Buying?



Verdict: The QIDI Tech X-Plus 3 remains a capable roomy enclosed CoreXY printer for buyers who specifically need a 280 mm-class build area and an actively heated chamber. In 2026, however, it makes most sense as a carefully inspected used or discounted machine: official availability is uncertain, newer QIDI models are easier recommendations, and its size, rear spool access, single-material workflow, and documented rough edges demand planning.

What the QIDI Tech X-Plus 3 is

The X-Plus 3 is a roomy, fully enclosed CoreXY filament printer from QIDI's 2023 high-speed generation. Its defining combination is a 280 × 280 × 270 mm build volume, a 350°C-capable hotend, a bed rated to 120°C, and independent chamber heating rated to 65°C. That is a materially different proposition from a common open bedslinger: it can fit helmet-scale and larger functional parts while giving ABS, ASA, nylon, polycarbonate, and filled engineering filaments a warmer environment.

It is still a single-nozzle, single-filament-at-a-time machine. It does not provide the automatic multi-color workflow that now shapes many consumer-printer comparisons, and a roomy build plate does not by itself turn one printer into a production cell. The X-Plus 3 is best understood as a roomy, material-focused machine for an operator willing to tune, maintain, and qualify a process.

Who should buy it—and who should skip it

Consider it if your recurring parts genuinely exceed a 250–300 mm build area, you need an enclosure and controlled chamber heat, you can inspect a used machine in person, and you are comfortable treating slicer profiles and maintenance as part of the workflow. Cosplay shells, fixtures, housings, prototypes, and one-piece functional parts are the clearest fits.

Skip it if most parts fit smaller printers, easy multi-color printing matters, you require a current factory-new platform, or the printer must sit tight against a wall. The rear-mounted dry-box/spool path and the machine's roughly 511 × 527 × 529 mm body need more working clearance than the nominal footprint suggests. A buyer prioritizing current support, easier placement, or fleet standardization should compare newer machines before accepting an attractive used price.

Key specifications in practical context

Specification QIDI X-Plus 3 Why it matters
Process Enclosed CoreXY FFF/FDM The bed moves vertically rather than rapidly slinging a large part back and forth.
Build volume 280 × 280 × 270 mm Useful for mid-size one-piece parts, but long jobs concentrate more time and material in one failure domain.
Hotend / bed Up to 350°C / 120°C Supports a broad material range on paper; actual success still depends on drying, nozzle choice, adhesion, and a validated profile.
Chamber Independent heating up to 65°C A meaningful advantage for warp-prone materials compared with a passive enclosure.
Claimed motion ceiling Up to 600 mm/s and 20,000 mm/s² Marketing ceilings are not universal production settings. Geometry, flow, material, quality targets, and reliability determine useful speed.
Extrusion Direct drive; copper-alloy and hardened-steel hotends supplied in the reviewed configuration The hardened setup is the relevant choice for abrasive filled filament, while nozzle wear remains a consumable cost.
Bed surface Flexible magnetic HF build plate on a 6 mm aluminum base Large-bed flatness, cleanliness, mesh quality, and temperature uniformity affect whether the full area is truly usable.
Software and control Klipper-derived firmware; QIDI Studio support; Wi-Fi and USB QIDI still lists the X-Plus3 among supported QIDI Studio machines, but firmware changes should follow exact-model instructions.

The speed specification needs restraint. 3DSourced reported acceptable results around 300 mm/s in its test context, while Clever Creations also examined the machine's high-flow hardware and practical limits. A 600 mm/s travel or short-segment capability does not mean every large engineering part should be costed at that speed. Volumetric flow, layer cooling, chamber temperature, acceleration distance, and surface-quality requirements usually become the real constraints.

Strengths

Roomy enclosed build volume

The 280 × 280 × 270 mm envelope is the core reason to consider this model. It can reduce seams, fasteners, alignment work, and post-processing when a part that would otherwise be split fits as one piece. 3DSourced highlighted large models as the machine's strongest use case, and its review found the stable CoreXY arrangement capable of producing good large prints.

Active chamber heat

A chamber heater rated to 65°C is more useful than merely trapping incidental bed heat. It can reduce thermal gradients and warping for ABS, ASA, nylon, and similar materials. That does not remove the need for ventilation or material-specific safety practices. An activated-carbon element is not a blanket guarantee of safe indoor air, and a production buyer should evaluate emissions controls for the actual polymer being run.

Engineering-material hardware

The 350°C hotend, 120°C bed, direct drive, and included hardened-nozzle hotend give the machine a credible route to filled and higher-temperature polymers. The sealed rear spool box can hold desiccant. That is helpful, but it is not the same as actively drying wet nylon; moisture-sensitive material may still need a dedicated dryer and controlled handling from dryer to toolhead.

Current software visibility

At this review's October 2026 verification, QIDI's official software page still explicitly listed the X-Plus3 as supported by QIDI Studio, and the exact-model QIDI Wiki remained accessible. Those live resources matter for a legacy purchase because an impressive hardware spec is less valuable if the buyer cannot obtain profiles, procedures, or model-specific troubleshooting.

Limitations and ownership costs

Availability and lifecycle ambiguity

QIDI's exact-model product page is live, but its official product data showed the machine as unavailable when checked. We therefore would not treat it as a normal current-stock recommendation. Confirm whether a listing is genuinely new, refurbished, old stock, or used; who provides the warranty; and whether return freight is practical for a roughly 26 kg machine.

Large jobs magnify interruptions

3DSourced specifically criticized the absence of power-loss recovery in its tested configuration after losing a long print. Firmware can change, so a seller should demonstrate the installed version and recovery behavior rather than relying on a listing. For production use, a properly sized UPS, filament runout test, verified first-layer routine, and staged acceptance print are sensible risk controls.

Access and placement

The rear spool holder is awkward when the printer sits against a wall. Both 3DSourced and Clever Creations called out the access burden. Plan for door swing, top-cover removal, rear filament loading, cable bend radius, exhaust or ventilation, and service access. The practical installation envelope is larger than the chassis dimensions.

Quality-control variation

3DSourced noted exterior fit-and-finish issues and measured a bed-temperature variation that complicated printing multiple items. Clever Creations reported that early distribution was paused while QIDI addressed launch problems, then tested an updated unit. Used buyers should not assume every X-Plus 3 has identical revision hardware. Ask for serial/revision details, update history, bed-mesh evidence, a full-area first-layer test, and a long hot print.

Consumables and process overhead

Budget for build surfaces, nozzles or complete hotend components, filters, lubricant, belts, filament drying, and failed qualification parts. Filled polymers accelerate nozzle wear and can expose weak profiles quickly. A 280 mm bed also takes time and energy to heat. The business question is not whether the printer can extrude a material once, but whether the approved settings repeat across the full bed and over long jobs.

Materials and realistic workflow

PLA and PETG do not need the chamber heater for every job; excess retained heat can work against clean PLA overhangs. ABS and ASA are more logical beneficiaries of the enclosure. Nylon, PC, and fiber-filled blends require closer attention to drying, adhesion, nozzle abrasion, ventilation, and the manufacturer's material data. Do not copy a maximum-temperature table directly into a production profile.

A sensible qualification sequence is: inspect motion and wiring cold; update only through exact-model instructions; verify the bed mesh and Z offset; run a full-area first layer; establish flow and temperature for one known filament; test chamber behavior; then scale part size gradually. Log slicer version, firmware version, nozzle, build plate, material lot, drying cycle, and acceptance criteria. That turns an inexpensive used printer into a measurable process rather than a hopeful purchase.

Best alternatives in 2026

  • QIDI Max4: the most direct newer QIDI comparison for buyers who want a large enclosed platform and a current-generation workflow.
  • QIDI Plus4: a better fit when the X-Plus 3's full build volume is unnecessary and a smaller current platform is easier to place.
  • Creality K1 Max: a widely distributed enclosed CoreXY alternative with a smaller 300 mm cube and a different support/ecosystem tradeoff.
  • Original Prusa XL: a very different open-frame toolchanger option for buyers who value multiple independent tools and low-purge multi-material work over active chamber heat.

Compare the part envelope first, then chamber needs, material handling, service access, downtime cost, and support. Paying less for unused build volume is not a bargain, while splitting every recurring part because the alternative is too small is also costly.

Used X-Plus 3 inspection checklist

  • Confirm the exact model, hardware revision, serial number, purchase date, and warranty status.
  • Ask for the current firmware version and use only exact-model update instructions.
  • Heat the bed and chamber from cold; verify sensors and observe whether temperatures stabilize without errors.
  • Inspect the build plate, bed flatness, belts, linear guides, door, top cover, fans, wiring, PTFE path, and rear spool box.
  • Test both supplied hotend/nozzle configurations if both are part of the sale.
  • Run a full-area first layer, a tall motion test, and a long print in the material class you actually intend to use.
  • Verify Wi-Fi/USB transfer, slicer compatibility, filament runout behavior, camera if fitted, and any claimed recovery feature.
  • Price missing accessories, freight, replacement wear parts, and the possibility that the machine needs immediate maintenance.

Final verdict

The QIDI Tech X-Plus 3 still has a defensible niche: it combines a genuinely roomy build volume with active chamber heat and high-temperature material hardware. That niche is narrower in 2026. The official listing was unavailable at verification, newer QIDI options exist, and independent reviews document workflow and refinement issues that matter more on long, material-heavy prints.

Buy it only when the large heated envelope solves a recurring problem, the individual machine passes a thorough acceptance test, and its total installed cost beats a newer alternative by enough to justify lifecycle risk. If the goal is parts rather than printer ownership, send JCPRINTFARM the project details or review our production 3D-printing service. For more model research, visit the 3D-printer review hub.
