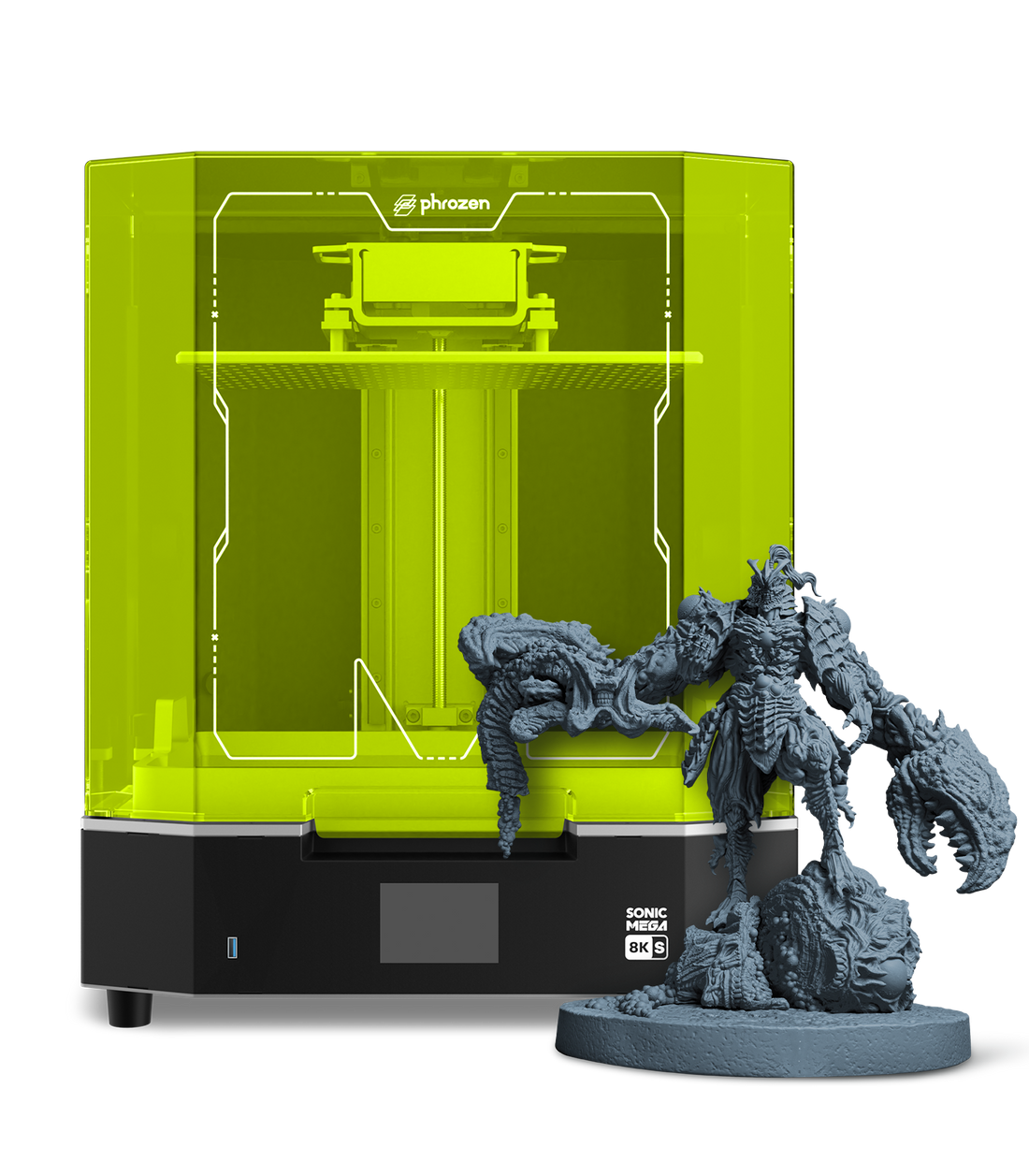

Phrozen Sonic Mega 8K S large-format resin 3D printer in official product media

Phrozen Sonic Mega 8K S Review (2026): Big Batch Value?

Verdict: The Phrozen Sonic Mega 8K S is a compelling production-sized resin printer when a 330 × 185 mm plate will genuinely stay busy. Its 43-micron pixels, 300 mm height, lift-up lid, and optional resin feeder suit large models and dense batches. Small-volume users should skip it: every failed full plate concentrates substantial resin, cleanup, labor, and replacement-film risk.

Research disclosure: JCPRINTFARM has not hands-on tested this exact printer. This review is based on Phrozen’s current product listing and documentation, current US product data checked October 20, 2026, Tom’s Hardware’s hands-on review, FauxHammer’s independent video review, and current technical listings. Performance claims below are attributed or framed as specifications, not our own measurements.

What the Sonic Mega 8K S is

The Sonic Mega 8K S is a large-format masked-SLA resin printer built around a 15-inch monochrome LCD. Its 330 × 185 × 300 mm build volume is unusual because the XY footprint approaches that of many filament printers while preserving resin’s ability to expose a whole layer at once. That makes the machine most interesting for two jobs: printing a large model without splitting it, or filling a plate with many miniatures and exposing each layer for the entire batch together.

The “S” matters. This is not the original Sonic Mega 8K, which offered 400 mm of Z height and a heavier, more expensive chassis. Nor is it the newer Sonic Mega 8K V2. The 8K S uses a 300 mm Z axis, a 3.5-inch interface, USB file transfer, Phrozen OS, a perforated build plate, a lift-up UV cover, and a built-in plate-drip position. Buyers comparing listings should verify the exact suffix before treating specifications, replacement screens, vats, films, or accessories as interchangeable.

Who should buy it—and who should skip it

Best fit: miniature businesses with repeatable supported files, prop and collectible makers who need one-piece resin parts, service bureaus with controlled resin workflows, and studios that can keep a large plate productive. The value proposition improves when one validated setup can be repeated across a full plate.

Skip it if: most jobs fit a mid-size printer, ventilation and contaminated-waste handling are not already solved, you cannot lift and clean a large resin-loaded plate safely, or a single failed plate would be operationally painful. Beginners often learn faster and waste less resin on a smaller machine. A print farm may also prefer several mid-size printers because they isolate failures and let operators run different resins or exposure settings simultaneously.

Verified key specifications

Specification What it means in practice
330 × 185 × 300 mm build volume A genuinely large XY batch area and useful one-piece height, but also a large vat, plate, wash load, and failure domain.
15-inch 8K monochrome LCD; 43 µm XY resolution Good nominal detail across a much larger screen. “8K” alone does not determine surface quality; resin, exposure, supports, orientation, film condition, and calibration still matter.
405 nm ParaLED Matrix 3.0 Designed for mainstream 405 nm photopolymer resins. Exact exposure settings must still be qualified for the resin and environment.
0.01–0.30 mm listed layer height A broad software range, not a promise that every resin or model benefits from either extreme.
Phrozen OS; 3.5-inch touchscreen; USB A straightforward local workflow. The listed interface is USB, so buyers expecting network fleet control should verify their required workflow before purchase.
26 kg machine weight It needs a rigid, level station with clearance for the lift-up cover and room to handle a wet build plate.
AC 100–240 V, 50–60 Hz Broad input compatibility; confirm the regional plug, circuit, and total room load for printers, wash equipment, curing, ventilation, and heaters.

Specifications were cross-checked against Phrozen’s exact-model page and 3DJake’s exact-model technical listing on October 20, 2026.

Strengths that matter

Large batches without longer per-layer exposure

MSLA exposes an entire layer image at once. In principle, adding more parts across the same Z height does not multiply exposure time the way printing them sequentially would. Tom’s Hardware demonstrated the machine with substantial models and batches and treated the wide plate as its defining advantage. That does not make a full plate free: more parts increase slicing load, support work, resin use, peel forces, wash capacity, inspection time, and the cost of a bad setup.

Useful resolution for the format

The 43-micron pixel size is more informative than the “8K” label. It gives the Mega 8K S a credible balance between area and detail rather than stretching a low-resolution screen across a huge plate. Independent coverage found detailed output suitable for miniatures and display pieces. Still, the visible result depends heavily on antialiasing, orientation, support contact, exposure, layer height, resin, and post-cure. A smaller printer with finer pixels may resolve tiny features better, while the Mega wins on capacity.

A more workable physical design

The lift-up lid avoids finding a safe place for a huge removable cover. The perforated plate is intended to improve adhesion, and the drip hanger gives excess resin a path back toward the vat after a job. Those details matter on a machine where a wet plate is large and heavy. They reduce awkwardness; they do not remove the need for chemical-resistant gloves, eye protection, protected work surfaces, spill planning, ventilation, and careful lifting.

Optional resin handling

Phrozen offers its Pump & Fill automatic resin feeder separately. It can reduce manual topping-up and help return resin after printing. Treat it as another system to clean and inspect, not as a hands-off production guarantee. Tubing, fittings, resin compatibility, level sensing, and contamination control become part of the maintenance plan.

Limitations and hidden workflow costs

Large failures are expensive

The same area that produces a productive batch can turn one support, exposure, film, or adhesion mistake into a plate-wide loss. A release problem may damage the ACF film or leave cured debris that threatens the next exposure. Production users should validate a new model on a smaller plate or a partial layout before committing an entire bed, then inspect the vat after every abnormal print.

Post-processing must match the printer

A 330 mm plate can create parts and batches that do not fit ordinary wash baskets or curing stations. Budget for containers, solvent volume, staged rinses, drying racks, curing capacity, resin-safe tools, filters, waste storage, and operator time. Phrozen sells Wash Mega S and Cure Mega S equipment, but their cost and footprint should be treated as part of the system—not optional footnotes to the printer price.

Resin safety scales with volume

Uncured resin and contaminated solvent require controlled handling. The tinted cover is not a ventilation system, and odor is not a reliable exposure indicator. Follow the resin manufacturer’s safety data sheet, use appropriate PPE, prevent skin and eye contact, ventilate the work area, and cure or dispose of contaminated material according to local rules. Never pour resin or dirty solvent down a drain.

Speed figures need context

Phrozen and retail listings advertise high layer-per-hour figures when the machine is paired with ACF release film and suitable settings. A layer-rate headline is not total job time. Lift distance, rest time, exposure, model height, support strategy, resin viscosity, room temperature, and conservative settings all influence a sliced job. Faster settings can also increase release forces. Use the slicer estimate and a validated resin profile, then measure your own repeatable cycle.

USB-only workflow is basic for a farm

USB transfer can be dependable and keeps the machine independent of cloud availability, but it adds human file-handling steps. Farms need revision control, clear naming, signed-off slice files, and a way to prevent the wrong resin profile or obsolete file from reaching the printer. If network job management is mandatory, confirm an approved solution rather than assuming it is built in.

Current price and lifecycle

At research time on October 20, 2026, Phrozen’s US product feed listed the Sonic Mega 8K S at $1,170 and marked the default variant available. The global exact-model page and support presence were also live. Price, freight, tax, regional inventory, and bundle contents can change, so treat that as a timestamped observation—not a permanent street price.

The newer Sonic Mega 8K V2 sits above it in Phrozen’s large-format line. That does not make the 8K S unusable, but it makes support economics important. Before buying, confirm current replacement LCD, vat, ACF film, build plate, firmware, feeder compatibility, and local warranty terms. A discount is only valuable if the consumables and high-cost service parts remain obtainable for the expected ownership period.

Realistic alternatives

  • Anycubic Photon Mono M7 Max: another large-format resin option with heating and resin-management features, but a different pixel density, ecosystem, and workflow.
  • Elegoo Jupiter SE: a large resin platform worth comparing on purchase price, consumables, handling, and regional parts availability.
  • Elegoo Saturn 4 Ultra: smaller capacity, easier risk isolation, and often a more practical first step when jobs do not require a 15-inch plate.
  • Phrozen Sonic Mighty Revo: a smaller Phrozen workflow for users prioritizing manageable batches over maximum XY area.

For irregular demand, outsourcing can be cheaper than maintaining a resin room, spare screens, wash solvent, and trained handling. JCPRINTFARM’s project intake can help evaluate production options, while the 3D printer review hub collects more machine research.

Buying checklist

  • Verify the listing says Sonic Mega 8K S, not Mega 8K or Mega 8K V2.
  • Price a spare LCD, vat, ACF film, resin, wash solvent, PPE, and correctly sized wash/cure equipment.
  • Confirm the installed firmware and supported slicer version.
  • Measure the bench, lid clearance, wet-plate handling path, and ventilation setup.
  • Ask the seller for regional warranty and freight-damage procedures.
  • For used units, inspect the LCD, vat frame, film, plate flatness, Z motion, UV cover, seals, and a fresh validation print.

Final verdict

The Sonic Mega 8K S makes sense when its plate area is a production tool rather than an occasional luxury. Its 330 × 185 × 300 mm volume and 43-micron pixels can consolidate large models or repeated batches, while the lift-up lid and drip position address real handling problems. The tradeoff is concentrated risk: more resin, larger cleanup equipment, bigger failed plates, and more demanding process control. Buy it for proven workload and a complete resin workflow—not because “8K” and “mega” sound future-proof.

Research sources

Research checked October 20, 2026. Availability and pricing may change.
