Machine Vision Background Holders: 3D Printing Supplier Guide

Updated October 19, 2026

Choose a 3D printing supplier for machine vision background holders by evaluating the released panel, controlled position, mounting and locking interfaces, field-of-view clearance, changeover method, environment, first-article evidence, and revision control. A quote-ready package identifies the approved panel construction and thickness range, holder geometry, station interface, adjustment limits, hardware, acceptance checks, quantity, destinations, and required date.

Separate the mechanical holder from the vision specification

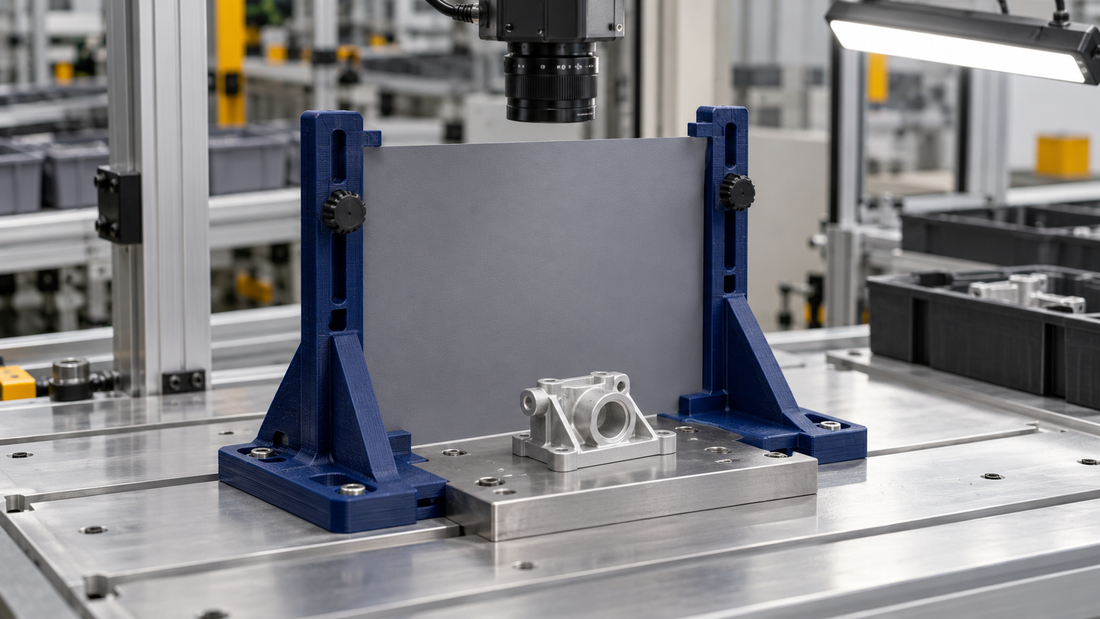

A background holder can locate and retain a panel, provide adjustment, protect edges, and make changeover repeatable. It does not by itself define whether a color, reflectance, texture, or optical geometry is suitable for a camera, lens, light, algorithm, or inspection task. Keep those decisions in the buyer's released machine-vision specification and give the supplier a controlled panel requirement to manufacture around.

Identify the exact approved panel or define its controlled construction, thickness range, width, height, edge condition, orientation, and allowable bow. State whether the panel is permanent, replaceable, reversible, or part-specific. If more than one panel is allowed, list each approved identity and the effectivity rule rather than calling the holder universal.

Translate the station into controlled requirements

Requirement	Buyer decision	Supplier evidence
Panel interface	Approved panel identity, size, thickness range, edge treatment, insertion direction, and retention.	Interface dimensions and retention check using the defined panel condition.
Position	Nominal location, angle, adjustment range, stops, datums, and locked state.	Controlled features and first-article position checks.
Field clearance	Required visible envelope plus camera, light, part, robot, and operator keep-outs.	Installed clearance review against buyer-provided envelopes.
Mounting	Hole pattern, rail, extrusion, frame, fasteners, anti-rotation, and tool access.	Interface inspection, hardware identity, and installation check.
Environment	Temperature, UV, oil, dust, cleaners, impact, vibration, and prohibited materials.	Project-specific material proposal for buyer approval.
Program control	Station, part family, panel, color coding, label, revision, spares, packaging, and release.	Part record, label check, pack list, and replacement trace.

Panel retention should be positive and serviceable

Define which movement is acceptable after installation and which is not. The holder may use slots, clamps, fasteners, stops, captured edges, or a replaceable frame, but the retention method should not rely on an unspecified friction fit. State the installation and removal direction, tool requirement, permitted contact zones, edge protection, and whether a loose fastener can enter the inspection area.

For replaceable panels, test changeover at the intended access angle. Confirm that operators can remove and reinstall the panel without moving the camera, light, part nest, guarding, or other controlled equipment. If the panel must return to a repeatable stop, define that stop and the locked condition explicitly.

Position, adjustment, and lock state need separate controls

Adjustment can help during setup, but an open-ended slot without a defined nominal position, range, and lock method can turn every changeover into a new setup. Specify axes of adjustment, travel limits, angle limits, nominal marks or hard stops, fastener torque inputs when applicable, and who is authorized to change the position.

Distinguish setup position from released production position. If the vision integrator approves one installed state, record the holder revision, station, panel, nominal location, lock hardware, and approval result. A witness mark or position label may support control, but it does not replace the released dimensions and system validation.

Design and process implications that affect supplier choice

FDM build orientation can change the behavior of thin clamp arms, snap features, bosses, slots, and mounting feet. Identify repeated-flex, clamping, and load-bearing areas, then review the proposed build orientation against the acceptance method. Avoid asking the supplier to infer required stiffness or adjustment force from appearance alone.

Share actual temperature, light exposure, oils, dust, cleaners, vibration, impact, and maintenance conditions. JC Print Farm must confirm project-specific material and process support before award; this guide does not promise optical properties, chemical compatibility, ESD behavior, flame performance, cleanroom suitability, calibration, or metrology performance.

Dark, light, or colored holder surfaces can appear within the camera field if the design lacks sufficient margin. The buyer or integrator should define keep-out geometry and approve the installed image. Mechanical inspection of the holder cannot prove that the overall vision system will detect, classify, or measure parts correctly.

Use a controlled first article before rollout

1. Verify the holder revision, panel identity, hardware, and mounting interface.
2. Inspect released holder dimensions, stops, slots, clamp features, and workmanship.
3. Install the holder on the intended station without changing unrelated controlled equipment.
4. Insert the approved panel at its defined minimum and maximum thickness conditions when a range is allowed.
5. Confirm retention, edge protection, adjustment travel, lock state, changeover access, and physical clearances.
6. Have the buyer or integrator validate field coverage and machine-vision performance using the approved station procedure.
7. Record the approved holder, panel, station, part family, position, approver, date, and reapproval triggers.

Approval for one panel, station, camera arrangement, part family, or cleaner does not automatically approve another. Define reapproval triggers for panel substitutions, changed thickness, revised mount geometry, different position, holder material or orientation changes, new cleaning exposure, or a modified vision recipe or station layout.

Fit and non-fit cases

Good fit for supplier evaluation

• The buyer or integrator has approved the background-panel requirement.
• The holder's panel, position, mounting, adjustment, locking, and clearance interfaces can be controlled.
• An installed first article can be reviewed before rollout.
• Station, part-family, panel, revision, spare, and replacement identities can remain traceable.
• The environment is described well enough for a project-specific material review.

Pause before production

• The supplier is being asked to choose optical background properties without a machine-vision specification.
• The holder enters guarding, robot, conveyor, electrical, egress, or other hazard zones without an approved integration review.
• The request depends on unverified ESD, flame, washdown, chemical, heat, cleanroom, or regulated performance.
• Panel retention, field clearance, changeover access, locked position, or approval authority is unresolved.
• The holder is being treated as proof of camera calibration, detection capability, measurement accuracy, or inspection-system validation.

Production risks to control

• Panel mismatch: an unapproved thickness, finish, or construction changes fit or the visible field.
• Position drift: adjustment moves after setup because the lock state is undefined.
• Field intrusion: holder edges or hardware enter the inspection image.
• Glare or contamination: cleaning residue, fingerprints, dust, or surface damage changes the approved background condition.
• Changeover collision: panel service requires moving controlled camera, light, nest, robot, or guarding components.
• Mount looseness: vibration, repeated service, or incorrect hardware changes the holder position.
• Revision mixing: visually similar holders lose station, panel, or part-family identity.
• False acceptance: mechanical dimensions pass while installed vision performance remains unverified.

Quote-readiness checklist

• Released holder CAD and drawing, or controlled interface dimensions and design responsibility
• Approved panel identity, construction, color specification, finish, width, height, thickness range, edge condition, and allowed variants
• Nominal panel position, angle, datum scheme, stops, adjustment axes and limits, locking method, and authorized setup state
• Camera, light, lens, part, nest, robot, guarding, operator, cable, and maintenance keep-out envelopes
• Station interface, hole pattern or rail, hardware, anti-rotation, installation direction, tool access, and loose-part restrictions
• Temperature, UV, oil, dust, cleaners, vibration, impact, prohibited materials, and special compliance inputs to evaluate
• Critical dimensions, workmanship, panel-retention test, installed first-article method, vision-system approval owner, and nonconformance route
• Color and label rules, station and part-family identity, packaging, hardware kits, spares, replacement method, and reapproval triggers
• Release quantity, repeat pattern, destinations, required date, revision effectivity, and change authority

Use the production RFQ checklist to normalize responses and the production inspection guide to separate mechanical evidence from system-level approval. For related glare-control hardware, review the inspection camera light-shield supplier guide.

Choose the supplier path

A clean released holder file for one controlled panel and straightforward requirements may fit instant quote. Multi-station, multi-panel, recurring, inspection-sensitive, hardware-dependent, labeled, staged, packaged, or integrator-coordinated work usually benefits from managed intake. JC Print Farm / JCSFY is a US production 3D printing business based in Central Ohio; project-specific scope must still be confirmed. Review the broader production 3D printing service and use a controlled repeat production plan.

Frequently asked questions

What should an RFQ for a machine vision background holder include?

Provide the released holder file or controlled interface dimensions, exact background-panel construction and thickness range, field-of-view envelope, panel position, mounting interface, adjustment and locking method, surrounding keep-outs, environment, quantity, first-article checks, revision rules, packaging, and required date.

Does the holder supplier choose the background color or optical finish?

Not by default. The buyer or machine-vision integrator should specify the approved background panel, color, surface, and optical requirements. The holder supplier should control mechanical fit and position against that released specification.

How should a first article be approved?

Check the holder interfaces and panel retention first, then install it on the intended station with the approved panel and part presentation. The buyer or integrator should confirm clearance, field coverage, changeover, locking, and vision-system performance before release.

When is a 3D printed background holder a poor fit?

Pause when the holder enters a guarded hazard zone, affects safety functions, needs unverified chemical or heat performance, cannot retain the panel predictably, or is being treated as a substitute for optical design, calibration, or system validation.

Which quote path fits?

Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, labeled, hardware-dependent, or complex programs. Instant quote fits a clean released file and straightforward requirements.
