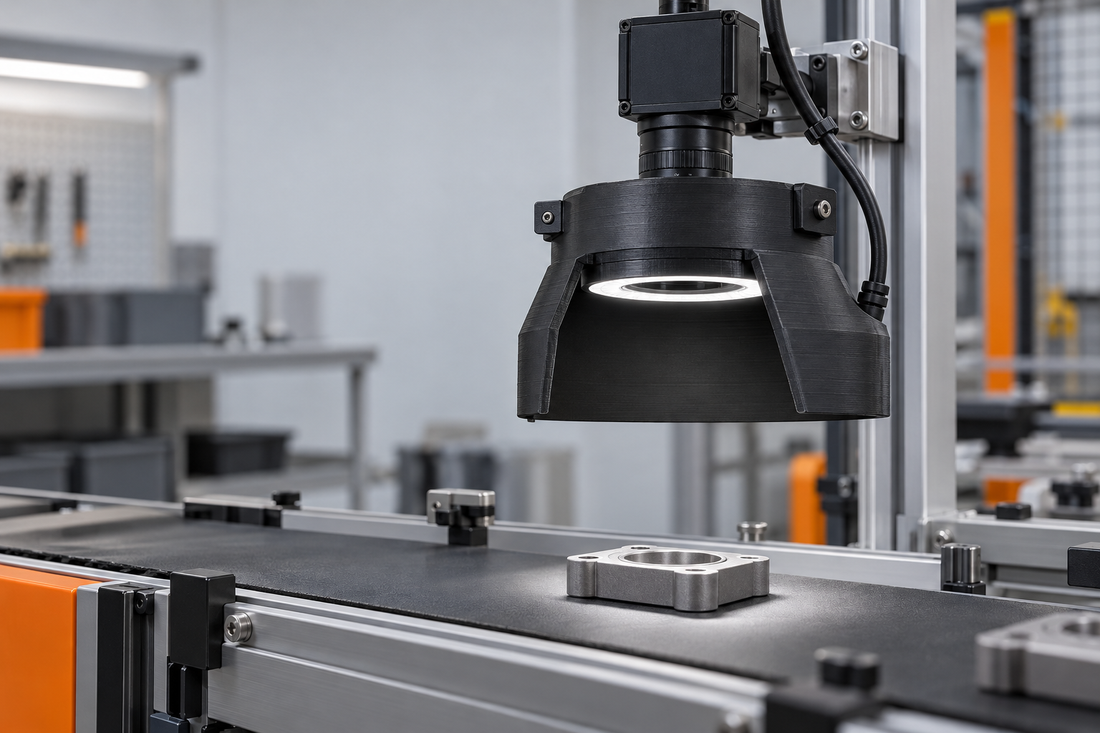

Production Inspection Camera Light Shields: Supplier Guide

Updated October 16, 2026

Choose a 3D printing supplier for inspection camera light shields by evaluating the complete optical stack, field-of-view clearance, stray-light paths, mounting datum, surface behavior, cleaning environment, first-article evidence, and revision control. A quote-ready package should identify the camera, lens, illuminator, working distance, target envelope, surrounding light sources, controlled geometry, quantities, acceptance method, packaging, and required date.

Define the full imaging stack

The camera housing is only one input. Record the camera, lens, focus setting or locked adjustment, ring or bar light, filters, spacers, protective windows, cable connectors, brackets, and working distance. A shield that fits the camera body can still vignette the image, collide with the target, trap heat, hide a focus control, or block service access.

Use a controlled assembly drawing, measured reference stack, or representative hardware. Identify the datum that locates the shield and the zones that must remain clear. If the supplier receives buyer-owned equipment, document ownership, condition, return instructions, and which assembly is the released reference.

Translate the inspection problem into controlled requirements

Requirement area	Buyer decision	Evidence to request
Optical path	Field of view, working distance, target envelope, expected camera motion, and acceptable intrusion.	Clearance review and installed first-article images using the buyer's acceptance method.
Stray light	Sources, directions, operating states, reflective surfaces, and when the unwanted condition occurs.	Before-and-after evidence under the released station setup; avoid universal glare claims.
Camera and lighting stack	Exact models, lens, light, filters, spacers, adjustment positions, cables, and revision.	Released stack identity and fit record.
Mounting	Datum, fasteners, inserts, adjustment, anti-rotation, access, and allowable movement.	Interface drawing, hardware list, and installation check.
Surface behavior	Interior color, texture, seams, openings, and permitted surface variation.	Approved first-article appearance and inspection criteria tied to optical need.
Environment	Temperature, oils, cleaners, dust, splash, UV, vibration, and service frequency to evaluate.	Supplier confirmation of project-specific material and process scope.
Program control	Station IDs, revisions, quantities, spares, labels, packaging, and reorder trigger.	Released BOM, acceptance record, pack list, and reorder identity.

Control field-of-view and motion clearances

Do not approve the shield from a static CAD screenshot alone. Check the released field of view at the intended focus and working distance, including the largest permitted target, fixture variation, conveyor travel, robot or actuator motion, and service movement. Define whether the shield moves with the camera or remains fixed to the station.

Vignetting can be obvious at one setup and subtle at another. The buyer should define the accepted image boundary and test method. A supplier can manufacture and record evidence against that method, but should not be treated as validating an inspection algorithm or optical performance unless that responsibility is explicitly agreed and supported.

Specify stray-light conditions, not a vague goal

State where the unwanted light comes from: overhead fixtures, windows, indicator lamps, adjacent stations, reflective targets, or the inspection illuminator itself. Record which sources are on, their position, and the operating states that trigger the issue. A shield geometry should address the known path while preserving the intended illumination and ventilation.

Interior surface color and texture can influence reflections, yet a generic “matte black” note is not a complete acceptance criterion. Define the surface zones that matter, visible defects that are unacceptable, and the buyer's installed test. Printed layer lines, seams, fasteners, and cleaning wear may change surface behavior; include them in first-article and maintenance review.

Design mounting and service together

Choose a stable datum on the released camera bracket or station structure. Specify the hole pattern, fasteners, threaded inserts, clamp features, anti-rotation needs, access tools, and permitted adjustment. Distinguish printed items from purchased hardware and identify who supplies each component. Do not allow silent hardware substitutions on an inspection-sensitive station.

Plan how operators or maintenance staff reach focus rings, light controls, connectors, filters, protective windows, and fasteners. Define whether the shield must be removed for cleaning or calibration and how it returns to the same position. A keyed or captured interface may help repeatability, but the actual interchangeability requirement must be measured and approved.

Review material and environment without assumptions

Give the supplier the temperature range, nearby heat sources, UV, oils, cleaners, wipe frequency, dust, splash, vibration, impact, and surface requirements that matter. Ask for confirmation of the exact material and process proposed. Do not infer chemical compatibility, flame performance, ESD behavior, cleanroom suitability, optical certification, or another regulated property from a filament family name.

Use a first article and a controlled acceptance record

Install the first article on the released camera and lighting stack at the intended station. Confirm mounting, fastener access, cable clearance, field-of-view clearance, working distance, target and motion envelopes, service removal, and the buyer-defined glare or image acceptance method. Record the station state, hardware revision, files, and approver.

Separate dimensional checks from functional evidence. Critical interface dimensions and hardware presence can be inspected independently, while optical acceptance belongs to the installed system. The production inspection guide helps distinguish critical features from general workmanship.

Fit and non-fit cases

Good fit for supplier evaluation

• The released camera, lens, illuminator, working distance, field of view, mounting datum, and station envelope are known.
• The stray-light condition and buyer acceptance method are documented.
• A first article can be installed and approved before repeat release.
• Material, surface, hardware, cleaning, labeling, packaging, and revision requirements can be confirmed.
• Replacement shields need controlled identity or interchangeability across named stations.

Pause before requesting production

• The camera or lighting stack is still changing without effectivity control.
• The buyer cannot define the field of view, target envelope, or source of unwanted light.
• The shield may obstruct ventilation, motion, controls, cables, calibration, or service.
• The environment, cleaner, or required regulated property is unknown.
• The part is expected to act as a guard, interlock, structural restraint, or certified optical component.

Production risks to control

• Optical-stack drift: a lens, spacer, filter, or light changes while the shield filename remains unchanged.
• Vignetting: the shield intrudes into the released field of view or blocks illumination.
• False improvement: an uncontrolled before-and-after image makes the shield appear effective.
• Reflection source: interior surfaces, seams, fasteners, or wear add unwanted highlights.
• Mount shift: adjustment or vibration moves the shield relative to the camera.
• Service interference: controls, cables, filters, or calibration access are blocked.
• Environment mismatch: heat or cleaning exposure was not included in material selection.
• Replacement mismatch: a spare cannot be matched to the correct station and hardware revision.

Quote-readiness checklist

• Camera, lens, illuminator, filter, spacer, cable, bracket, and revision identity
• Controlled CAD, drawings, reference assembly, manufacturing rights, and datum definition
• Working distance, field of view, target envelope, motion envelope, focus or adjustment state, and exclusion zones
• Stray-light sources, operating states, reflective surfaces, and buyer-defined acceptance method
• Mounting interface, fasteners, inserts, anti-rotation, installation tools, ventilation, and service access
• Interior surface and color requirements plus approved cosmetic or optical zones
• Temperature, UV, cleaners, oils, dust, splash, vibration, impact, and maintenance inputs to evaluate
• Critical dimensions, first-article evidence, labels, station IDs, and approval authority
• Release quantity, repeat pattern, spare strategy, packaging, destinations, and required date
• Revision effectivity, substitution limits, nonconformance route, and reorder identity

Use the production RFQ checklist to organize these inputs before comparing suppliers.

Choose the supplier path

A straightforward shield with clean files, one known imaging stack, and simple requirements may fit an instant quote. A recurring rollout across stations usually benefits from managed intake when first-article evidence, inspection, hardware, labels, kits, staging, spares, or revision effectivity must remain controlled. JC Print Farm / JCSFY is a US production 3D printing business based in Central Ohio; project-specific material, process, inspection, packaging, and schedule requirements still need confirmation before award. Review the broader production 3D printing service and use a controlled repeat production plan when releases recur.

Frequently asked questions

What belongs in an RFQ for an inspection camera light shield?

Include the exact camera, lens, illuminator, working distance, field of view, target envelope, shield mounting datum, exclusion zones, surrounding light sources, surface and color requirements, cleaning environment, quantity, first-article plan, acceptance evidence, packaging, and required date.

Can a supplier design the shield from a camera model number alone?

Usually not for a production release. A model number does not define the lens, light, spacers, cable exits, working distance, field of view, nearby equipment, reflections, or mounting stack. Supply controlled geometry or a representative assembly and name the interfaces that control acceptance.

How should a first article be approved?

Install it on the released camera and lighting stack at the intended station. Confirm field-of-view clearance, working-distance clearance, target and motion-envelope clearance, mounting security, cable access, service removal, surface condition, and the buyer-defined image or glare acceptance method.

When is a 3D printed light shield a poor fit?

Pause when the shield would become a machine guard, safety interlock, structural restraint, certified optical component, or part of an undefined chemical, thermal, ESD, cleanroom, or regulatory requirement. Resolve unsupported material, process, test, or certification needs before award.

When should buyers use managed farm intake?

Use managed intake for recurring, multi-station, inspection-sensitive, revision-sensitive, staged, labeled, packaged, kitted, or hardware-dependent programs. Instant quote fits clean files and straightforward requirements for one clearly defined job.
