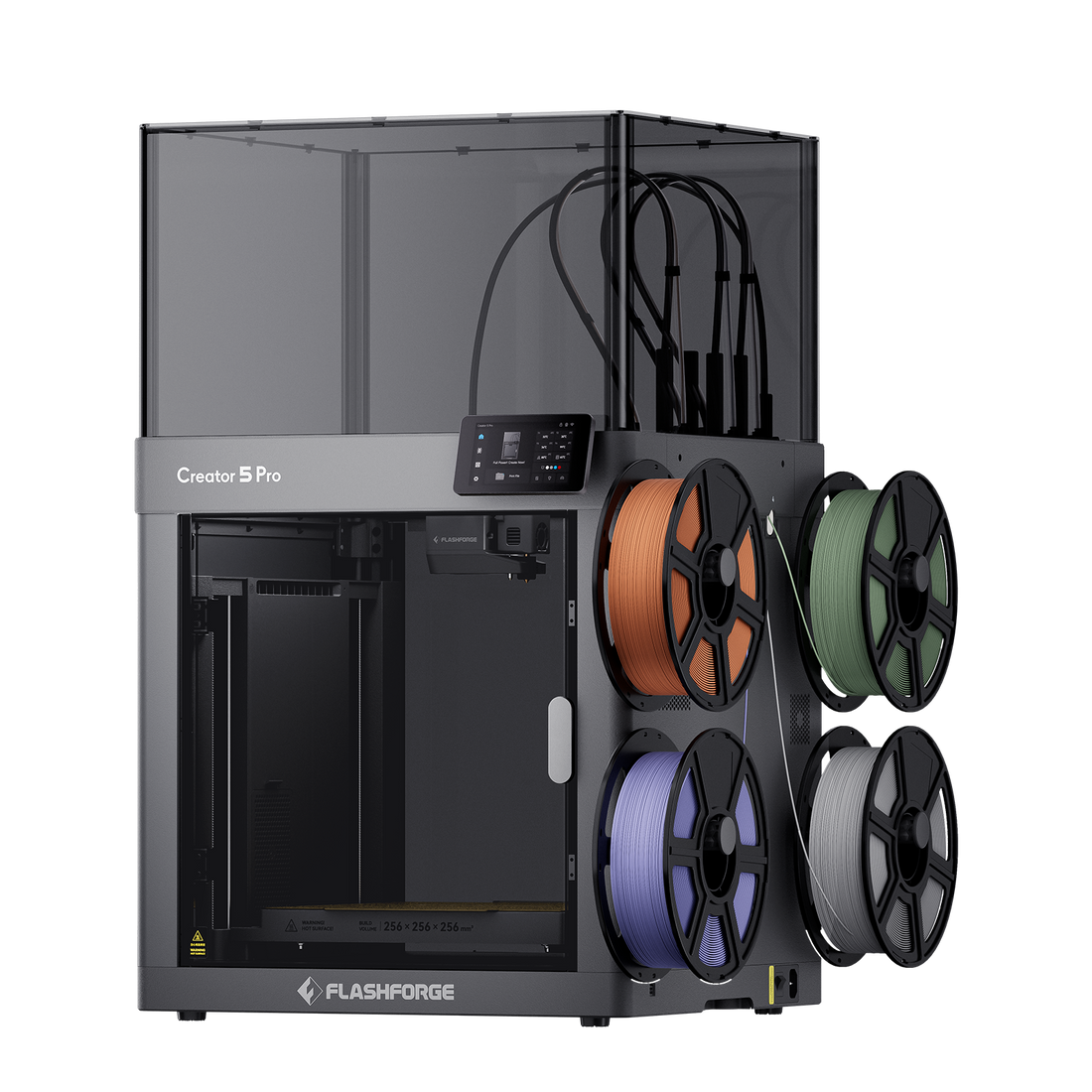

Flashforge Creator 5 Pro enclosed four-toolhead 3D printer in official product media

Flashforge Creator 5 Pro Review: Four Tools, Heated

Verdict: The Flashforge Creator 5 Pro is a capable four-toolhead specialist for multicolor, support-material, and engineering-filament work. Its heated enclosure and full-bed tool access are meaningful upgrades over the standard Creator 5, but manual loading, heavy startup priming, a large footprint, and immature workflow details keep it from being the easiest general-purpose choice. Buy it when separate hotends solve a recurring job.

Research disclosure: JCPRINTFARM has not performed a hands-on test of this exact printer. This review is based on Flashforge's current product page, support and wiki documentation, and official model comparison, plus independent hands-on testing from FauxHammer, How-To Geek, and Notebookcheck. Specifications and US availability were rechecked on September 20, 2026.

What the Flashforge Creator 5 Pro is

The Creator 5 Pro is an enclosed CoreXY printer built around four modular hotends that one motion carriage can park and collect. Each hotend keeps its own filament loaded, and every tool can reach the full 256 x 256 x 256 mm build volume. The design targets jobs that repeatedly switch colors, pair model material with soluble or breakaway support, or assign different nozzle roles without routing every filament through one shared melt zone.

The Pro is not merely the standard Creator 5 with cosmetic panels. It adds a door and lid, active chamber heating, recirculation and exhaust modes, and HEPA 13 plus activated-carbon filtration. Flashforge lists the chamber at up to 65 degrees C, although one independent test measured a 60 degree C control ceiling in its firmware. That thermal control is the main reason to consider the Pro for ABS, ASA, nylon, and filled engineering materials.

Who should buy it - and who should skip it

Best fit: prototyping teams, prop makers, labs, and small production shops that frequently use two to four materials or colors and can benefit from keeping each filament in its own hotend. It is also useful when a dedicated support nozzle, a wear-resistant nozzle, or multiple nozzle diameters remove manual changeovers from a repeat workflow.

Skip it if: most work is single-color PLA or PETG, you need more than four automatically available filaments, you want sealed automatic spool handling, or you lack the space for four side-mounted spools and tall PTFE loops. A simpler enclosed CoreXY is easier to own for ordinary one-material parts. If the requirement is finished production rather than another machine, JCPRINTFARM's production 3D printing service avoids equipment qualification, material storage, and maintenance.

Key specifications in context

Specification Verified value Why it matters
Architecture Enclosed CoreXY toolchanger with four modular hotends Separate melt zones reduce repeated color-change flushing, but four tools add calibration, priming, and service points.
Build volume 256 x 256 x 256 mm All four hotends reach the full bed; enabling more tools does not shrink the usable area.
Advertised motion Up to 300 mm/s printing, 600 mm/s travel, and 30,000 mm/s2 acceleration The promoted 600 mm/s figure is travel speed. Actual job time depends on geometry, flow, cooling, tool changes, and startup routines.
Hotend and bed 320 degrees C maximum hotend; 120 degrees C maximum bed The temperature range supports more than basic PLA, subject to the correct nozzle, profile, drying, and safety controls.
Chamber Actively heated; Flashforge specifies up to 65 degrees C Controlled chamber heat improves the case for ABS, ASA, nylon, and large warp-prone parts versus the open Creator 5.
Flow rate Up to 32 mm3/s Volumetric flow, rather than headline motion alone, limits sustained extrusion speed.
Nozzles 0.4 mm standard; 0.25, 0.6, and 0.8 mm options listed Different heads can be assigned to detail, throughput, support, color, or abrasive material roles.
Calibration Automatic leveling, tool-offset, vibration, and flow routines Automation reduces setup work, but demanding multi-tool jobs still need offset and prime verification.
Build surface Textured PEI flexible steel plate Convenient part removal, with normal cleaning and first-layer checks still required.
Air handling Recirculation, exhaust, HEPA 13, and activated-carbon filtration Useful exposure reduction features, but not a substitute for material-specific ventilation or risk assessment.
Monitoring 1280 x 720 camera at up to 30 fps Useful for remote checks and time lapse; a camera is not an automatic safety system.
Connectivity 2.4/5 GHz Wi-Fi and USB Network transfer is available, while production users should validate remote behavior and access controls on their deployed firmware.

How four separate hotends change the workflow

A feeder-based multicolor system pulls one filament out of a shared nozzle, advances another, then flushes the melt zone until the old color or material is gone. The Creator 5 Pro instead docks the current hotend and picks up a different one whose filament is already loaded. This can sharply reduce changeover time and waste on models with many tool swaps.

That does not make the complete process literally waste-free. All three independent reviews documented priming material, and both FauxHammer and Notebookcheck criticized the default amount used during startup. The printer also uses a prime structure to keep tools ready. The real advantage is avoiding a full shared-nozzle flush at every change, not eliminating loading purge, priming, failed starts, supports, or calibration waste.

The architecture is useful beyond color. A model can pair a rigid material with a soluble or breakaway interface, dedicate one wear-resistant nozzle to filled filament, or run different nozzle diameters for model and support regions. Those combinations still require compatible temperatures, shrinkage, adhesion, and slicer sequencing. A toolchanger expands the process window; it does not make incompatible polymers bond.

Setup, loading, and daily operation

Independent testers found the core machine straightforward to assemble and calibrate for a four-tool system. The hotend cassette, screen, spool holders, and multi-piece top cover still require installation. FauxHammer found the lid fit tight enough to make assembly more awkward than expected, while Notebookcheck described the overall setup as straightforward.

Daily filament handling is the more important tradeoff. Each of the four paths is loaded manually, and users must operate a lever at the selected hotend rather than relying on a sealed automatic material station. How-To Geek called filament swaps its least favorite part of ownership. Flexible material can need extra care at the tube and extruder entrance, and four exposed spools need a separate drying and storage plan.

The workflow also has software rough edges. Reviewers reported that the screen and Flash Studio were functional but less polished than mature consumer ecosystems. How-To Geek found that an undismissed completion prompt could block a later remote start. FauxHammer raised concerns about manual material assignment and limited ecosystem expansion. Firmware can change these details, so evaluate the exact release you will deploy rather than assuming launch behavior is permanent.

Print quality and speed evidence

The independent evidence is encouraging. FauxHammer reported strong hardware, full-bed access from every tool, and good multicolor and engineering-material capability. How-To Geek praised its print quality and measured dramatically lower waste than a conventional single-nozzle multicolor comparison on a complex four-color model. Notebookcheck found precise detail, consistent multi-tool output, and practical advantages for flexible and mixed-material jobs.

Those results do not make Flashforge's "up to 500% faster" claim universal. Its percentage depends on a selected comparison and tool-change-heavy geometry. On a one-color bracket, four parked hotends add little. On a segmented four-color model with hundreds of changes, avoided unload-and-flush cycles can dominate total time. Prime settings, layer height, object layout, material flow, and the competing printer's purge strategy can all move the result substantially.

For a production decision, slice the same representative part on both platforms and compare complete cycle time, model mass, prime mass, operator loading time, warm-up time, intervention rate, and successful yield. Notebookcheck specifically noted a long preparation routine, and both Notebookcheck and FauxHammer found default priming excessive. A useful capacity model includes those minutes and grams instead of quoting only carriage speed.

Chamber, materials, and air handling

The actively heated enclosure is the Pro model's defining advantage. Flashforge lists PLA, PETG, several TPU grades, soluble supports, ABS, ASA, nylon, PC, and multiple carbon- or glass-filled materials across its compatibility guidance. The 320 degree C hotend and 120 degree C bed support that range on paper, while chamber heat can reduce gradients that cause large parts to curl or split.

Compatibility still depends on hardware and process detail. Abrasive filled filament needs a wear-resistant nozzle. Nylon and soluble support often need active drying. Flexible filament benefits from the shortest reliable feed path. High-temperature materials demand conservative validation of bed adhesion, tool offsets, cooling, chamber temperature, and inter-material bonding before a valuable multi-day job.

The HEPA and activated-carbon stages are useful, but they should not be treated as proof that every material is safe in any room. Filters have finite capacity, carbon performance varies by compound, and some emissions require source capture or external ventilation. Follow the filament supplier's safety data, replace filters on an evidence-based schedule, and apply suitable ventilation, supervision, and fire precautions.

Space, priming, and maintenance costs

The nominal machine is already substantial, and the operating envelope is larger. Notebookcheck recommended roughly 600 x 700 x 800 mm of usable space once side spools, rear or side clearance, and overhead tubes are considered. Four exposed spool positions also make a dry-box arrangement less tidy than an integrated feeder. Plan the entire cell, not just the chassis footprint.

Four hotends mean four nozzles, heaters, sensors, filament paths, docking contacts, and offsets to inspect. That redundancy is the source of the printer's capability, but it multiplies spares and diagnosis. A shop should stock the nozzle types it actually qualifies, keep a known-good offset test, record which tool produced each result, and recheck alignment after a hotend or nozzle change.

Purging into the build chamber is another ownership detail. Notebookcheck found that a firmware update improved where waste landed, but described the arrangement as inelegant and noted the lack of genuine automatic nozzle cleaning. Add routine chamber inspection and debris removal to the maintenance plan, particularly before high-temperature or unattended long jobs.

Strengths

  • Four full-bed tools: every hotend reaches the entire 256 mm cube without a reduced multi-tool area.
  • Lower repeated-change waste: separate melt zones avoid flushing every color through one nozzle.
  • Actively heated enclosure: materially broader process capability than the open standard Creator 5.
  • Flexible tool roles: colors, support materials, nozzle sizes, and wear-resistant hardware can be separated.
  • Automated calibration: bed, offset, vibration, and flow routines reduce the manual burden of a four-tool machine.
  • Independent evidence: multiple hands-on reviewers completed detailed multi-color, flexible, and engineering-material tests.
  • Current support: Flashforge maintains an exact-model guide, wiki material, firmware resources, and US store availability.

Limitations

  • Manual filament handling: four materials still have to be assigned, loaded, unloaded, and stored deliberately.
  • Startup waste remains: independent testers found default priming heavy despite much lower repeated tool-change flushing.
  • Large operating envelope: side spools and tall tubes need far more room than a compact enclosed CoreXY.
  • Long preparation: warm-up, calibration, and priming can erode headline speed on short jobs.
  • Developing software: screen, remote, and slicer workflows are less refined than the strongest consumer ecosystems.
  • More service points: four hotends and docking interfaces multiply spares, inspection, and troubleshooting.
  • Four-filament ceiling: the stock architecture cannot automatically select from a double-digit spool library.
  • Filtration has limits: onboard filters do not replace a material-specific ventilation assessment.

Creator 5 Pro alternatives

Flashforge Creator 5: the standard Creator 5 keeps the same four-tool concept at lower cost. Choose it for PLA, PETG, TPU, color, and support workflows that do not need active chamber heat. Choose the Pro when ABS, ASA, nylon, filled materials, containment, or thermal stability justify the enclosure.

Bambu Lab P1S with AMS: the P1S offers a more mature automatic filament ecosystem and a compact enclosed printer. Its shared nozzle needs purge cycles, while the Creator 5 Pro can be faster and less wasteful when a model changes tools frequently.

Creality K1C: the K1C is a simpler enclosed choice for mostly one-material work, including selected filled filaments. It cannot reproduce the Creator's four independent hotends, but it avoids paying for toolchanging that a routine part queue may never use.

Other toolchangers: alternatives such as the Snapmaker U1 use a related four-tool idea, but enclosure, chamber heating, build volume, software, price, and availability vary. Compare the complete cell and material workflow, not the number of heads alone.

Lifecycle and availability in 2026

As checked on September 20, 2026, Flashforge lists the Creator 5 Pro as available in its US store and maintains exact-model support, wiki, maintenance, and firmware resources. The observed promotional price was $849, but price, bundles, taxes, and regional inventory can change; this review does not treat that figure as permanent.

The source base is now strong enough for a research-based buying analysis: retail units have reached multiple independent reviewers, and exact-model support is live. The platform is still young, so long-term dock wear, high-hour fleet reliability, firmware support duration, and multi-year parts continuity remain less established than on mature single-head machines. A business buyer should confirm warranty terms, replacement hotend availability, and service response before standardizing a fleet.

Final verdict

The Creator 5 Pro makes sense when its four separate melt zones and heated chamber directly match the work: frequent color changes, soluble support, different nozzle roles, or engineering materials that benefit from thermal control. It is less convincing as a generic first printer because loading, priming, space, maintenance, and software all demand more attention than a conventional enclosed CoreXY. Buy the specialized workflow, not just the impressive tool count.
