Flashforge Creator 5 Review: Four Heads, Real Tradeoffs
Share
Verdict: The Flashforge Creator 5 makes four-toolhead printing unusually accessible, giving multicolor and multi-material jobs far less changeover waste than a single-nozzle feeder. Its open frame, four-spool footprint, large prime block, manual filament handling, and still-developing software make it a specialist rather than a universal desktop choice. Buy it for frequent tool changes; skip it for ordinary one-color work.
Research disclosure: JCPRINTFARM has not performed a hands-on test of this exact printer. This review is based on Flashforge's current product page, support documentation, and Creator 5 comparison guidance, plus independent hands-on testing from Tom's Hardware, FauxHammer, and 3DWithUs. Specifications and US availability were rechecked on September 20, 2026.

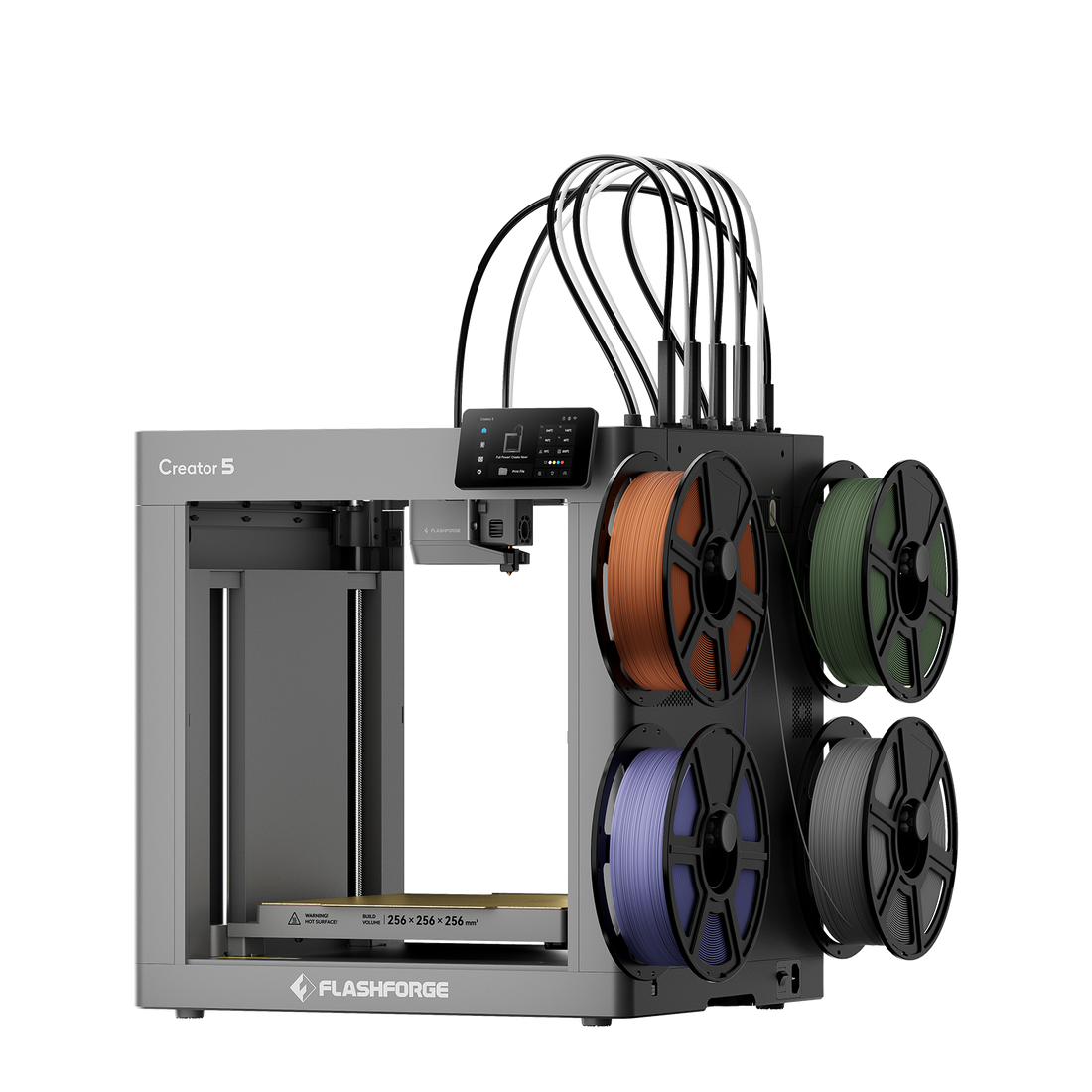

What the Flashforge Creator 5 is
The Creator 5 is an open-frame CoreXY printer with four independently parked toolheads. Each head can carry its own filament, and all four can reach the full 256 x 256 x 256 mm build area. Instead of repeatedly retracting and purging several colors through one nozzle, the machine docks one toolhead and picks up another. That architecture targets multicolor models, soluble support, and selected mixed-material parts while avoiding the long purge sequences associated with feeder-based systems.
This is the standard Creator 5, not the enclosed Creator 5 Pro. The distinction matters: the standard machine has the same four-head concept and full-bed access, but its open frame is best suited to PLA, PETG, and other materials that do not require tightly controlled chamber temperature. Flashforge lists additional engineering materials only when an enclosure is used. Buyers primarily interested in ABS, ASA, nylon, or other warp-prone materials should consider the Pro or another properly enclosed platform.
Who should buy it—and who should skip it
Best fit: designers, prop makers, education labs, and small production teams that run frequent two-to-four-color jobs or need separate support and model materials. It is especially interesting when color changes dominate cycle time or purge waste, and when four nozzles can be dedicated to different colors, support materials, or diameters.
Skip it if: most jobs are single-color, you need a compact shelf footprint, you want an enclosed chamber, or you prefer a mature and highly automated filament ecosystem. A conventional CoreXY will be simpler for routine one-material output. If the real requirement is finished parts rather than ownership of a toolchanger, JCPRINTFARM's production 3D printing service removes machine qualification, material storage, and maintenance from the project.
Key specifications in context
| Specification | Verified value | Why it matters |
|---|---|---|
| Architecture | Open-frame CoreXY with four independent toolheads | Four parked heads reduce tool-change purging, but create more calibration and maintenance points than a single-nozzle printer. |
| Build volume | 256 x 256 x 256 mm | Every toolhead can access the full bed; the usable area does not shrink when all four are active. |
| Advertised motion | Up to 300 mm/s printing, 600 mm/s travel, and 30,000 mm/s² acceleration | The often-promoted 600 mm/s figure is travel speed. Real job time depends on flow, geometry, cooling, tool changes, and prime structures. |
| Hotend and bed | 320°C maximum extruder temperature; 120°C maximum bed temperature | The temperature ceiling is broad, but the open frame still limits practical use of warp-prone engineering materials. |
| Flow rate | Up to 32 mm³/s | Volumetric flow, not motion alone, controls how quickly a selected filament and nozzle can be deposited. |
| Nozzles | 0.4 mm standard; removable 0.25, 0.6, and 0.8 mm options | Separate heads can be configured for detail, throughput, color, or support, subject to profile and material compatibility. |
| Calibration | Automatic bed leveling, multi-toolhead offset calibration, and dynamic flow calibration | Automation reduces setup work, but users still need to inspect tool offsets and prime behavior on demanding jobs. |
| Build surface | Textured PEI flexible steel plate | Convenient part removal, with routine cleaning and first-layer checks still required. |
| Monitoring | Built-in 1280 x 720 camera at up to 30 fps | Useful for remote checks and time-lapse capture; it does not replace responsible supervision. |
| Connectivity and slicing | USB, 2.4/5 GHz Wi-Fi; Orca-Flashforge and OrcaSlicer | Network transfer and fleet features are available, but current software behavior should be qualified before a production rollout. |
How the four-toolhead workflow changes multicolor printing
A conventional automatic material system feeds several spools into one hotend. Color changes require retracting the outgoing filament, advancing the next filament, and flushing the melt zone. A toolchanger leaves each filament loaded in its own hotend. The Creator 5 parks inactive heads at the rear, collects the requested head, primes it, and resumes printing.
The advantage is most visible on models with frequent changes. Less purging can save filament, and parallel readiness can shorten changeovers. However, “zero purge waste” should not be read literally for the complete workflow. Tom's Hardware found that initial loading could purge substantial filament and that the required prime block was surprisingly large, especially outside Flashforge's tuned filament profiles. The system reduces repeated color-change flushing; it does not eliminate priming, failed starts, support structures, or discarded calibration material.
Four toolheads also create useful process options beyond color. A job can combine model material with soluble or breakaway support, dedicate a different nozzle diameter to support or infill, or keep commonly used colors loaded. Mixed-material success is not automatic: adhesion, temperature, shrinkage, and slicer sequencing still have to be compatible. Test interfaces before committing an expensive full-bed job.
Setup, calibration, and daily handling
The machine automates bed leveling, toolhead offsets, vibration compensation, and pressure-advance calibration. Independent reviewers generally found the mechanical setup approachable for such an unusual architecture. The bigger operational change is managing four filament paths and four parked hotends. Each spool must be assigned correctly in the slicer, loaded into the intended head, and kept dry enough for the chosen material.
FauxHammer identified manual filament assignment, manual loading, and conventional nozzle handling as important tradeoffs. This is not a sealed four-bay material station that identifies and conditions every spool. The side-mounted holders also enlarge the working footprint: Flashforge lists the body at 436 x 432 x 480 mm, but 520 x 443 x 710 mm with filament tubes and holders. Allow clearance above and beside the printer rather than planning only around the chassis.
Tool offset accuracy matters more here than on a single-nozzle machine. Small X/Y/Z mismatches can show up as ridges, gaps, poor support interfaces, or color boundaries that do not align. Automatic calibration is valuable, but a production owner should preserve a known-good test model, verify offsets after service or nozzle changes, and record which head and nozzle produced each result.
Print quality and speed evidence
Independent evidence supports the basic toolchanging concept. Tom's Hardware produced multicolor models and praised the value of a four-head machine at the standard Creator 5's price, while also documenting heavy loading purges and prime-block overhead. FauxHammer found the hardware capability compelling but treated ecosystem polish and manual handling as meaningful limits. 3DWithUs tested multicolor output, TPU footwear samples, and other demanding models, providing evidence that the printer can do more than simple promotional color swaps.
Those reports do not justify a universal “500% faster” claim. Flashforge's percentage is based on its selected benchmark against a purge-based system. Savings depend on the number and frequency of tool changes, the competing machine's purge settings, object layout, prime structure, and material profiles. On a single-color part, the extra heads offer little throughput benefit. On a densely segmented four-color model, the avoided retract-and-flush cycle can be the main event.
For production evaluation, slice the same representative part on both platforms and compare total time, model mass, prime-block mass, manual loading time, intervention rate, and successful yield. A short benchmark can hide startup waste or labor. A complete job-cost comparison is more useful than either travel speed or a best-case marketing percentage.
Materials and open-frame limits
Flashforge recommends the standard Creator 5 for PLA, PETG, selected TPU grades, silk PLA, PLA-CF, PETG-CF, PVA, BVOH, and its own support materials. The 320°C hotend and 120°C bed are strong on paper, but temperature capability does not create a controlled chamber. Drafts and uneven cooling can still warp ABS, ASA, nylon, and large filled-material parts.
Abrasive carbon-fiber-filled filament requires a compatible wear-resistant nozzle and a validated profile. Flexible filament should use the supported feed arrangement and conservative speed. Soluble supports add drying and storage requirements. With four materials loaded at once, humidity control can become a larger workflow cost than expected—especially when two spools sit idle for long periods.
The open frame also deserves a safety note. Hot, moving toolheads and the bed are accessible, and four parked nozzles retain heat. In homes, classrooms, or public labs, use suitable supervision, guarding policies, material-specific ventilation, and fire precautions. A camera is monitoring equipment, not a safety system.
Strengths
- Four full-bed toolheads: every head reaches the entire 256 mm cube rather than sacrificing build area.
- Lower changeover waste: parked hotends avoid repeatedly flushing several colors through one melt zone.
- Flexible process roles: colors, support materials, and nozzle sizes can be separated across heads.
- Automated calibration: bed, tool offset, vibration, and flow routines reduce the setup burden of a toolchanger.
- Independent evidence: several hands-on reviewers completed real multicolor and mixed-workflow prints after the launch period.
- Current exact-model support: Flashforge maintains a dedicated support section and lists the printer as available in its US store.
Limitations and ownership costs
- Open frame: it is not the right default for large ABS, ASA, nylon, or other chamber-sensitive parts.
- Large operating envelope: four side-mounted spools and overhead tubes demand substantially more space than the body alone.
- Prime block remains: toolchanging cuts repeated flushing but still uses priming material and bed area.
- More service points: four hotends, docking interfaces, filament paths, and offsets multiply inspection and spare-part needs.
- Manual material workflow: it lacks the polished identification, loading, and conditioning experience of a mature enclosed feeder station.
- Developing ecosystem: firmware, slicer profiles, remote features, and third-party material behavior should be qualified on the versions you will deploy.
- Single-color value: buyers who rarely change tools pay for complexity they will not use.
Creator 5 alternatives
Flashforge Creator 5 Pro: choose the Pro when an enclosure, active chamber heating, filtration, and engineering-material capability justify the higher price and larger machine. Do not assume that adding a casual enclosure to the standard model duplicates the Pro's thermal and safety design.
Flashforge AD5X: the AD5X is a simpler feeder-based multicolor option. It costs less and occupies a more familiar category, but material changes require purging through one nozzle.
Bambu Lab P1S with AMS: the P1S offers an enclosed printer and a mature optional material system. It is easier to recommend for general ownership, while the Creator 5's separate heads can be faster and less wasteful on frequent-change jobs.
Single-color CoreXY: printers such as the Elegoo Centauri Carbon make more sense when speed, enclosure, and straightforward one-material output matter more than toolchanging.
Lifecycle and availability in 2026
As checked on September 20, 2026, Flashforge lists the Creator 5 as in stock in its US store and maintains an exact-model support guide. The observed promotional price was $699, but pricing, bundles, taxes, and regional stock can change, so this review does not treat that figure as permanent. The platform is still young. Before fleet adoption, confirm warranty coverage, spare hotend and dock availability, firmware update policy, and support response in writing.
The current source base is materially stronger than it was during preorder. Multiple independent reviews published after retail units became available, which makes an evidence-based buying analysis possible. Long-term reliability, high-hour dock wear, and multi-year parts continuity remain less established than on mature single-head platforms.
Final verdict
The Creator 5 is compelling when four independent hotends solve a real workload problem. Frequent color changes, soluble support, or intentionally different nozzles can justify its space and complexity. It is less persuasive as a general first printer: open-frame material limits, manual spool handling, prime structures, and four times the toolhead hardware demand attention. Buy the architecture for jobs that exploit it, not simply because four heads look impressive.
