Elegoo OrangeStorm Giga Review (2026): Is It Worth the Scale?

Verdict: The Elegoo OrangeStorm Giga is a specialized, genuinely enormous FDM printer for buyers who can use an 800 × 800 × 1,000 mm build volume and support its demanding space, power, leveling, and material needs. It can avoid seams on human-scale parts, but most shops will get lower risk, faster recovery, and better utilization from several smaller printers.

Research disclosure: JCPRINTFARM has not hands-on tested this exact printer. This review is based on Elegoo’s current product page and support wiki, plus independent hands-on reporting from Tom’s Hardware and The Gadgeteer. Their test observations are attributed below; specifications and availability were rechecked October 13, 2026.

What the OrangeStorm Giga is

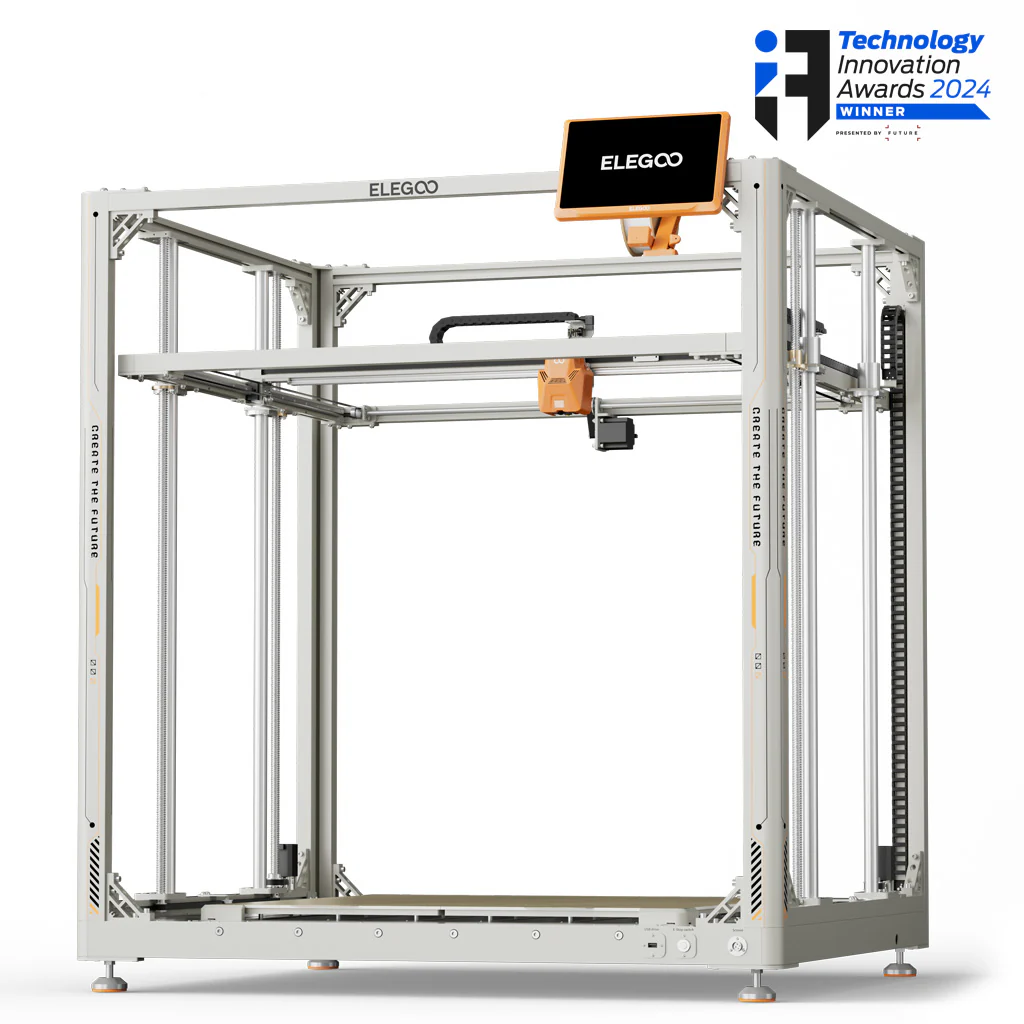

The OrangeStorm Giga is an open-frame, flying-gantry FDM printer built around one extraordinary number: an 800 × 800 × 1,000 mm nominal build envelope. Its bed is divided into four independently heated 410 × 410 mm magnetic PEI zones. Elegoo says it can identify and heat only the zone beneath a smaller model, while all four zones can be heated for a build that occupies the full footprint.

This is not simply a desktop printer scaled up. A one-meter-tall print magnifies bed-flatness errors, vibration, filament handling, power consumption, failure cost, and the time needed to inspect a job. The machine makes sense when a part’s uninterrupted size creates real value: full-scale props, large patterns, retail displays, prototypes, molds, or low-detail architectural forms. It is a poor default choice for ordinary brackets, small products, or a farm whose jobs fit on 250–350 mm machines.

Who should buy it—and who should skip it

Before ordering, measure the entire installation route—not just the final footprint. Account for frame assembly, gantry travel, spool access, service clearance, cable routing, the external control unit, and a safe zone around moving parts. Also estimate the cost of a failed full-volume print. A single large job can consume multiple spools and days of machine time.

Verified key specifications in context

Strengths

One-piece scale changes the design problem

The Giga’s strongest argument is not speed; it is avoiding segmentation. Printing a large prop, panel, pattern, or long automotive-form component flat can eliminate alignment pins, adhesive joints, seam finishing, and accumulated dimensional error. The Gadgeteer’s reviewer described a large automotive louver project that became practical when laid flat, reporting a dramatic reduction versus an earlier segmented or constrained approach. That result belongs to the reviewer’s specific model and settings, but it illustrates the machine’s real value.

Zoned heating is smarter than treating the bed as one slab

Four independently controlled zones let smaller jobs avoid heating the entire 800 mm square. For full-bed work, all zones can operate together. This is an appropriate architecture for the size, though it does not make large-format heating cheap or instant: Elegoo states roughly 17 minutes to bring the complete bed to 100 °C from a 25 °C room.

The extrusion system is scaled for throughput

A 0.6 mm nozzle is a sensible baseline. Large pieces need wider lines and thicker layers to keep duration reasonable, and optional 0.8 or 1.0 mm nozzles are more relevant here than a detail-oriented 0.4 mm setup. The direct drive also broadens material handling, although the open frame limits thermal control for warp-prone engineering polymers.

Limitations and real workflow costs

First-layer work is a maintenance task, not a checkbox

Tom’s Hardware reported that the four floating heated panels sit on many spring-supported adjustment points and described a demanding manual-leveling process backed by inductive probing. Their test produced good prints after the initial layers, but the reviewer did not characterize first-layer setup as effortless. On this footprint, a small angular or height error becomes a large variation across the bed.

Maximum speed is not production throughput

The 300 mm/s headline is less useful than flow rate, acceleration, geometry, layer choice, and total deposited plastic. Tom’s Hardware cited about 200 mm/s as an average in its workflow and warned that full-bed prints can still run for days or weeks. Large-format economics should be modeled in kilograms and machine-days, not only millimeters per second.

Failure exposure rises with part size

A clogged nozzle, damaged filament path, power interruption, layer shift, or adhesion loss late in a tall build can waste far more material and labor than the same event on a desktop machine. The Gadgeteer encountered a filament-related interruption during testing and also observed vibration-related concerns on very tall geometry. Those reports do not establish a universal failure rate, but they identify sensible risk controls: dry bulk filament, reliable spool feeding, remote monitoring, conservative acceleration, verified resume behavior, and scheduled inspection.

Open-frame scale narrows the easy material set

PLA and many PETG jobs are the natural territory. A 300 °C hotend does not by itself make a one-meter open machine ideal for ABS, ASA, nylon, or other materials that benefit from a stable warm chamber. Enclosing a machine this large introduces fire, electronics-cooling, fume, and thermal-expansion questions that should not be improvised.

Material and process fit

For visual props, patterns, display structures, and low-load prototypes, large nozzles, thick layers, and lightweight infill can turn the Giga into a useful fabrication tool. For dimensionally demanding functional parts, validate shrinkage and geometry on coupons placed across multiple bed zones. For a one-off object, compare printing the piece whole with splitting it into indexed sections; segmentation often reduces support, improves orientation, shortens recovery after failure, and lets several printers run in parallel.

Budget beyond the printer: a stable platform, electrical review, surge protection or appropriately sized backup strategy, filament drying and bulk-spool handling, monitoring, spare hotend and nozzle parts, lifting help, and finishing space. A large machine without a downstream handling plan simply moves the bottleneck.

Alternatives

• Several smaller printers: usually the stronger production choice when parts can be split. Parallel capacity, easier spares, and fault isolation beat one enormous failure domain.
• Elegoo Neptune 4 Max: the Neptune 4 Max review covers a much smaller 420 × 420 × 480 mm class machine that is easier to place and feed.
• Creality Ender-5 Max: our Ender-5 Max review examines a 400 mm cube aimed at buyers who need more room without crossing into room-scale equipment.
• Outsource the rare giant job: if meter-scale demand is occasional, a service can convert capital expense and maintenance into a quoted project. Send JCPRINTFARM the part details to compare production options.

Final verdict

The Elegoo OrangeStorm Giga is compelling because it does something conventional printers cannot: produce genuinely human-scale FDM parts without automatically dividing them into a patchwork. Elegoo’s zoned bed, Klipper controller, direct extruder, and larger standard nozzle are rational choices for that mission. Independent reviews also make the trade clear: leveling, power, material consumption, duration, vibration, and failure exposure all scale with the build volume.

Buy it only when your recurring work can monetize seamless 800 × 800 × 1,000 mm capacity and your facility can support it. For ordinary farm output, several smaller machines remain the more resilient investment. Browse the 3D printer review hub for current alternatives.
