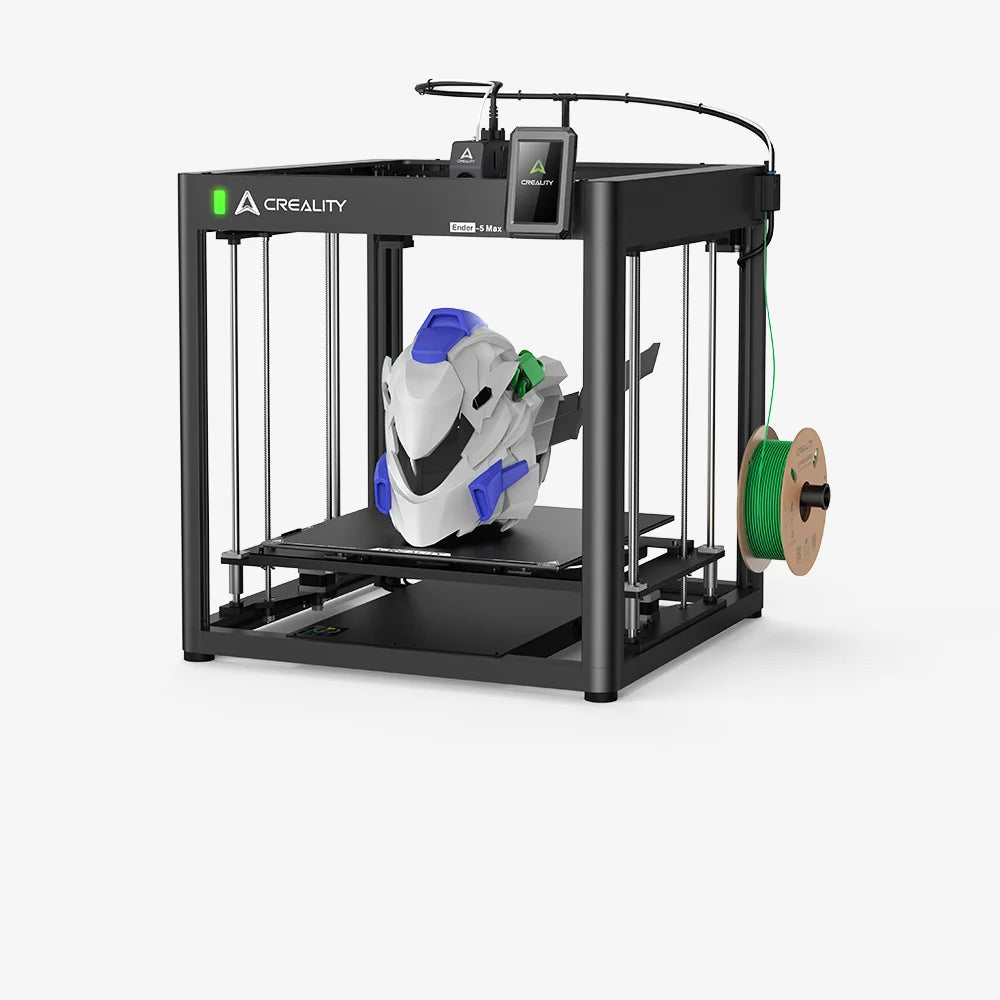

Creality Ender-5 Max large-format open-frame 3D printer in the official product image

Creality Ender-5 Max Review (2026): Big Volume, Real Tradeoffs

Verdict: The Creality Ender-5 Max makes sense when a true 400 mm cube build area matters more than a compact footprint or turnkey enclosure. Its stationary XY motion, automatic leveling, direct drive, and network workflow are useful upgrades over older large-format machines. Buy it for genuinely large parts or dense batches; smaller printers are cheaper, easier to place, and usually more efficient for ordinary work.

Research disclosure: JCPRINTFARM has not completed a hands-on test of this exact printer. This review is based on Creality's current product and support documentation, the live US store listing checked October 5, 2026, an independent assembly-and-print report from 3D Printing USA, and SimplyPrint's independent compatibility reference. Performance claims from Creality are identified as advertised limits, not our benchmark results.

What the Ender-5 Max is

The Ender-5 Max is a large open-frame CoreXY-style FDM printer built around a 400 × 400 × 400 mm print volume. The bed moves only in Z while the toolhead handles X and Y motion. That architecture avoids throwing a large print back and forth as a bed-slinger would, which is a sensible foundation for tall or heavy jobs. It is still a substantial machine: Creality lists a 649 × 721 × 850 mm printer footprint and a net weight up to 25.9 kg, before allowing room for the side-mounted spool, cables, ventilation, and operator access.

The machine combines a 300 °C direct-drive hotend, 100 °C heated bed, 64-point automatic leveling with automatic Z offset, input shaping, filament runout detection, power-loss recovery, USB transfer, and Wi-Fi. A camera and enclosure are optional rather than standard. Creality's US store listed the exact model in stock when checked, and the manufacturer maintains an exact-model support page, so this is a current product rather than a legacy Ender relaunch.

Who it fits—and who should skip it

Best fit: makers and small production teams that regularly need one-piece parts wider than a normal 220–300 mm desktop bed; prop, display, fixture, prototype, and architectural-model work; or batch layouts where one large plate creates a real scheduling advantage. Its tri-color status light and Wi-Fi transfer are also aimed at multi-printer environments.

Skip it: buyers whose parts usually fit a standard machine, anyone short on rigid bench space or electrical headroom, and operators expecting an enclosed engineering-material appliance. The optional enclosure can help with drafts and chamber warmth, but the stock machine remains open. Buyers wanting a smaller, finished enclosure should compare the Creality K1C; those prioritizing a polished 256 mm workflow should also consider the Bambu Lab A1.

Key specifications in context

Specification Ender-5 Max Why it matters
Build volume 400 × 400 × 400 mm A genuine large-format envelope, but every full plate raises failure cost and removal effort.
Motion system CoreXY-style XY gantry; bed drops in Z Better suited to large, tall parts than moving a 400 mm bed rapidly in Y.
Advertised speed Up to 700 mm/s; 500 mm/s listed as typical quality speed These are manufacturer ceilings. Actual flow, geometry, acceleration, cooling, and material usually set the useful speed.
Advertised acceleration Up to 20,000 mm/s² Input shaping helps, but large-part accuracy still benefits from conservative profiles.
Hotend / bed 300 °C / 100 °C Covers common materials on paper; chamber control and nozzle wear still determine engineering-material suitability.
Extrusion Direct drive, dual tempered gears, 1.75 mm filament Useful for ordinary PLA, PETG, and slower TPU work.
Build surface Flexible epoxy plate Large removable parts are easier to release, though replacement plates are a larger consumable.
Leveling 64-point automatic mesh and automatic Z offset Important on a 400 mm bed, but cleanliness and thermal stabilization still matter.
Connectivity USB drive, Wi-Fi, Creality Cloud More practical for queueing than removable media alone; camera monitoring costs extra.
Rated power 1,250 W The 1,000 W bed heats a large aluminum plate quickly, but circuits and fleet power budgets need planning.
Printer size / weight 649 × 721 × 850 mm; up to 25.9 kg Bench rigidity, access clearance, and moving logistics are part of the purchase.

Strengths

The build volume is the real reason to buy it

A 400 mm cube can eliminate seams, fasteners, alignment features, and assembly labor on objects that would otherwise be split. It can also carry many smaller parts on one plate. That is meaningful only when the workload uses the area. Empty bed space does not improve throughput, and a small part on this machine still heats and occupies a much larger asset.

The frame and Z system suit heavy work

Creality uses two independently driven Z axes, four lead screws, and four linear guide rods to support the descending bed. The manufacturer rates the system for a 5 kg model. The independent 3D Printing USA report describes a rigid frame and consistent tall-print results, while also noting that assembly is more involved than on modern preassembled desktop machines. We treat that report as useful evidence, not a guarantee for every unit.

Automation covers the most tedious large-bed setup

A 64-point mesh and automatic Z offset reduce the manual work of establishing a first layer across 160,000 mm² of plate. Filament runout sensing and power-loss recovery are especially relevant because large prints can run for days. The front status lamp is simple but genuinely useful when several machines share a room.

Limitations and workflow costs

Large format magnifies small mistakes

A clogged nozzle, lifted corner, wet spool, or poor profile can waste kilograms of filament and many hours near the end of a job. Automatic leveling does not replace plate cleaning, first-layer inspection, filament drying, preventive maintenance, or staged validation. For production, qualify a smaller section or reduced-scale version before committing to the final plate.

The headline speed is not the buying case

Creality advertises 700 mm/s maximum and recommends its high-flow Hyper filament for fast work. A maximum travel or short-feature result is not the same as sustained volumetric output across a huge model. Layer time, cooling, surface finish, dimensional tolerance, nozzle size, and the hotend's melt capacity all intervene. A 0.6 or 0.8 mm nozzle may improve large-part throughput more honestly than chasing the maximum speed number, but it also changes detail and layer-force requirements.

The enclosure and camera are extras

Creality lists ABS, ASA, PA, and filled PLA among supported materials, while also warning that an enclosure may be required for higher-melting-point materials. For a 400 mm-wide ABS or ASA part, an enclosure is not a cosmetic accessory: temperature uniformity and draft control can determine whether the corners stay down. Abrasive composites also need an appropriate wear-resistant nozzle rather than the stock brass assumption.

Space, heat, and power are operational constraints

The printer's listed dimensions do not include comfortable service clearance. The side spool and overhead cable path expand the working envelope. Its 1,250 W rated power is not continuous consumption, but multiple machines heating simultaneously can matter on a shared circuit. The manufacturer quotes a 55 dB-or-lower silent mode under its conditions; we have not independently verified sound, and an open machine should not be assumed quiet in every speed mode.

Materials and software

PLA and PETG are the least complicated matches. The direct drive makes TPU plausible at appropriately reduced speed. ABS, ASA, and PA benefit from the optional enclosure, dry filament, and a validated profile; very large warp-prone parts remain demanding even with suitable temperatures. SimplyPrint's compatibility reference confirms the 400 mm cube, 300 °C hotend, 100 °C bed, direct drive, and current Creality Print/OrcaSlicer profile availability. It also documents a Klipper-based route for third-party management, but rooting or modifying firmware adds support risk and should not be treated as required for normal use.

Creality specifies Creality Print 5.1 or later and accepts STL, OBJ, and 3MF for slicing. Wi-Fi transfer and the 8 GB internal storage are helpful for repeated jobs. The optional 1080p camera provides live monitoring and time-lapse capture; unattended operation still requires appropriate fire-safety practices and human escalation.

Realistic alternatives

  • Sovol SV08 Max: compare when an even larger working area or a different open Klipper-oriented ecosystem matters. Verify current shipping configuration and enclosure requirements.
  • Creality Ender-3 V3 Plus: smaller 300 × 300 × 330 mm bed-slinger that costs less space and money when 400 mm is unnecessary.
  • Creality K2 Plus: a more integrated enclosed Creality option with a smaller build envelope and a different price/workflow proposition.
  • Prusa XL: compare for tool-changing workflows, support philosophy, and multi-material needs rather than maximum cubic volume.

Lifecycle and availability

As of October 5, 2026, Creality's US store showed the Ender-5 Max in stock at a displayed sale price of $749, with the usual caveat that price, regional stock, taxes, and bundles change. The official product page and exact-model support center were live. Replacement build plates, nozzles, enclosures, and extruder kits were also listed. Buyers should confirm warranty terms and local parts availability at checkout rather than treating today's listing as a permanent price promise.

Final verdict

The Ender-5 Max is a specialized value proposition: a lot of build volume, useful first-layer automation, and sensible large-format motion hardware without a factory enclosure. It is compelling when a 400 mm one-piece part avoids assembly or when batch density earns back the footprint. It is excessive for routine desktop parts, and its advertised speed should not distract from the real costs of large plates, long failures, power, enclosure needs, and operator checks.

If you need finished parts rather than another machine to qualify and maintain, send the geometry, quantity, material, and deadline through the JCPRINTFARM project intake. You can also browse the 3D printer review hub for verified alternatives.
