Elegoo Neptune 4 Max Review (2026): Is the Huge Bed Worth It?
Share
Verdict: The Elegoo Neptune 4 Max offers an unusually large 420 x 420 x 480 mm build volume at a relatively accessible price, but its moving bed, demanding calibration, and mixed independent reliability evidence make it a specialist tool. Buy it for recurring oversized PLA or PETG work only if you have ample space, patient operators, and a disciplined validation process.
Research disclosure: JCPRINTFARM did not perform a hands-on test for this article. This assessment is based on Elegoo's exact-model product and support pages, independent hands-on reviews from Tom's Hardware and 3DWithUs, and current availability checks performed October 10, 2026. Speed, quality, and reliability observations are attributed to those sources rather than presented as our own benchmark results.

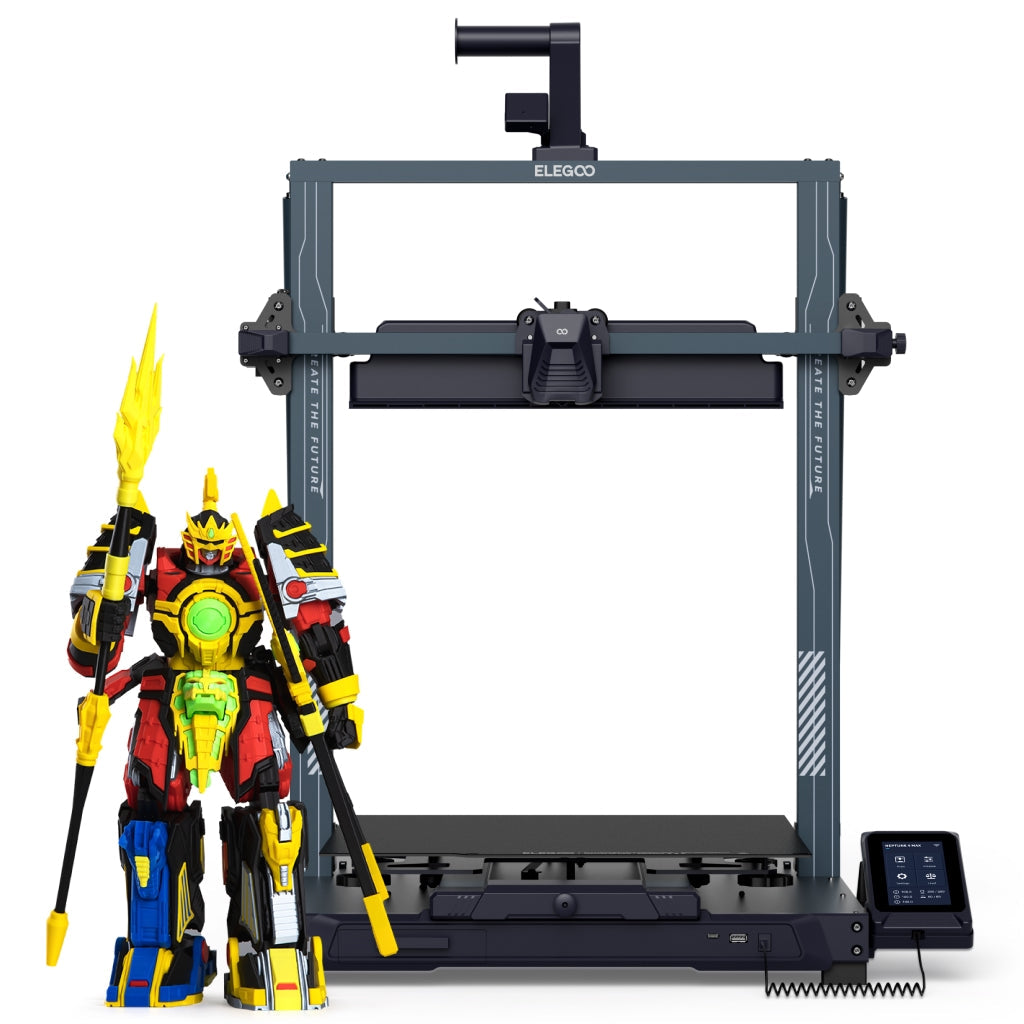

What the Elegoo Neptune 4 Max is
The Neptune 4 Max is the largest member of Elegoo's Neptune 4 open-frame FDM family. It pairs a 420 x 420 x 480 mm printable volume with a Klipper-based controller, a dual-gear direct-drive extruder, a 300 C hotend, a removable PEI spring-steel build plate, and automatic mesh measurement. The bed moves forward and backward during printing, so this is a very large bedslinger rather than a space-efficient CoreXY machine.
That distinction matters. The Max can produce helmets, costume components, props, prototypes, jigs, and broad one-piece parts that would need to be split across ordinary desktop printers. At the same time, a large moving plate carries substantial mass. Tall prints, aggressive acceleration, poor belt adjustment, or an unstable table can turn theoretical speed into ringing, layer shifts, or failed multi-day jobs.
Best fit
- Experienced users who repeatedly need parts above 300 mm
- Large PLA and PETG props, prototypes, fixtures, and display work
- Operators comfortable with Klipper, mechanical inspection, and profile tuning
- Workshops with a deep, rigid bench and clearance around the moving bed
Who should skip it
- Beginners seeking a guided, appliance-like first printer
- Buyers whose normal work already fits a 250 or 300 mm machine
- Shops that need an enclosure for routine ABS, ASA, or nylon work
- Production teams that cannot absorb long failed prints and manual calibration
Verified key specifications
| Process | Open-frame fused-filament fabrication (FDM/FFF) |
|---|---|
| Build volume | 420 x 420 x 480 mm |
| Machine size | 658 x 632 x 740 mm nominal; Elegoo lists 658 x 950 x 960 mm with the machine fully unfolded, illustrating the required operating clearance |
| Motion and firmware | Klipper-based bedslinger; advertised maximum 500 mm/s, with 250 mm/s listed as the default speed |
| Extrusion | Dual-gear direct drive with a 300 C hotend and 60 W ceramic heater |
| Bed leveling | 121-point (11 x 11) automatic mesh measurement, plus manual bed adjustment |
| Materials | Elegoo lists PLA, TPU, PETG, ABS, ASA, and nylon; the open frame limits practical control of warp-prone materials |
| Connectivity | Wi-Fi, WLAN, and USB transfer listed by Elegoo |
| Interface and safeguards | Detachable 4.3-inch capacitive touchscreen, filament detection, and power-loss resume |
| Weight | 18.1 kg net |
| Current lifecycle | Exact-model official US product and support pages remain live; official structured product data reported a new unit in stock when checked |
The speed number needs context. Elegoo advertises up to 500 mm/s and identifies 250 mm/s as the default, but neither figure guarantees finished-part throughput. Layer height, extrusion width, material flow, acceleration, part geometry, cooling, and acceptable surface quality determine real output. On a large moving-bed machine, conservative settings can be more valuable than winning a short benchmark.
Strengths that make the Neptune 4 Max distinctive
A genuinely large one-piece build envelope
The 420 mm square plate is the core reason to consider this printer. Its area is roughly 2.6 times that of a 256 mm square plate, before accounting for the 480 mm Z height. A helmet, enclosure panel, broad fixture, architectural model, or tall prop may print without seams, alignment pins, adhesive, or post-assembly reinforcement. Eliminating those operations can justify the machine when the work really uses the volume.
Large capacity is not automatically better for ordinary parts. A smaller printer heats less mass, occupies less space, and is usually easier to tune. The Max earns its footprint when avoiding segmentation has measurable value, not when the buyer simply wants capacity for a hypothetical future job.
Direct drive and high-temperature headroom
The short filament path of a direct-drive extruder is useful for TPU and simplifies retraction compared with a long Bowden path. A 300 C hotend also provides temperature headroom for many filaments. That rating describes the hotend, not the entire process: abrasive blends may require a wear-resistant nozzle, nylon requires disciplined drying, and warp-prone materials benefit from controlled chamber conditions the stock open frame does not provide.
Klipper-based control and network transfer
Preinstalled Klipper-based firmware gives the Neptune 4 Max modern motion features without requiring a separate Raspberry Pi. Network transfer is particularly valuable because large files and long jobs invite more monitoring than small desktop prints. Buyers should preserve printer-specific configuration and follow Elegoo's exact update path; a generic Klipper tutorial can overwrite settings the machine depends on.
PEI plate and dense mesh measurement
The removable PEI spring-steel surface makes part removal more practical than lifting a huge model from fixed glass. The 11 x 11 measurement grid can map local bed variation. It cannot correct every mechanical or thermal problem. The plate should be heated long enough to stabilize before a critical mesh or first layer, while gantry alignment, wheels, belts, bed hardware, Z offset, and surface cleanliness still require attention.
Limitations and real workflow costs
The footprint is larger than the frame dimensions suggest
The bed travels in Y, so the printer needs substantial clear space in front and behind. Elegoo's unfolded envelope of 658 x 950 x 960 mm is a better planning number than the nominal frame depth. Add room for the cable, rear clearance, spool access, screen, ventilation, and operator service. A light folding table is a poor foundation for an 18.1 kg machine moving a 420 mm bed at speed.
Large beds amplify calibration errors
A small Z-offset or gantry error that is tolerable on a narrow plate becomes harder to manage across 420 mm. Thermal expansion can also change the surface after heating. The automatic mesh is assistance, not proof of a production-ready first layer. For a long print, preflight should include a stabilized bed, clean plate, verified offset, smooth motion, belt tension, filament supply, and a short representative test.
Long failures are expensive
The economic risk grows with part size. A failure late in a helmet or full-height prototype can waste kilograms of filament, many hours, and the next production slot. Power-loss recovery and filament detection are useful safeguards, but they cannot rescue every adhesion problem, nozzle collision, tangle, layer shift, or quality defect. A camera and independent alerting strategy can be worthwhile even though they do not replace in-person inspection.
Independent evidence is mixed
Tom's Hardware praised the enormous capacity and value but reported firmware and setup problems in its hands-on review, characterizing the machine as buggy. 3DWithUs documented successful large prints and extensive tuning options while also treating calibration and settings as central to the experience. Those findings are compatible: the hardware can deliver impressive parts, but the outcome depends heavily on setup, firmware state, mechanics, and operator skill.
Elegoo's own product page displayed mixed owner experiences when checked. Individual store reviews are not controlled laboratory evidence, so they should not be converted into a failure-rate claim. They do reinforce the sensible purchasing rule: use a real return window, inspect the delivered unit promptly, and qualify it before assigning a deadline-critical multi-day job.
Open-frame material support needs qualification
ABS, ASA, and nylon appearing on a compatibility list does not guarantee dimensionally stable large parts in an open room. Drafts and uneven cooling become more consequential as the footprint grows. High-temperature materials may also need dry storage, ventilation, hardened wear components, and fire-conscious operating procedures. For recurring engineering-material production, a purpose-built enclosed system is generally the more defensible choice.
Labor can erase the purchase-price advantage
For farm use, include assembly inspection, bench space, profile validation, first-layer checks, firmware control, nozzle and plate consumables, spare parts, monitoring, failed-print recovery, and operator training. A lower hardware price does not compensate for frequent interventions. Measure accepted parts per operator-hour rather than comparing only build volume and advertised motion speed.
Neptune 4 Max versus practical alternatives
| Alternative | Choose it when | What the Neptune 4 Max still offers |
|---|---|---|
| Elegoo Neptune 4 Plus | You need more than desktop capacity but can work within its smaller envelope and want less moving mass. | A substantially larger 420 x 420 x 480 mm one-piece volume. |
| Anycubic Kobra 3 Max | You want a newer large-format bedslinger and prefer its ecosystem or feature mix after comparing current support. | A mature Klipper-based workflow and a broad 420 mm square plate. |
| Creality K1 Max | Your parts fit 300 mm, and a more compact enclosed CoreXY layout matters more than maximum size. | Far more one-piece capacity, especially in width and depth. |
Do not compare these machines solely by their peak speed. Compare the largest recurring part, required material, enclosure, actual operating footprint, first-layer process, network workflow, replacement-part runway, and acceptable loss if a long print fails.
How to qualify a Neptune 4 Max before production
- Prepare the bench first. Verify the full bed-travel envelope, cable clearance, spool access, and table rigidity.
- Inspect assembly and motion. Check frame fasteners, gantry alignment, wheel preload, belts, bed movement, connectors, and voltage selection before high-speed use.
- Confirm exact firmware. Record the installed printer and screen versions and use only the matching Elegoo update path.
- Heat-soak before critical leveling. Let the large bed stabilize, then verify the manual geometry, mesh, and Z offset with a broad first-layer pattern.
- Start with conservative PLA. Establish reliable extrusion and adhesion before testing speed, flexibles, or warp-prone materials.
- Run a representative tall part. A small calibration cube does not expose bed-motion, vibration, spool, or long-duration risks.
- Track interventions. Record restarts, leveling work, nozzle service, failed hours, and accepted output before buying additional units.
Used and open-box buying checklist
- Confirm it is the Max. Neptune 4, Pro, Plus, and Max are distinct printers with different beds, frames, and profiles.
- Measure the plate and inspect flatness. Look for damage, coating wear, residue, dents, and obvious thermal distortion.
- Test full travel. Listen for rough wheels or bearings, inspect belts and tensioners, and check that cables stay clear at every extreme.
- Request a heated full-bed first layer. A small model in the center does not validate a 420 mm surface.
- Inspect the toolhead. Look for filament leakage, damaged wiring, worn nozzle parts, fan noise, and evidence of a prior plastic blob.
- Verify accessories and return rights. Missing supports, tools, screen hardware, or a usable return option can eliminate the bargain.
Print-farm relevance
The Neptune 4 Max can be valuable as a dedicated large-format lane rather than a general fleet standard. Route only jobs that benefit from its one-piece envelope, use a conservative qualified profile, and keep ordinary parts on smaller printers with lower failure exposure. That division prevents the biggest machine from becoming the slowest and most labor-intensive default.
If the objective is a finished large part rather than printer ownership, JCPRINTFARM's 3D printing service intake provides a way to evaluate the job without buying, calibrating, and maintaining a large-format machine. The 3D printer review directory also links to model-specific alternatives.
Final verdict
The Elegoo Neptune 4 Max remains relevant because few consumer-priced machines offer a 420 x 420 x 480 mm envelope. Its direct drive, PEI plate, Klipper-based controller, network transfer, and current official US listing give it a credible specification base. The case becomes weaker when the work fits a smaller printer.
Buy it when oversized one-piece output is a recurring need and the workshop can support its footprint, calibration, and failure risk. Skip it when convenience, enclosure, high fleet consistency, or minimal intervention matters more than raw volume. This is a capable specialist machine, not an automatic upgrade for every buyer.
