Elegoo Neptune 4 Plus Review (2026): Still Worth Buying?
Share
Verdict: The Elegoo Neptune 4 Plus is still a compelling large-format value when you genuinely need its 320 x 320 x 385 mm volume and are comfortable calibrating a Klipper bedslinger. Its fast motion, direct drive, and network control are useful; its manual-plus-mesh leveling, open frame, large moving bed, and long-job risk keep it from being an appliance-like choice.
Research disclosure: JCPRINTFARM did not perform a hands-on test for this article. This assessment is based on Elegoo's exact-model product and support pages, independent hands-on reviews from Tom's Hardware and ThePhonograph, and availability checks completed October 11, 2026. Test results are attributed to their sources and are not presented as our own benchmarks.

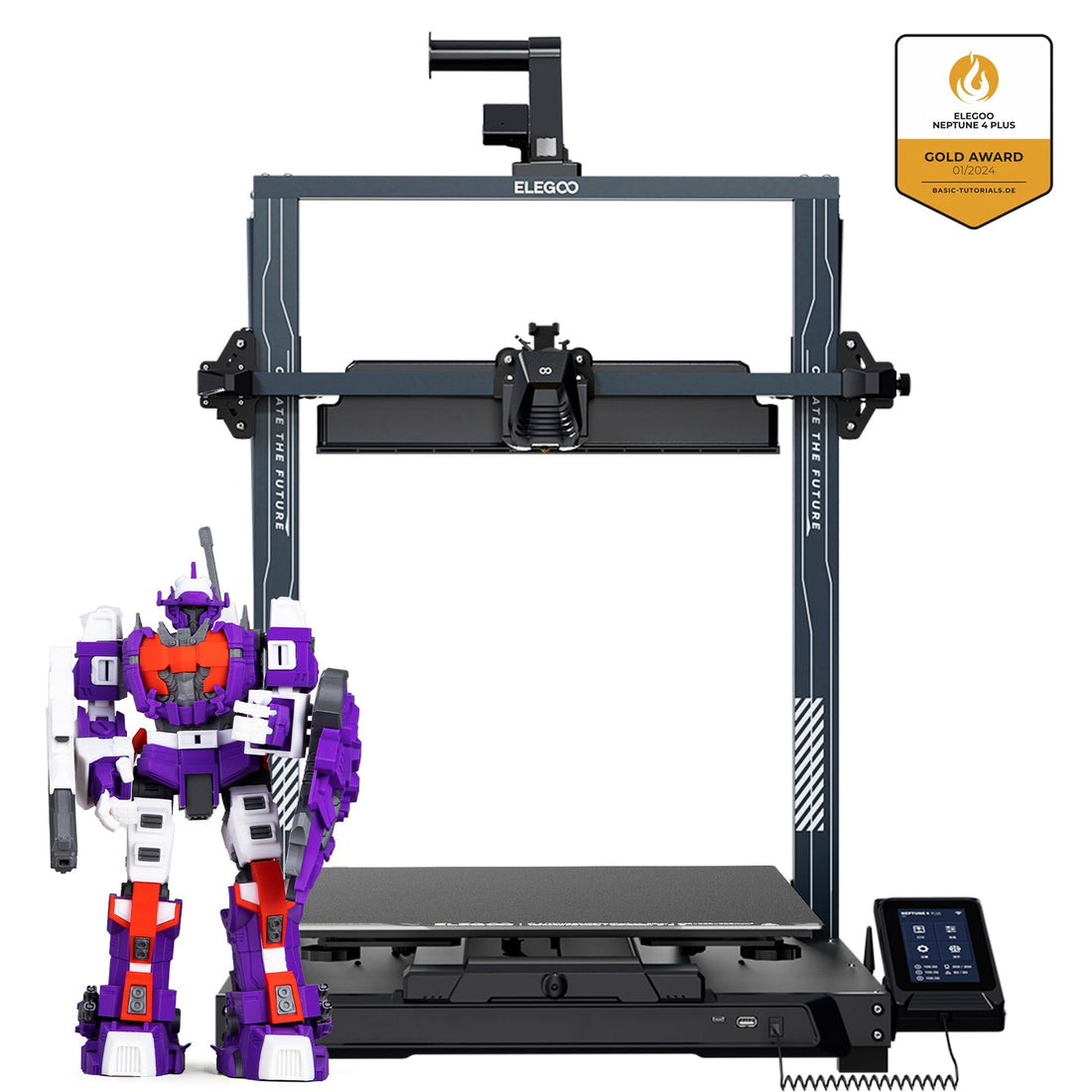

What the Neptune 4 Plus is
The Neptune 4 Plus is the middle large-format model in Elegoo's Neptune 4 family: substantially larger than the standard Neptune 4, but more manageable than the Neptune 4 Max. It combines a 320 x 320 x 385 mm build volume with Klipper-based control, a 5.2:1 dual-gear direct-drive extruder, a 300 C hotend, a removable PEI spring-steel plate, Wi-Fi and wired networking, and 121-point mesh measurement.
This is an open-frame Cartesian bedslinger. The toolhead crosses the X axis while the entire bed and printed part move in Y. That design helps keep the purchase price accessible, but the moving mass, operating clearance, vibration, and tall-part stability matter more as prints become larger. The Plus is best treated as a capacity-focused workshop printer, not simply a faster version of a small beginner machine.
Best fit
- Props, helmets, fixtures, enclosures, and prototypes that exceed a 250 or 256 mm plate
- PLA, PETG, and TPU users who value direct drive and network control
- Operators comfortable checking mechanics, Z offset, mesh, and slicer profiles
- Workshops that can give a large moving bed a rigid bench and clear travel space
Who should skip it
- Buyers whose regular parts fit a smaller, easier-to-manage printer
- Beginners expecting fully automatic leveling and an appliance-like workflow
- Shops needing an enclosure for routine large ABS, ASA, or nylon parts
- Production teams that cannot absorb failed multi-hour or multi-day builds
Verified key specifications
| Process | Open-frame fused-filament fabrication (FDM/FFF) |
|---|---|
| Build volume | 320 x 320 x 385 mm |
| Motion and control | Klipper-based bedslinger with input shaping and pressure-advance support; X- and Y-axis acceleration sensors |
| Speed claim | Up to 500 mm/s advertised maximum, 250 mm/s default, and up to 12,000 mm/s² acceleration |
| Extrusion | 5.2:1 dual-gear direct-drive extruder, 0.4 mm stock nozzle, 300 C maximum nozzle temperature |
| Build surface | Removable magnetic PEI spring-steel plate; current official specification lists a dual-sided textured PEI and PLA-specific surface |
| Leveling | Manual bed adjustment plus 121-point (11 x 11) automatic mesh measurement |
| Materials listed by Elegoo | PLA, TPU, PETG, ABS, ASA, and nylon; real suitability depends on enclosure, drying, nozzle wear, ventilation, and part geometry |
| Connectivity | Wi-Fi/WLAN, wired network access, and USB transfer |
| Safeguards and interface | 4.3-inch detachable capacitive touchscreen, filament detection, lighting, and power-loss resume |
| Current lifecycle | Exact-model official US product and support pages were live, and official structured product data reported the model in stock when checked |
The 500 mm/s figure is a motion ceiling, not a promise that every part should be sliced at that rate. Extrusion flow, layer height, acceleration, cooling, geometry, moving-bed inertia, and the finish you will accept determine useful throughput. Elegoo's own 250 mm/s default is a more relevant starting point, and long or tall work may benefit from still more conservative settings.
Why the Neptune 4 Plus remains attractive
The volume is large without reaching Max-scale excess
A 320 mm square bed gives roughly 56% more plate area than a 256 mm square bed, while the 385 mm Z height accommodates tall props and enclosures. That can remove seams, pins, adhesives, alignment labor, and cosmetic finishing from parts that would otherwise be divided. Compared with the 420 mm Neptune 4 Max, the Plus carries less bed mass and asks for less room while still clearing many helmet and cosplay use cases.
Capacity should match recurring work. If almost every model fits a 250 mm machine, the Plus adds warm-up mass, footprint, and mechanical leverage without creating value. Measure the bounding boxes of real jobs before buying; a handful of hypothetical oversized projects is weak justification for making a large bedslinger the everyday printer.
Direct drive broadens practical material work
The short filament path and 5.2:1 dual-gear reduction are useful for TPU and give controlled feeding for ordinary PLA and PETG. The 300 C hotend provides temperature headroom, but temperature alone does not qualify a process. Abrasive composites may need a hardened nozzle, nylon needs dry handling, and large warp-prone parts need chamber control that the open stock frame cannot supply.
Klipper and network control are meaningful conveniences
The printer includes a Klipper-based controller rather than requiring the owner to add a separate computer. Input shaping, pressure advance, a Fluidd-style network interface, wired networking, and Wi-Fi can make iteration and file transfer much easier than walking USB media between a workstation and printer. For a shop, that is more useful than a flashy peak-speed number.
Firmware discipline matters. Preserve the factory configuration, record both printer and screen versions, and use the exact Elegoo update path. Generic Klipper instructions can overwrite model-specific configuration, and an unnecessary update immediately before a deadline creates avoidable risk.
Independent testing found real capability
Tom's Hardware gave the machine a strong review after hands-on testing and highlighted its combination of volume, speed, integrated Wi-Fi, cooling, quiet drivers, direct drive, and Klipper. Its review also identified the semi-automated leveling procedure and then-limited alternate nozzle availability as drawbacks. ThePhonograph reported successful tall and wide prints, reliable PEI adhesion during its tests, network control, and high-speed capability, while still emphasizing careful setup and calibration.
Those are encouraging results, not a universal reliability guarantee. Review samples, materials, environments, and operator experience vary. Current owner feedback on Elegoo's product page is mixed, which should not be converted into a failure-rate statistic but does support buying with return coverage and qualifying the exact delivered unit before trusting it with a multi-day part.
Limitations and workflow costs
Leveling is assisted, not fully automatic
The 11 x 11 mesh can compensate for measured surface variation, but the bed still has manual adjustment hardware and the Z offset still needs verification. Tom's Hardware specifically called the calibration process tedious compared with genuinely automated competitors. On a 320 mm plate, gantry alignment, bed geometry, thermal stabilization, surface cleanliness, wheel preload, and probe consistency all affect the first layer.
A mesh cannot correct loose hardware, a skewed frame, a damaged plate, or every thermal shape change. Heat the bed to the intended print temperature, allow it to stabilize, establish mechanical geometry, generate the mesh, and then confirm the result with a broad first-layer pattern rather than a small square in the center.
The moving bed dictates the real footprint
The frame dimensions do not describe the entire operating envelope. The bed travels far forward and backward, so the printer needs cable clearance and open space on both sides of its Y motion. The top-mounted spool also adds height and service access. A rigid, deep bench is part of the system; a light or flexible table can feed vibration back into tall parts.
High cooling and high speed have tradeoffs
The rear auxiliary fan bank can help bridge and overhang performance in high-flow PLA work, but it also adds noise and can cool materials or geometries that prefer gentler airflow. The correct setting depends on filament, layer time, and geometry. Avoid treating maximum fan and maximum speed as a universal production profile.
Fast travel does not guarantee fast accepted parts. Flow limits, acceleration ramps, first layers, small features, supports, and cooling pauses can dominate elapsed time. Compare complete, usable parts at a chosen quality standard rather than a marketing maximum or a single small benchmark.
Large failures consume more than filament
A late failure can waste a spool, occupy the machine for a day, and push a delivery date. Filament detection and power-loss resume reduce some risks but cannot recover every adhesion loss, nozzle collision, tangle, layer shift, or defect. Large jobs deserve a representative test, known-good filament, enough material from the same lot, a monitored first layer, and scheduled visual checks.
The open frame limits engineering-material confidence
Elegoo lists ABS, ASA, and nylon, but a compatibility list is not evidence that a broad part will remain dimensionally stable in a drafty room. Large footprints magnify shrinkage and layer-separation risk. Dry storage, ventilation, suitable wear parts, fire-conscious operating practices, and an enclosure strategy may all be needed. For recurring large engineering-material production, a purpose-built enclosed platform is usually the cleaner choice.
Neptune 4 Plus versus the practical alternatives
| Alternative | Choose it when | What the Neptune 4 Plus offers instead |
|---|---|---|
| Elegoo Neptune 4 | Your work fits 225 x 225 x 265 mm and lower cost and footprint matter more. | Much more width, depth, and height for one-piece parts, plus network features associated with the Plus. |
| Elegoo Neptune 4 Max | You repeatedly need parts beyond 320 mm and can support the larger 420 x 420 x 480 mm machine. | A more manageable middle ground with less moving mass and less extreme space demand. |
| Anycubic Kobra 3 Max | You need 420 mm-class capacity or prefer its current feature ecosystem after comparing support. | A smaller large-format lane with mature Klipper-based control and lower capacity overhead. |
| Creality K1 Max | Your work fits 300 mm and you prioritize an enclosed, more compact CoreXY layout. | Greater Z height and a lower-complexity open machine that is easier to access mechanically. |
Compare the largest recurring part, material environment, actual bed-travel clearance, leveling process, network workflow, spare-part availability, and cost of a failed long print. Peak speed is one of the least useful single-number comparisons.
A sensible qualification plan
- Prepare the location. Use a rigid bench and verify full bed motion, cable clearance, spool access, ventilation, and operator space.
- Inspect assembly. Check frame fasteners, gantry alignment, wheels, belts, bed travel, connectors, and power-supply voltage before printing fast.
- Record firmware versions. Save the printer configuration and use only the update package matched to the exact Plus model and screen.
- Stabilize and level. Heat-soak the bed, adjust the mechanical plane, run the 121-point mesh, set Z offset, and verify a wide first layer.
- Begin conservatively. Establish reliable PLA extrusion and adhesion before chasing speed or difficult materials.
- Test representative geometry. Use a broad and tall job that exposes bed travel, vibration, cooling, spool, and long-duration behavior.
- Track intervention. Record failed hours, leveling work, firmware events, nozzle service, and accepted output before adding another unit.
Used and open-box checklist
- Confirm the label says Neptune 4 Plus; the standard, Pro, Plus, and Max use different frames, beds, and profiles.
- Inspect the 320 mm plate for gouges, coating loss, adhesive buildup, and visible distortion.
- Heat the full bed and request a broad first-layer test rather than accepting a small center print.
- Move every axis through its full range and listen for rough wheels, bearings, rubbing cables, or damaged belts.
- Inspect the toolhead for filament leakage, damaged fan wiring, a bent probe, worn nozzle parts, or evidence of a prior blob.
- Verify the touchscreen, Wi-Fi, wired network, USB ports, filament sensor, lights, heaters, fans, and acceleration sensors.
- Confirm included braces, spool hardware, screen mount, cables, and return rights; missing structural parts erase an apparent bargain.
Print-farm relevance
The Neptune 4 Plus makes the most sense as a dedicated large-format lane. Route jobs to it only when the 320 mm plate or 385 mm height saves assembly or enables a better part. Keep routine small work on compact printers that heat faster and expose less material and time per failure. Standardize a conservative profile, lock known-good firmware, keep consumables on hand, and measure accepted output per operator-hour.
If the goal is a finished oversized part rather than maintaining another machine, JCPRINTFARM's 3D printing service intake lets you evaluate production without buying and qualifying a large bedslinger. The 3D printer review directory collects the other model-specific reviews.
Final verdict
The Elegoo Neptune 4 Plus occupies a useful middle ground: far more capacity than an ordinary desktop printer without the extreme footprint and moving mass of a 420 mm machine. Klipper, direct drive, PEI, network control, acceleration sensing, and active exact-model support make the specification credible in 2026.
Buy it when 320 x 320 x 385 mm is a recurring requirement and you are willing to own the calibration and long-job workflow. Skip it when smaller parts, enclosed materials, automatic setup, or fleet consistency dominate the decision. It is a capable large-format value, but its value comes from using the volume—not merely having it.
