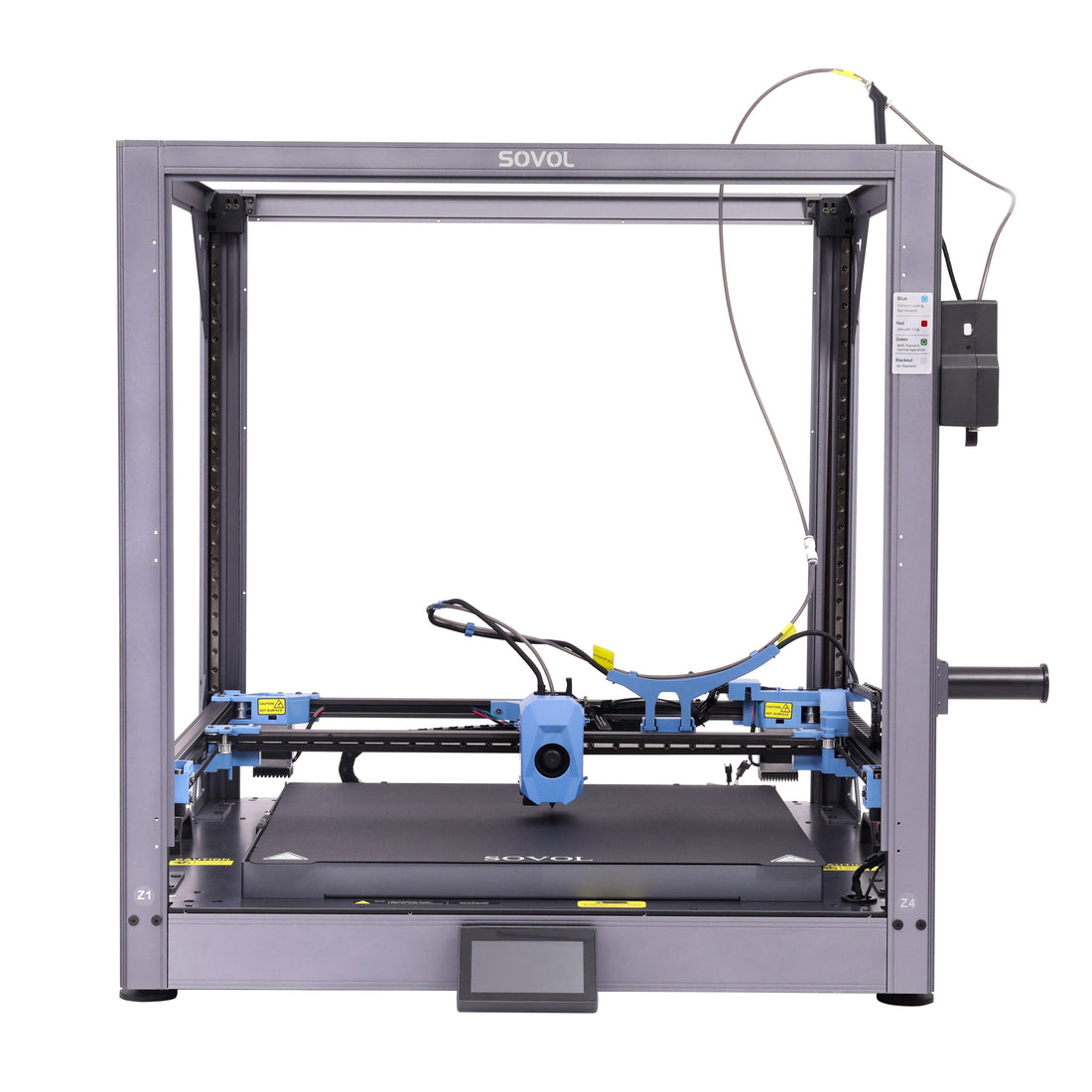

Sovol SV08 Max open-frame 500 mm CoreXY 3D printer in official product photo

Sovol SV08 Max Review (2026): Is 500 mm Worth It?

Verdict: The Sovol SV08 Max makes sense when a 500 × 500 × 500 mm build volume will eliminate seams or fit genuinely oversized work, and the operator is comfortable tuning Klipper hardware. Its fixed bed, CoreXY motion, high-flow hotend, and open controls are compelling. Most buyers should choose a smaller printer: the Max demands exceptional floor space, long-job risk management, noise tolerance, and hands-on maintenance.

Research disclosure: JCPRINTFARM has not performed a hands-on test of this exact printer. This review is based on Sovol's current product listing and published specifications, live US availability checked September 29, 2026, Tom's Hardware's hands-on review, independent video testing, and detailed third-party technical reference material. Manufacturer speed and material claims are identified as claims, not reproduced as our measurements.

Short answer: who should buy the Sovol SV08 Max?

Buy it for full-size props, broad tooling, furniture-scale prototypes, architectural models, large molds, or functional housings that truly benefit from a half-meter cube. It is also a credible platform for experienced Klipper users who want editable configuration, local network control, and mechanical access rather than a sealed appliance.

Skip it if most jobs fit a 350 mm or 256 mm printer, if automatic multicolor is essential, or if you need quiet, low-intervention production. A full-volume print can consume kilograms of filament and days of machine time. That makes a failed first layer, power event, tangled spool, profile error, or worn nozzle much more expensive than the same mistake on a normal desktop machine.

What the SV08 Max is

The SV08 Max is a very large open-frame CoreXY FFF printer with a stationary bed and a flying gantry. Four belt-driven Z motors move and level that gantry. Linear rails guide all axes. The architecture avoids moving a heavy 500 mm build plate back and forth, which is sensible for tall prints and multi-kilogram parts.

This is not simply a stretched SV08. Sovol pairs the larger frame with a 1,300 W AC bed, an auxiliary smart feeder for the long filament path, a stated 50 mm³/s high-flow system, eddy-current bed scanning, a 720p camera, and a 4.3-inch screen. The current official US listing offers the open machine and an enclosure bundle.

Key specifications in context

Specification Sovol SV08 Max What it means
Build volume 500 × 500 × 500 mm open; 500 × 500 × 450 mm with enclosure kit A 125-liter maximum envelope, but the enclosure costs 50 mm of stated Z capacity.
Motion CoreXY, stationary bed, flying gantry, four Z motors, full linear rails Appropriate mechanics for scale, while belts, rails, squareness, and gantry alignment remain maintenance items.
Claimed motion limits 700 mm/s; 40,000 mm/s² Machine limits are not guaranteed part speeds. Geometry, quality, cooling, acceleration distance, and material flow set real throughput.
Extrusion Direct drive; 300 °C hotend; stated 50 mm³/s flow; two 0.4 mm nozzles included A larger nozzle can shorten large jobs, but every nozzle and material combination needs its own qualified flow and cooling limits.
Bed 100 °C maximum; 1,300 W AC heater; 8 mm aluminum plate; flexible PEI surface Fast heating is useful, but a large AC bed deserves careful installation, undamaged grounding, and fire-aware placement.
Leveling Eddy-current scanning plus nozzle-contact Z-offset routine Fast mesh collection cannot compensate for contamination, poor adhesion, or a badly tuned first layer.
Controls Open Klipper, Wi-Fi, Ethernet, USB, camera, 4.3-inch touchscreen Good for local control and modification; configuration changes must be documented across a production fleet.
Machine size and weight About 700 × 710 × 750 mm; roughly 45 kg for the base package Measure doors, bench depth, overhead access, spool clearance, and service space. Plan on a two-person lift.

Where the SV08 Max is genuinely strong

One-piece scale that desktop printers cannot match

The main value is not speed; it is geometry. A 500 mm axis can remove glue joints from props, shells, fixtures, signs, and prototypes. It can also fit multiple medium parts in one setup. That does not automatically improve production economics, because one crowded build plate creates a single large failure domain. The best case is a part whose strength, appearance, or assembly time clearly improves when printed as one piece.

A fixed bed and suitably rigid motion layout

At this size, a bed-slinger would have to accelerate the bed, the build surface, and an increasingly heavy part. The Max instead moves a lighter XY gantry. Its aluminum frame and linear rails provide a sound basis for large-format motion. Tom's Hardware found the frame sturdy and reported good output after tuning, which is more useful evidence than the manufacturer speed number alone.

Open Klipper access

Operators can inspect macros, tune input shaping and pressure advance, use Moonraker-compatible local interfaces, and integrate the printer into a technically managed network. That is valuable for an experienced shop. It is also a governance cost: undocumented firmware, macro, or slicer changes can make two nominally identical printers behave differently. Back up known-good configuration before experimenting.

Large-format support systems

The auxiliary feeder is intended to help the long filament path and detect tangles or clogs. The built-in camera supports remote observation and time lapse. Neither feature turns a multi-day print into an unattended process. Camera monitoring cannot clear a jam, stop smoke, correct lifting corners, or reload material safely.

Limitations and real ownership costs

It needs workshop space, not ordinary desk space

The nominal 700 × 710 mm footprint does not include every cable, spool, lid, door, or service movement. The printer is around 45 kg before an enclosure and accessories. Tom's Hardware reported placing its unit on the floor because a suitable table was unavailable. A rigid, level base matters; so do access to the electronics, safe cord routing, and room to remove a half-meter build plate.

Noise is a meaningful constraint

Independent testing repeatedly calls out fan and motion noise. Tom's Hardware described the constant fan noise as fairly loud even when idle and louder while printing, with the enclosure doing little to quiet it. This is a workshop machine, not an easy office or bedroom companion. Noise also matters in a farm because several machines compound the problem.

Headline speed is not production speed

A 500 mm machine has room to accelerate, but the 700 mm/s ceiling still does not predict a finished-part time. Volumetric flow, line width, layer height, overhang cooling, wall quality, vibration, and part geometry intervene first. Large functional parts often benefit more from a qualified 0.6 or 0.8 mm nozzle than from chasing extreme carriage speed. Compare complete slicer estimates and validated part quality, not a single motion limit.

Large jobs magnify material and schedule risk

A full-volume model may run for days and use several spools. Confirm that the sliced job fits the spool plan, that filament is dry, and that the feeder path can handle spool changes. Use conservative first layers and inspect them. For production work, consider whether splitting the model across two smaller printers gives faster recovery, parallel capacity, and a smaller loss when one machine fails.

The base machine is open

PLA, PETG, and TPU are the simplest fits. ABS, ASA, nylon, PC, and composite materials add enclosure, ventilation, drying, adhesion, and wear requirements. Sovol's enclosure reduces stated Z capacity to 450 mm. The product page also describes a reserved interface for an optional heated-chamber module; do not assume the enclosure bundle includes active chamber heat unless the exact purchased configuration says so.

Single-tool workflow

The stock printer does not provide automatic color switching, soluble-support tool changes, or spool rollover. Community modifications may exist, but they increase integration and maintenance work. Buyers who need routine multi-material production should compare a native toolchanger instead of budgeting around an unqualified future modification.

Material and process fit

  • PLA: best for large props, visual prototypes, patterns, and broad low-temperature parts. Use adequate cooling and account for the room heat generated by long runs.
  • PETG: suitable for utility parts and fixtures after tuning adhesion, temperature, and stringing. Large flat parts still need careful warping control.
  • TPU: direct drive helps, but the long upstream filament path and auxiliary feeder deserve exact-material testing. Do not infer flexible-filament speed from rigid-material limits.
  • ABS and ASA: require the enclosure, ventilation, stable chamber conditions, and a qualified profile. The hotend temperature alone does not establish process readiness.
  • Nylon, PC, and filled materials: require drying, enclosure control, ventilation, suitable nozzle and extrusion wear parts, and realistic layer-adhesion expectations.

Workflow checklist before buying

  1. Measure the complete route from delivery point to installation area, including doors and turns.
  2. Provide a rigid support rated for the printer, enclosure, spools, and dynamic loads.
  3. Confirm power capacity and use a correctly grounded circuit; do not improvise around the AC bed.
  4. Budget for large dry-storage containers, multi-kilogram spool handling, spare nozzles, and build-surface care.
  5. Qualify a conservative profile before committing an expensive full-volume job.
  6. Back up Klipper configuration and version-control changes.
  7. Plan ventilation for styrene-emitting or engineering materials.
  8. Decide whether one large failure domain is better than splitting work across smaller machines.

Best alternatives

  • Sovol SV08: choose it when 350 × 350 × 345 mm is enough. It retains the open Klipper and flying-gantry appeal with a much smaller footprint and lower material-risk ceiling.
  • QIDI Plus4: choose it when a 305 mm envelope works and an enclosed, actively heated engineering-material workflow is more important than half-meter capacity.
  • Original Prusa XL+: choose it for established multi-tool workflows, soluble or breakaway supports, and lower-purge material changes when its smaller envelope is acceptable.
  • Snapmaker U1: choose it for four automatic direct-drive tools and compact multi-material work rather than extreme build size.
  • Outsource occasional oversized parts: if only a few jobs per year need 500 mm capacity, compare the printer, floor space, qualification time, failed material, and labor against a service quote through the JCPRINTFARM project intake.

Lifecycle and availability in 2026

The SV08 Max is a current product. On September 29, 2026, Sovol's live US product data listed both the base SV08 Max and the enclosure bundle as available. Availability and promotional pricing can change, so buyers should verify the exact regional variant, included accessories, enclosure contents, shipping terms, and current support coverage at checkout.

For more exact-model research, browse the JCPRINTFARM 3D printer review hub.

Final verdict

The Sovol SV08 Max earns a shortlist position when 500 mm capacity solves a repeated, documented problem. It combines the right broad architecture for scale with an unusually open control stack and a capable heating and extrusion system. Those qualities do not make it a carefree appliance.

Its best owner has workshop space, large-format demand, Klipper experience, and disciplined process controls. Its weakest buyer is someone attracted mainly by the specification sheet. If your normal parts fit the standard SV08 or a smaller enclosed platform, the smaller machine will usually be easier to place, qualify, feed, maintain, and recover after a failure.
