Creality Ender-3 V3 Plus Review (2026): Big Bed, Real Tradeoffs
Share
Verdict: The Creality Ender-3 V3 Plus is a credible large-format choice when 300 × 300 × 330 mm capacity matters more than an enclosure or multicolor system. Its CoreXZ motion, automatic calibration, direct-drive hotend, and included vibration sensor modernize the familiar bed-slinger formula. Buy it for genuinely large PLA, PETG, or TPU parts; skip it if ordinary 220 mm plates already fit your work.
Research disclosure: This is a research-based review, not a claimed hands-on test by JCPRINTFARM. The assessment combines Creality's current product and support documentation with published hands-on evidence from TechRadar and ThePhonograph. Specifications and availability were rechecked on October 4, 2026.

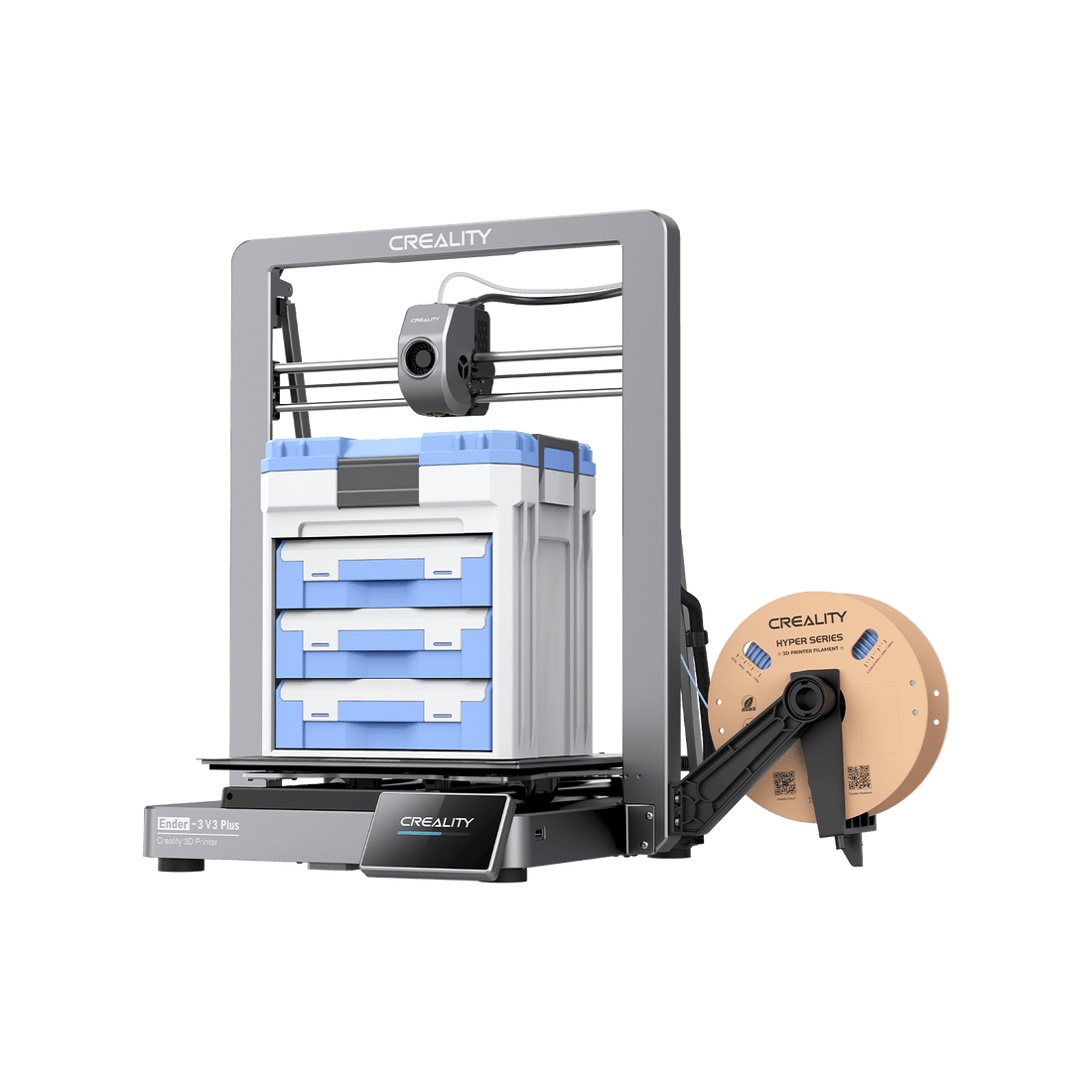

What the Ender-3 V3 Plus is
The Ender-3 V3 Plus is the 300 mm-class member of Creality's CoreXZ Ender-3 V3 family. Its 300 × 300 × 330 mm build volume is substantially larger than the 220 × 220 × 250 mm volume of the standard Ender-3 V3. The nozzle travels in X and Z through a coupled-belt CoreXZ mechanism, while the large bed still moves along Y. That distinction matters: this is not a CoreXY printer, despite the similar name.
Its strongest case is simple. A 300 mm plate can keep wide trays, cosplay sections, housings, jigs, organizers, and short production runs in one piece when a standard desktop plate would force splitting and joining. The larger machine is less compelling when most jobs remain small, because every extra millimeter brings a larger footprint, more moving mass, longer heat-up and calibration surfaces, and more material at risk on a long print.
Who it fits — and who should skip it
Best fit: makers, prototyping teams, prop builders, and small shops that repeatedly exceed a 220 or 256 mm plate but mostly print PLA, PETG, and flexible TPU. It is also a logical upgrade for an older Ender owner who wants modern automatic calibration and network transfer without moving to an enclosed machine.
Skip it: buyers whose work fits on a normal desktop plate, operators who need routine ABS/ASA production, anyone expecting automatic multicolor, and farms prioritizing compact density or unattended monitoring. For enclosure-sensitive materials or a more appliance-like workflow, compare an enclosed CoreXY model such as the Creality K1C. If you simply need finished large parts rather than another machine, use the JCPRINTFARM project intake.
Key specifications in useful context
| Specification | Ender-3 V3 Plus | Why it matters |
|---|---|---|
| Process and motion | FDM/FFF; CoreXZ gantry with moving Y bed | Fast X/Z travel, but the large print still moves with the bed. |
| Build volume | 300 × 300 × 330 mm | The principal reason to choose it over the standard V3. |
| Advertised speed | Up to 600 mm/s; up to 20,000 mm/s² acceleration | Ceilings, not promises for every model; quality, flow, geometry, and material still set practical limits. |
| Hotend and bed | 300°C nozzle; 100°C bed; quick-swap 0.4 mm nozzle | Useful temperature range, though an open frame still limits thermal control. |
| Extrusion | Direct drive, dual cooling fans, filament runout sensor | A sensible setup for PLA, PETG, and properly tuned TPU. |
| Calibration | Automatic leveling and Z offset; included G-sensor for input shaping | Reduces setup work and distinguishes the Plus from printers that sell resonance sensing separately. |
| Interface and transfer | 4.3-inch touch display; USB drive, WLAN, Creality Cloud | Supports local files and network sending, but cloud dependence remains a buyer choice. |
| Machine size and weight | 410 × 445 × 577 mm; about 11.5 kg | Allow additional depth for full bed travel, cables, spool placement, and service access. |
What the evidence says
Creality's current product page emphasizes the large build area, CoreXZ mechanism, twin Y-axis motors, support rods, automatic calibration, and 600 mm/s maximum-speed claim. The current support center remains active with exact-model setup material, parameters, firmware, manuals, and troubleshooting. That is meaningful lifecycle evidence in 2026: this is not merely a discontinued model surviving in reseller inventory.
TechRadar's hands-on review found assembly straightforward, highlighted the substantial 300 mm build capacity, and reported strong benchmark and print results for the price. It also noted the practical realities of a large machine: it needs space, the open design is less suitable for some materials, and the optional camera is not part of the base package.
ThePhonograph's later hands-on review likewise reported simple assembly, responsive touch controls, successful automatic calibration, good PEI-sheet behavior, and clean test output. Its published tests include a near-full-height vase and a fast Hyper PLA Benchy. Those results support the printer's capability, but they should not be treated as universal guarantees. Different geometry, profiles, room conditions, filament, and maintenance can change both speed and quality.
Strengths
A genuinely useful step up in build area
The Plus earns its name through capacity rather than cosmetic bundling. Compared with a 220 mm Ender-class plate, 300 mm in X and Y can eliminate seams in wide utility parts and accommodate fuller batches. The 330 mm Z height also helps tall props and containers, although tall prints on a moving bed deserve conservative acceleration and secure adhesion.
Modern calibration without manual bed knobs
Automatic bed leveling, automatic Z-offset setup, and input shaping remove several chores associated with older Ender machines. The G-sensor is included on the Plus, so resonance calibration does not require a separate accessory. These systems reduce setup burden; they do not remove the need to clean the plate, verify the first layer, maintain belts and wheels, or qualify a profile.
Direct drive and a practical hotend
The direct-drive extruder shortens the filament path and is a reasonable foundation for flexible materials. A 300°C nozzle and 100°C bed broaden nominal material support. For day-to-day use, PLA and PETG are the clearest fits, with TPU viable at appropriate speed and retraction settings. The temperature numbers alone do not turn an open printer into an engineering-material production system.
Local and network workflows
USB-drive transfer keeps an offline path available, while WLAN and Creality's software stack add remote file transfer and monitoring options. A camera is optional rather than integrated. Shops should decide in advance whether they want cloud services, local-network control, or removable-media discipline, then qualify that exact workflow before adding the printer to a production queue.
Limitations and ownership costs
Large-format bed movement is still a compromise
CoreXZ moves the toolhead efficiently in X and Z, but the 300 mm bed and the printed part still accelerate along Y. Large, tall parts add mass and leverage. The headline 600 mm/s figure therefore should not dictate every profile. Outer-wall quality, layer time, hotend flow, bed adhesion, ringing, and part stability usually justify slower settings on demanding jobs.
The open frame limits thermal control
Creality lists ABS among supported materials with a qualification on its product page, while its own support FAQ specifically addresses ABS adhesion difficulty. That tension is the practical warning. A 300°C nozzle can melt ABS or ASA, but large parts benefit from controlled ambient temperature and ventilation. An improvised enclosure must also account for electronics, fire safety, fumes, and service access. Buyers with routine warp-prone work should start with a purpose-built enclosed printer.
Large prints multiply risk
More build volume is valuable only when the work uses it. A near-capacity job can consume a full spool or more and run for many hours. A late failure costs more time and material than a small desktop misprint. Budget for dry filament storage, spare nozzles, plate care, wear items, power, monitoring, and test coupons—not just the printer's sale price.
No native multicolor system
The Ender-3 V3 Plus is fundamentally a single-nozzle, single-spool machine. Manual color changes are possible at layer boundaries, but buyers expecting automated multicolor should compare a printer designed around a material-changing ecosystem. That alternative adds purge waste and complexity, so single-color simplicity can still be an advantage for large functional parts.
Materials and workflow fit
- PLA: the easiest match for large prototypes, props, organizers, and display work. High-flow PLA may help exploit faster profiles.
- PETG: a practical choice for tougher utility parts, with careful temperature, cooling, and plate-release settings.
- TPU 95A: supported by the direct-drive layout, though large flexible jobs should use conservative speed and dry material.
- PLA-CF: listed by Creality, but abrasive blends require checking the installed nozzle material and keeping a suitable replacement on hand.
- ABS/ASA: technically printable at the available temperatures, but the open frame is the decisive limitation for large, warp-prone parts.
For a production-minded setup, validate one material and nozzle combination at a time. Record extrusion temperature, bed temperature, maximum volumetric flow, pressure advance, cooling, first-layer behavior, and a realistic acceleration limit. A fast decorative Benchy profile is not automatically a safe profile for a 250 mm-wide functional enclosure.
Realistic alternatives
Creality Ender-3 V3
Choose the standard Ender-3 V3 when 220 × 220 × 250 mm is enough. It preserves the CoreXZ concept in a smaller, easier-to-place machine. Paying for the Plus without recurring oversize work wastes bench space.
Creality Ender-3 V3 KE
The Ender-3 V3 KE is a value-oriented 220 mm alternative with fast Klipper-derived operation, direct drive, automatic leveling, and Wi-Fi. It lacks the Plus model's capacity and CoreXZ structure, but it is the more efficient choice for ordinary desktop parts.
Bambu Lab A1
The Bambu Lab A1 offers a more integrated consumer workflow and optional AMS lite multicolor in a 256 mm-class open bed-slinger. It is smaller than the Creality, so the choice is largely integrated ecosystem versus true 300 mm capacity.
Creality K1C
The enclosed K1C trades build area for a compact CoreXY enclosure and a workflow better suited to temperature-sensitive materials. Pick it for material control and footprint, not for the largest one-piece parts.
Lifecycle and availability in 2026
The exact model remained listed in Creality's official store when checked, and Creality maintained an exact-model support center plus firmware and manual downloads. That supports treating the Ender-3 V3 Plus as a current, supported printer rather than a legacy used-market recommendation. Pricing and regional stock move frequently, so compare the delivered price, return terms, warranty route, and local spare-part availability on the day of purchase.
Final verdict
The Ender-3 V3 Plus is easy to recommend for a narrow, defensible reason: it delivers modern calibration and credible speed in a 300 × 300 × 330 mm open printer. Its capacity is the benefit and the source of its costs. If large one-piece PLA, PETG, or TPU jobs are common, it belongs on the shortlist. If they are occasional, a smaller printer or outsourced production is usually the smarter use of space and money.
Sources
- Creality Ender-3 V3 Plus official product page
- Creality Ender-3 V3 Plus support center
- Creality official store listing
- TechRadar hands-on review
- ThePhonograph hands-on review
