Cleaning Status Before Storing and Reissuing 3D Printed Fixtures

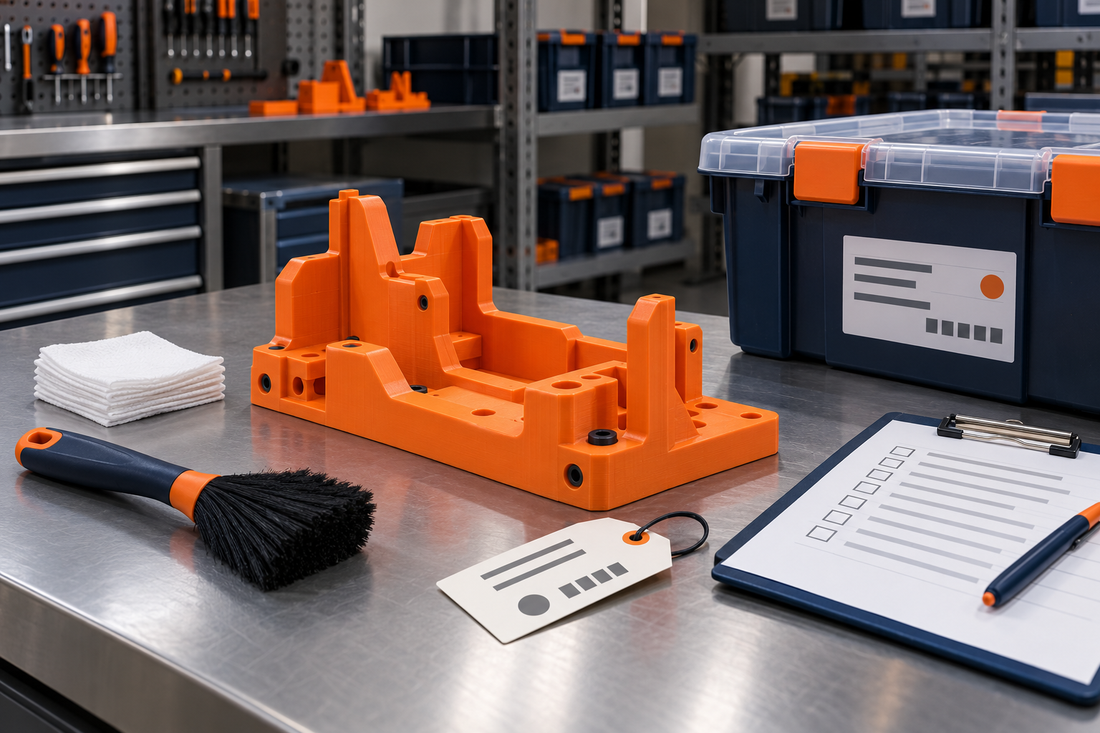

Before storing a 3D printed fixture, record its identity, last use, cleaning method, condition, contamination concerns, missing hardware, storage protection, and approved status. Before reissue, confirm the released revision, intended station, storage history, cleanliness, condition, installed components, and required validation. “Cleaned” should be a controlled state with evidence—not an assumption based on appearance.
Define status before the fixture leaves the station
Separate physical location from release status. A fixture can be in the tool crib but still be dirty, incomplete, quarantined, awaiting inspection, restricted to one product revision, or pending validation. Record the asset ID, fixture revision, last station and job, removal reason, last known acceptable use, current custodian, and time of transfer.
| State | Minimum evidence | Permitted next step |
|---|---|---|
| Returned—unassessed | Identity, source station, last use, quantity or asset count, visible condition, and custody | Contain and assess; do not issue |
| Cleaning required | Known soil or residue, approved cleaning limits, components to protect, and owner | Perform bounded cleaning and record method |
| Cleaned—inspection pending | Method, materials used, date, operator, drying or cure status, and exceptions | Inspect identity, interfaces, condition, and completeness |
| Storage ready | Inspection result, protection, hardware count, status label, location, and review trigger | Place in controlled storage |
| Reissue pending | Requesting station, product and revision, need event, storage history, and revalidation plan | Review compatibility and condition |
| Released for use | Current identity, condition, configuration, point-of-use checks, approver, and effective time | Issue to the named use |
Match the cleaning method to the unknowns
Identify residue, process exposure, material compatibility, embedded hardware, labels, adhesives, wear surfaces, and dimensional interfaces before selecting a method. Do not claim chemical, temperature, food-contact, cleanroom, or sterilization compatibility without buyer-approved evidence. If the prior exposure is unknown, quarantine and escalate instead of treating a visually clean surface as safe.
Inspect after cleaning, not only before it
Cleaning can reveal cracks and wear, but it can also loosen inserts, damage labels, change friction surfaces, trap moisture, or remove evidence of a failure. Recheck locating features, clamps, fasteners, inserts, contact faces, clearances, labels, and any feature tied to product acceptance. Record what was inspected and what was not.
Protect the fixture during storage
Define orientation, support, stacking limits, dust or moisture protection, separation from rejected tools, removable hardware control, location, access authority, and periodic review. Avoid loading slender features, sealing damp tooling, or allowing an outdated label to imply current release. The storage record should identify the physical asset without relying on tribal knowledge.
Reissue is a new decision
At withdrawal, verify the requested product, revision, station, mating parts, setup, and acceptance method. Check the fixture against current released requirements and any storage-expiry or change trigger. Point-of-use validation should match the risks of the fixture function; storage status alone does not prove production readiness.
Fit, non-fit, risks, and quote readiness
This workflow fits recurring jigs, fixtures, nests, guides, assembly aids, inspection aids, soft jaws, and line-side tooling that cycle through use and storage. A disposable low-risk aid may need a simpler rule. Safety-critical, regulated, food-contact, electrical, high-temperature, or chemically exposed applications require buyer-defined controls beyond this general workflow.
- A dirty or wet fixture is sealed into storage.
- Cleaning removes a damage signature before condition is recorded.
- Missing inserts or fasteners are discovered only at the next production event.
- A superseded fixture keeps an old “approved” label.
- Visual cleanliness substitutes for contamination or compatibility evidence.
- A stored tool is issued without checking the current product revision and station.
For quote readiness, provide fixture ID and released revision, intended function, material and installed hardware, known process exposure, residue concerns, approved and prohibited cleaning methods, critical interfaces, inspection criteria, storage protection, label and location rules, review triggers, reissue checks, validation method, and release authority. Use production 3D printing for managed, inspection-sensitive fixture programs.
Related guidance: supporting control guidance and tooling decision guidance.
Frequently asked questions
Is “visually clean” enough for storage?
Not when residue, contamination, moisture, chemical compatibility, or critical interfaces matter. Define the evidence required for the actual application.
Should a fixture be validated again after storage?
Use the buyer-defined trigger. Changes in condition, revision, station, mating parts, hardware, storage duration, or cleaning method can justify renewed checks.
Can cleaned fixtures be stored with quarantined tooling?
They should remain physically and visually segregated so location cannot be mistaken for release status.
Final decision
Release the record only when asset identity, revision, status, custody, condition, evidence, affected work, disposition, approver, and remaining exceptions agree.
