Carbon-Fiber-Filled Filaments for Stiff Production Components
Carbon-fiber-filled filaments can increase stiffness and dimensional stability for some production components, but “carbon fiber” is not a complete specification and stiffness is not the same as strength, toughness, or safety. Buyers should control the base polymer, exact grade, fiber-filled status, load path, moisture condition, wear interfaces, geometry, first-article evidence, inspection, and repeat-release rules.
Decision rule: Start with the base polymer and failure mode, then qualify the exact fiber-filled grade and finished geometry for the real load path.
Control the material decision and production release
| Decision area | Quote-ready inputs | Release evidence |
|---|---|---|
| Base polymer and grade | Polymer family, exact manufacturer and grade, fiber-filled status, color, required documents, approved alternates, lot policy, and substitution authority | The production baseline identifies the exact material; PA-CF, PET-CF, ABS-CF, and other families are not treated as interchangeable |
| Stiffness and load path | Required deflection behavior, load magnitude and direction, duration, impact, vibration, fastener preload, temperature, moisture, and failure consequence | Buyer-owned evidence evaluates the finished geometry and weakest orientation against the real assembly |
| Geometry and interfaces | Controlled CAD and drawing, ribs, walls, bosses, holes, inserts, notches, mating parts, wear surfaces, edge conditions, orientation, and support-contact limits | Representative first articles prove fit, assembly, workmanship, and critical interfaces before production release |
| Repeat production | Quantity by SKU, cadence, sampling, usable-unit definition, labels, packaging, moisture protection if required, records, reorder identifier, and change triggers | Later lots reconcile to the approved revision, exact grade, condition, orientation, inspection plan, and pack-out |
Production risks to resolve
Using “carbon fiber” without naming the base polymer and exact grade; treating stiffness as proof of strength, impact resistance, wear life, heat capability, or safety; ignoring anisotropy, notches, layer adhesion, bosses, inserts, fastener preload, abrasion, moisture, temperature, chemicals, surface finish, electrical behavior, contamination, storage, or packaging; allowing silent substitutions; and comparing data sheets with different conditioning or test methods.
Do not infer service life, load rating, safety, environmental compatibility, regulatory suitability, or a customer result from appearance, a family name, a supplier chart, or one sample. The buyer should define requirements, evidence, validation ownership, acceptance, and release authority wherever failure matters.
Quote-readiness checklist
- Controlled CAD and drawing, units, revision, quantity by SKU, cadence, destination, manufacturing authority, and failure consequence
- Base polymer, exact fiber-filled grade, manufacturer if mandatory, color, approved alternates, required documents, lot rules, traceability, and written substitution authority
- Required stiffness or deflection behavior, load direction and duration, impact, vibration, fastener preload, temperature, moisture, chemicals, wear, mating materials, and replacement expectations
- Critical interfaces, walls, ribs, bosses, holes, inserts, notches, edge conditions, orientation-sensitive features, support-contact zones, finish, workmanship, and inspection
- Representative first article, fit or functional fixture, buyer-owned validation, sampling, accepted-unit definition, packaging, approval owner, deviations, change triggers, and reorder identifier
Fit and non-fit decision
A qualified fiber-filled grade may fit controlled low-consequence fixture blocks, brackets, mounts, housings, guides, robot or automation accessories, and machine components when stiffness and dimensional control matter. It is not automatic approval for lifting, structural, pressure, protective-equipment, medical, food-contact, electrical, flame-rated, vehicle, or other regulated or safety-critical work.
Related planning resources: production 3D printing, repeat production runs, the production material guide, and the PET-CF and ABS-CF guide.
Buyer FAQs
Does carbon-fiber-filled filament make a printed part stronger?
Not automatically. A filled grade may increase stiffness in relevant directions, while toughness, layer adhesion, impact behavior, notch sensitivity, and failure mode can differ. Validate the exact finished part.
Why must the base polymer be named?
The base polymer governs much of the environmental, moisture, temperature, chemical, and processing behavior. PA-CF, PET-CF, ABS-CF, and other filled families are different production baselines.
Are carbon-fiber-filled parts isotropic?
No. FDM parts remain direction-dependent. Fiber alignment and layer bonding make orientation, load path, walls, ribs, notches, inserts, and acceptance evidence important.
When should a fiber-filled repeat order require reapproval?
Typical triggers include grade or supplier, CAD, orientation, walls, process route, nozzle or hardware, finishing, inspection, packaging, environment, or acceptance criteria.
PA-CF Robot Brackets: Production 3D Printing Supplier Guide
Choose a PA-CF 3D printing supplier for robot brackets by defining the bracket's exact interface, load cases, motion envelope, alignment job, hardware, environment, and approval evidence. Send controlled files, robot and mating-component references, quantities by SKU and release, critical features, installation sequence, first-article or line-trial needs, labels, packaging, destinations, and requested timing.
Choose the right PA-CF quoting route
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, or complex work, while instant quote fits clean files and straightforward requirements.
JC Print Farm / JCSFY is a US production 3D printing business based in Central Ohio. Its live materials guidance confirms that the farm runs high-temperature carbon-fiber nylons from Polymaker. That establishes a current material lane, but it does not mean every PA-CF grade, geometry, tolerance, test, certification, finish, quantity, or deadline is automatically supported. The actual project scope still needs review.
PA-CF production supplier decision: key facts
PA-CF describes a family. Identify the proposed base polyamide, manufacturer and grade, color, approved alternatives, and change-approval rule.
Material preparation and finished-part moisture condition can affect processing, inspection, dimensions, and behavior.
Orientation, layer direction, walls, transitions, holes, inserts, and supported surfaces can matter more than a generic material-property headline.
Tie the approved file, grade, process assumptions, checks, labels, packaging, and substitutions to every reorder.
Start with the polymer matrix, not the fiber label
“Carbon-fiber reinforced” describes a broad material category, not one interchangeable specification. Chopped fiber modifies a base polymer; the matrix still governs much of the temperature, moisture, chemical, impact, and processing behavior. A supplier should identify the exact manufacturer, grade, matrix, color, and condition it proposes. JC Print Farm’s currently verified lane is high-temperature carbon-fiber nylon from Polymaker, so this page evaluates PA-CF work without implying support for every carbon-fiber-filled polymer.
Supplier evidence matrix for carbon-fiber reinforced parts
| Decision | Buyer must define | Supplier response to request |
|---|---|---|
| Material identity | Required matrix or performance need, exact grade if mandated, color, and allowed substitutes. | Manufacturer and grade proposed, material basis, and written substitution or lot-change rule. |
| Part condition | Environment at inspection and use, moisture exposure, storage, conditioning, and packaging needs. | How manufacturer guidance is applied and what condition the acceptance evidence represents. |
| Load path | Loads, mating hardware, critical faces, failure consequences, and known weak directions. | Proposed orientation, support approach, and which production-intent features require approval. |
| Abrasive process | Features sensitive to drift, holes, inserts, datums, and surface expectations. | Wear-control and change-detection approach stated without demanding protected machine settings. |
| Finished-part evidence | Measurements, fit checks, functional checks, sample plan, records, and approver. | A first-article and repeat-lot evidence plan tied to the actual printed geometry. |
| Repeat release | Revision, quantity by SKU, cadence, labels, pack-out, destinations, and reapproval triggers. | How accepted files, material, orientation, inspection, exceptions, and shipped count remain traceable. |
Qualify the printed part, not a datasheet headline
Published material data can help screen a grade, but it does not establish the performance of every printed geometry. Build direction, wall strategy, local transitions, supports, holes, inserts, fiber-filled surface behavior, moisture condition, and test method can all change the relevant outcome. For consequential parts, define a production-intent first article or bounded pilot using the proposed grade, geometry, orientation, secondary work, and acceptance method.
- Preflight: resolve file identity, units, revision, exact grade, environment, load path, quantity, evidence, and exclusions.
- Approve the production-intent part: evaluate critical interfaces, mating hardware, supported or cosmetic surfaces, dimensions, and the agreed condition.
- Run a bounded pilot when risk warrants it: prove inspection, count reconciliation, labels, packaging, and receiving—not only printer completion.
- Freeze the accepted baseline: record the approved revision, material, orientation-sensitive assumptions, secondary work, checks, and change triggers.
- Control each release: separate forecast demand from authorized quantity and reconcile accepted, rejected, reprinted, held, and shipped units.
When PA-CF is a fit—and when to pause
Potential fit: fixtures, tooling aids, brackets, mounts, housings, and other stiff functional components when the exact grade, geometry, environment, load path, pilot evidence, and acceptance rules are explicit. Pause for more evidence or another process: pressure boundaries, safety-critical or certification-dependent work, unknown chemicals, sealing claims, extreme exposure, highly cosmetic surfaces, unsupported thin features, or failure consequences that exceed the available finished-part validation.
Carbon-fiber part RFQ checklist
- Controlled CAD or mesh, units, drawing, part number, revision, and mating-component references.
- Firm quantity by SKU and release; forecasts clearly separated from authorized demand.
- Required matrix and exact grade, or measurable needs the supplier may use to propose PA-CF.
- Permitted alternates, color, service environment, moisture condition, loads, and failure consequences.
- Critical datums, holes, inserts, faces, load direction, appearance zones, and secondary operations.
- First-article or pilot scope, acceptance method, sampling, required records, and change triggers.
- Labels, bagging, kits, pack count, surface or interface protection, destinations, and receiving limits.
Compare overall supplier fit on the production 3D printing service, plan controlled quantities with the bulk and batch production guide, structure reorders with the repeat production-run guide, compare broader choices in the production material guide, prepare scope with the production quote checklist, and define evidence with the quality-control guide.
Fixtures and brackets need different PA-CF approval plans
PA-CF can be a candidate for rigid production aids and mounting parts, but a filament label does not prove stiffness, fatigue life, wear, dimensional stability, or application safety. JC Print Farm / JCSFY is a US production 3D printing business based in Central Ohio, and the currently verified material lane is high-temperature carbon-fiber nylon from Polymaker. Exact grade, geometry, quantity, evidence, and application fit still require review.
| Part job | RFQ inputs that matter | Production-intent approval |
|---|---|---|
| Locating fixture or nest | Primary, secondary, and tertiary datums; contact points; part-loading direction; allowable movement; poka-yoke features; and replaceable wear details. | Fit the actual workpiece or controlled master and verify repeat location under the intended loading sequence. |
| Clamp or assembly fixture | Clamp forces and directions, hard stops, fasteners, inserts, operator sequence, tool access, expected cycles, and failure consequences. | Approve the complete fixture with production-intent hardware and a bounded use trial owned by the buyer. |
| Equipment bracket | Mounting plane, hole pattern, hardware, torque basis, static and cyclic loads, vibration, cable or hose reactions, environment, and keep-out zones. | Check mating interfaces, installed alignment, fastener access, and the buyer-defined load or functional evaluation. |
| Sensor or camera mount | Alignment target, adjustment range, line of sight, cable routing, vibration, nearby heat, and service access. | Approve installed position and stability in the actual assembly; material data alone is not alignment proof. |
| Repeat supply | Governing revision, approved grade, critical checks, accepted-unit rule, labels, pack count, release quantity, and change authority. | Tie each release to the approved baseline and require reapproval for defined material, orientation, process, or interface changes. |
Resolve load path, wear, and hardware before quoting
- Load path: identify tension, bending, shear, clamp, impact, vibration, and sustained-load directions. Printed behavior is directional, so the proposed orientation must be evaluated with the real geometry.
- Datums and contact: separate locating surfaces from clearance surfaces. State which contacts can wear, mark, flex, or be replaced and which directly govern product acceptance.
- Holes, inserts, and fasteners: name hardware, installation method, access, torque or retention requirement, edge distance, and validation owner. Do not assume a printed hole or insert meets an unstated pull-out requirement.
- Wear strategy: define expected use, contamination, cleaning, sliding contact, inspection frequency, wear limits, and whether bushings, pads, or replaceable details are required.
- Environment: disclose temperature, humidity or moisture exposure, chemicals, UV, machine fluids, and storage. Generic PA-CF properties are not finished-part evidence.
Fit, non-fit, and production risk
Potential fit: assembly nests, checking aids, equipment brackets, sensor mounts, guides, guards, and other stiff functional parts when interfaces, loads, environment, wear, evidence, and replacement rules are bounded. Pause or use specialist validation: safety-critical lifting or guarding, certified structures, pressure boundaries, unbounded fatigue or creep, unknown chemicals, precision metrology without a traceable plan, or any service-life promise unsupported by finished-part evidence.
Use a first article to confirm geometry, hardware, interfaces, and appearance. Use a controlled pilot when operator sequence, repeated clamping, wear, vibration, assembly, labeling, or pack-out could expose risks that a loose-part inspection misses. Freeze the accepted revision, grade, orientation-sensitive assumptions, secondary work, checks, and change triggers before repeat releases.
PA-CF fixture and bracket quote-readiness checklist
- Controlled CAD or mesh, units, drawings, part numbers, revisions, file precedence, and quantity by SKU and release.
- Fixture or bracket job, mating parts, datums, contact surfaces, mounting planes, hole patterns, hardware, inserts, and assembly sequence.
- Loads and directions, clamp forces, vibration, impacts, expected use, wear points, cleaning, environment, and failure consequences.
- Exact approved PA-CF grade or bounded performance need, permitted alternatives, color, and approval authority.
- Critical features, production-intent orientation limits, first-article and pilot scope, methods or outcomes, sampling, records, and approver.
- Accepted-unit rule, labels, kitting, pack count, surface and interface protection, destinations, requested dates, and reapproval triggers.
Review the broader production 3D printing service, bulk and batch production guide, repeat production-run guide, production material guide, production quote checklist, and quality-control guide.
Define the robot-bracket job before choosing PA-CF
JC Print Farm / JCSFY is a US production 3D printing business based in Central Ohio. The verified reinforced-nylon lane is high-temperature carbon-fiber nylon from Polymaker, subject to project review. That verified material pathway does not make every robot bracket suitable for printing: procurement still needs a controlled application brief and finished-part approval plan.
| Bracket job | Inputs that change supplier choice | Useful approval evidence |
|---|---|---|

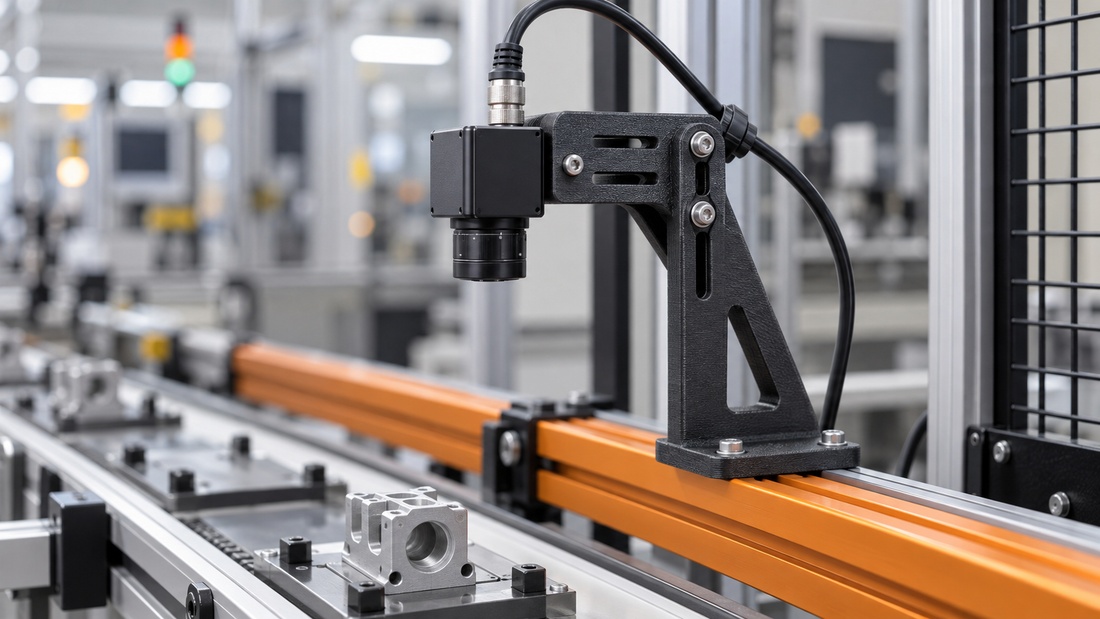

| Sensor, camera, or target mount | Mounting datums, field of view or sensing gap, adjustment range, cable forces, vibration, nearby heat, and service access. | First-article dimensions plus installed alignment and stability checks owned by the buyer. |
| Cable, hose, or dress-pack support | Supported bundle, bend and strain limits, motion path, abrasion points, clamp hardware, collision envelope, and replacement access. | Static fit followed by a bounded motion trial with inspection points and an approved replacement rule. |
| End-of-arm peripheral bracket | Tool-side interface, mass and center of gravity supplied by the buyer, accelerations or duty cycle, fasteners, keep-out zones, and failure consequence. | Interface inspection and buyer-defined functional testing on the intended assembly before release. |
| Stationary robot-cell accessory mount | Base or frame interface, alignment, vibration, impacts, fluid and temperature exposure, guarding boundary, and maintenance access. | Installed fit, access, alignment, and application-specific acceptance evidence. |
| Repeat supply | Approved grade, revision, orientation-sensitive baseline, inserts and secondary work, critical checks, labels, pack count, and change authority. | A released first article or pilot baseline tied to reapproval triggers for material, process, interface, or use changes. |
Material and process implications for robot brackets
- Directional behavior: carbon fiber does not make a printed bracket isotropic. The supplier needs buyer-defined load directions so geometry and orientation assumptions can be reviewed.
- Moisture and condition: nylon moisture condition can affect processing and finished-part response. State storage, conditioning, and service exposure instead of treating a dry datasheet value as application proof.
- Hardware interfaces: identify every fastener, insert, washer, torque basis, access path, edge distance, and validation owner. Do not leave pull-out, bearing, or clamp behavior implicit.
- Alignment and mating faces: distinguish locating surfaces from clearance surfaces and name any face, bore, slot, or hole that needs secondary finishing or controlled inspection.
- Electrical behavior: do not assume a carbon-filled polymer is electrically insulating, conductive, dissipative, or ESD-safe without grade-specific and finished-part evidence.
Production risks to close before release
- An incomplete robot or mating-component reference can shift hole patterns, datums, cable paths, or service clearances.
- Static fit does not prove behavior under acceleration, vibration, repeated motion, temperature, moisture, impact, or collision.
- Uncontrolled insert installation, hardware substitution, torque, or secondary machining can change the approved interface.
- A bracket near guarding, human access, lifting, primary robot structure, or safety functions needs an explicit engineering and compliance boundary.
- Revision drift can create a bracket that fits the old tool, sensor, robot, cable, or cell layout but not the released configuration.
Fit and non-fit cases
Potential fit: bounded sensor mounts, camera brackets, dress-pack supports, guides, stationary cell accessories, and other non-primary mounting parts when interfaces, loads, motion, environment, failure consequence, and approval evidence are controlled. Non-fit or specialist-review cases: primary robot structures, lifting components, certified or regulated parts, unresolved guarding or personnel risk, unknown load spectra, high-consequence collisions, or any service-life promise without finished-part validation.
Quote-readiness checklist for PA-CF robot brackets
- Controlled CAD or mesh, drawings, units, part numbers, revisions, file precedence, and manufacturing rights.
- Bracket function, robot and mating-component identification, mounting datums, hole patterns, keep-out zones, and service access.
- Buyer-defined static and dynamic loads, directions, mass and center-of-gravity inputs where relevant, vibration, impacts, duty cycle, and failure consequence.
- Exact approved PA-CF grade or bounded material need, permitted alternatives, color, moisture or conditioning expectations, and approval authority.
- Hardware, inserts, torque basis, cable or hose reactions, environment, critical features, workmanship boundaries, and secondary operations.
- First-article and line-trial scope, sampling, records, accepted-unit rule, labels, kitting, packaging, destinations, requested dates, and reapproval triggers.
Use the broader production 3D printing service, production material buyer guide, repeat production-run guide, US print-farm intake guide, production quote checklist, and quality-control guide to prepare the release.
PA-CF robot bracket supplier FAQs
What should a PA-CF robot bracket RFQ include?
Send controlled CAD and drawings with units and revision, bracket function, robot and mating-component references, mounting interfaces, hardware and inserts, buyer-defined loads and motion, alignment needs, cable or hose reactions, environment, critical features, first-article and line-trial plan, quantities by SKU and release, labels, packaging, destination, and requested timing.
Does PA-CF make a robot bracket safe for any load?
No. A PA-CF label does not establish finished-part strength, fatigue life, creep, impact resistance, insert retention, or safety. Geometry, fiber-filled grade, moisture condition, print orientation, interfaces, dynamic loads, environment, and buyer-owned validation determine whether a bracket fits its job.
When is a 3D printed PA-CF robot bracket a poor fit?
Pause when loads or motion are unknown, failure could expose people or damage equipment, the part is a primary robot structure or lifting component, certified performance is required, collision consequences are unresolved, or finished-part validation and change control cannot be defined. A machined or otherwise engineered component may carry less lifecycle risk.
When is farm intake better than instant quote for robot brackets?
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, line-trial-dependent, kitted, or otherwise complex work. Instant quote fits clean files and straightforward requirements after material, interfaces, quantity, and acceptance scope are clear.
What PA-CF is—and what the label does not prove
PA-CF is a polyamide-based filament reinforced with chopped carbon fiber. It is commonly evaluated when a buyer wants a stiffer engineering part, improved geometry stability, or a matte technical surface compared with an unfilled polymer. The label does not prove that a finished part will meet a load, temperature, chemical, fatigue, impact, dimensional, sealing, electrical, or regulatory requirement.
The selected formulation, print direction, geometry, process, conditioning, environment, and acceptance method determine whether the actual part is fit. Use the manufacturer’s instructions and data for the exact proposed grade. For example, the official Polymaker Fiberon PA6-CF20 product information is a grade-specific source; it should not be generalized to every carbon-fiber nylon.
How PA-CF changes supplier selection
| Decision area | What the buyer should provide or ask | Why it changes supplier fit |
|---|---|---|
| Grade and condition | Exact PA-CF grade, allowed substitutions, manufacturer processing guidance, preparation expectations, and inspection or use condition. | Different polyamide bases and formulations are not interchangeable, and moisture condition can change the comparison. |
| Geometry and orientation | Load direction, critical faces, thin sections, holes, inserts, supports, cosmetic zones, mating references, and force paths. | FDM parts are direction-sensitive; orientation also affects support marks, access, build efficiency, and feature behavior. |
| Wear and process ownership | Ask how the supplier handles abrasive filled filament, nozzle suitability, wear-related changes, profile ownership, and approved deviations. | Carbon-fiber-filled filament is abrasive, so tool condition and process-change rules belong in supplier evaluation. |
| Acceptance and release | First article, critical checks, sampling or count, evidence, pack unit, labels, release cadence, and destinations. | A repeat program needs an approved baseline and clear handoff, not merely a successful build. |
Design and process implications that change the quote
Moisture handling and finished-part condition
Polyamide materials are hygroscopic. Ask which grade-specific preparation instructions govern the quote and how exposure is handled between preparation and printing. Also decide whether dimensions, fit, or functional checks apply in an as-printed, conditioned, or use-state condition. Do not invent a universal drying schedule: follow the current manufacturer instructions for the exact material and equipment.
Abrasive fiber and nozzle wear
Filled materials can accelerate wear. A supplier should be able to explain the suitable nozzle material and diameter for the proposed grade, how wear-related changes are detected, and which process changes require buyer approval. That does not imply a universal inspection interval; geometry, grade, nozzle, throughput, and equipment all affect the plan.
Orientation, stiffness, and failure mode
Carbon fiber can make the printed polymer stiffer, but stiffness is not the same as toughness, impact resistance, fatigue life, or interlayer strength. Show the supplier the real load direction and critical interfaces. If failure consequences matter, define the part-level evidence or test needed instead of accepting a filament data-sheet value as finished-part proof.
Holes, inserts, mating faces, and finishing
Clarify whether holes are printed, drilled, reamed, or gauged; whether threads are printed or use inserts; which faces may show support contact; and which interfaces need a defined fit. Secondary operations, hardware, cleaning, and evidence should be explicit line items or assumptions in the quote.
Fit and non-fit cases for PA-CF production parts
Potential fit: rigid fixtures, tooling aids, brackets, mounts, guards, machine-adjacent components, and housings where stiffness, geometry stability, and a technical matte surface are useful—and where the actual grade, design, process, condition, and acceptance plan are approved.
Needs more evaluation: parts whose primary need is flexibility, high impact absorption, a glossy cosmetic surface, a sealed or pressure-retaining function, very thin unsupported features, or proof against a specific chemical, temperature, fatigue cycle, flame, electrical, food-contact, medical, or other regulated requirement.
Non-fit warning: do not treat “carbon fiber” as a proxy for continuous-fiber composite behavior or finished-part certification. Chopped-fiber FDM parts remain printed polymer parts with geometry- and process-dependent behavior.
Production risks to resolve before ordering
- Grade ambiguity: “PA-CF” appears on the purchase order without a manufacturer, grade, allowed alternative, or change rule.
- Condition mismatch: supplier and buyer inspect or use the part at different moisture conditions without defining the governing state.
- Load-path mismatch: the print orientation is optimized for build convenience while the critical force direction is unknown.
- Wear drift: abrasive material changes nozzle condition or feature output without a defined response.
- Data-sheet substitution: filament values are treated as proof for the printed geometry, orientation, environment, and failure mode.
- Revision drift: first article, production release, label, and reorder are not tied to the same governing file and revision.
- Vague acceptance: words such as strong, flat, accurate, smooth, or heat resistant have no agreed drawing callout, sample, gauge, or test.
- Late pack-out decisions: labels, bags, moisture barrier, kits, pack quantity, and receiving needs are added after quote comparison.
PA-CF production quote-readiness checklist
- Governing CAD or mesh file, intended units, part number, and revision.
- Quantity by part and SKU, firm release quantity, forecast context, and reorder pattern.
- Exact PA-CF manufacturer and grade or measurable performance requirements; color and allowed alternatives.
- Use environment, load direction, failure consequence, mating parts, critical faces, and cosmetic zones.
- Finished-part condition expected for dimensional or functional acceptance.
- First-article approval, critical dimensions, fit checks, sampling or count, and required records.
- Holes, inserts, machining, hardware, cleaning, assembly, labels, kits, packaging, and pack quantity.
- Destination, shipping handoff, partial-release value, receiving constraints, and requested timing.
- Confidentiality, file access, retention, supersession, and change-approval requirements.
Use the production material guide to compare material families, the production quote-readiness checklist to normalize requirements, and the repeat production workflow to plan releases. For supplier context, review the US contract print farm, production 3D printing, and bulk and batch production.
PA-CF production 3D printing FAQs
What does a PA-CF production supplier need for a useful quote?
Send the governing files and units, part number and revision, exact PA-CF grade or measurable requirements, quantity by SKU and release, use environment, load direction, critical interfaces, appearance expectations, acceptance method, packaging, destination, and timing. State whether alternatives require approval.
Is every carbon-fiber nylon filament interchangeable?
No. PA-CF is a material family, and grades can differ by base polyamide, fiber loading, additives, recommended processing, moisture response, and published properties. Quote and approve the exact proposed grade and condition rather than treating the label as a complete specification.
Why do moisture condition and drying matter for PA-CF parts?
Polyamide materials are moisture sensitive during processing, and finished-part condition can also affect dimensions and behavior. Define how incoming material is prepared, what condition is expected at inspection or use, and which manufacturer instructions apply to the selected grade.
Should PA-CF parts begin with a first article?
A first-article gate is useful when fit, load path, orientation, inserts, critical dimensions, surface, or moisture condition matters. Record the approved file revision, grade, process assumptions, acceptance method, labeling, and pack-out before repeat releases.
When should a buyer consider another material or process?
Reconsider PA-CF when flexibility, impact behavior, cosmetic finish, sealing, unsupported thin features, required certification, test evidence, or failure consequences are not resolved by the proposed grade, geometry, process, and validation plan.
Technical background preserved from the original guide
Fiber-reinforced polymer systems developed to improve stiffness and dimensional stability for demanding parts. In material-extrusion additive manufacturing, chopped-carbon-fiber polyamides are now evaluated for fixtures, tooling aids, brackets, mounts, and other engineering components. The useful supplier question is not whether PA-CF is “advanced,” but whether the exact grade and printed part match the required environment, geometry, condition, acceptance method, and repeat-production controls.
Choose the next step for the PA-CF job
For a clean file with straightforward requirements, instant quote can establish a fast baseline. For multiple SKUs, recurring releases, first-article approval, inspection, conditioning, labels, packaging, or other complexity, use farm intake so the whole program can be reviewed.
Materially updated
PA-CF Inspection Camera Brackets for Production Cells
A PA-CF inspection-camera bracket can be a fit when stiffness, low moving mass, custom alignment features, and repeatable replacement geometry matter, but the material name alone does not approve the application. Evaluate the exact PA-CF grade, moisture conditioning, print orientation, camera and lens mass, load path, vibration, inserts, cable loads, environment, alignment method, and pilot evidence. For a quote, provide controlled CAD, hardware, interfaces, quantities, acceptance checks, destinations, and timing.
Key facts that change supplier choice
| Decision | Buyer input | Pilot evidence |
|---|---|---|
| Optical alignment | Camera, lens and illuminator geometry; field of view; working distance; datum scheme; adjustment range; locked position; and allowable movement | The complete system can be aimed, locked, checked, and returned to the approved position by the buyer's method |
| Load path | Camera and lens mass, center of gravity, bracket span, mounting plane, fasteners, cable pull, service loads, and any moving-axis acceleration | A representative bracket remains secure without visible cracking, insert movement, or unacceptable deflection under the defined trial |
| Material state | Exact PA-CF grade, conditioning expectations, moisture exposure, temperature, cleaners, oils, UV, and storage or spare-part conditions | The selected material and finished bracket are evaluated in the real environment rather than from a generic filament label |
| Hardware interface | Insert or through-bolt choice, washer and bearing surfaces, torque method, anti-rotation, thread engagement, retention, and service access | Hardware installs and can be serviced without splitting layers, crushing the bracket, or losing alignment |
| Repeat release | Controlled CAD and drawing, print orientation, critical features, inspection method, first-article approval, bracket ID, and revision rules | Replacement brackets are checked against the same controlled interfaces and acceptance plan |
Fit and non-fit cases
- Potential fit: a fixed machine-vision camera needs a compact custom mount, bounded alignment adjustment, cable support, and controlled replacements for a known inspection cell.
- Potential fit: several camera or station variants need keyed brackets, visible IDs, controlled hardware kits, first-article approval, and repeat release by revision.
- Escalate: the bracket moves rapidly, spans far from its mount, carries a heavy lens or light, sets a safety-critical measurement, or experiences vibration and heat that have not been characterized.
- Use another or additional route: certified metrology, safety guarding, explosive or hazardous areas, food or medical contact, cleanroom service, high heat, or structural human-safety loads require project-specific engineering and evidence beyond an ordinary FDM bracket.
Bracket architectures and tradeoffs
| Architecture | Good fit | Watch for |
|---|---|---|
| Fixed datum bracket | Stable camera and station geometry with infrequent realignment | Tolerance stack, replacement repeatability, access, shim strategy, and loss of adjustment |
| Slotted adjustment bracket | Commissioning needs bounded translation or rotation | Slip, uneven clamping, stress at slot ends, ambiguous position, and difficult restoration after service |
| Two-piece base and camera adapter | One station base supports controlled camera variants | Extra interfaces, fastener count, stack-up, wrong adapter selection, and revision matching |
| Bracket with separate metal pivot or rail hardware | Commercial hardware provides repeat adjustment while printing supplies custom adaptation | Hardware sourcing, bearing surfaces, torque, loosening, galvanic or chemical exposure, and service instructions |
PA-CF and FDM process implications
Carbon-fiber fill can change stiffness, surface, shrink behavior, abrasion, and dimensional response, but performance depends on the base polymer, fiber system, moisture state, geometry, print parameters, and load direction. Treat the exact grade as controlled. Drying and handling requirements should follow current supplier information, while the buyer defines any conditioning state required for acceptance and service.
Printed brackets remain anisotropic. Orient principal loads, insert forces, slot ends, thin arms, and cable features deliberately; avoid assuming bulk datasheet values describe a printed part in every direction. Define datum faces, hole and slot inspection, flatness or alignment checks, hardware installation, and witness marks where useful. Approve representative brackets with the real camera, lens, light, cable routing, machine motion, vibration, temperature, cleaning, and inspection software before repeat release.
Production risks and controls
| Risk | Practical control | Release question |
|---|---|---|
| Image position drifts after setup | Defined datums, bounded adjustment, suitable clamp surfaces, torque method, witness marks, cable strain relief, and recheck rule | What movement is acceptable, and how is it detected after installation or service? |
| Insert pulls out or splits the bracket | Controlled insert and installation method, adequate surrounding geometry, print-orientation review, torque limits, and representative trials | Which assembly and service loads must the hardware interface withstand? |
| Vibration blurs images or loosens hardware | Define excitation and motion, shorten unsupported spans, separate adjustment from locking, select retention, and validate on the real machine | At which machine states must the inspection image remain acceptable? |
| Moisture or temperature changes alignment | Control grade and conditioning assumptions, record the real environment, check critical geometry, and test representative exposure | Which environmental state governs acceptance and use? |
| Replacement bracket does not restore setup | Controlled datums, bracket and station IDs, inspection plan, approved hardware kit, installation record, and requalification trigger | Can a replacement be verified without relying on operator memory? |
Quote-readiness checklist
- Controlled bracket CAD and drawing, manufacturing authority, revision, quantity by station, repeat forecast versus firm order, and requested timing
- Camera, lens, light and hardware models; mass and center of gravity; rail or machine interface; working distance; field of view; adjustment and locked-position requirements
- Static, service, cable, impact, vibration and moving-axis loads; orientation; duty cycle; failure consequences; and any simulation or buyer calculations available
- Exact material-grade requirement or permission to propose, conditioning state, temperature, humidity, oils, cleaners, UV, chips, ESD, sanitation, and regulatory boundaries
- Critical datums, holes, slots, flatness and alignment checks; insert installation and torque; pilot quantity; approval owner; packaging; destinations; and reapproval triggers
PA-CF inspection camera bracket FAQs
What is needed to quote a PA-CF inspection-camera bracket?
Provide controlled CAD and drawings, the camera, lens, light and hardware stack, masses and interfaces, adjustment and alignment needs, load and vibration conditions, environment, material-grade requirement, quantity, acceptance checks, packaging, destinations, and timing.
Does PA-CF guarantee a rigid, dimensionally stable camera mount?
No. The result depends on the exact polymer and fiber system, moisture state, geometry, print orientation and parameters, fasteners, temperature, load span, and installation. Approve the complete bracket and camera system under representative conditions.
Should threaded inserts be used in a PA-CF bracket?
They can be useful for repeat assembly, but insert type, surrounding geometry, installation method, load direction, torque, service frequency, and failure mode must be defined and tested. Through-bolts or separate metal hardware may be better for some interfaces.
When should the camera bracket be reapproved?
Review it after a camera, lens, light, cable, rail, fastener, torque, material grade, conditioning state, print orientation, machine motion, environment, inspection algorithm, or acceptance method changes, and after cracking, looseness, drift, or unexpected fit.
Connect this bracket project to the US production 3D printing service, the print-farm intake and supplier-qualification guide, the production material buyer guide, the production jigs and fixtures supplier guide, and the quality-control and inspection guide.
Final decision: approve the complete camera-and-bracket system
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, labeled, revision-controlled, hardware-managed, sample-based, or otherwise complex camera-bracket programs. Instant quote fits clean files and straightforward requirements with one unambiguous geometry, material, quantity, and delivery scope.
Send a quote-ready PA-CF production brief
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, or complex work, while instant quote fits clean files and straightforward requirements.
Turn the material decision into a controlled order
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning or reverse-engineering, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
