Production 3D Printed Enclosures and Mounts for Electronics
Materially updated
Electronics manufacturers should quote custom 3D printed enclosures and mounts as controlled assemblies, not isolated shells. Define the PCB and connector interfaces, fastening plan, access, ventilation and heat boundaries, electrical and ESD responsibilities, environment, cosmetic zones, revision, acceptance evidence, and quantity by SKU. Validate a representative assembled unit before releasing repeat builds, variant kits, or service stock.
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning or reverse-engineering, and otherwise complex work. Instant quote fits clean files and straightforward requirements.
Materially updated
Small-batch electrical enclosures and housings
A small-batch electrical enclosure should be sourced as a controlled electromechanical assembly, not a generic plastic box. Quote the housing, lid, PCB and connector interfaces, cable entries, mounting, hardware, access, heat and ventilation boundary, environment, appearance, electrical and compliance responsibilities, inspection plan, quantity by SKU, and change rules together. Approve a representative assembled unit before recurring release.
Choose the order path: farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning/reverse-engineering, or otherwise complex enclosure programs. Instant quote fits clean files and straightforward requirements.
Build a controlled enclosure release package
| Release area | Required buyer inputs | Decision to close |
|---|---|---|
| Housing and lid | Part numbers, revisions, CAD, units, wall and boss intent, fastening method, access cycles, cosmetic zones, labels, and color | Files and appearance standard match the sellable, pilot, service, or internal-use configuration |
| PCB and components | Board outline and revision, keep-outs, component heights, supports, standoffs, insertion path, batteries, displays, switches, and antennas | Representative assembly fits without unintended board load or blocked service |
| Connectors and cables | Exact connector and mating-plug geometry, latch and tool access, bend radius, strain relief, glands, grommets, and cable exit | Mating, removal, routing, and service checks use production-representative components |
| Heat and ventilation | Heat sources, power states, ambient range, airflow, vents, fan or sink interfaces, mounting orientation, and test owner | Buyer-defined assembled thermal evaluation; a material name alone is not proof |
| Electrical and environmental boundary | Voltage, insulation responsibility, grounding, ESD, EMI, ingress, fire, chemicals, UV, moisture, cleaning, impact, and regulatory needs | Required evidence is named and supported before release; nothing is inferred from printing |
| Batch and kit control | Quantity by housing, lid, panel, bracket, and accessory; hardware scope; assembly state; labels; packaging; destination; and release cadence | Every accepted kit can be reconciled to the correct product and revision |
Small batch does not mean informal control
Low quantity can increase configuration risk because engineering revisions, board substitutions, connector changes, and hand-built assemblies may overlap. Freeze a governing baseline for each release. Identify reference-only documents, precedence when files conflict, the cutoff for changes, and the disposition of work in process, finished housings, assembled units, labels, and service stock.
Design the enclosure for assembly and inspection
Review board insertion, connector mating, tool paths, insert installation, lid alignment, wire routing, strain relief, switch travel, indicator view, display openings, ventilation clearance, label placement, mounting access, and field replacement. Name measurable datums and critical openings. If functional fit matters more than a single dimension, define the production-representative component or accepted sample used for the check and who controls it.
Use a staged approval plan
- Confirm file rights, units, part numbers, revisions, product applicability, board and connector versions, and document precedence.
- Review manufacturability, orientation-sensitive features, supports, bosses, ribs, openings, inserts, hardware, assembly sequence, and inspection access.
- Produce a bounded first-article set for the intended enclosure family and hardware configuration.
- Inspect agreed dimensions, workmanship, cosmetic zones, part identity, and any scoped assembly operations.
- Assemble representative electronics and run buyer-owned fit, access, electrical, thermal, environmental, service, and use checks.
- Record approval, accepted sample status, deviations, variant applicability, revalidation triggers, and inventory disposition before repeat release.
Control families, panels, and accessory kits
One enclosure platform may use different lids, connector panels, brackets, colors, labels, boards, batteries, or hardware. Assign a unique SKU and revision to each differing printable or supplied item. Link them through a product-to-part applicability matrix and controlled kit manifest. Preserve identity through production, inspection, assembly, bagging, and shipment, then reconcile requested, produced, accepted, assembled, packed, retained, scrapped, replaced, and open quantities.
Fit, non-fit, and production risks
This approach can fit controlled prototypes, engineering validation builds, low-volume electronics products, industrial sensor housings, test equipment, service enclosures, product variants, and recurring spare stock. Pause when reproduction rights are unclear, interfaces are unresolved, boards are still changing without a release rule, or required material, conductive feature, coating, sealing, fire, electrical, ESD, EMI, ingress, regulatory, inspection, assembly, packaging, or delivery capability has not been confirmed.
A printed enclosure does not automatically establish insulation, flammability, ESD control, EMI shielding, ingress protection, UV resistance, chemical resistance, thermal performance, or certification. Common risks include connector interference, board flex, cracked bosses, insert pullout, blocked airflow, cable pinch, inaccessible fasteners, swapped lids, mixed revisions, wrong labels, cosmetic drift, and approval based only on an empty-shell fit.
Quote-readiness checklist
- Housing, lid, panel, mount, bezel, and accessory SKUs; controlled files; units; revisions; manufacturing rights; quantities; forecast versus firm release; and requested timing
- Matching PCB and component geometry, connectors, mating plugs, cables, controls, displays, antennas, batteries, fans, heat sinks, hardware, inserts, gaskets, and labels
- Assembly sequence, service access, mounting, appearance zones, color, workmanship, packaging, kit rules, destinations, and replacement stock
- Heat sources, ambient and airflow boundary, voltage and electrical responsibilities, grounding, ESD, EMI, ingress, fire, moisture, UV, chemicals, vibration, impact, and prohibited substitutions
- First-article plan, named inspection methods, assembled validation, approval authority, accepted sample, deviations, change notice, and revalidation triggers
Continue with the production service overview, repeat production releases, the material selection guide, and the production RFQ checklist.
Small-batch electrical enclosure FAQs
What belongs in a small-batch electrical enclosure RFQ?
Include controlled housing and lid files, the matching board and connector geometry, hardware, cable entries, environment, electrical and compliance responsibilities, assembly scope, acceptance plan, quantities by SKU, and release rules.
Does a printed enclosure automatically have an ingress, fire, or electrical rating?
No. Material selection and printed geometry do not automatically establish a rating or certification. Define the required evidence and confirm supported capabilities before release.
How should enclosure variants be controlled?
Assign distinct part numbers and revisions to differing housings, lids, panels, colors, labels, hardware, and board applicability, then use a controlled kit manifest and change-disposition rule.
Final enclosure decision
Release the batch only when the controlled printed parts, electronics configuration, hardware and assembly state, buyer-owned qualification, accepted evidence, kit manifest, and change rules agree.
Materially updated
Custom sensor and camera mounts for production equipment
Quote a production-equipment sensor or camera mount as an installed alignment system, not an isolated bracket. Define the exact device and machine interfaces, datums, target or field of view, adjustment range, locking method, cable path, loads, environment, approval test, revision, and repeat quantity. Validate the mount on representative equipment before releasing recurring builds or spares.
Choose the order path: farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning/reverse-engineering, or otherwise complex mount programs. Instant quote fits clean files and straightforward requirements.
Define the buyer job before selecting a process
| Mount decision | Quote inputs | Buyer-owned approval evidence |
|---|---|---|
| Device interface | Manufacturer drawing or controlled device geometry, hole pattern, clamp surface, connector clearance, allowable contact zones, and fasteners | Installed fit without blocked controls, vents, connectors, or service access |
| Equipment interface | Machine frame or extrusion profile, datum surfaces, available holes, keep-outs, guarding boundary, removal sequence, and approved attachment method | Mount seats consistently and does not interfere with motion, access, guarding, or maintenance |
| Optical or sensing relationship | Target location, field of view, working distance, angle, adjustment range, repeat-position need, lighting relationship, and occlusions | Buyer-defined image or sensing check on representative equipment |
| Retention and adjustment | Locking hardware, insert or nut plan, torque owner, adjustment frequency, hard stops, witness marks, and tamper boundary | Adjustment can be made and locked without drift under the defined use |
| Cable routing | Connector model, exit direction, bend limits, strain relief, flexing, snag points, service loop, and replacement route | Cable remains supported and serviceable through relevant motion and access |
| Environment and consequence | Heat, cold, vibration, impact, chemicals, cleaning, dust, moisture, UV, static, failure consequence, and prohibited materials | Evaluation method and acceptance authority named by the equipment owner |
Separate dimensional inspection from installed performance
A supplier can check agreed printed features such as datums, hole locations, interface widths, fastener clearances, or visual workmanship. Those checks do not prove that a camera sees the intended area, a sensor detects consistently, a mount remains aligned under vibration, or a cable survives motion. Assign those installed tests to the buyer or another qualified owner and define what evidence closes the decision.
Use a controlled first-article sequence
- Confirm manufacturing rights, file units, part number, revision, device model, and equipment applicability.
- Review interfaces, hardware, orientation-sensitive features, cable path, adjustment, inspection access, and print-support consequences.
- Produce a bounded first article using the intended hardware and approved configuration.
- Inspect agreed part features and record any accepted deviations.
- Install on representative equipment and run buyer-defined alignment, sensing, motion, vibration, access, cable, and maintenance checks.
- Record approval scope, accepted sample status, revalidation triggers, and disposition before recurring release.
Control variants and spares
Similar-looking mounts can belong to different camera lenses, sensor bodies, connector directions, extrusion profiles, stations, product variants, or left/right positions. Give every differing configuration a unique SKU and revision. Use an applicability matrix linking mount SKU to device model, equipment or station, hardware kit, cable route, inspection plan, and packaging label. Do not treat a photograph or filename as the release record.
Fit, non-fit, and production risks
This workflow can fit non-safety camera and sensor brackets, machine-vision mounts, lighting supports, cable-managed equipment adapters, pilot installations, repeat stations, and service spares when their boundaries are explicit. Pause when the mount performs an unverified guarding, lifting, pressure, structural, electrical, fire, medical, food-contact, or other regulated or safety-critical function, or when required material, testing, certification, inspection, finishing, assembly, packaging, or delivery support has not been confirmed.
Common risks include approving only a bench fit, using the wrong device revision, mislocating the optical datum, cable forces shifting alignment, fastener pull-through, creep, vibration, heat, blocked maintenance, mirrored variants, mixed hardware, uncontrolled field drilling, and releasing repeat parts before equipment-level approval.
Quote-readiness checklist
- Controlled CAD or mesh, units, revision, manufacturing rights, part and station identifiers, quantities by SKU, forecast versus firm release, and requested timing
- Device drawing or geometry, equipment interface, datums, holes or extrusion details, fasteners, inserts, torque responsibility, keep-outs, and removal sequence
- Target, field of view or sensing relationship, working distance, angle, adjustment, locking, cable and connector route, motion, vibration, and environment
- Critical features, named inspection methods, representative installed test, approval authority, accepted sample, deviations, and revalidation triggers
- Labels, kits, packaging, destinations, spares, change notice, nonconformance handling, and revision disposition
Use the production 3D printing service for the broader manufacturing scope, repeat production planning for releases, the jigs and fixtures guide for station tooling, and the quality and inspection guide for acceptance planning.
Sensor and camera mount FAQs
What should be defined before quoting a camera or sensor mount?
Define the exact device and machine interfaces, datums, field of view or sensing target, adjustment and locking method, cable path, loads, environment, approval test, quantity, and revision.
Does a successful static fit qualify a production-equipment mount?
No. The buyer should validate alignment, image or sensing performance, motion, vibration, cable behavior, access, and foreseeable operating conditions on representative equipment.
When should a mount order use farm intake?
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning or reverse-engineering, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
Final mount decision
Release the mount only when the controlled part, device, equipment configuration, hardware, installed test, approval scope, and repeat-order rules agree.
Source the enclosure as part of the electronics assembly
A production enclosure is acceptable when the board, connectors, hardware, access, environment, and user interaction work together under the buyer-defined conditions. The controlled housing file should reference the correct PCB revision and product variant, while approval evidence should show what was checked after realistic assembly.
| Design area | Buyer inputs before quote | Representative approval evidence |
|---|---|---|
| PCB location and retention | Board outline and revision, keep-outs, standoffs, supports, hardware, insertion path, and service method | Assembled fit with board support and fastener engagement checked |
| Connectors and controls | Exact mating plug, cable bend, latch access, switch travel, indicator view, and labeling zone | Mating and service trial using production-representative components |
| Heat and ventilation | Heat sources, power state, airflow path, vents, fan or sink interfaces, ambient range, and test owner | Buyer-defined operating evaluation; material choice alone is not thermal proof |
| Lids, seals, and fasteners | Open-close cycles, insert or thread strategy, gasket geometry, compression, access, and tamper boundary | Assembly and repeated-access check under the approved hardware plan |
| External mounts and brackets | Wall, rail, machine, camera, sensor, or product interface; load; vibration; adjustment; and cable route | Installed alignment, access, retention, and environment check |
Start from a controlled electromechanical interface package
Provide the housing and mount CAD, units, revision, rights, PCB outline and revision, connector models or drawings, cables, switches, indicators, displays, antennas, fans, heat sinks, batteries, hardware, inserts, gaskets, labels, and mating product geometry. Identify datum strategy, keep-outs, assembly sequence, tool access, acceptable support marks, appearance zones, color boundaries, and which documents govern if models conflict.
Send quantity by enclosure, lid, bracket, spacer, bezel, and accessory SKU. State whether each is a prototype, engineering validation build, pilot, sellable unit, service part, or repeat release. Separate a planning forecast from firm authorization and identify product variants that look similar but use different boards, connectors, cutouts, firmware-controlled interfaces, or labels.
Do not infer electrical, thermal, or environmental compliance
A printed polymer enclosure does not automatically establish insulation, flammability, ESD, EMI shielding, ingress protection, UV resistance, chemical resistance, heat performance, or regulatory compliance. The electronics manufacturer should define the required boundary and evidence. Pause when the application requires an unsupported material, certification, test method, coating, conductive feature, seal, grounding path, or traceable lot requirement.
Design for assembly, service, and repeat inspection
Review board insertion, connector mating, wire routing, strain relief, latch access, fastener tools, insert installation, cover alignment, display and indicator visibility, ventilation clearance, label placement, and field replacement. Features that are easy to inspect—named datums, measurable openings, controlled gaps, accessible hardware, and an approved assembled sample—are easier to reproduce than a vague direction to “fit the board.”
Use a staged first-article plan
- Verify file rights, units, revision, PCB and product applicability, and document precedence.
- Review print orientation, supports, bosses, walls, ribs, openings, inserts, heat-set operations if scoped, assembly access, and inspectability.
- Produce a bounded enclosure set using the approved hardware and components available for validation.
- Inspect agreed dimensions and visual zones with named tools and methods.
- Assemble the representative electronics and run buyer-owned fit, access, connector, thermal, electrical, environmental, and use checks.
- Record approval, accepted sample status, deviations, variant applicability, and revalidation triggers before repeat production.
Control enclosure families and multi-SKU kits
Electronics products often share a housing family while varying the PCB, connector panel, bracket, color, label, or accessory pack. Assign a unique SKU and revision to every differing printable part. Use a product-to-part applicability matrix and a controlled kit manifest for quantities. Preserve part identity through inspection and packaging, then reconcile produced, accepted, assembled, packed, retained, replaced, scrapped, and open units.
Plan changes across boards and housings together
Define revalidation triggers for PCB outline or component-height changes, connector substitutions, antenna or cable changes, thermal-load changes, hardware and insert changes, material or color changes, print-orientation changes, gasket changes, mounting-location changes, and environmental requirements. When a board revision arrives after housings are in process, assign disposition for WIP, finished inventory, assembled units, service stock, and labels before releasing the next build.
Fit, non-fit, and production risks
This approach can fit controlled prototypes, pilot builds, low-volume electronics products, industrial sensor housings, test equipment, camera or device mounts, variant families, and recurring replacement stock. Pause when interfaces are missing, boards are still changing without a release rule, reproduction rights are unclear, or required electrical, thermal, fire, ESD, EMI, ingress, certification, material, finishing, assembly, inspection, packaging, or delivery support is unverified. Risks include connector interference, unsupported board flex, cracked bosses, insert pullout, blocked airflow, cable pinch, insufficient service access, cosmetic inconsistency, swapped lids, wrong product variants, and thermal approval based only on an idle bench fit.
Quote-readiness inputs
- Product owner, engineering and quality approvers, assembly owner, release authority, and escalation contacts
- Enclosure, lid, mount, bracket, bezel, and accessory SKUs; files; units; revisions; rights; quantity; forecast versus firm release; and product applicability
- PCB and component geometry, connectors, cables, controls, indicators, displays, antennas, fans, sinks, batteries, hardware, inserts, gaskets, labels, and assembly sequence
- Heat sources, ambient boundary, airflow, electrical and ESD responsibilities, EMI or shielding needs, moisture, UV, chemicals, vibration, drop or impact requirements, and prohibited substitutions
- First-article plan, measurement methods, assembled validation, accepted sample, cosmetic zones, deviations, packaging, kit rules, service stock, records, and revalidation triggers
Continue with small-batch manufacturing, the repeat-production material guide, the production DFM checklist, and the production RFQ checklist.
Custom electronics enclosures and mounts FAQs
What should an enclosure RFQ include besides the housing file?
Include the matching PCB revision, connectors, cables, controls, hardware, assembly sequence, environment, acceptance method, quantity by SKU, product applicability, and approval authority.
Does a heat-resistant material make an enclosure thermally approved?
No. The electronics manufacturer should define and evaluate the assembled product under representative power, airflow, ambient, mounting, and use conditions.
Can one housing serve several PCB revisions?
Only when the relevant interfaces, component clearances, connectors, thermal behavior, assembly, and use conditions have been checked and the approved applicability is recorded.
When should an electronics enclosure order use farm intake?
Use managed intake for multi-SKU enclosure families, assembled validation, inspection records, staged releases, packaging, scanning, reverse engineering, or recurring stock. Use instant quote for clean files and straightforward requirements.
US production 3D printing

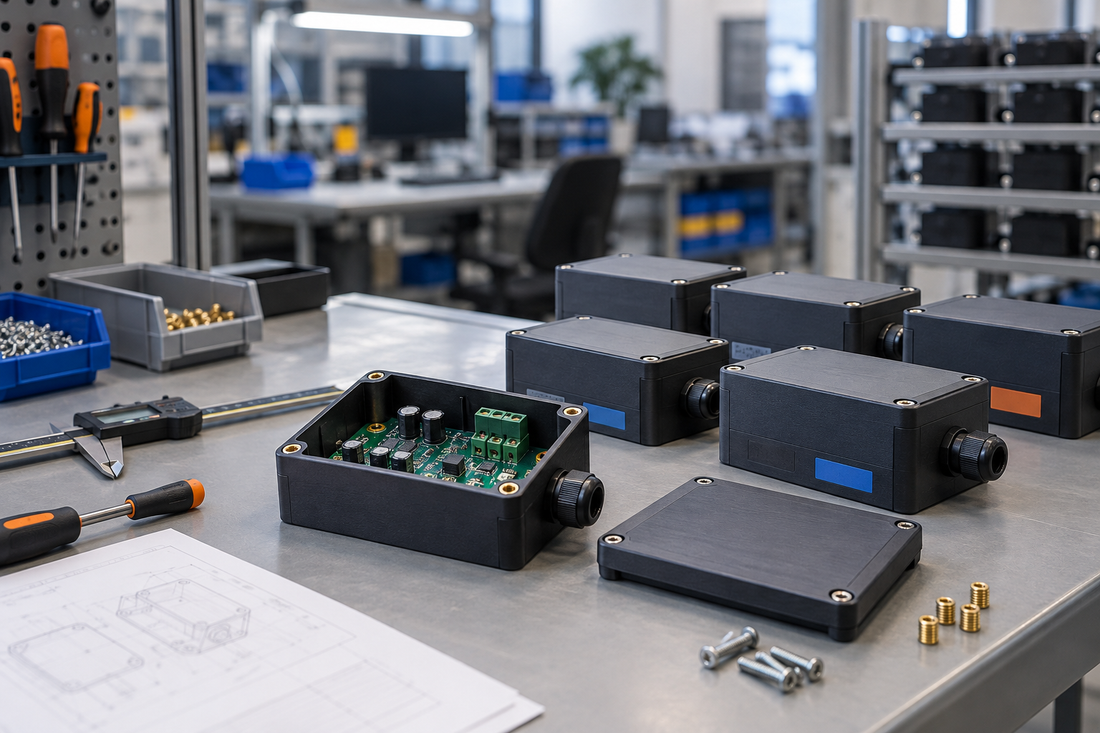

3D Printing Company for Production Enclosures and Housings
Choose a 3D printing company for production enclosures and housings by evaluating interfaces, closure design, environment, hardware, cosmetics, acceptance, revision control, and repeat-order handling. For a useful quote, provide the governing files and revision, assembly context, mating references, critical dimensions, environment, quantity by SKU, material or performance needs, hardware, labels, finish, packaging, destination, and requested timing.
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, or complex work, while instant quote fits clean files and straightforward requirements.
Enclosure supplier decision: key facts
Low- and repeat-volume covers, cases, bezels, sensor housings, equipment guards, control boxes, and custom equipment enclosures whose requirements suit FDM after review.
A housing may look correct but fail at connector alignment, closure, hardware seating, cable clearance, heat, impact, weather exposure, or a downstream assembly step.
Define critical interfaces, mating parts, closure method, cosmetic zones, hardware, functional checks, and who releases the first article and repeats.
Keep SKU, revision, material and color assumption, orientation-sensitive features, hardware, label, acceptance, pack-out, and supersession rules together.
JC Print Farm / JCSFY is a US production 3D printing business based in Central Ohio. This guide helps buyers prepare an enclosure job for supplier review; it does not claim that every material, tolerance, test, certification, inspection method, quantity, environmental rating, or deadline is supported.
Fit and non-fit cases
Strong candidates to review
- Custom electronics or sensor housings with defined connector, board, fastener, and cable interfaces.
- Equipment covers, guards, bezels, or operator-facing housings needed in repeat releases or several SKU variants.
- Bridge housings needed while molded tooling is being designed, validated, repaired, or economically justified.
- Legacy housings whose approved geometry and assembly requirements can be controlled for replacement orders.
- Catalog products that need labeling, hardware, SKU segregation, packaging, or staged releases.
Cases needing another decision first
- The request assumes a weather, flammability, electrical, chemical, food-contact, medical, or other regulated rating without defined requirements and evidence responsibility.
- The enclosure must contain pressure, exclude water or dust, manage hazardous energy, or provide primary safety protection but the governing test and acceptance criteria are missing.
- Critical dimensions, mating components, heat sources, loads, cosmetic zones, and closure cycles have not been identified.
- Machining, sheet fabrication, molding, casting, or another process better fits the required precision, material, finish, durability, volume, or economics.
Design and process implications that change supplier choice
| Buyer requirement | What to define | Why supplier handling matters |
|---|---|---|
| Board, connector, display, or sensor fit | Datums, keep-outs, fastening method, cable bend space, opening location, and critical clearances | The supplier needs the assembly context, not only the outer shell. |
| Closure and service access | Screws, inserts, snaps, hinges, latches, gasket path, opening cycles, and service sequence | Build direction, feature design, hardware installation, and first-article checks affect repeat function. |
| Environment | Temperature, sunlight, moisture, chemicals, cleaners, impact, vibration, indoor or outdoor use, and failure consequence | A generic material name does not establish finished-part performance or a rating. |
| Appearance | Color, texture, layer-line expectations, support-sensitive faces, logos, labels, and customer-facing cosmetic zones | Quotes differ if finish, orientation, post-processing, or cosmetic sorting is included. |
| Repeat supply | SKU and revision, quantity by release, substitutions, acceptance records, packaging, and change notification | A controlled production partner must prevent mixed revisions and undocumented process changes. |
Material and performance decisions
Material selection starts with the use environment and failure consequence. Share heat sources, outdoor exposure, cleaners, impact, stiffness, flexing, fastening, electrical context, and cosmetic requirements. Then confirm which materials and evidence the supplier actually supports. Review the production material guide and the outdoor material decision guide as preparation, not as a substitute for project validation.
- Heat: identify internal heat sources, ventilation assumptions, nearby equipment, and the temperature requirement rather than asking only for a heat-resistant plastic.
- Moisture and dust: define openings, seams, gasket strategy, assembly torque, and any required test; printing a shell does not create an automatic ingress rating.
- Electrical use: state insulation, conductivity, grounding, ESD, flammability, or spacing requirements explicitly and assign validation responsibility.
- Impact and fastening: share drop, load, screw, insert, latch, hinge, and repeated-service conditions.
- Appearance: identify which surfaces are customer-facing and what variation is acceptable across releases.
Production risks to resolve before release
- Interface drift: a connector, board, seal, or fastener can miss even when the outside dimensions appear correct.
- Revision mixing: similar housings for multiple board or product revisions can be mislabeled or packed together.
- Unsupported rating: a material data point can be mistaken for finished-enclosure certification or test evidence.
- Hidden assembly interference: cables, inserts, screw heads, tools, and service motion may not be represented in the shell model.
- Orientation-sensitive features: clips, bosses, hinge lines, thin walls, and loaded fasteners may require deliberate build planning.
- Cosmetic ambiguity: unspecified show surfaces can produce disagreement after a batch is complete.
- Uncontrolled substitutions: material, color, hardware, or process changes can affect fit, appearance, and performance.
Practical release rule: when assembly or appearance risk is meaningful, approve a representative housing with the real components, hardware, closure sequence, and acceptance method before releasing the full batch.
Quote-readiness checklist for production enclosures
- Governing 3D files, units, drawing or notes, SKU, and revision.
- Mating board, connector, display, cable, sensor, bracket, or equipment references.
- Critical datums, openings, bosses, clearances, closure features, and allowable variation.
- Use environment, loads, heat sources, exposure, service cycles, and failure consequence.
- Material or performance requirement, color, cosmetic zones, texture, and permitted substitutions.
- Inserts, screws, magnets, gaskets, labels, windows, supplied hardware, and installation ownership.
- Quantity by SKU and release, expected reorder pattern, destination, and requested timing.
- First-article checks, assembly test, cosmetic standard, evidence, and approval authority.
- Labeling, segregation, protective packaging, kitting, and partial-shipment needs.
How to compare enclosure and housing quotes
Normalize the same revision, quantity by SKU, material assumption, color, build strategy, hardware, assembly, first-article work, dimensional or functional checks, cosmetic expectations, labels, packaging, freight, and exclusions. A lower unit price is not comparable when it omits inserts, assembly, inspection, or pack-out required for the housing to enter production.
Straightforward instant-quote work usually has clean files, one clear revision, standard requirements, and little coordination. Farm intake is the better route when the job has multiple SKUs, recurring releases, inspection sensitivity, staged approvals, installed hardware, labels, packaging, kitting, or other managed requirements. See the production 3D printing service, repeat production runs, print-on-demand onboarding, US contract print farm, and production quote checklist.
Production enclosure and housing FAQs
What should a buyer send for an enclosure or housing quote?
Send the governing 3D files and revision, assembly context, mating parts, critical interfaces, environment, quantity by SKU, material or performance requirements, color and cosmetic expectations, hardware, labels, acceptance checks, packaging, destination, and timing.
Should a first article be approved before releasing a batch?
A representative first article is useful when fit, closure, connector alignment, hardware installation, cosmetic appearance, or downstream assembly has not already been proven. Define who approves it and what evidence carries into repeat releases.
Does a material name make a housing weatherproof, electrically safe, or heat resistant?
No. Finished performance depends on the exact material, geometry, build direction, seams, openings, hardware, assembly, environment, and validation. State measurable requirements and confirm supplier scope instead of relying on a material label.
When should farm intake be used instead of instant quote?
Use farm intake for multi-SKU, recurring, inspection-sensitive, staged, packaged, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
Choose the quote path that matches the housing job
Send the complete assembly context when the supplier must review interfaces, revisions, environment, hardware, appearance, multiple SKUs, staged releases, labels, or packaging. Use instant quote when the file and requirements are clean and straightforward.
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, or complex work, while instant quote fits clean files and straightforward requirements.
Materially updated
Replacement Housings for Electronics and Controls: buyer decision guide
Replacement housings for electronics and controls are quote-ready when the source-part condition, installed interfaces, PCB and connector locations, mounting datums, access, cable paths, internal keep-outs, fasteners, labels, environment, quantity, revision, inspection, and first-article approval are explicit. A worn or broken shell can support reconstruction, but the production baseline should come from controlled requirements and verified mating geometry—not damage copied as design intent.
Choose the order path: use farm intake for multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning or reverse-engineering, hardware-integrated, size-varied, or otherwise complex work. Use the instant quote for clean files and straightforward requirements.
Reconstruct requirements, not just a damaged shell
| Decision area | Quote-ready inputs | Approval evidence |
|---|---|---|
| Source evidence | Original housing, photos, scans, prior files, damage map, repair history, missing features, mating components, and manufacturing authority | Buyer distinguishes nominal geometry from wear, deformation, and field modification |
| Installed interfaces | PCB, display, switch, connector, control, cable, fastener, hinge, latch, seal, bracket, panel, and access geometry with datums | Representative assembly closes, mounts, connects, clears, and services as intended |
| Use conditions | Location, temperature, UV, moisture, chemicals, dust, cleaning, vibration, impact, electrical and flame requirements, and failure consequence | Buyer identifies governing requirements and owns application validation |
| Repeat supply | SKU, revision, quantity, variant matrix, color, labels, hardware, inspection state, packaging, spares, and reorder rule | First article and later releases reconcile to the approved configuration |
Production risks to resolve before release
Copying wear or deformation, missing mating geometry, scan shadows, inaccessible fasteners, blocked connectors, cable bend conflicts, PCB or control interference, inadequate internal clearance, ambiguous seals, trapped heat assumptions, hidden label zones, material shorthand, mixed variants, unapproved file repair, cosmetic expectations mistaken for function, and releasing quantity before representative assembly approval.
Do not infer finished-part strength, service life, ergonomic benefit, injury reduction, material identity, load rating, impact resistance, flame performance, electrical behavior, ingress protection, chemical compatibility, certification, or regulatory suitability from appearance, one sample, a polymer-family name, or a public example. Where those issues matter, the buyer should define governing requirements, validation ownership, evidence, and release authority.
Quote-readiness checklist
- Controlled CAD, drawing, scan or source-part package; units, SKU, revision, quantity, manufacturing authority, and known damage or modification notes
- PCB, connector, display, switch, control, cable, bracket, panel, fastener, hinge, latch, seal and service-access interfaces with datums and representative mating hardware
- Use environment and buyer-owned requirements for temperature, UV, moisture, chemicals, dust, cleaning, vibration, impact, flame or electrical behavior, labeling, appearance, and failure consequence
- Material and color definition, orientation-sensitive concerns, hardware, inserts, finishing, assembly, inspection state, critical features, workmanship boundary, and first-article approval owner
- Variant matrix, packaging, labels, destination or installed-base mapping, revision cutoff, deviation path, change triggers, records, replacement quantity, and reorder identifiers
Fit and non-fit decision
This workflow can fit low-consequence covers, bezels, control housings, electronics enclosures, access panels, connector surrounds, display frames, mounts, and obsolete plastic shells when interfaces and approval are controlled. It is not a shortcut for certified electrical enclosures, required ingress or flame ratings, hazardous locations, high voltage, pressure containment, structural protection, safety functions, medical devices, or other regulated or high-consequence uses without appropriate buyer-owned engineering, qualification, and validation.
Related planning resources: production 3D printing, 3D scanning and reverse engineering, the production RFQ checklist, and quality-control planning.
Buyer FAQs
What should a buyer provide for a replacement electronics housing?
Provide the best available source part, controlled CAD or drawings, PCB and connector geometry, mounting datums, fasteners, access and cable paths, internal keep-outs, service environment, quantity, revision, and the checks that determine acceptance.
Can a damaged housing be copied directly?
Treat it as evidence, not automatically as nominal geometry. Record cracks, wear, deformation, repairs, missing features, mating-part condition, and which dimensions should come from the installed interface instead of the damaged shell.
What should a first article prove?
Use representative electronics, connectors, controls, hardware, cables, seals if buyer-specified, and the intended assembly sequence. Confirm fit, access, closure, strain relief, labels, service steps, visible surfaces, and buyer-defined acceptance checks.
Which quote path fits replacement housings?
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning or reverse-engineering, hardware-integrated, or otherwise complex work. Instant quote fits clean files and straightforward requirements.
Release the right workflow
Route complex work through farm intake or clean, straightforward files through instant quote. Include the controlled inputs above so feasibility, validation ownership, inspection, packaging, variant control, and repeat-release needs can be reviewed without relying on assumptions.
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning or reverse-engineering, and otherwise complex work. Instant quote fits clean files and straightforward requirements.
