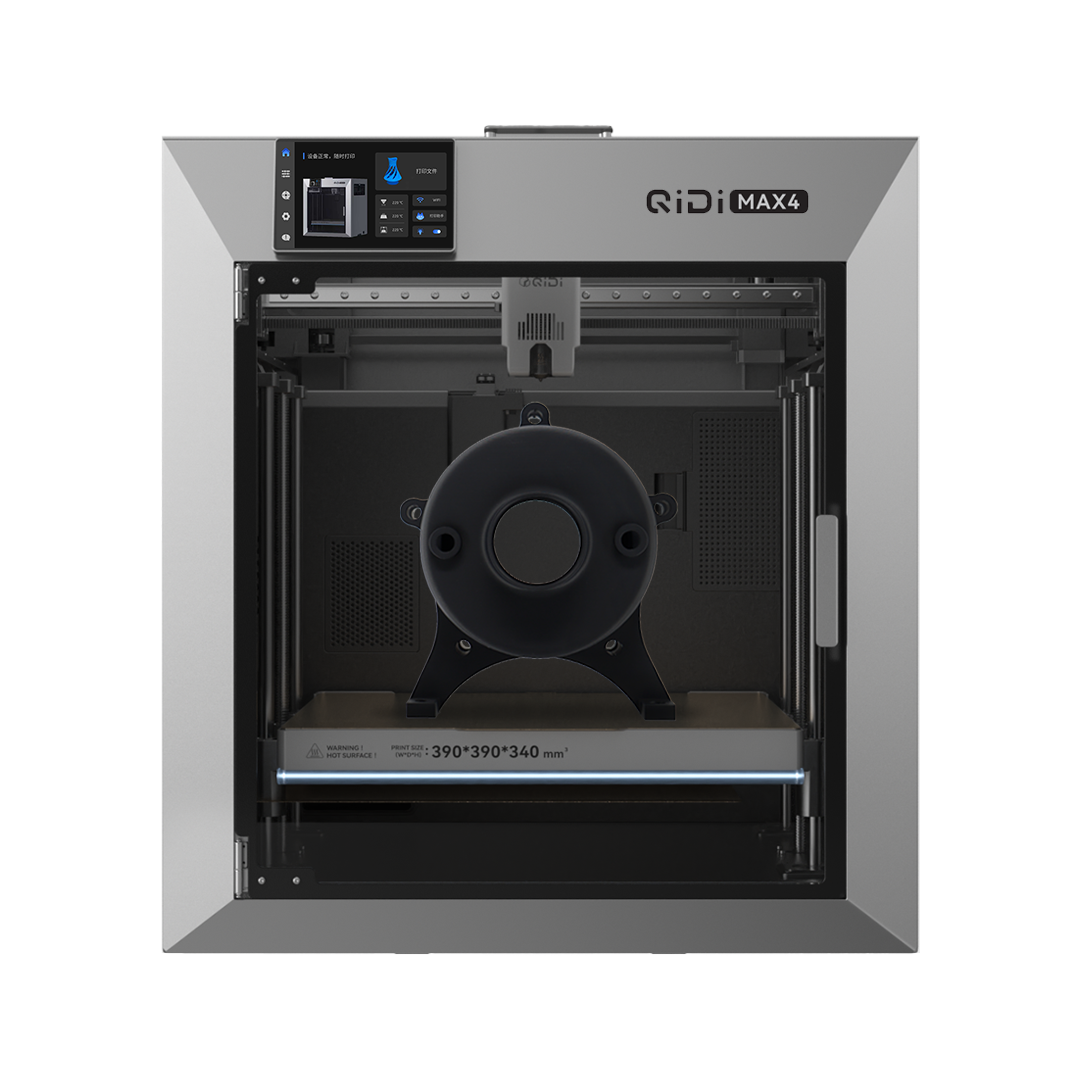

QIDI Max4 enclosed CoreXY 3D printer shown from the front in official QIDI product media

QIDI Max4 Review (2026): Large Heated CoreXY

Verdict: The QIDI Max4 is compelling when you genuinely need a 390 × 390 × 340 mm enclosed build area and intend to use its heated chamber for large ABS, ASA, nylon, or composite parts. Its capacity, 370 °C hotend, open Klipper/Fluidd access, and current multi-spool option are substantial. Skip it when smaller printers can handle the work: its footprint, accessory overhead, and large-job failure exposure are real operating costs.

Research disclosure: JCPRINTFARM has not performed a hands-on Max4 test. This review is based on QIDI's current US product listing and published specifications, plus independent hands-on reporting from PCMag and AppleInsider. Their observations are attributed below; we do not present them as our own test results. Product availability and configurations were rechecked on September 26, 2026.

What the QIDI Max4 is

The Max4 is QIDI's large-format enclosed CoreXY printer. Its defining feature is not the advertised 800 mm/s motion ceiling; it is the combination of a 390 × 390 × 340 mm build volume, a hotend rated to 370 °C, a 120 °C bed, and active chamber heating rated to 65 °C. That combination targets oversized functional parts and materials that benefit from a warm, controlled enclosure.

QIDI currently sells two US configurations. The standard Max4 is a single-spool machine, while the Max4 Combo adds the four-spool QIDI Box. Up to four QIDI Boxes can be linked for as many as 16 inputs, but the machine still changes filament through one nozzle. That distinction matters: more inputs expand color and material choices, but each change can add purge waste and time. It is not the same workflow as a printer with independent toolheads.

The official US listing showed both the standard and Combo variants available when checked on September 26, 2026. The page listed $1,099 and $1,249 respectively at that moment. Treat those figures as a dated snapshot, not a permanent price; bundles and promotions can change.

Who should consider it—and who should skip it

Best fit: makers, engineering teams, cosplay builders, and specialist print cells that repeatedly need parts larger than a typical 256 or 300 mm desktop bed. The heated chamber is particularly relevant for large ABS, ASA, PA, PC, and filled-material jobs where shrinkage across a broad footprint can defeat an open printer.

Skip it: buyers whose normal parts fit comfortably on smaller machines, anyone seeking the simplest turnkey appliance, and farms that value several parallel print queues more than one very large build. A pair of smaller printers can keep unrelated jobs moving independently and limits how much production time is exposed to a single late failure.

New users should also be realistic about the physical commitment. AppleInsider measured roughly 21.96 × 22.75 × 24 inches for the printer itself and described it as big and heavy enough to warrant two people during setup. The QIDI Box, Polar Cooler, filament paths, open lid, and service access expand the practical installation envelope beyond the bare chassis.

Key specifications in useful context

Specification QIDI Max4 Why it matters
Process Enclosed CoreXY FFF/FDM CoreXY motion keeps the bed's role separate from fast XY travel, while the enclosure supports thermal control.
Build volume 390 × 390 × 340 mm About 51.7 liters; genuinely large in X and Y, useful for helmets, fixtures, housings, and broad engineering parts.
Hotend Up to 370 °C; 40 mm³/s stated maximum flow The temperature range opens more engineering-material options, but sustainable speed still depends on filament, nozzle, geometry, and layer settings.
Build plate Up to 120 °C; flexible dual-sided textured PEI Useful for high-shrink materials and removable parts, with normal surface-preparation and adhesion tradeoffs.
Chamber Actively heated, up to 65 °C The strongest reason to choose this machine over an open large-format printer.
Nozzles 0.4 mm supplied; 0.2, 0.6, and 0.8 mm options listed Larger nozzles can make more sense for very large parts; fine nozzles multiply print time dramatically.
Motion claims Up to 800 mm/s and 30,000 mm/s² Machine limits are not a promise that every useful part should run at those values.
Filament system Single-spool standard; optional four-spool QIDI Box, chainable to four boxes Adds automatic refill, drying/storage, and multicolor capability, along with more tubing, changes, purge, and maintenance.
Software and access Klipper, Fluidd, QIDI Studio; OrcaSlicer support Attractive to users who want local web control and tuning rather than a cloud-only workflow.
Connectivity 2.4/5 GHz Wi-Fi, Ethernet, USB Ethernet is valuable in shops that want predictable local connectivity.
Monitoring 1080p camera and AI failure detection Useful as an aid, but not a substitute for process validation or human review.

The 390 × 390 mm bed is the headline, but the volume should be matched to real parts. A large build plate takes longer to heat, demands more table space, and tempts users into jobs that consume several kilograms of filament and many hours. Capacity is valuable only when the job mix uses it.

Where the Max4 is strongest

Large enclosed capacity

A 390 mm square bed changes what can be printed without seams. Large cosplay sections, jigs, housings, ducts, molds, and broad prototypes can fit as one part where a 256 mm platform would require splitting and joining. The 340 mm Z height is not as exceptional as the X/Y dimensions, but it is enough for many large functional geometries.

The heated enclosure makes that scale more useful. Large ABS and ASA parts can accumulate significant internal stress as they cool; a controlled chamber does not eliminate material physics, but it gives the process a better thermal environment than an open-frame machine. QIDI also lists PA, PC, PPS-CF, and other carbon- or glass-fiber-filled materials. Those labels should not be read as automatic qualification for every grade. Drying, nozzle choice, ventilation, bed preparation, chamber temperature, and the filament manufacturer's profile still govern results.

Local, enthusiast-friendly controls

Klipper and Fluidd access are meaningful strengths for technically comfortable owners. PCMag highlighted direct Klipper/Fluidd access, OrcaSlicer support, and Ethernet as advantages over a cloud-only workflow. That gives operators more visibility and tuning options, though it also means the Max4 is best approached as configurable equipment rather than a sealed appliance.

Filament management options

The QIDI Box can hold four spools, dry filament, handle runout continuity, and enable multicolor work. Those functions can be useful even if decorative multicolor is not the priority. For long prints, automatic continuation from a matching spool may be more operationally valuable than sixteen-color capability.

Still, this is a single-nozzle switching system. Mixed-color objects can require frequent retract, load, purge, and prime cycles. Before buying multiple boxes, estimate the actual number of changes per part, purge material, added cycle time, and whether the materials are mutually suitable for one hotend and one build environment.

Limitations and workflow costs

Very large prints concentrate risk

The Max4 can accept large work, but one big printer is not automatically a high-throughput farm. A single 30-hour build occupies the whole machine. If it fails near the end, the loss includes the entire part, material, and schedule window. Several smaller printers may provide better parallelism and fault isolation when products can be divided across plates.

Large parts also magnify calibration and material effects. Bed cleanliness, first-layer consistency, filament moisture, corner lift, flow stability, and thermal contraction have more distance over which to matter. A 370 °C rating is useful capability; it does not remove the need for material-specific process development.

Speed numbers need context

The stated 800 mm/s travel or motion ceiling and 30,000 mm/s² acceleration are not normal targets for every print. QIDI's own page notes that real printing speed depends on material and nozzle flow, and cites high-speed PLA and ABS around 30 mm³/s in practice. The 40 mm³/s maximum-flow figure is also a boundary, not a universal production setting.

Independent testing reinforces that caution. PCMag found accurate dimensions and clean geometry on an initial PLA Benchy, but also reported visible horizontal artifacts and moderate stringing rather than an immediately flawless surface. AppleInsider said default profiles were generally good during its reported 200 hours, while noting that stress-test prints needed substantially slower settings. The sensible takeaway is that the platform can be fast, but quality still requires a tuned intersection of flow, material, geometry, cooling, and motion.

The Polar Cooler adds another appliance

The Polar Cooler is an external module intended to cool the toolhead/filament path when the chamber is hot, helping PLA and other lower-temperature materials coexist with the enclosed environment. It is not invisible overhead. It needs its own space, hose routing, wiring, and power.

AppleInsider reported that its cooler hose could crimp as the toolhead moved and showed stress marks after several hours; the reviewer printed a lid riser to improve routing. The same review described operation without the cooler as relatively quiet but compared the cooler's noise to an “angry Roomba.” These are one reviewer's observations, not a universal failure rate, but they are concrete reasons to budget installation space and noise tolerance rather than treating the accessory as free capability.

Multicolor is not free throughput

More spool inputs mean more opportunity—and more paths to keep dry, loaded, and correctly identified. Single-nozzle multicolor work creates change cycles and purge. For a production buyer, the decision should be based on the percentage of jobs that truly benefit, not the maximum number of colors shown on the box.

Ventilation and material handling remain your responsibility

An enclosure does not make emissions disappear. ABS, ASA, high-temperature polymers, and filled materials require suitable ventilation, dry storage, safe handling, and material-specific procedures. Abrasive composites also make nozzle and feed-path wear a maintenance consideration. Do not treat a supported-material list as a safety or production certification.

Independent review evidence

AppleInsider's April 2026 review is the longer-duration account among the sources used here. The reviewer reported roughly 200 hours and more than a kilometer of filament, primarily PLA with some PETG. It praised guided setup, smooth walls, heated/cooled material capability, and spool auto-reload, while flagging the cooler's noise, hose routing, limited mobile-app usefulness, price, and physical size.

PCMag's August 2026 review was more guarded. It credited the volume, engineering-material range, dimensional results, open software, and value, but described surface artifacts and stringing in PLA testing and framed the printer as an enthusiast-oriented platform with design rough edges. Taken together, the sources support a capable large-format machine, not a claim of universal perfection or zero-tuning production.

QIDI Max4 alternatives

Prusa XL+: The Prusa XL+ review covers a 360 mm cube platform with one, two, or five independent toolheads. It is the more interesting alternative for low-purge multilateral or soluble-support work, while the Max4 offers a larger X/Y bed and a heated enclosed workflow at a different price and complexity point.

Creality K2 Plus: The Creality K2 Plus review is relevant if 350 × 350 × 350 mm is enough and you want to compare another enclosed large-format ecosystem. Compare actual chamber capability, filament system behavior, local controls, service expectations, and installed footprint—not only headline speed.

Bambu Lab H2D: The Bambu Lab H2D review covers a smaller build area but a more integrated dual-nozzle ecosystem. It may fit buyers who value tool separation and automation over the Max4's much larger square bed.

Several smaller printers: If most parts fit a 250–300 mm platform, two smaller machines may beat one Max4 for scheduling, redundancy, and simultaneous jobs. Compare throughput using your actual part files and materials rather than build-volume liters alone.

What to check before buying

  • Measure the printer, lid opening, QIDI Box, Polar Cooler, hose sweep, spool access, service clearance, and ventilation route—not just the build volume.
  • Slice representative parts with realistic nozzles and settings. Compare time, material, purge, and number of plates.
  • Confirm whether the standard or Combo configuration matches the work. Do not pay for multicolor solely because it is available.
  • Plan electrical capacity, stable bench support, dry filament storage, and safe fume extraction.
  • Check current warranty, return terms, replacement-part availability, and firmware history in your region.
  • Run acceptance parts before promising production tolerances or delivery dates.

Final verdict

The QIDI Max4 earns consideration as a large, heated, technically open CoreXY machine. Its 390 × 390 × 340 mm volume and 65 °C chamber provide a defensible reason to buy it for oversized functional parts and demanding polymers. The QIDI Box adds useful drying and runout continuity as well as multicolor, while Fluidd and Ethernet suit hands-on operators.

It is not a default recommendation for every farm. The chassis and accessories consume real space, large jobs concentrate risk, the cooler can add routing and noise issues, and maximum-speed numbers do not replace validated profiles. Buy the Max4 because a recurring part and material mix requires its envelope—not because 390 mm sounds reassuring.

If your priority is parts rather than owning this specific machine, JCPRINTFARM can review the geometry, material, quantity, and delivery requirements through the project intake. See our production 3D printing capabilities or browse the 3D printer review hub for more platform comparisons.
