Phrozen Sonic Mini 8K S Review (2026): Detail on a Budget
Share
Verdict: The Phrozen Sonic Mini 8K S is a focused small-format resin printer for miniatures, jewelry, and other detail-first work. Its 22-micron pixels, open slicer support, and current $270 US listing are attractive, but the narrow plate, basic manual workflow, stubborn model removal, and aging design limit its appeal. Buy it for compact detail, not batch capacity or automation.
Research disclosure: JCPRINTFARM has not hands-on tested this exact printer. This research-based review uses Phrozen’s current exact-model pages and product feed, Tom’s Hardware’s hands-on review, and 3DJake’s exact-model technical listing, checked October 21, 2026. Published specifications and independent observations are identified separately; manufacturer claims are not presented as our measurements.

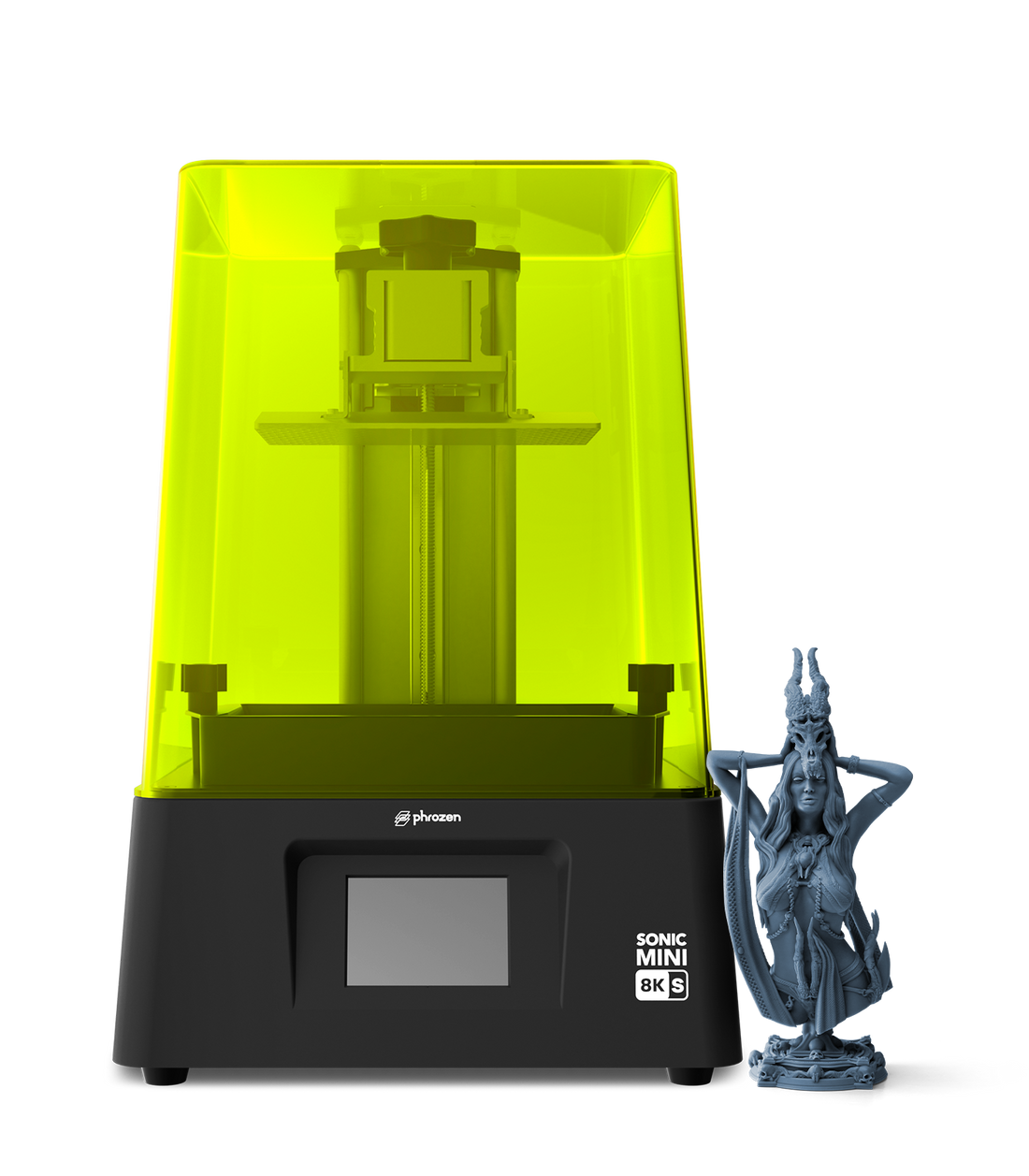

What the Sonic Mini 8K S is
The Sonic Mini 8K S is a compact masked-SLA resin printer built around a 7.1-inch monochrome LCD. Phrozen positions it as an affordable route to 22 µm XY pixels. The plate is long but narrow: the current global page, Tom’s Hardware, and 3DJake list 165 × 72 × 170 mm, while Phrozen’s US product description currently says 165 × 72 × 180 mm. That 10 mm discrepancy is worth confirming before planning a height-critical job.
This is the Sonic Mini 8K S, not the earlier Sonic Mini 8K, Sonic Mini 4K, or larger Sonic Mighty models. The “S” version uses a single linear rail, has its USB port at the front, and was designed as a lower-cost revision. Exact identification matters when ordering vats, release film, screens, build plates, firmware, or other service parts.
Who should buy it—and who should skip it
Best fit: hobbyists and small studios producing miniatures, jewelry masters, detailed decorative pieces, and short runs that fit the narrow plate. It is especially relevant when fine XY sampling matters more than plate area and when the buyer already has a safe resin workspace and post-processing equipment.
Skip it if: you need broad batch capacity, automated leveling, network transfer, a heated vat, monitoring sensors, or a low-mess workflow. Buyers making larger props, many production parts per cycle, or tall parts near the stated Z limit should compare a current mid-size printer and verify whether the exact regional Mini 8K S is specified for 170 or 180 mm of height.
Verified key specifications
| Specification | What it means in practice |
|---|---|
| 7.1-inch 8K monochrome LCD; 22 µm XY resolution | The unusually small pixels are the core reason to consider this printer. Actual surface quality and accuracy still depend on resin, exposure, orientation, supports, optics, and post-cure. |
| 165 × 72 × 170 mm listed by Phrozen global, Tom’s Hardware, and 3DJake | A useful length for rows of miniatures, but only 72 mm of width. Phrozen’s US description says 180 mm Z, so confirm the usable height on the exact unit. |
| 405 nm linear-projection LED module | Works with mainstream 405 nm photopolymer resin. Phrozen markets improved light uniformity, but every resin and room-temperature range still needs a validated exposure profile. |
| 0.01–0.30 mm listed layer range; up to 80 mm/h listed maximum | These are manufacturer limits, not guaranteed production results. Fine layers, lift settings, geometry, and resin behavior determine real elapsed time. |
| Front USB connectivity; open-format .PRZ and .CTB support | Simple local file transfer without Wi-Fi or Ethernet. Phrozen lists CHITUBOX, Lychee, VoxelDance Tango, and other slicers. |
| Single linear rail; four-screw manual plate calibration | Basic and serviceable, but not automated. Recheck calibration after transport, a hard plate impact, or unexplained partial adhesion. |
| 29 × 29 × 43 cm; 10 kg | Compact enough for a modest bench, but still needs cover clearance, spill containment, ventilation, and a safe route to washing and curing. |
| 50 W listed system power; DC 24 V, 3 A supply | Power draw is only one operating cost. Resin, film, screens, solvent, PPE, wash-and-cure equipment, and labor dominate the workflow budget. |
Specifications were cross-checked against Phrozen’s exact-model pages and feed, Tom’s Hardware’s hands-on review, and 3DJake’s exact-model listing on October 21, 2026.
Strengths that still matter
Very fine pixels in a compact machine
A 22 µm XY pitch is a credible starting point for tiny lettering, cloth textures, facial detail, panel lines, and jewelry-scale features. It is more informative than “8K” alone because the same pixel count spread across a larger screen would produce coarser sampling. Pixel size is not the same as finished-part tolerance: exposure bloom, resin shrinkage, support deformation, washing, and curing can all outweigh the nominal grid.
Independent testing supports the detail proposition
Tom’s Hardware praised the Mini 8K S for high resolution, easy menu navigation, a factory-installed screen protector, and compatibility with third-party slicers. That is useful exact-model evidence under one reviewer’s conditions. It supports the machine’s ability to make detailed resin prints, but it does not prove long-term fleet reliability, a universal exposure profile, or production yield across every resin and file.
Open slicer choices reduce workflow lock-in
Phrozen lists open-format .PRZ and .CTB files and support for common slicers including CHITUBOX, Lychee, and VoxelDance Tango. That gives users more freedom to choose support tools and profiles than a closed workflow would. Version compatibility still matters: save the approved slicer version and resin profile with production records rather than assuming a future update will reproduce an old result.
The current listing makes the value case clearer
Phrozen’s US exact-model feed marked the default variant available at $270 when checked. At that price, the machine can make sense as a dedicated detail printer or an entry point for a buyer who already understands resin safety. The purchase price should not be mistaken for complete system cost; a proper wash-and-cure setup and consumables can materially change the total.
Limitations and workflow costs
The plate is genuinely small
The 165 × 72 mm footprint favors miniatures and narrow parts. It provides much less batch area than a Saturn-, M7-, or Mighty-class printer. MSLA exposes a whole layer at once, so plate utilization is valuable, but crowding parts raises support, peel, washing, inspection, and shared-failure risk. Measure representative layouts in the slicer before buying based on headline resolution.
Print removal and dripping are weak points
Tom’s Hardware found models difficult to pry from the build plate and called out messy drips from the plate. A very aggressive texture can help first-layer security while increasing removal effort and the chance of damaging a delicate part. Tune bottom exposure instead of automatically accepting an over-bonded profile, use a controlled removal tool, and never lever toward your hand.
The manual platform is simple, not modern
Calibration uses paper and four side screws, with the printer guiding the Z-calibration step. The procedure is straightforward, but it still depends on even hand pressure and a sensible tightening sequence. There is no automated leveling or sensor suite to compensate for careless setup. Verify plate flatness and re-run a small adhesion check after maintenance or transport.
USB-only operation needs file discipline
The front USB port is easy to reach, but local transfer lacks the convenience of a managed network queue. Production users should control filenames, slicer versions, approved profiles, and revision status. A thumb drive is not a job traveler: operators still need to know the resin, plate condition, release-film state, expected duration, part count, and inspection criteria.
Resin work remains the larger commitment
The printer requires a controlled wet workflow: gloves appropriate to the resin safety data sheet, eye protection where indicated, ventilation, washable or disposable tools, spill supplies, filters, solvent containers, drying space, and post-cure equipment. The cover limits stray curing light; it is not an exposure-control or ventilation system. Never pour resin or contaminated solvent down a drain.
Aging hardware deserves parts diligence
The exact-model global and US pages remain live, and the US feed showed available stock, but the basic design dates from an earlier generation of 8K resin printers. Before buying, verify the regional warranty and availability of the exact LCD, vat, release film, build plate, power supply, and firmware. A cheap printer awaiting a proprietary screen is not useful capacity.
Current price, availability, and lifecycle
On October 21, 2026, Phrozen’s US product feed marked the Sonic Mini 8K S available at $270. The global exact-model page remained live as well. This is a timestamped product state, not a permanent price or guarantee of regional stock. Tax, shipping, bundles, seller condition, and warranty may differ.
The low price strengthens the case for detail-focused hobby use, but it also makes lifecycle questions more important. Confirm that the checkout item is a complete new printer rather than open-box or refurbished stock. Save the exact warranty terms and check replacement-screen pricing before purchase. Used buyers should inspect the LCD, screen protector, vat, film, plate, rail, leadscrew, cover, and power supply, then run a fresh validation file.
Output quality versus “8K” marketing
The Mini 8K S earns its resolution claim through a small screen and 22 µm pixels, but final quality is a process result. Overexposure can close gaps and soften texture; underexposure can weaken supports. Excessive anti-aliasing can erase deliberately sharp details. Resin pigment, temperature, rest time, lift motion, and cure schedule all matter. Establish an exposure range with a representative calibration part, then validate the actual geometry and finish required.
For dimensional work, measure the finished part after washing and full cure rather than inferring tolerance from XY pitch. Z accuracy follows layer thickness and mechanics, not the LCD’s pixel grid. The printer is best understood as a fine-sampling image source inside a larger chemical and mechanical workflow.
Realistic alternatives
- Anycubic Photon Mono 4 Ultra: another compact detail-first option with a newer feature set; compare usable area, resin profiles, sensors, and replacement parts.
- Elegoo Mars 5 Ultra: a small-format alternative with more recent handling and monitoring features; compare workflow convenience rather than resolution labels alone.
- Phrozen Sonic Mighty 8K: much more plate area and height for batches, with greater resin, washing, space, and failure costs.
- Elegoo Saturn 4 Ultra: a broader mid-size choice when throughput and current-generation workflow features outweigh compactness.
If resin demand is irregular, outsourcing can cost less than maintaining a controlled resin room, solvent inventory, consumables, and trained labor. JCPRINTFARM’s project intake can help assess production options, while the 3D printer review hub collects more research-based machine comparisons.
Buying checklist
- Verify the label says Sonic Mini 8K S, not Sonic Mini 8K or another Mini-family model.
- Confirm whether usable Z height for the regional unit is 170 or 180 mm.
- Check new, refurbished, open-box, or clearance condition and obtain warranty terms in writing.
- Price the exact replacement LCD, vat, film, build plate, resin, solvent, PPE, and post-processing equipment.
- Test a representative slicer layout against the narrow 72 mm plate before assuming adequate batch capacity.
- Confirm the preferred slicer version exports a file accepted by current firmware.
- Measure cover clearance, ventilation, spill containment, and the wet-part route to washing and curing.
Final verdict
The Phrozen Sonic Mini 8K S remains a sensible specialist when compact dimensions, 22 µm sampling, open slicer choice, and a low purchase price align with the job. It is less convincing as an all-purpose resin printer: the plate is narrow, operation is USB-only, calibration is manual, and independent testing found part removal and dripping awkward. Choose it for detail-rich small parts after verifying height, parts support, and total workflow cost—not simply because “8K” sounds future-proof.
Research sources
- Phrozen global Sonic Mini 8K S product page and specifications
- Phrozen US exact-model listing and current product feed
- Tom’s Hardware hands-on Sonic Mini 8K S review
- 3DJake exact-model technical listing
Research checked October 21, 2026. Pricing, availability, firmware, and support can change.
