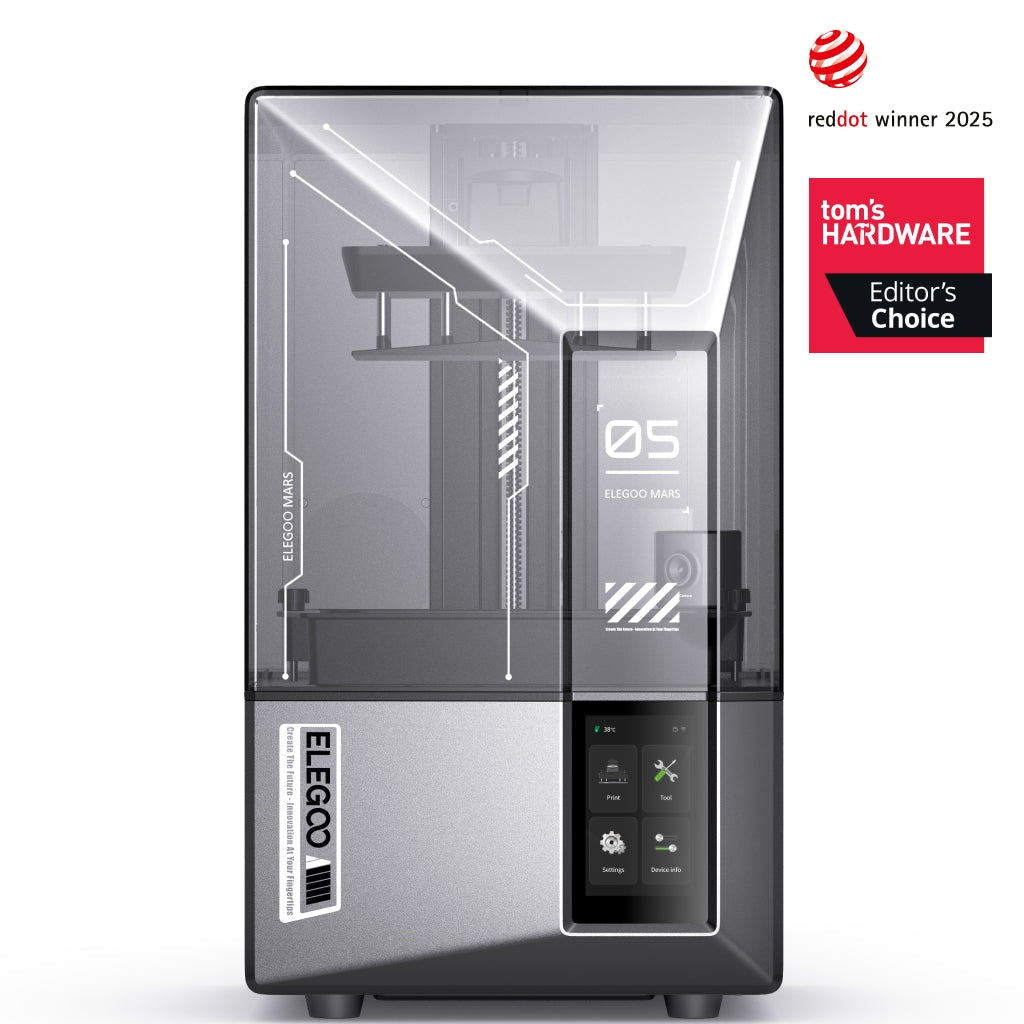

Elegoo Mars 5 Ultra compact resin 3D printer in official product media

Elegoo Mars 5 Ultra Review: Compact Resin Standout?

Short verdict: The Elegoo Mars 5 Ultra is an easy-to-recommend compact resin printer for miniatures, detailed models, and small prototype batches. Its 18-micron pixels, automatic leveling, tilting vat, useful self-checks, and Wi-Fi workflow remove real friction. Skip it if you need a large build plate, built-in resin heating, dependable failure detection, or a resin workstation without substantial safety and post-processing overhead.

Research disclosure: JCPRINTFARM has not hands-on tested this exact printer. This review is based on Elegoo's current US product listing and exact-model support resources plus independent hands-on reporting from Tom's Hardware, 3DWithUs, and Maker Hacks. Their observations are attributed rather than presented as ours.

What the Elegoo Mars 5 Ultra is

The Mars 5 Ultra is a compact masked-resin printer built around a 7-inch 9K monochrome LCD and a 153.36 x 77.76 x 165 mm build volume. It is the feature-rich member of the Mars 5 pair: the Ultra adds the finer screen, a tilting resin vat, an onboard camera, Wi-Fi transfer, and a higher advertised speed ceiling.

Its real appeal is not the 9K badge alone. The small pixels suit miniatures and intricate visual models, while automatic platform calibration and pre-print checks reduce setup chores. The tilting vat peels each cured layer from the release film by changing the vat angle instead of relying only on a long vertical lift. That can shorten layer cycles and reduce peel forces, but resin, geometry, supports, temperature, and settings still decide whether a job succeeds.

Who should buy it, and who should skip it

Buy it if your work centers on tabletop miniatures, jewelry or casting masters, detailed figures, dental-style study models that do not require a validated medical workflow, or small visual prototypes. It is especially attractive when a compact footprint and easy first-layer setup matter more than plate area.

Skip it if you regularly fill a larger Saturn-class plate, print tall parts near the Z limit, work in a cold room without a resin-heating plan, or expect the camera to replace operator inspection. Also skip resin printing entirely if you cannot provide ventilation, chemical-resistant gloves, eye protection, spill control, washing, drying, post-curing, and compliant waste handling.

Key specifications in practical context

Specification What it means
153.36 x 77.76 x 165 mm build volume A compact plate suited to miniatures and small parts. Batching capacity is far below a 10-inch Saturn-class printer.
7-inch 9K monochrome LCD; 8520 x 4320 Elegoo lists 18-micron XY pixels. Fine pixel pitch helps detail, but exposure, optics, resin, supports, washing, and cure still shape the result.
Tilting-vat release Reduces the vertical peel motion required after each layer and supports faster cycles. The mechanism adds moving parts and clearance around the vat.
Advertised maximum speed: 150 mm/h A vendor ceiling, not a universal job rate. Layer height, resin, cross-section, supports, exposure, and selected speed mode determine elapsed time.
Automatic leveling and mechanical sensing Reduces routine platform setup and can detect several incorrect conditions, but does not eliminate cleaning, inspection, or resin calibration.
Camera, time-lapse, and claimed failure monitoring Useful for viewing progress, though independent reviewers found the camera angle, dark cover, and failure recognition limited.
USB and Wi-Fi Supports local transfer and ChituManager network workflows. Test network policy, firmware, and offline recovery before fleet deployment.
No built-in heater Resin temperature must be controlled by the room or a separately qualified heating approach.

Strengths

Excellent compact-format detail potential

The 18-micron XY figure is unusually fine for this price and size class. 3DWithUs reported sharp 32 mm and 75 mm models, smooth curves, and thin lattice features using the supplied profile. Tom's Hardware likewise treated the printer as particularly well suited to gaming miniatures. These reports support the machine's detail potential, but they do not guarantee dimensional accuracy or identical surfaces with every resin and file.

At this pixel density, support strategy, exposure, orientation, antialiasing, resin pigment, film condition, wash time, and post-cure can matter more than another resolution label. A useful qualification plan starts with an exposure matrix, then a representative supported model and dimensional coupon.

Automatic leveling removes a common beginner failure point

The build platform attaches with a quick-release lever and the machine calibrates the platform automatically before printing. 3DWithUs reported no leveling-related adhesion failure during its test period. That is a meaningful convenience compared with platforms that require loosening bolts, paper leveling, and careful re-tightening.

Automatic leveling is not automatic process control. The plate still needs to be clean, the vat must be free of cured fragments, the resin must be within its working temperature range, and bottom exposure must match the actual material and film.

The tilting vat is a practical speed feature

Instead of lifting the part far enough to peel a whole layer vertically, the vat tilts to begin separation progressively. Independent testing from 3DWithUs and Maker Hacks found the mechanism delivered fast, detailed output. The design can also reduce suction stress on wide cross-sections, although orientation and hollowing still matter.

Do not quote jobs from the 150 mm/h headline. Compare complete sliced times at the intended layer height and quality. A tall narrow miniature and a full plate can share the same height while imposing very different exposure and release conditions.

Useful checks and a more connected workflow

The printer runs a self-check during startup and uses mechanical sensing for conditions such as resin shortage, residue, and leveling problems. It also supports power-loss resume, Wi-Fi transfer, camera viewing, and time-lapse capture. These features make the machine easier to manage than a basic USB-only resin printer.

3DWithUs successfully used the resume feature after an outage, though a visible line remained at the interruption. That is the right expectation: recovery may save a job, but it does not make the interruption invisible or validate the part for a critical use.

Limitations and workflow costs

The camera is not a reliable failure detector

The camera sits low and looks through a dark cover. 3DWithUs found the view adequate for basic monitoring and time-lapse with extra lighting, while Maker Hacks reported that the camera failed to identify multiple print failures. Treat it as a convenience camera, not a control system. The safest response to an ambiguous image or alert is still an in-person inspection with appropriate PPE.

There is no built-in resin heater

Maker Hacks reported repeated failures in a cold workshop until the resin environment was warmed. Photopolymer viscosity and cure response change with temperature, and many desktop resins work best in a narrower range than an unheated garage or basement provides.

Use the resin manufacturer's current guidance and measure the material temperature, not just room air. Any enclosure heater must be compatible with the printer, resin, vapors, wiring, and fire-safety plan. Avoid improvised hot-air methods that create uneven temperatures or blow contaminants.

The compact plate limits batching

The 153.36 x 77.76 mm XY area is efficient for small models, but the narrow dimension fills quickly. A larger Saturn-class printer can reduce the number of plates for a miniature army or short production run. The larger machine also consumes more resin, release film, bench space, and wash capacity, so compare representative nested plates rather than buying by screen size.

Cleaning remains the dominant ownership chore

The two-level build-plate design can trap resin around its structure, and the tilting vat needs space to move. Removing a wet plate can drip into the gap around the vat, which is why Elegoo includes a drip tray. Resin changes still require pouring, filtering when appropriate, wiping contact surfaces, and inspecting the release film.

The printer does not include a complete wash-and-cure workflow. Budget for suitable containers or a station, solvent management, drying space, cure validation, tools, replacement film, screen protection, vats, PPE, ventilation, and hazardous or regulated waste handling as required locally.

Software and network behavior deserve a trial

The Mars 5 Ultra supports Chitubox and ChituManager for slicing, transfer, monitoring, and statistics. 3DWithUs found the current profile effective, while Maker Hacks had trouble with network printing during its test. Firmware and slicer support evolve, so verify the current versions rather than assuming an older review describes today's workflow.

For production use, test USB fallback, account requirements, local-network discovery, file naming, job history, camera access, firmware rollback policy, and recovery after a router or power interruption. Consumer Wi-Fi convenience is not automatically fleet management.

Resin safety and material fit

Uncured photopolymer can irritate or sensitize skin. Use the current safety data sheet, chemical-resistant gloves appropriate to the material, eye protection, spill containment, restricted access, and effective ventilation. The UV cover does not control vapor exposure, and low odor does not prove low exposure. Do not handle wet parts with bare skin.

Wash, dry, support removal, and controlled post-cure are part of the manufacturing process. Never pour uncured resin, contaminated solvent, or contaminated wash water down a drain. Hollow parts need drain and vent planning so liquid resin or solvent is not trapped inside.

Standard and water-washable resin: suitable for visual models once calibrated, but water-washable does not mean drain-safe or skin-safe. The contaminated water still requires proper handling.

ABS-like and tough resin: can improve impact behavior over brittle display resin, but the labels do not make the result equivalent to molded ABS. Test creep, heat, moisture, UV, chemicals, and real loading.

Castable, dental, or biocompatible applications: screen resolution alone does not establish a validated process. Regulated output requires approved materials, documented equipment, traceable washing and curing, dimensional validation, and compliance with the intended use and jurisdiction.

Realistic alternatives

Standard Elegoo Mars 5: choose the lower-cost model when automatic leveling matters but the Ultra's fine pixel pitch, tilting vat, camera, and Wi-Fi are not worth the premium. Verify the exact SKU because Mars 5 and Mars 5 Ultra profiles and capabilities are not interchangeable.

Elegoo Saturn 4 Ultra: the larger sibling makes more sense when a representative batch repeatedly overfills the Mars plate. It requires more resin inventory, more bench and wash capacity, and generally higher consumable exposure, so model the whole workstation.

Anycubic Photon Mono 4 Ultra: our Photon Mono 4 Ultra review covers another compact high-resolution resin option. Compare exact plate dimensions, release approach, sensing, slicer support, replacement-film cost, and regional support.

Anycubic Photon Mono M7: the Photon Mono M7 review covers a much larger plate for users prioritizing batch area over a compact footprint.

FDM or outsourcing: thermoplastics are often a better fit for brackets, housings, fixtures, and larger durable parts. If resin demand is occasional, compare the complete chemical workstation and labor with JCPRINTFARM's production 3D printing service or project intake.

Availability and lifecycle in September 2026

Elegoo's US store listed the exact Mars 5 Ultra available at $269 when checked on September 17, 2026, and the exact-model wiki still provided firmware, networking, camera, leveling, release-film, LCD, and troubleshooting resources. Price, promotions, bundles, and stock can change; confirm the seller, regional voltage, warranty route, and delivered contents at checkout.

The listing remains active alongside newer Elegoo resin models, which supports treating it as a current supported product rather than an abandoned legacy printer. Before standardizing several units, qualify one and track failed plates, intervention time, film and screen life, camera usefulness, network stability, wash labor, cure consistency, and support response.

Final verdict

The Elegoo Mars 5 Ultra is a strong compact resin printer because its automation and tilting vat improve everyday workflow, not just its specification sheet. The fine pixels and favorable independent print evidence make it a good fit for miniatures and detailed small parts, while automatic leveling lowers a familiar barrier for new resin users.

Buy it with realistic expectations: the camera is a viewing aid, 150 mm/h is conditional, cold resin still causes trouble, and every part needs washing and post-curing. If you need finished parts more than another chemical workstation, use the JCPRINTFARM project intake. Browse more exact-model coverage on the 3D printer reviews hub.
