Non-manifold mesh geometry means the triangles do not describe one unambiguous closed volume. An edge may belong to too many faces, internal faces may divide the volume, shells may touch only at a point, or disconnected fragments may remain. A file can open and preview normally yet still need controlled repair and production review before it is safe to quote or release.
For controlled end-use and repeat parts, start with production 3D printing services. For scan-derived geometry and reverse-engineering work, review 3D scanning services.
What non-manifold means in practical terms
A production mesh should let downstream software distinguish inside from outside and form the intended volume without guessing. Non-manifold topology breaks that assumption. The issue is not merely whether a viewer renders the surface; it is whether repair, slicing, inspection, and revision control operate on the same intended geometry.
| Condition | What it looks like | Manufacturing risk | Buyer decision |
|---|---|---|---|
| Edge shared by more than two faces | Several surface regions meet along one edge | Inside and outside become ambiguous; repair may delete or merge a region | Identify which faces belong to the intended solid |
| Internal face | A triangle sheet remains inside an otherwise closed shape | Slicing or boolean work can create voids, extra walls, or unpredictable regions | Confirm whether it is construction residue or an intentional divider |
| Point or edge contact | Volumes touch without a proper shared volume | The connection may disappear, split, or become an unintended weak interface | Define whether the bodies should merge, remain separate, or gain clearance |
| Disconnected shell | A small fragment or second body is not joined to the main part | It may be ignored, printed separately, fused unexpectedly, or counted as debris | Classify each shell as required geometry, separate component, or artifact |
| Self-intersection | Surfaces pass through one another | Automatic repair chooses a volume that may differ from the design | Return to the source model when functional intent is unclear |
File acceptance is not production approval
A file upload can pass size, extension, and preview checks while its topology remains ambiguous. Likewise, software that reports a successful repair proves only that it produced a computable result. It does not prove that holes, wall thickness, mating faces, clearances, cosmetic surfaces, or internal passages still match the buyer's intent.
Use the watertight mesh versus manufacturable solid guide to separate closed-volume status from a broader manufacturing release. Use the mesh processing evidence guide when repair also includes smoothing or decimation.
Use a controlled repair sequence
- Preserve the submitted file unchanged with its filename, revision, units, and source.
- Run topology checks and record the categories and locations of detected conditions.
- Classify each condition as clearly disposable data, clearly intentional geometry, or unresolved design intent.
- Prefer correction in the native CAD source when design features are known there.
- If mesh repair is necessary, work on a new controlled revision and limit changes to approved regions.
- Compare repaired and original geometry at critical interfaces, holes, thin walls, mating faces, and protected cosmetic surfaces.
- Verify scale, orientation, shell count, normal direction, section views, and slicer interpretation.
- Obtain design-owner approval for any inference that can affect fit, function, appearance, inspection, or use.
When automatic repair is a reasonable fit
Automation may be appropriate for clearly isolated duplicate faces, obvious scan fragments outside the part, or trivial topology defects where the intended surface is independently controlled and the repair produces no material geometry change. Even then, retain before-and-after files and a repeatable comparison.
Automatic repair is a poor fit when missing geometry crosses a mating interface, thin wall, sealing surface, datum, thread, snap, channel, text, cosmetic boundary, or wear feature. It is also unsafe when the buyer cannot identify which shell is the real part or whether touching bodies were intended to be separate.
Quote-readiness inputs
- Original file, native CAD when available, revision, units, and export settings
- Intended body or shell count and whether separate components must remain separate
- Critical fits, datums, holes, walls, clearances, passages, and protected surfaces
- Known scan artifacts, missing areas, prior repairs, and regions that may be inferred
- Authority to repair versus authority to manufacture only from an approved file
- Required comparison method, approval owner, and before-and-after evidence
- Material, use environment, quantity, acceptance checks, packaging, and release plan
Package those requirements using the production 3D printing RFQ checklist.
Fit, non-fit, and production risks
This framework fits mesh-based production candidates, scan-derived geometry, legacy files, exported STL or 3MF data, and supplier handoffs where topology must be reviewed before manufacture. It does not make an unsafe or poorly defined design suitable for use, and it does not replace application-specific engineering, regulatory, or safety review.
Common failures include overwriting the source file, silently removing an intentional shell, filling a passage, thickening a thin feature, merging separate bodies, accepting a repair solely because it slices, and sending production a corrected file without a new revision.
Non-manifold mesh FAQs
Can a non-manifold STL still be printed?
Sometimes software can infer or repair an intended volume, but that does not prove the inferred geometry matches design intent. Manufacturing release should depend on a controlled repair, documented comparison, and buyer approval where geometry changes matter.
Is watertight the same as manifold?
They are related but not interchangeable buyer checks. A closed result may still contain ambiguous topology, self-intersections, internal structures, or geometry that is wrong for the intended part.
Who should approve a repaired mesh?
The owner of design intent should approve repairs that change functional, mating, cosmetic, inspection, or safety-relevant geometry. Detection and engineering approval are separate responsibilities.
Final manufacturing decision
Release the mesh only when every shell and ambiguous region has an intended disposition, repairs are preserved as a new revision, critical geometry has been compared, downstream interpretation is stable, and the authorized design owner accepts any inferred change. A clean preview is useful; it is not a production approval record.

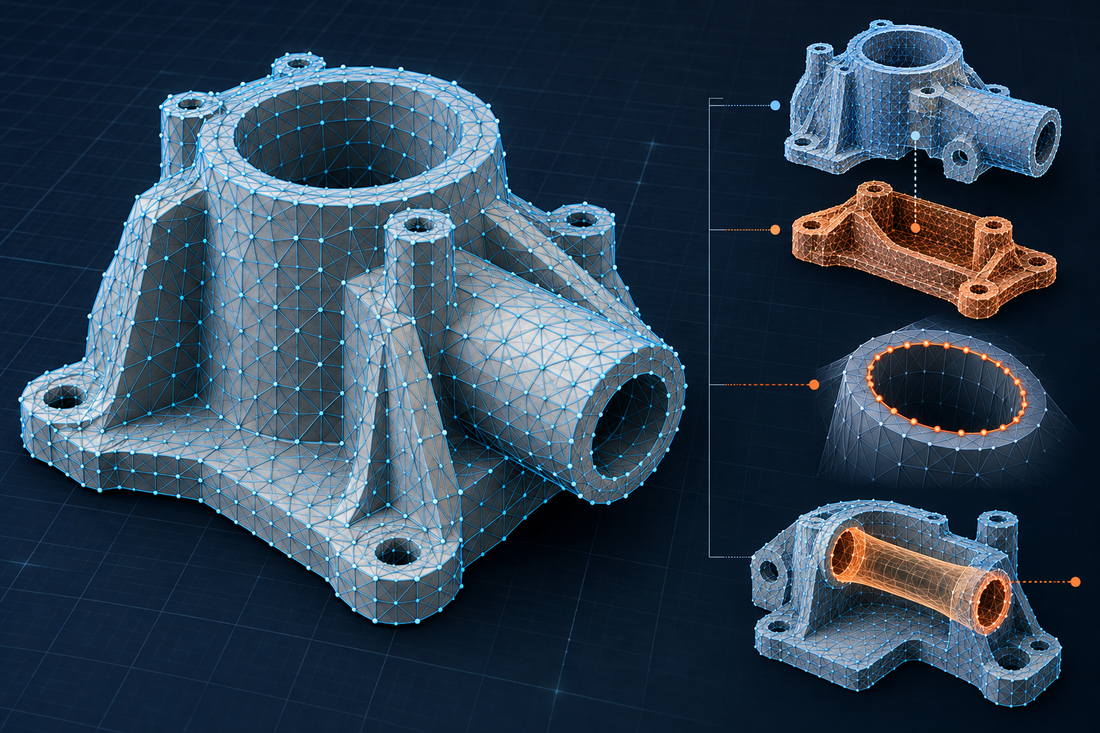

Use Euler characteristic as a topology cross-check
Euler characteristic is calculated as vertices minus edges plus faces, or V − E + F. In a manufacturing mesh review, it is useful because it compresses connectivity into a value that can be checked before and after repair. It should always be interpreted with connected-component, boundary-loop, handle, and non-manifold counts. A matching value does not prove dimensional accuracy, correct alignment, surface fidelity, wall thickness, printability, or design intent.
| Check | Plain manufacturing meaning | Decision it supports |
|---|---|---|
| Vertices, edges, faces | The point, connection, and triangle counts used in V − E + F | Confirm the evaluated mesh and whether cleanup changed its structure |
| Connected components | Separate groups that cannot be reached through shared mesh connectivity | Classify each as intended part, reference, debris, or unknown shell |
| Boundary loops | Closed chains along open surface edges | Decide whether each opening is real, trimmed, missing evidence, or a repair candidate |
| Handles or genus | Through-features such as tunnels in the surface topology | Detect a passage accidentally created or closed during processing |
| Non-manifold conditions | Connectivity that does not describe one unambiguous surface volume | Stop simple formula interpretation until ambiguous edges, vertices, or internal faces are classified |
State the assumptions before interpreting the result
For a connected, closed, orientable surface, χ = 2 − 2g relates Euler characteristic to the number of handles. With boundary loops, a common form is χ = 2 − 2g − b. For several disconnected components, component values add. These relationships are diagnostics only when the mesh is evaluated consistently. Duplicate vertices, unwelded seams, overlapping faces, internal faces, degenerate elements, and automatic import cleanup can change what software counts.
- Preserve the original file, revision identity, units, coordinate frame, and import settings.
- Report topology per relevant connected component instead of only one whole-file total.
- State whether coincident vertices were welded and whether duplicate or degenerate faces were removed.
- List boundary loops, non-manifold edges or vertices, isolated elements, and self-intersections alongside Euler characteristic.
- Compare the counts before and after every repair, then review the changed regions against physical evidence or approved design intent.
What a mismatch can and cannot tell the buyer
An extra component can be scan debris, a retained marker, or a legitimate separate piece. A new boundary loop can be missing surface evidence or a real opening. A changed handle count can show that hole filling closed a passage or that an unintended bridge joined surfaces. However, two different errors can offset one another and leave the same Euler value. Geometry can also move substantially through smoothing or non-rigid processing without changing topology.
Repair only when the intended result is supported by drawings, mating parts, multiple scans, accessible physical inspection, or another controlled source. Reject or escalate when topology affects fit, flow, sealing, assembly, safety, inspection, or an inaccessible feature. Use 3D scanning and reverse engineering for a managed evidence plan; review watertight mesh versus manufacturable solid, boundary-loop decisions, and mesh-processing evidence for adjacent controls.
Euler topology quote-readiness inputs
Provide the original mesh, expected part count, known separate components, intended openings and passages, units, coordinate frame, source process, import assumptions, allowed welding or cleanup, protected interfaces, physical evidence, target deliverable, approval owner, and whether the work supports inspection, printing, or CAD reconstruction. This check is not a substitute for dimensional acceptance or engineering approval.
