Gage R&R Part Nests: 3D Printing Supplier Guide

Updated October 17, 2026

Choose a 3D printing supplier for gage R&R part nests by evaluating datum strategy, repeatable seating, measurement access, operator loading, restraint, wear, first-article evidence, and replacement control. A quote-ready package should identify the released part, measured characteristic, instrument, study method, permitted contacts, critical interfaces, quantity, labeling, acceptance evidence, and required date.

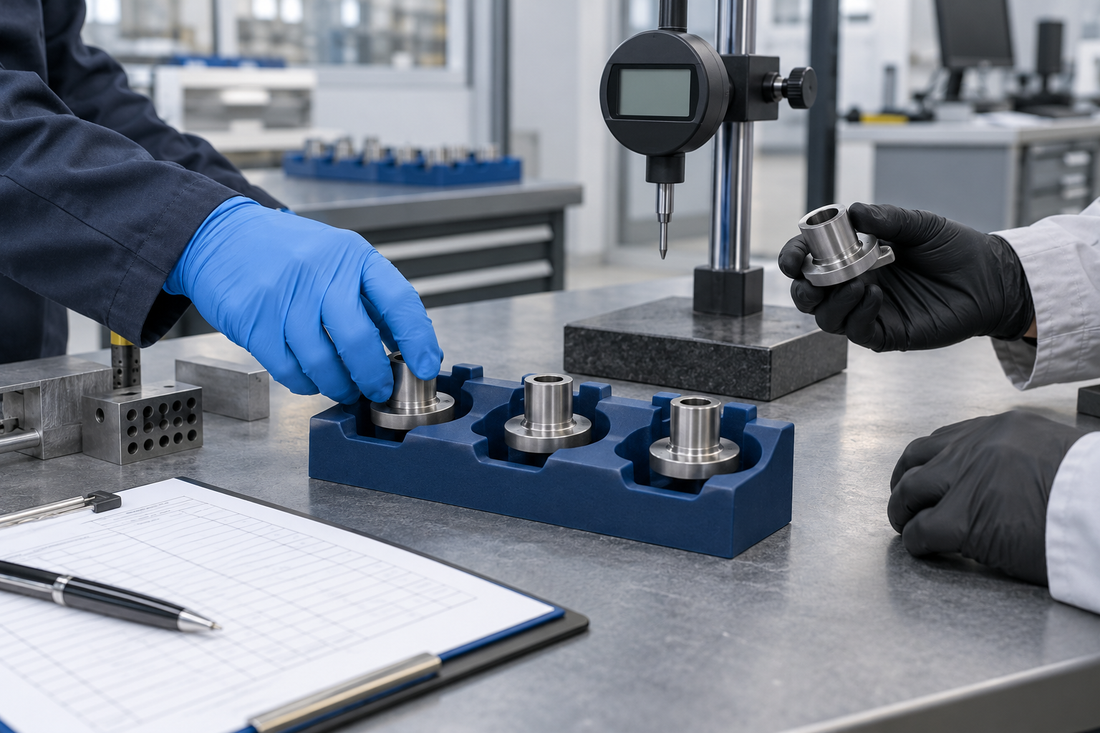

Start with the measurement system, not the nest shape

A gage repeatability and reproducibility study evaluates more than a holder. Record the part family and revision, measured feature, instrument, resolution, probe path, operator sequence, environment, sampling plan, repeats, and analysis method before releasing nest geometry. The nest should support that defined method; it should not quietly create a different one.

State whether the study is intended to evaluate a manual measurement, compare operators, qualify a workstation, or monitor an established method. Name the study owner and approval authority. The supplier can manufacture against released requirements and provide agreed evidence, but should not promise a passing study or interpret buyer data without an explicit supported scope.

Define locating contacts and restraint

Identify the surfaces that establish position and the direction in which the operator seats the part. Avoid broad contact where molded texture, flash, printed variation, burrs, or cosmetic surfaces could change seating. Use clear stop faces and relief around non-datum features. If orientation is easy to confuse, use asymmetric geometry or a visible identifier instead of relying on memory.

Clamping can improve stability, but excessive force can distort thin parts, mask loading variation, or change the measurement. Define whether restraint is gravity, a light spring, a toggle, a fastener, or no clamp. For purchased hardware, specify the exact item, installation method, replacement rule, and who supplies it.

Keep measurement and operator access open

Requirement	Buyer decision	Supplier evidence
Datum scheme	Permitted contact surfaces, stop sequence, reliefs, and orientation.	Controlled interface drawing and first-article contact review.
Instrument access	Probe, jaw, scanner, indicator, or camera clearance through its full path.	Clearance check with released instrument or controlled envelope.
Loading	Hand position, insertion direction, force, visual cue, and removal method.	Documented loading trial using the released work instruction.
Restraint	Allowed clamp method and whether force can influence the characteristic.	Hardware identity and functional check.
Wear	Critical contacts, inspection frequency, retirement limit, and spare plan.	Baseline dimensions or master evidence plus replacement record.
Program control	Part and nest revisions, station ID, labels, packaging, and effectivity.	Released BOM, label check, pack list, and revision record.

Separate nest approval from study acceptance

A first article can confirm that the nest matches its drawing, holds the released part, preserves measurement access, uses the specified hardware, and supports the documented loading sequence. Those checks do not prove that the complete measurement system will meet the buyer's statistical threshold.

Run the buyer-defined study only after the nest, instrument, work instruction, parts, operators, and environment are in their released states. Record which nest serial or revision was used. If the study fails, investigate the measurement system rather than automatically changing the nest; an uncontrolled geometry change can invalidate comparisons.

Plan wear, damage, and replacement

Repeated loading can polish, abrade, chip, deform, or contaminate locating surfaces. Identify contacts that influence seating and define a practical check: visual condition, critical dimension, master-part fit, or another buyer-approved method. Set a review event and retirement authority instead of claiming an unsupported service life.

Replacement nests need more than a shared filename. Control the source file, material and process, orientation-sensitive requirements, hardware, label format, critical feature evidence, and revalidation route. If two nests must correlate across sites or shifts, state that requirement and the buyer's comparison method before quoting.

Fit and non-fit cases

Good fit for supplier evaluation

• The released part revision, characteristic, instrument, datum strategy, and operator sequence are known.
• Critical contacts and measurement clearances can be defined and inspected.
• The buyer has a study method and owns the statistical acceptance decision.
• A first article can be tried with representative parts before repeat release.
• Wear checks, labels, storage, revision effectivity, and replacement approval can be controlled.

Pause before production

• The nest is expected to compensate for an undefined or unstable measurement method.
• Clamp force may distort the part but no limit or method is defined.
• The instrument, probe path, part revision, or datum scheme is still changing.
• The request depends on an unverified tolerance, material property, calibration, certification, or environmental claim.
• The nest would function as a safety device, machine guard, production clamp, or regulated fixture outside the quoted scope.

Production risks to control

• Datum ambiguity: operators seat the same part against different surfaces.
• Over-restraint: clamp force changes the feature being measured.
• Blocked access: the nest interferes with a probe, jaw, camera, or reading angle.
• Part-revision drift: a changed component keeps the old nest identity.
• Method drift: operators use different loading or zeroing sequences.
• Wear drift: locating contacts change without a review trigger.
• False interchangeability: a replacement is released without correlation or revalidation.
• Unsupported scope: calibration, statistical acceptance, or certification is assumed but not contracted.

Quote-readiness checklist

• Part number, revision, controlled CAD or drawing, manufacturing rights, and representative samples
• Study purpose, owner, characteristic, instrument, probe path, and work instruction
• Datum contacts, seating direction, orientation, reliefs, measurement access, and exclusion zones
• Restraint method, force-sensitive features, purchased hardware, and substitution limits
• Critical nest dimensions, general workmanship, first-article evidence, and approval authority
• Material and process requirements plus temperature, cleaners, oils, dust, impact, and storage inputs to evaluate
• Nest ID, part compatibility, station or site, labels, packaging, and handling
• Wear check, damage route, retirement rule, spare quantity, and replacement revalidation
• Release quantity, repeat pattern, destinations, required date, revision effectivity, and nonconformance route

Use the production RFQ checklist to normalize supplier responses. The production inspection guide helps separate critical-feature evidence from general workmanship.

Choose the supplier path

A clean, released nest file with simple requirements may fit an instant quote. A multi-part, recurring, inspection-sensitive, hardware-dependent, labeled, staged, or revision-controlled program usually benefits from managed intake. JC Print Farm / JCSFY is a US production 3D printing business based in Central Ohio; project-specific material, process, inspection, packaging, and schedule requirements still need confirmation before award. Review the broader production 3D printing service and use a controlled repeat production plan when replenishment recurs.

Frequently asked questions

What should an RFQ for a gage R&R part nest include?

Include the study purpose, part family and revision, controlled datum scheme, measurement characteristic, instrument and probe access, loading sequence, operator contact rules, orientation, allowable restraint, environment, quantity, first-article method, wear limit, labeling, packaging, and required date.

Can the nest guarantee a passing gage R&R result?

No. The nest is one input to a measurement system that also includes the part, instrument, method, operators, environment, sampling plan, and analysis. Define the buyer-owned study method and acceptance rule; do not ask a supplier to promise a statistical outcome from nest geometry alone.

Should the nest locate or clamp the part?

Use only the locating and restraint needed for the released measurement method. Excess force can distort a part or hide operator variation, while too little control can allow inconsistent seating. The buyer should define permitted contacts and loading force or hardware where these matter.

How should a replacement nest be approved?

Match the released file, material and process, critical locating features, hardware, labels, and inspection record, then run the buyer-defined correlation or revalidation check before returning it to the study or production measurement system.

When does managed farm intake fit?

Managed intake fits recurring, multi-SKU, inspection-sensitive, staged, labeled, packaged, kitted, hardware-dependent, or revision-sensitive work. Instant quote fits clean files and straightforward requirements for one clearly defined job.
