Using Field-Return Cores to Reconstruct Replacement Parts

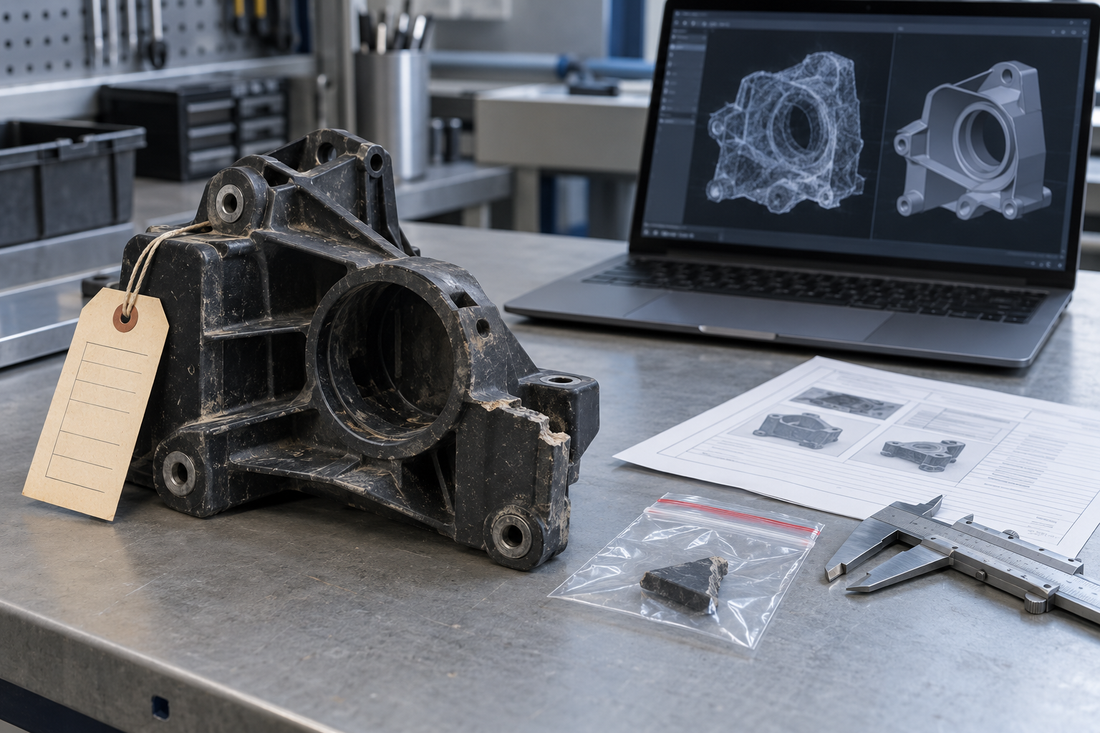

A field-return core can be valuable reconstruction evidence only when its identity, installed configuration, service history, failure state, wear, repairs, missing pieces, and custody remain connected. Do not treat the returned geometry as automatic design intent. Preserve the as-received condition, compare critical interfaces and other sources, record every interpretation, and release replacement CAD only through a named validation and approval path.

Treat the core as evidence, not as the answer

A returned component records more than geometry. It may contain wear, creep, heat exposure, chemical attack, impact damage, field drilling, repairs, contamination, assembly marks, fastener witness patterns, and missing material. Some of those observations explain the failure; others are noise. Preserve the distinction between what was observed, what was reported, and what the reconstruction team inferred.

Preserve condition before intervention

Before cleaning, cutting, repairing, or removing inserts, photograph all sides, identify loose pieces, record orientation and assembly state, and note any contamination or handling limits. If destructive disassembly may reveal hidden interfaces, define exactly what may be altered and who authorizes it. A cleaned core can be easier to scan but may no longer preserve important residue, witness marks, or failure evidence.

Build an evidence hierarchy

1. Released drawings, approved CAD, change records, and known effectivity.
2. Mating hardware, assembly measurements, datums, motion envelopes, and functional requirements.
3. Other independent samples or unused stock that can separate common geometry from one core's wear.
4. The field-return core's as-received geometry and service observations.
5. Standard features, manufacturing logic, and documented engineering assumptions.

When sources conflict, keep the conflict visible. Do not average damaged geometry into a smooth model or copy a repair without an explicit decision. A replacement may reproduce the original intent, preserve a useful field modification, or introduce an approved redesign; those are different deliverables and approval paths.

Define the release gate

A reconstruction package should identify the governing source set, unresolved assumptions, nominal-versus-as-built decisions, current CAD revision, material and environment requirements, critical interfaces, inspection method, prototype or first-article evidence, fit and functional approval, and disposition of the returned core. The replacement file should not become orderable merely because a mesh or model exists.

Fit, non-fit, and production risks

This workflow can fit obsolete plastic housings, guards, brackets, knobs, ducts, guides, and other non-safety-critical components when rights, evidence, requirements, and validation are adequate. It is a poor fit when the part's consequence is unacceptable, material identity or exposure is unknown, the core is too damaged to support the required definition, or regulatory and original-equipment controls require another route. Farm intake fits scanning, reverse-engineering, multi-SKU, recurring, inspection-sensitive, staged, packaged, or otherwise complex work; instant quote fits clean released files and straightforward requirements.

• The wrong return core is tied to the wrong equipment or revision.
• Cleaning or disassembly destroys useful evidence before documentation.
• Wear, heat distortion, or a field repair is mistaken for nominal geometry.
• A missing fragment hides an interface or retention feature.
• The reconstruction solves the observed failure but creates a new assembly conflict.
• A mesh is released without controlled CAD, requirements, and buyer approval.

The 3D scanning and reverse-engineering service page owns the commercial scan-to-CAD path. Use the field-failure requirements guide to define the service problem, the multiple-sample guide to compare independent evidence, and the chain-of-custody guide for customer-owned parts.

Make the request quote-ready

• Core tag, asset identity, serial or configuration applicability, site, work order, and return reason.
• As-received photographs, failure description, service history, known repairs, and missing pieces.
• Available drawings, CAD, revisions, mating parts, assembly context, and other samples.
• Critical interfaces, loads, environment, material requirements, consequence, and non-fit limits.
• Allowed cleaning and disassembly, required core return condition, and custody contacts.
• Desired deliverables, validation plan, prototype or first-article gate, approvers, and release authority.

Frequently asked questions

Can a worn field-return core be scanned directly into a replacement part?

It can provide useful evidence, but its geometry may include wear, damage, repairs, distortion, and missing material. Reconstruction should separate as-received condition from approved design intent before any production release.

Should the core be cleaned before it is documented?

Not automatically. Photograph and record its as-received state first. Cleaning may help measurement, but it can remove residue, witness marks, fragments, or other evidence relevant to failure and reconstruction.

What if only one returned core exists?

Use the core with mating context, drawings, service records, standardized features, functional requirements, and explicit assumptions. Keep uncertainty visible and use a bounded prototype or first-article approval before repeat production.

Final decision

Proceed only when the return core, supporting sources, reconstruction assumptions, technical requirements, validation evidence, approver, and release path are controlled. Put those inputs in the quote package before production work begins.
