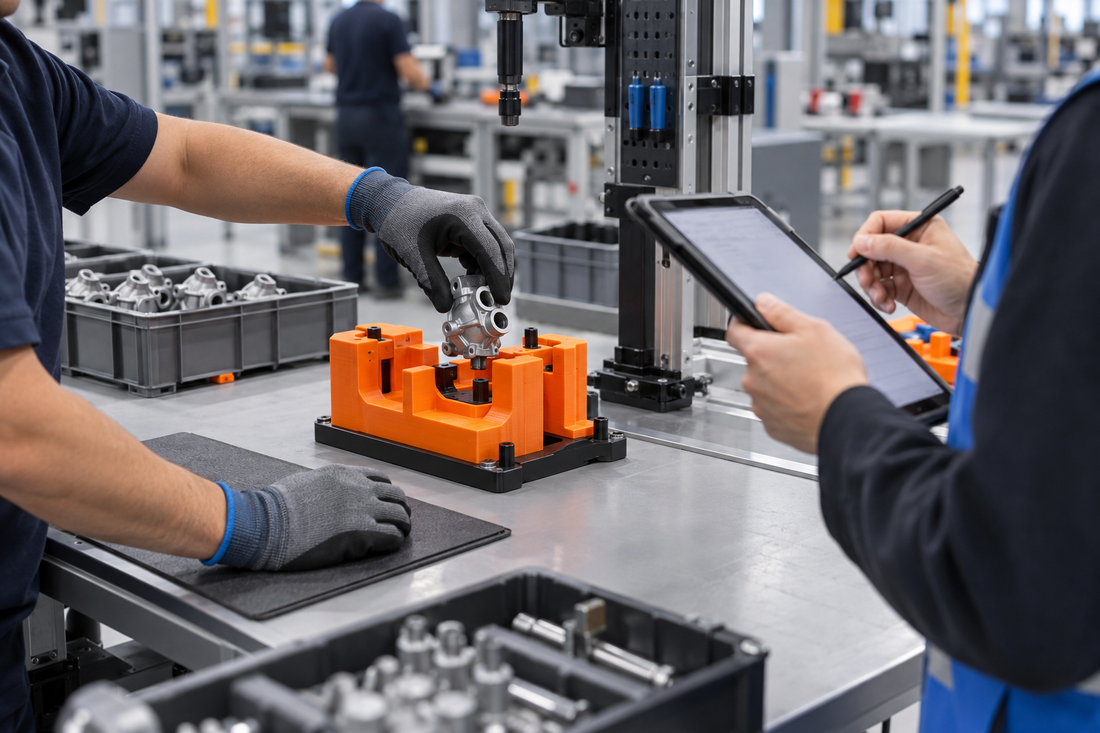

An ergonomic review for a custom 3D printed assembly aid should start with the real task, representative users, work height, reach, force, repetition, duration, part flow, grip and tool clearance, insertion and removal path, visibility, error recovery, and cleaning or maintenance needs. Trial the aid at the actual workstation, record problems and revisions, and let the buyer’s qualified team approve the final work method.
Review the work system, not only the printed shape
An assembly aid can position a component correctly and still create an awkward reach, pinch exposure, obstructed view, poor wrist angle, or unnecessary handling step. The useful review boundary includes incoming part presentation, the fixture, hand tools, fasteners, operator position, work surface, finished-part removal, rejected-part handling, and replenishment. The supplier can help manufacture controlled revisions, but the buyer owns workplace assessment, training, safety, and release decisions.
| Review input | What to provide or observe | Decision it supports |
|---|---|---|
| Task and sequence | Every load, align, hold, fasten, inspect, remove, clear, and reset step, including exceptions. | Whether the aid removes handling or merely moves it elsewhere. |
| User range | Representative operators, handedness, gloves, accessibility needs, training level, and approved accommodation process. | Whether one geometry and position fit the intended user group. |
| Posture and reach | Work height, horizontal and vertical reach, line of sight, shoulder position, wrist angle, and seated or standing use. | Fixture height, tilt, rotation, location, and part presentation. |
| Force and grip | Insertion, removal, clamping, actuation, tool, and recovery forces; grip type and contact area. | Handles, levers, clearances, support, and whether another method is needed. |
| Repetition and duration | Cycle pattern, batch length, shift exposure, changeovers, micro-pauses, and variable work. | Whether a brief trial represents real use and when reevaluation is needed. |
| Environment | Lighting, noise, temperature, contamination, cleaning, vibration, PPE, nearby equipment, and space constraints. | Visibility, material, color, finish, retention, cleaning, and workstation placement. |
| Failure and recovery | Misloaded parts, jams, dropped hardware, stuck assemblies, rework, and removal of a wrong variant. | Safe access, release features, status control, and escalation rules. |
Define fit and non-fit before design release
This approach can fit non-safety assembly nests, support cradles, orientation aids, part-presenting trays, alignment guides, holders, and other aids whose geometry and use can be evaluated at a controlled workstation. It is not a substitute for machine guarding, lockout procedures, lifting-device qualification, powered-tool assessment, medical advice, industrial-hygiene review, or a qualified ergonomics and safety program. Pause when the aid carries people, restrains hazardous energy, substitutes for a guard, handles unknown loads, or could create a consequential failure.
Run a representative trial
- Freeze the candidate aid revision, mating-part revisions, hardware, work surface, tool set, and trial workstation.
- Record the intended sequence and credible wrong, jammed, and recovery conditions before observing users.
- Use representative operators under the buyer’s approved review process; do not infer a user range from one designer or one short demonstration.
- Observe hand paths, reach, posture, grip, visibility, part presentation, tool access, removal, reset, replenishment, and exception handling.
- Record each issue against a feature or work-method step, assign an owner, and separate design changes from training or workstation changes.
- Retest affected steps after revision, then identify the released file, approved work method, acceptance owner, and change triggers.
Production risks to control
- Prototype comfort mistaken for production approval: a few cycles may not represent the full batch, shift, product mix, or exception rate.
- One operator treated as universal: body size, handedness, gloves, mobility, and experience can change the interaction.
- Fixture-only optimization: moving the aid can worsen incoming-part reach, tool clearance, visibility, or finished-part removal.
- Uncontrolled revision: a small geometry change can alter hand clearance, insertion force, posture, and compatibility.
- Wear and contamination: rounded locators, debris, damaged surfaces, or cleaning residue can change effort and recovery behavior.
- Missing exception path: operators need a controlled response when a part jams, is misloaded, or cannot be removed normally.
Make an assembly-aid request quote-ready
- Controlled aid and mating-part files, units, revisions, quantities, product variants, workstations, and intended use.
- Task sequence, work height, incoming and outgoing part locations, representative user range, gloves or PPE, and approved accessibility inputs.
- Known force, reach, visibility, grip, clearance, repetition, duration, cleaning, contamination, and environmental constraints.
- Hand tools, fasteners, inserts, purchased hardware, sensors, clamps, labels, color rules, and prohibited contact surfaces.
- Trial quantity, representative conditions, buyer review method, acceptance authority, revision loop, production quantity, spares, packaging, and destinations.
Use production 3D printing as the commercial owner. The production jigs and fixtures guide covers broader tooling control, the ergonomic hand-tool approval guide covers tools held and manipulated by the operator, and the quality-control guide helps define holds, evidence, and release.
Ergonomic review FAQs
Can a print supplier certify that an assembly aid is ergonomic?
A responsible supplier should not make a universal claim from CAD or a photograph. The buyer’s qualified team should evaluate the complete task, representative users, actual workstation, production pattern, exceptions, and application-specific requirements.
Is a digital model enough to approve reach and clearance?
It can support screening, but a representative physical trial can reveal glove clearance, friction, flex, visibility, part variation, tool access, and recovery problems that a model may not capture.
When should the review be repeated?
Repeat the affected review when the aid, mating part, tool, hardware, workstation, work height, sequence, user population, PPE, cleaning process, demand pattern, or known failure mode changes.
Final release decision
Release the assembly aid only when the buyer has connected the controlled revision to an approved task, representative trial, documented issues and dispositions, workstation location, work method, inspection or condition checks, and named acceptance authority.
