Creality Ender-3 V3 Review (2026): Fast CoreXZ, Clear Limits
Share
Verdict: The Creality Ender-3 V3 is one of the more convincing modern bed-slingers: fast in normal profiles, unusually rigid, easy to calibrate, and capable of clean PLA, PETG, and TPU work. It fits hobbyists and small shops that value open access and low cost. Skip it for enclosed-material work, unattended production, or if a mature multi-color system is essential.
Research disclosure: JCPRINTFARM has not hands-on tested this exact printer. This review is based on Creality's current product and support documentation plus independent hands-on reporting from Tom's Hardware and Aurora Tech. Performance observations are attributed to those sources, not presented as our own tests.

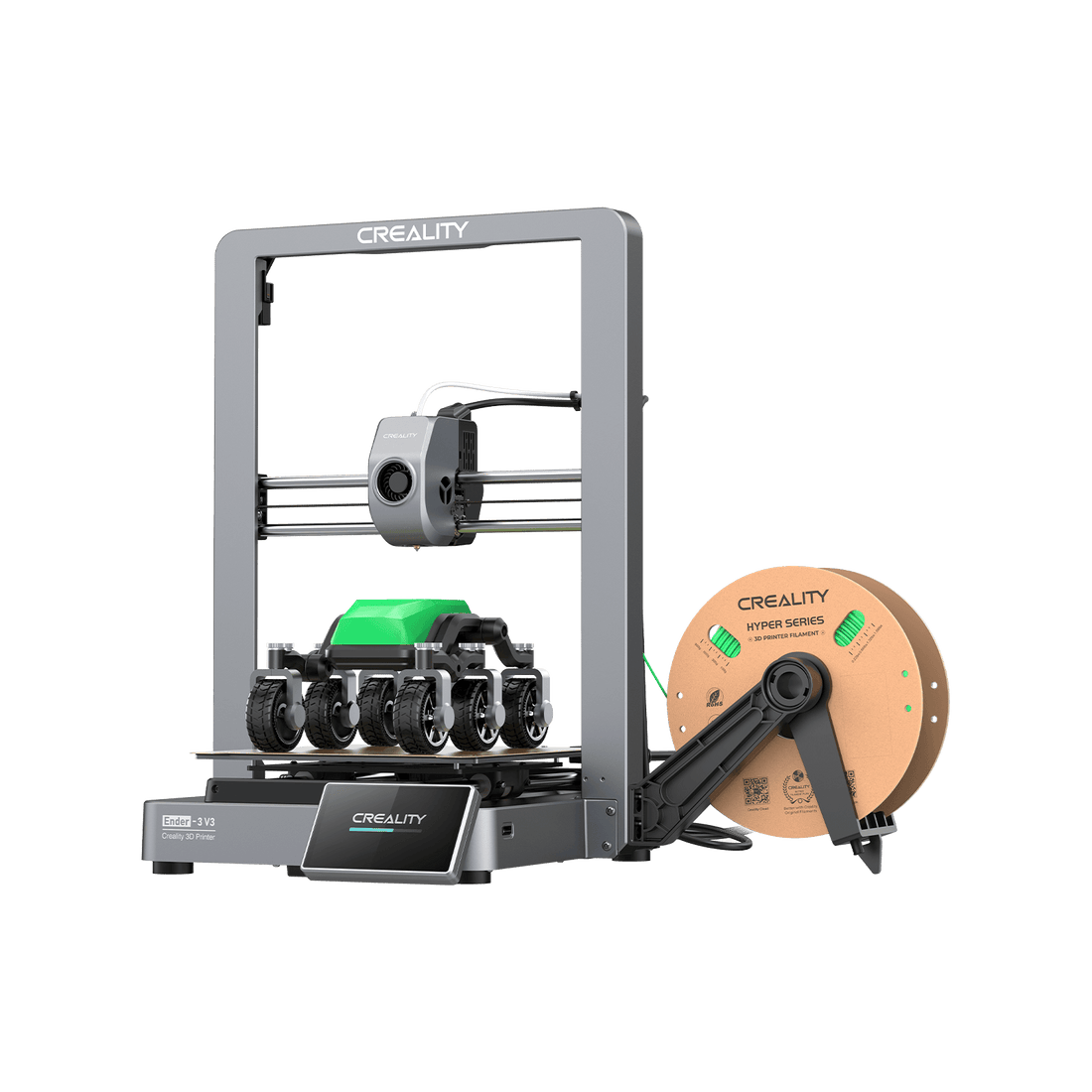

What the Ender-3 V3 is
The exact model reviewed here is the standard Ender-3 V3, sometimes labeled the Ender-3 V3 CoreXZ. It is not the cheaper Ender-3 V3 SE, the V3 KE, or the larger V3 Plus. Creality rebuilt the familiar open-frame bed-slinger around a die-cast metal base and gantry, a 220 × 220 × 250 mm build area, automatic calibration, and a CoreXZ belt arrangement that couples X and Z motion.
CoreXZ does not turn the machine into CoreXY: the build plate still travels in Y, so tall parts still move back and forth. Its practical value is a compact motion system, reduced moving mass around the toolhead, and fast Z movement. The result is a much more integrated printer than the old kit-like Ender-3 platform, but it remains an open machine with the limits that implies.
Who should buy it—and who should skip it
Best fit: beginners who want automatic setup without giving up a mod-friendly platform; experienced hobbyists who want a fast, compact PLA/PETG machine; and small production users who can supervise open-frame printers and qualify their own profiles. The side-mounted spool and rigid frame are sensible choices for high-speed bed-slinger work.
Skip it: if ABS, ASA, nylon, or other warp-sensitive materials are routine; if children or shared spaces need protection from hot and moving parts; if you need fleet-grade remote monitoring out of the box; or if multi-color printing is the central purchase reason. An enclosure, fire-aware placement, ventilation, and a more controlled material workflow can cost enough to change the value comparison.
Key specifications in context
| Process | FDM/FFF, open-frame bed-slinger with CoreXZ motion |
|---|---|
| Build volume | 220 × 220 × 250 mm |
| Extruder and nozzle | Direct drive; 0.4 mm quick-swap tri-metal nozzle; up to 300°C |
| Bed | Flexible PEI-coated spring steel; heated |
| Speed claims | 600 mm/s maximum and 20,000 mm/s² maximum acceleration; Creality identifies about 300 mm/s as typical |
| Calibration | Automatic bed leveling and Z offset, plus input shaping |
| Connectivity | USB drive, WLAN, and Creality Cloud; 4.3-inch touchscreen |
| Machine size and weight | 358 × 374 × 498 mm; about 7.8 kg |
The 600 mm/s number is a ceiling, not a production promise. Tom's Hardware reported that ordinary slicer profiles stay closer to 200–300 mm/s and still found the V3 exceptionally quick for a bed-slinger. Real throughput depends on part geometry, acceleration distance, volumetric flow, cooling, material, and the quality target. A small part may never reach the headline speed.
Strengths
A more coherent Ender design
The integrated base and gantry reduce the number of joints that can work loose. Assembly is substantially simpler than classic Ender kits, while automatic leveling and Z-offset calibration remove the paper-and-knob ritual. That matters more than novelty: fewer setup variables make first-print success and repeatability more attainable.
Useful speed, not just a specification
Independent hands-on testing supports the conclusion that this is a genuinely fast bed-slinger, even when it is not driven at the 600 mm/s maximum. The direct-drive extruder, high-flow hotend, dual part-cooling fans, input shaping, and rigid structure work as a system. For PLA prototypes, organizers, fixtures, and short-run parts, that can compress iteration time meaningfully.
Accessible material path
The side spool location avoids putting a kilogram of filament at the top of the gantry. Direct drive is helpful for TPU, while the 300°C hotend leaves temperature headroom. Creality's quick-swap nozzle is convenient, though it is a proprietary integrated format rather than a generic brass nozzle. Stock the correct spare before the printer becomes production-critical.
Open-platform appeal
The machine's Klipper-derived software and active user community appeal to operators who want more control than a sealed appliance offers. That flexibility has a cost: unsupported modifications can create maintenance and security work, and firmware changes should be tested before fleet deployment.
Limitations and workflow costs
It is still an open bed-slinger
The moving bed places inertial demands on tall or heavy parts. Open construction makes ambient temperature and drafts part of the process. PLA, PETG, and TPU are the natural lane. Creality lists broader material compatibility, but nozzle temperature alone does not create a controlled chamber, safe emissions plan, or validated engineering-material workflow.
Fast printing moves the bottleneck
High speed increases sensitivity to dry filament, clean build surfaces, cooling, nozzle condition, belt condition, and profile quality. It also means more frequent finished-part removal if the printer is kept busy. An operator still has to inspect first layers and parts; the base configuration should not be mistaken for autonomous production equipment.
Ecosystem and replacement parts
The integrated nozzle simplifies swaps but creates a model-specific consumable. The CoreXZ belt path is less familiar than conventional lead-screw Z systems. Buyers should verify that nozzles, belts, build plates, hotend assemblies, and support documentation are available in their region. Low purchase price does not compensate for long downtime.
Cloud and network choices need policy
Wi-Fi and Creality Cloud can be convenient, but production users should decide deliberately whether printers belong on a segmented network, whether cloud transfer is acceptable, and how files are retained. USB remains useful when local-only operation is preferred.
Print quality and realistic expectations
Tom's Hardware reported strong print quality, quick setup, and a 14-minute speed-test Benchy, while also making clear that speed-test settings are not the same as ordinary quality profiles. Aurora Tech's detailed hands-on review similarly examined setup, standard prints, retraction, tolerances, overhangs, and high-speed behavior. Taken together, the evidence supports a capable machine, but not a claim that every model should be printed at maximum speed.
For useful parts, start with the manufacturer's conservative profile, verify extrusion and first-layer consistency, then increase acceleration or speed one variable at a time. Record the profile with the material lot and nozzle. A farm should qualify repeatability across several plates, not choose settings from a single showcase print.
Lifecycle and availability in 2026
Creality maintained a live exact-model product page and a dedicated Ender-3 V3 support guide when checked on October 3, 2026. The official US storefront also showed an exact-model listing. Price and stock change frequently, so compare the complete delivered package and seller support rather than relying on a temporary sale.
The similar names create the largest buying hazard. Check the order confirmation for Ender-3 V3/CoreXZ. The SE and KE have different motion systems and specifications; the Plus has a larger build volume. Parts and reviews are not automatically interchangeable.
Alternatives
- Bambu Lab A1: stronger fit when polished software and automatic material-system integration matter more than open modification.
- Creality K1C: enclosed CoreXY alternative for buyers who need a more controlled thermal environment, though ventilation and material qualification still matter.
- Creality Hi: consider it when current Creality ecosystem and multicolor positioning outweigh the V3's simpler, lower-cost format.
- Ender-3 V3 Plus: the related choice when the 220 × 220 mm plate is the real constraint; budget for the larger moving bed and footprint.
Final verdict
The Ender-3 V3 is a sensible endpoint for the classic Ender idea: affordable, accessible, and configurable, but far less dependent on manual setup. Its CoreXZ architecture and rigid frame deliver credible speed for normal desktop materials. Buy it for supervised PLA, PETG, or TPU work and a mod-friendly workflow—not for enclosure-dependent materials, autonomous farm operation, or a promise that every print will run at 600 mm/s.
