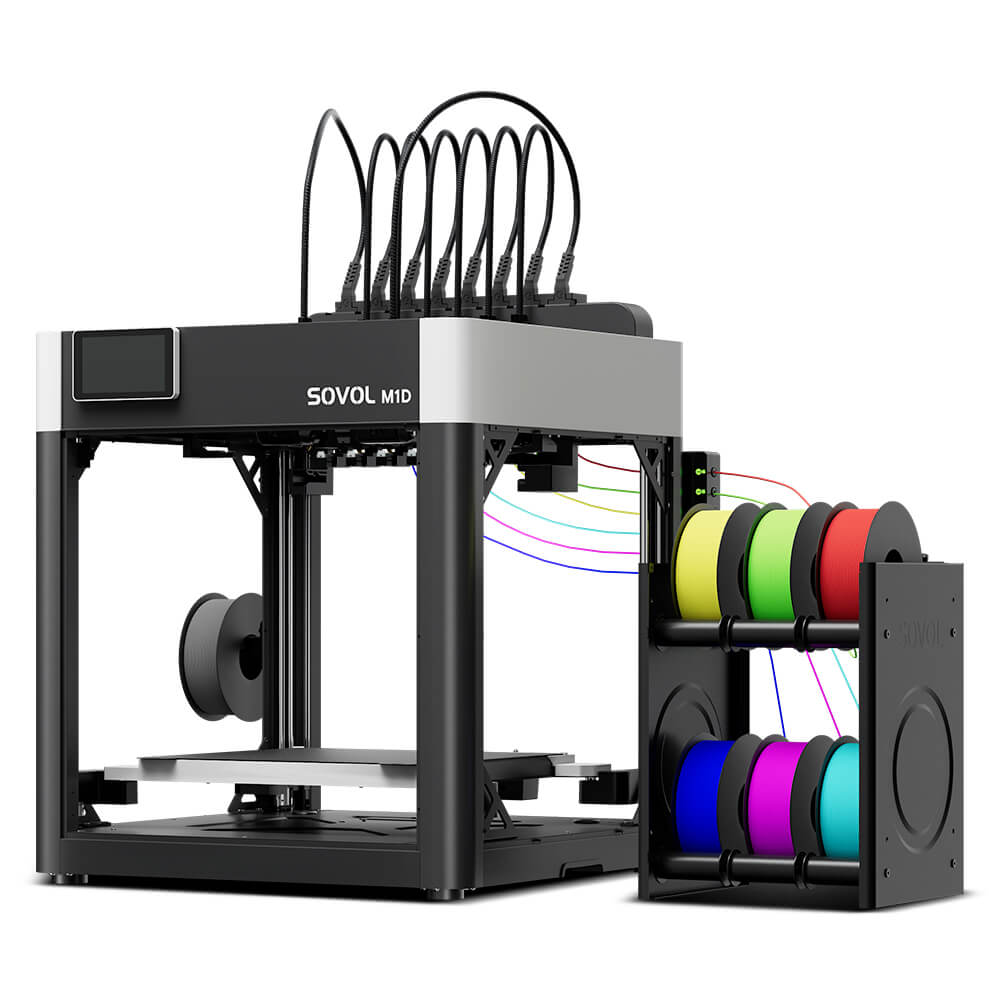

Sovol M1D Essential IDEX tool-changing 3D printer with six-channel filament system in official product render

Sovol M1D Review (2026): Pre-Order Buyer Analysis

Verdict: The Sovol M1D is an unusually ambitious IDEX toolchanger: one fixed head, six swappable heads, low-purge multi-material printing, and genuine Copy and Mirror modes. On paper it fits prototype teams and advanced makers better than ordinary color work. But it is still a pre-order machine without mature production-owner evidence, so risk-averse shops should wait for delivered-unit testing.

Research disclosure: JCPRINTFARM has not tested a Sovol M1D. This preview and buyer analysis uses Sovol's current product page, live product data, setup and material guidance, plus independent reporting from Tom's Hardware, CNX Software, Notebookcheck, All3DP, and Print3DIndex. No source available to us establishes long-term production reliability. Specifications, pricing, and US pre-order status were rechecked September 28, 2026.

What the Sovol M1D is

The M1D combines independent dual extrusion with an automatic tool changer. Sovol calls the system DualX. The left carriage carries one fixed toolhead; the other carriage can select among six parked toolheads. Up to seven colors or materials can therefore remain assigned to separate melt paths, while the two independent carriages also support Copy and Mirror production.

This architecture is different from a multi-spool feeder that sends several filaments through one hotend. Dedicated heads can remain loaded and preheated, reducing long unload-load-purge cycles and material mixing. Sovol states that the mechanical exchange can take about five seconds. The qualifier matters: travel, wiping, priming, pressure stabilization, and the sliced toolpath can make the complete transition longer.

There are two versions. The M1D Essential is open-frame and aimed primarily at PLA, PETG, TPU, and PVA. The Advanced adds an enclosure and active chamber heating up to 60 °C for ABS, ASA, PA, and PC workflows. Both use the same basic DualX concept. The product is currently sold as a pre-order, with Sovol estimating shipment between late November and mid-December 2026.

Who should consider it - and who should wait

Best fit: technically comfortable makers, design labs, education teams, and prototype shops that repeatedly need four to seven colors, soluble supports, rigid-plus-flexible parts, different nozzle roles, or paired Copy and Mirror output. The Advanced version is the relevant configuration when a 60 °C chamber is part of the process plan.

Wait or skip: production teams that need proven uptime now; buyers whose work is mostly single-color PLA or PETG; users unwilling to maintain several hotends, docks, and filament paths; and anyone treating an estimated ship window as a guaranteed delivery date. A current retail toolchanger such as the Snapmaker U1 is easier to evaluate from delivered machines today, though it has four rather than seven available tools.

Key specifications in useful context

Specification Sovol M1D Why it matters
Process FFF/FDM, IDEX plus automatic tool changing Two independent carriages enable Copy and Mirror modes; six docked tools extend the second carriage.
Tool arrangement One fixed plus six swappable toolheads Up to seven dedicated colors or materials, but also seven nozzles, heaters, sensors, and offsets to manage.
Maximum build volume 300 × 300 × 350 mm in compatible modes The headline envelope does not apply to every IDEX workflow; the common area narrows when both carriages must reach one model.
Seven-head common area 240 × 300 × 350 mm A seven-material part cannot use the full advertised X width.
Copy / Mirror area Up to about 178 / 140 × 300 × 350 mm per part Parallel output is useful only when the parts fit each mode's divided workspace.
Hotend and bed 300 °C nozzle; 100 °C bed Sovol does not rate the standard machine for PPS or PPS-CF; a future 350 °C kit is not a current included capability.
Standard nozzle 0.4 mm hardened steel Better suited to abrasive filament than brass, while drying and thermal requirements still govern composite success.
Motion claims Up to 600 mm/s and 10,000 mm/s² Machine ceilings, not assured production settings. Flow, cooling, material, geometry, and swaps set real throughput.
Chamber Essential: open; Advanced: enclosed and actively heated to 60 °C The configuration changes material fit and facility planning; do not treat the two versions as thermally equivalent.
Calibration Camera-assisted XY offsets, automatic secondary-head Z compensation, eddy-current bed scanning Automation targets the alignment burden that can make multi-head printers difficult to operate.
Filament system Six-channel automatic loading and monitoring for swappable tools Runout, clog, and tangle monitoring support the docked-head workflow; the fixed head provides the seventh path.
Software OrcaSlicer workflow; open-source hardware, firmware, and software promised Production buyers should verify what source files and stable profiles are actually published at delivery.
Lifecycle Pre-order, not established normal retail stock Sovol currently estimates late-November to mid-December shipment; specifications and timing can change.

Why the architecture is compelling

Dedicated hotends attack purge waste

Shared-nozzle systems must clear the previous color or polymer from one melt zone. That can consume substantial filament and extend a transition, especially when a light color follows a dark one or two materials need different temperatures. The M1D parks complete heads, so most filament stays in the intended path.

Near-zero purge is a better description than zero waste. Nozzles can still need wiping, priming, ooze control, or a small structure to restore pressure. Actual savings depend on the model and slicer settings. Before buying, slice a representative job on both architectures and compare model material, purge or prime material, transition count, total time, and the cost of a failed change.

IDEX adds more than extra colors

Copy Mode can produce two matching parts simultaneously; Mirror Mode can produce a left-right pair. That can be valuable for fixtures, handles, brackets, and mirrored assemblies. It is not a universal doubling of throughput: the per-part X envelope is reduced, both sides share the machine and bed, and one fault can still interrupt the job.

The fixed head can stay assigned to a main polymer or support material while the second carriage moves among six colors or functions. For a part dominated by one material, that can reduce tool exchanges. It can also isolate a soluble support path from model nozzles or reserve different diameters for detail and bulk deposition, provided the slicer and calibration workflow support the plan.

The Advanced version has meaningful thermal hardware

A stated 60 °C actively heated chamber is materially different from an open printer or a passive cover. It can improve process stability for shrink-prone ABS, ASA, nylon, and PC parts. That does not guarantee a particular geometry, strength, emissions result, or success with every grade. Large engineering parts still need drying, ventilation, wear planning, and qualification.

The Essential is a more natural fit for PLA, PETG, TPU, and PVA. Buying it for engineering polymers on the assumption that an improvised cover is equivalent to the Advanced defeats the point of a configured system. Compare the delivered cost of the correct version, installation, dry storage, consumables, and ventilation.

Mode-dependent volume is still useful

A 300 × 300 × 350 mm single-mode envelope is generous for desktop work. The 240 mm seven-head common width remains useful for many multicolor prototypes and support-intensive models. But product pages that lead with the largest number can hide which projects actually fit. The right purchasing measurement is the sliced footprint in the intended mode, including brims, prime structures, tool clearance, and safety margin.

Copy and Mirror output require narrower parts, so measure recurring SKUs rather than assuming the full bed splits evenly. If most duplicated parts fit under the published per-part limits, IDEX can earn its floor space. If they do not, two smaller independent printers may provide better scheduling and fault isolation.

The biggest reasons to be cautious

Production reliability is not yet established

The most important M1D fact is not a temperature or speed: production customers have not accumulated a mature public record on delivered retail units. Sovol says the design has passed prototypes, pilot production, and ongoing reliability testing. That is useful manufacturer evidence, not a substitute for months of independent owner data.

Tom's Hardware, CNX Software, Notebookcheck, and All3DP reported the announced architecture and campaign specifications rather than a long-term retail endurance test. A pre-production user report can expose useful behavior, but firmware, hardware, and assembly may change before delivery. Treat the M1D as a promising platform to pilot, not a known fleet standard.

Seven tools multiply failure and maintenance points

Dedicated heads reduce shared-nozzle contamination, but the machine now depends on several heaters, thermistors, nozzles, extruders, filament routes, cameras, docks, connectors, and calibrated offsets. A dirty coupling face or worn nozzle may affect only certain colors, making intermittent defects harder to trace.

A serious operating plan needs labeled tools, a docking inspection routine, offset test files, nozzle-life records, spare wear parts, and rules for firmware changes. Ask Sovol what parts will be regionally stocked, which modules users can replace, and what turnaround applies to a failed carriage, camera, or locking mechanism.

Tool change time is not total transition time

The advertised five seconds describes the mechanical exchange under Sovol's conditions. A finished transition may include travel to the dock, parking, pickup, heating or stabilization, wiping, priming, and travel back to the model. Frequent small color islands can therefore remain expensive even when the lock itself is fast.

Throughput claims should come from slicing the customer's actual geometry. A seven-color display part with thousands of swaps behaves differently from a two-material prototype with a few support interfaces. Headline speed also does not represent the motion, cooling, or volumetric flow that every material and surface can tolerate.

Open source is a delivery claim until files are published

Sovol says the hardware, firmware, and software will be open source. That direction can help repairability, customization, and long-term community support. At pre-order stage, buyers should verify the actual repositories, licenses, source completeness, build instructions, configuration files, and timing rather than treating a future commitment as a delivered feature.

Open code also does not remove the cost of maintaining a custom production configuration. If a business changes firmware or motion parameters, it owns validation, documentation, update control, and recovery. Preserve known-good versions and separate experiments from customer production.

Delivery and final specifications can move

The original Kickstarter campaign ended August 27, 2026, and Sovol's store now offers US pre-orders. The page estimates shipment between late November and mid-December. That is clearer than an undated announcement, but it is still an estimate rather than proof of normal stocked availability.

Do not schedule customer commitments around an unreceived machine. Confirm payment and cancellation terms, regional shipping, taxes, warranty start, return policy, and whether the Advanced enclosure ships separately. Sovol says the Advanced may arrive in two boxes, which matters for receiving and commissioning.

Material and workflow reality

Separate heads make mixed polymers easier to route, not automatically compatible. PLA and TPU can serve useful rigid-flexible designs, while PVA may enable soluble supports, but adhesion, shrinkage, bed temperature, standby ooze, moisture, and purge strategy remain application-specific. PVA and PA demand careful dry storage; ABS, ASA, and PC demand ventilation and thermal discipline.

The standard 300 °C hotend and 100 °C bed define the supported platform today. Sovol explicitly says PPS and PPS-CF are not officially rated on the standard configuration. A possible future 350 °C kit should not appear in a purchase justification until it has final specifications, availability, and a qualified process.

For production, create a material-tool map and keep demanding polymers on known heads. Record nozzle hours for abrasive filaments, run alignment checks after collisions or service, and qualify the full part rather than a small sample. Camera detection and automatic calibration help, but they do not replace dimensional inspection or mechanical testing.

Alternatives worth comparing

  • Snapmaker U1: four complete toolheads, current retail availability, a 270 mm cube, and a simpler tool count. Compare when four materials are enough and delivered-unit evidence matters.
  • Prusa XL+: independent-tool workflow from a more established shipping platform, with fewer tools than the M1D but mature support context and a different price position.
  • Bambu Lab H2D: current enclosed dual-nozzle ecosystem. It is less mechanically expansive than seven dedicated paths but easier to judge as an available product.
  • QIDI Q2: a more conventional single-nozzle platform with active chamber heating. Compare it when engineering-material capability matters more than dedicated multicolor tools.
  • Multiple simple printers: two or more single-head machines can isolate failures and run unrelated jobs. They cannot reproduce one seven-material model automatically, but may win on fleet uptime and repair simplicity.

How to evaluate the M1D before committing

  1. List representative parts and the exact colors, materials, and support interfaces each needs.
  2. Slice them in the intended mode and confirm the mode-specific build envelope, not only the 300 mm headline.
  3. Compare time, prime waste, operator steps, and failure consequences with a shared-nozzle system and with several simpler printers.
  4. Choose Essential or Advanced from material requirements, not price alone.
  5. Verify current delivery, warranty, return, replacement-part, and open-source-file status in writing.
  6. Commission one unit as a pilot; measure tool registration, repeatability, transitions, maintenance time, and recovery from common faults.
  7. Scale only after the delivered machine meets acceptance criteria on your parts.

Final verdict

The Sovol M1D has a strong technical idea behind it. Dedicated hotends can slash shared-nozzle purge, IDEX adds real parallel modes, and the Advanced configuration supplies active chamber heat rather than merely a cover. The same design also concentrates unusual mechanical and software complexity into a first-generation platform.

For experimental multi-material work, soluble supports, and recurring parts that fit Copy or Mirror mode, the M1D deserves a pilot. For a production deadline or a fleet purchase today, waiting for delivered retail units, stable source releases, spare-parts evidence, and independent endurance reporting is the more defensible choice.
