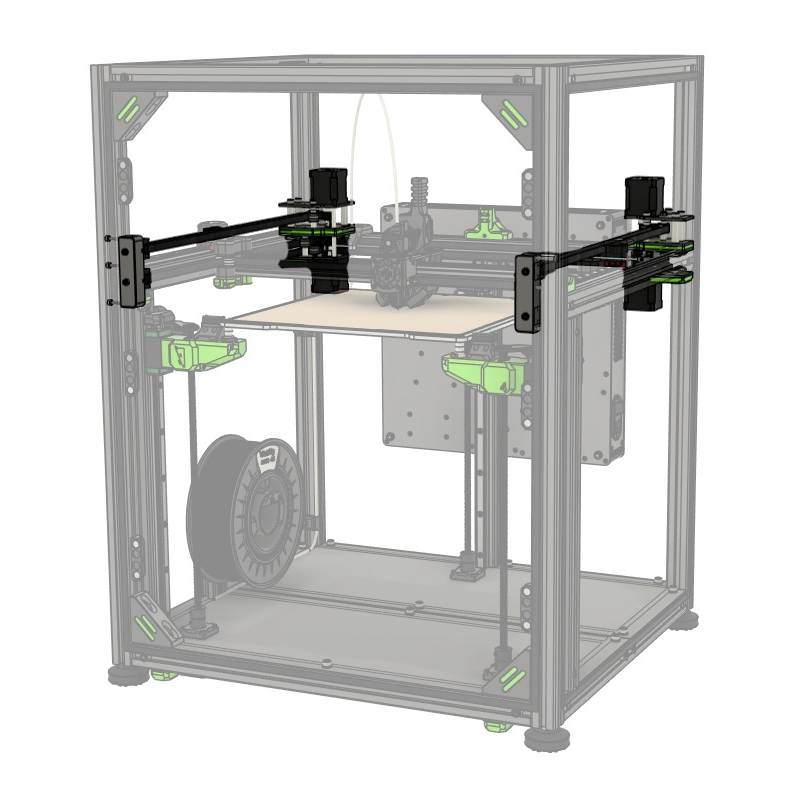

Rat Rig V-Core 4.0 IDEX printer official build-guide CAD rendering

Rat Rig V-Core 4 Review (2026): Build It or Buy 4.1?

Verdict: The Rat Rig V-Core 4 is a capable large-format CoreXY kit for experienced builders who value an open platform, 300–500 mm size choices, and upgradeable CoreXY, Hybrid, or IDEX motion. In 2026, however, the original 4.0 is a legacy purchase: most buyers should price the current V-Core 4.1 or its official upgrade before accepting an older kit.

Research disclosure: This is a research-based review, not a hands-on test by JCPRINTFARM. It uses Rat Rig's official V-Core 4.0 build documentation and files, current 4.1 product and 4.0-to-4.1 upgrade information, independent launch reporting, an independent detailed build account, and third-party video coverage. Rat Rig kits vary by size, motion mode, electronics, toolhead, and owner assembly, so performance figures are not treated as universal measurements.

What the Rat Rig V-Core 4 is

The V-Core 4.0 is an open-frame, self-assembly CoreXY printer platform sold in nominal 300, 400, and 500 mm size classes. It was designed as a configurable system rather than a fixed appliance: buyers could start with a single-tool CoreXY arrangement, add two extra Y-axis motors for Rat Rig's Hybrid layout, or configure two independent toolheads for IDEX work. RatOS, Rat Rig's Klipper-based software distribution, provides the supported firmware path.

The model name now needs a date attached. Rat Rig's store sells the V-Core 4.1, while its current upgrade kit explicitly describes upgrades for existing V-Core 4.0 CoreXY, Hybrid, and IDEX machines. The original 4.0 build guides and CAD/BOM resources remain online. That makes the 4.0 supportable and upgradeable, but no longer the version a new buyer should assume they are receiving.

Who should buy it—and who should skip it

Best fit: experienced printer builders who want a large, mechanically open platform; need a real 400 or 500 mm cube often enough to justify it; can assemble and verify mains-powered equipment; and prefer repairable, configurable hardware over an appliance workflow. It is also relevant to owners who specifically want to experiment with Hybrid motion or IDEX without abandoning one frame.

Skip it if: you want a printer that produces qualified parts shortly after unboxing; nobody on the team owns wiring, firmware, tuning, and maintenance; the machine will sit in a public classroom without a finished enclosure and safety review; or nearly all jobs fit a smaller turnkey printer. A large kit can be rewarding, but assembly and commissioning are part of the product.

Key specifications in useful context

Area V-Core 4.0 What it means in practice
Process Open-frame FFF/FDM CoreXY kit Final capability depends on the selected electronics, hotend, extruder, bed, enclosure, and quality of assembly.
Nominal size choices 300, 400, and 500 mm classes Official 4.0 guides and files cover all three sizes; the largest machine demands substantial bench, service, and motion clearance.
Motion configurations CoreXY, Hybrid, and IDEX Hybrid adds Y-axis drive motors for motion headroom; IDEX adds a second independent toolhead for two-material, copy, and mirror workflows.
Z system Three independently driven lead screws Supports automated bed tramming, but correct assembly, alignment, lubrication, and configuration remain essential.
Probe and firmware path Beacon and RatOS/Klipper in Rat Rig's reference ecosystem Useful automation does not eliminate commissioning, input-shaper work, extrusion calibration, or configuration control.
Temperature and materials Configuration-dependent Do not buy from a generic maximum-temperature claim; verify the exact hotend, thermistor, heater, bed, nozzle, enclosure, and approved profile.
Enclosure Not a finished enclosed appliance by default Printing ABS, ASA, nylon, or other demanding materials requires a deliberate enclosure, ventilation, thermal, and material-handling plan.
Lifecycle Original 4.0 superseded by V-Core 4.1 Official 4.0 documentation remains available, and Rat Rig sells a version-specific 4.1 upgrade path.

Where the V-Core 4 remains compelling

Large-format choices without a closed appliance

The strongest buying argument is size combined with openness. The 400 and 500 mm variants can produce one-piece housings, fixtures, tooling, cosplay sections, molds, ducts, and prototypes that would need splitting on ordinary desktop printers. Because the architecture is documented and configurable, an owner can select motion components and toolhead hardware around a real application rather than accept one sealed bill of materials.

Large capacity should still be treated as a production constraint, not free space. A 500 mm machine occupies far more than a 500 mm square, and the frame needs room for wiring, spool handling, electronics access, toolhead motion, and an enclosure if one is added. Large beds take more power and time to stabilize. Long prints magnify spool, power, adhesion, and late-failure risk. The best reason to buy the 500 is a repeated set of parts that cannot be divided economically—not the possibility that one large job may appear later.

A platform that can change motion modes

Rat Rig launched V-Core 4 around three configurations. Standard CoreXY is the simplest and lightest toolhead path. Hybrid adds two Y-axis motors to increase motion authority, while IDEX introduces two independently moving toolheads. The latter can support two materials, soluble supports, duplication, and mirrored parts without forcing every color change through one nozzle.

Those options are not interchangeable marketing checkboxes. Additional motors, belts, drivers, wiring, and toolheads add mass, calibration, failure points, and cost. IDEX also divides usable space according to tool position and job mode. A buyer should choose the simplest configuration that solves recurring work. Adding IDEX for occasional decorative color is difficult to justify when a single-tool build is easier to tune and maintain.

Documented repairability and an official upgrade path

Rat Rig continues to host 4.0 build guides, downloadable files, and variant-specific resources. More importantly, the current 4.1 upgrade product names CoreXY 4.0, Hybrid 4.0, and IDEX 4.0 as source configurations. The kit adds a steel X gantry, a redesigned full-metal toolhead structure, an Orbitool O2S toolboard, and related cabling, with printed parts handled separately.

That upgrade path is unusually useful lifecycle evidence. It means an existing 4.0 is not automatically stranded. It also reveals why a buyer should not pay near-new money without comparing versions: Rat Rig says 4.1 targets thermal stability, part cooling, wiring integration, assembly, maintenance, and first-layer consistency. Those are operational improvements, not cosmetic trim.

RatOS lowers—but does not erase—the firmware burden

RatOS provides a maintained Klipper-oriented starting point for supported Rat Rig configurations. This is more approachable than inventing every pin assignment, macro, and calibration sequence from scratch. The official ecosystem also connects machine-specific build documentation with firmware setup and calibration.

A reference configuration is not a substitute for understanding the machine. Owners still need to verify motor direction, endstops, heaters, thermistors, fans, probe behavior, Z tramming, bed mesh, input shaping, pressure advance, extrusion, and material profiles. A customized hotend, controller, motor, or IDEX path may require configuration work beyond a default file. Production operators should version-control known-good configuration and record every hardware change.

Build and commissioning reality

An independent 1C3D build account budgets roughly two to four full days for assembly plus additional time for Klipper tuning and input-shaper calibration. That estimate is more useful than a box-opening video because it treats commissioning as work. Frame squareness, rail alignment, belt routing, Z alignment, cable management, and safe electrical termination all affect the eventual result.

Official guides are detailed, but a builder remains the final integrator. A rail installed under tension can bind. Unequal CoreXY belt tension can create diagonal artifacts. Poorly routed wiring can rub a belt or fatigue at a moving joint. A large AC bed and power supply introduce mains-voltage work that should be inspected by a qualified person when the builder is not competent to perform it. Initial thermal tests and protection checks should happen before unattended printing.

Commissioning should proceed in layers: mechanical movement by hand; power and protective-earth checks; low-risk electronics checks; heater and sensor verification; axis direction and endstop validation; Z alignment; probe and mesh validation; then conservative test prints. Only after a stable baseline should an owner pursue speed. A fast resonance graph does not prove dimensional accuracy, layer bonding, cooling capacity, or repeatable production yield.

Performance claims need configuration labels

Launch coverage emphasized high acceleration, fast tool swapping, Beacon probing, and the optional Hybrid and IDEX layouts. Independent video coverage also demonstrated that the large machine could move quickly. Those are useful signs of motion-system capability, but they are not a universal benchmark for every size and build.

A 300 mm CoreXY, a 500 mm Hybrid, and a 500 mm IDEX are materially different systems. Their moving mass, belt length, frame modes, toolhead mass, hotend flow, cooling, and safe acceleration differ. Print speed also depends on feature length, layer height, line width, polymer, temperature, and acceptable quality. The honest production metric is completed conforming parts per shift, including warm-up, setup, failures, maintenance, and post-processing.

For that reason, this review does not repeat a single maximum speed as if it describes the model. Buyers should request the exact configuration and test a representative part. If a used seller presents a fast demo cube, ask for large flat parts, tall walls, repeated first layers, and a long engineering-material job instead.

Materials and enclosure decisions

The V-Core 4's material capability is defined by what was built. The hotend sets temperature and flow limits; the nozzle sets wear resistance and diameter; the bed and surface affect adhesion; the enclosure and ventilation affect thermal control and emissions; and the extruder path determines flexible-filament behavior. A listing that merely says “V-Core 4” does not answer those questions.

PLA and PETG can be sensible open-frame materials with an appropriate toolhead and profile. ABS, ASA, nylon, polycarbonate, filled polymers, and other demanding materials need closer inspection. An enclosure may reduce drafts, but it can also raise electronics and motor temperatures if those components were not arranged for the environment. Filtration is not automatically equivalent to safe room ventilation. Hygroscopic materials require controlled drying and storage, and abrasive composites require a compatible nozzle and extrusion path.

Do not infer PEEK or PEI capability from an upgraded hotend alone. High-temperature polymers require an engineered thermal system, suitable motion and wiring components, controlled chamber conditions, and process validation. The V-Core 4 is flexible, but flexibility is not certification.

Limitations and hidden costs

The kit price is not the installed cost

Compare complete, landed configurations. Include electronics, single-board computer, toolhead, probe, bed, build surface, printed parts where required, wiring, enclosure panels, filtration, shipping, duties, tools, spare parts, and builder labor. Then include the opportunity cost of commissioning and troubleshooting. A partly assembled bargain can cost more than a current kit if hardware is missing or undocumented.

Build quality becomes machine quality

Two V-Core 4 machines with the same nominal size may not behave alike. Assembly accuracy, fastener torque, rail condition, belt alignment, crimp quality, firmware state, printed-part quality, and later modifications all matter. This variability is a strength for experts who want control and a weakness for teams expecting standardized assets.

The original 4.0 has known upgrade incentives

Rat Rig says the 4.1 changes address steel-gantry thermal stability, toolhead rigidity, cooling, integration, wiring, maintenance, and calibration behavior. We have not independently measured the difference. Still, an official upgrade built around those areas is a reason to inspect 4.0 carefully, especially for enclosed operation and repeatable first layers.

Large single machines concentrate risk

A large one-piece job can be valuable, but it ties up one machine and one spool path for a long time. If that machine stops, its entire capacity disappears. Several smaller printers can offer better parallelism and failure isolation when the parts can be distributed. The V-Core 4 earns its footprint when size or specialized motion solves a recurring bottleneck.

Buying a used V-Core 4.0

A used machine should be evaluated as a custom build, not only by brand and model. Ask for the original order or BOM, exact size and motion configuration, controller, single-board computer, drivers, motors, hotend, extruder, probe, bed voltage, power supply, nozzle, build surface, enclosure, firmware version, and all modifications. Confirm whether 4.1 upgrade components have already been fitted and whether the seller retained the displaced parts.

Inspect frame squareness, rail smoothness, pulley and idler condition, belt wear, lead screws, bed flatness, heater attachment, strain relief, protective earth, fusing, terminal quality, connectors, cable chains or umbilicals, and printed parts near heat. Request cold and fully heat-soaked first layers, a tall wall, dimensional artifacts across the bed, input-shaper results for each toolhead, and a multi-hour representative print. For IDEX, test both nozzles separately and together, then verify offsets, duplication, mirror mode, parking, ooze control, and usable build area.

Also check whether the exact configuration maps cleanly to current RatOS documentation. An undocumented custom controller or wiring scheme is not necessarily bad, but it transfers future support responsibility to the buyer. Price that responsibility explicitly.

Realistic alternatives

  • Rat Rig V-Core 4.1: the default comparison for a new purchase. It retains the open 300/400/500 mm platform and upgrade path while incorporating Rat Rig's current gantry, toolhead, cooling, wiring, and documentation refinements.
  • Original Prusa XL: its toolchanger is attractive for multi-material work and lower cross-contamination, while the V-Core offers larger size choices and deeper self-build control. The original XL is also superseded, so lifecycle and upgrade pricing matter on both.
  • Bambu Lab H2D: a more appliance-like enclosed ecosystem with dual-nozzle options and easier initial operation, but less open modification and a smaller build envelope than the largest V-Core configurations.
  • QIDI Plus4: a more appliance-like enclosed printer with active chamber heat and less build work, but a smaller build envelope and no V-Core-style IDEX path.
  • A Voron 2.4 or Trident build: a mature open-source kit ecosystem with extensive community knowledge. Compare actual size, enclosure design, sourcing, documentation, toolhead plan, and builder familiarity rather than treating all CoreXY kits as equivalent.
  • Several smaller enclosed printers: often the better production answer when parts can be divided across machines and uptime matters more than one-piece 400–500 mm capacity.

What to verify before ordering

  1. Confirm whether the quote is for V-Core 4.0 or 4.1 and record the exact size, motion configuration, voltage, and regional kit.
  2. Compare the full 4.0 purchase plus missing components and any 4.1 upgrade against a complete current 4.1 configuration.
  3. Export representative parts and verify actual IDEX or single-tool usable space, not only the nominal size label.
  4. Plan a rigid bench, electrical circuit, ventilation, enclosure, drying, service access, noise control, and safe installation route.
  5. Assign a named owner for assembly, firmware, calibration, maintenance, spares, and configuration records.
  6. Define an acceptance test covering the full bed, tall geometry, dimensional repeatability, required materials, and multi-tool behavior.
  7. Calculate cost from acceptable parts per week, including builder time, warm-up, failed jobs, maintenance, and inspection.

Is owning this platform the right first move?

A V-Core makes sense when large or specialized jobs recur often enough to pay for internal expertise. If demand is uncertain, the part is still changing, or the material and orientation are not qualified, outsourcing a pilot can expose the real constraint before a large kit occupies the workshop. JCPRINTFARM's project intake and production 3D printing pages provide a route for evaluating geometry and volume first.

Final verdict

The Rat Rig V-Core 4.0 remains an interesting large-format platform, not a simple consumer printer. Its strengths are genuine: three size classes, open documentation, configurable motion, a RatOS path, repairability, and an official upgrade route. Its liabilities follow from the same design: builder-dependent quality, complex commissioning, configuration-dependent specifications, a large footprint, and concentrated long-job risk.

Existing owners have a credible reason to maintain or upgrade it. Used buyers may find strong value when the exact build is documented and proven. New buyers should start with the V-Core 4.1 comparison and work backward only if a 4.0's price and condition clearly compensate for the older gantry, toolhead, cooling, wiring, and documentation generation. See the 3D printer review hub for more research-based comparisons.
